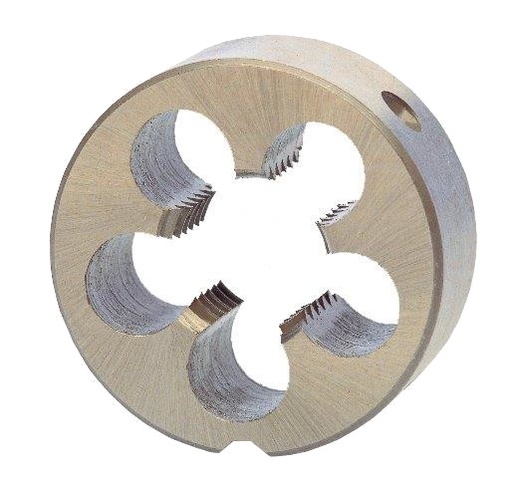

Round dies
HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.
Technical specificaties:
size = M3
pitch = 0,50mm
diameter = 20mm
thickness = 5mm
DIN EN 22568
material = HSS - G
right hand
fully ground
size = M4
pitch = 0,70mm
size = M5
pitch = 0,80mm
thickness = 7mm
size = M6
pitch = 1,00mm
size = M8
pitch = 1,25mm
diameter = 25mm
thickness = 9mm
size = M10
pitch = 1,50mm
diameter = 30mm
thickness = 11mm
size = M12
pitch = 1,75mm
diameter = 38mm
thickness = 14mm
size = M14
pitch = 2,00mm
size = M16
diameter = 45mm
thickness = 18mm
size = M18
pitch = 2,50mm
size = M20
size = M22
diameter = 55mm
thickness = 22mm
size = M24
pitch = 3,00mm
