Round dies

HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

• size = M3

• pitch = 0,50mm

• diameter = 20mm

• thickness = 5mm

• DIN EN 22568

• material = HSS - G

• right hand

• fully ground

Round dies

HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

• size = M4

• pitch = 0,70mm

• diameter = 20mm

• thickness = 5mm

• DIN EN 22568

• material = HSS - G

• right hand

• fully ground

Round dies

HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

• size = M5

• pitch = 0,80mm

• diameter = 20mm

• thickness = 7mm

• DIN EN 22568

• material = HSS - G

• right hand

• fully ground

Round dies

HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

• size = M6

• pitch = 1,00mm

• diameter = 20mm

• thickness = 7mm

• DIN EN 22568

• material = HSS - G

• right hand

• fully ground

Round dies

HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

• size = M8

• pitch = 1,25mm

• diameter = 25mm

• thickness = 9mm

• DIN EN 22568

• material = HSS - G

• right hand

• fully ground

Round dies

HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

• size = M10

• pitch = 1,50mm

• diameter = 30mm

• thickness = 11mm

• DIN EN 22568

• material = HSS - G

• right hand

• fully ground

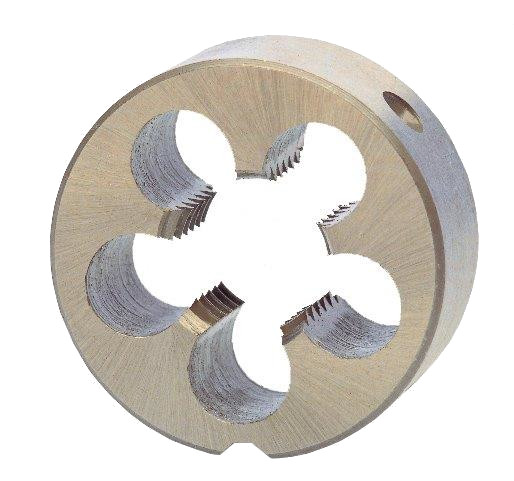

Round dies

HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

• size = M12

• pitch = 1,75mm

• diameter = 38mm

• thickness = 14mm

• DIN EN 22568

• material = HSS - G

• right hand

• fully ground

Round dies

HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

• size = M14

• pitch = 2,00mm

• diameter = 38mm

• thickness = 14mm

• DIN EN 22568

• material = HSS - G

• right hand

• fully ground

Round dies

HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

• size = M16

• pitch = 2,00mm

• diameter = 45mm

• thickness = 18mm

• DIN EN 22568

• material = HSS - G

• right hand

• fully ground

Round dies

HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

• size = M18

• pitch = 2,50mm

• diameter = 45mm

• thickness = 18mm

• DIN EN 22568

• material = HSS - G

• right hand

• fully ground

Round dies

HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

• size = M20

• pitch = 2,50mm

• diameter = 45mm

• thickness = 18mm

• DIN EN 22568

• material = HSS - G

• right hand

• fully ground
