Metal circular saw / sawing machine

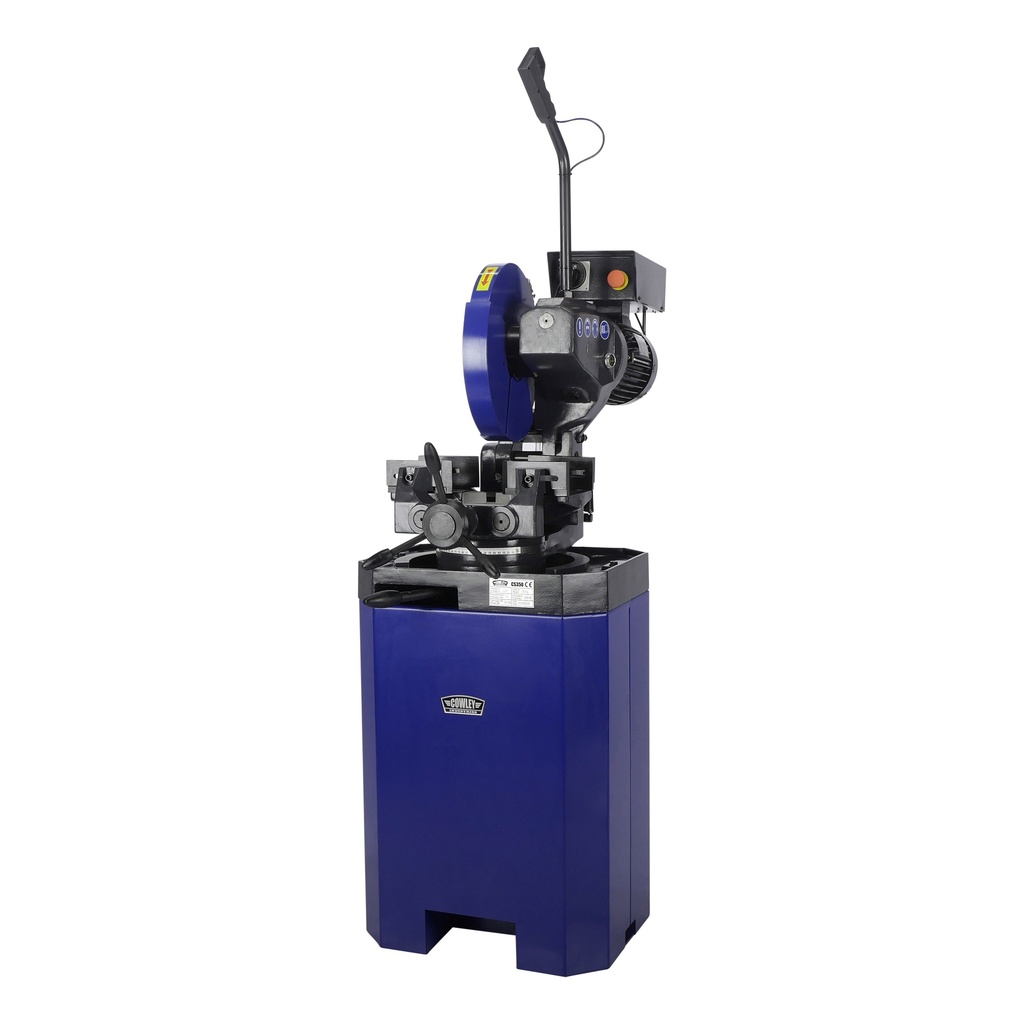

This Cowley circular saw is ideal for cutting and shortening round or rectangular metal materials. This robust model features the following useful features
Double clamp
Angle of the clamp can be adjusted
Rotatable head 45 degrees
Material stop
2 speeds
The machines comes with a saw blade of 350mm, a base of 470 x 580 x 770mm and a cooling unit.
Specifications:
saw blade diameter = 350mm
axle diameter = 32mm
cutting capacity circular 90 degrees = 120mm
cutting capacity rectangular 90 degrees = 140 x 100mm
cutting capacity circular 45 degrees = 105mm
cutting capacity rectangular 45 degrees = 100 x 100mm
blade speed 1 = 18rpm
blade speed 2 = 36rpm
max. opening clamp = 145mm
motor power = 1,3kW
voltage = 400V
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 770 mm |
| Largeur du produit | 580 mm |
| Hauteur du produit | 470 mm |
| Poids du produit | 190,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 980 mm |
| Largeur du paquet | 620 mm |
| Hauteur du paquet | 950 mm |
| Poids du Colis | 250,00 Kg |
