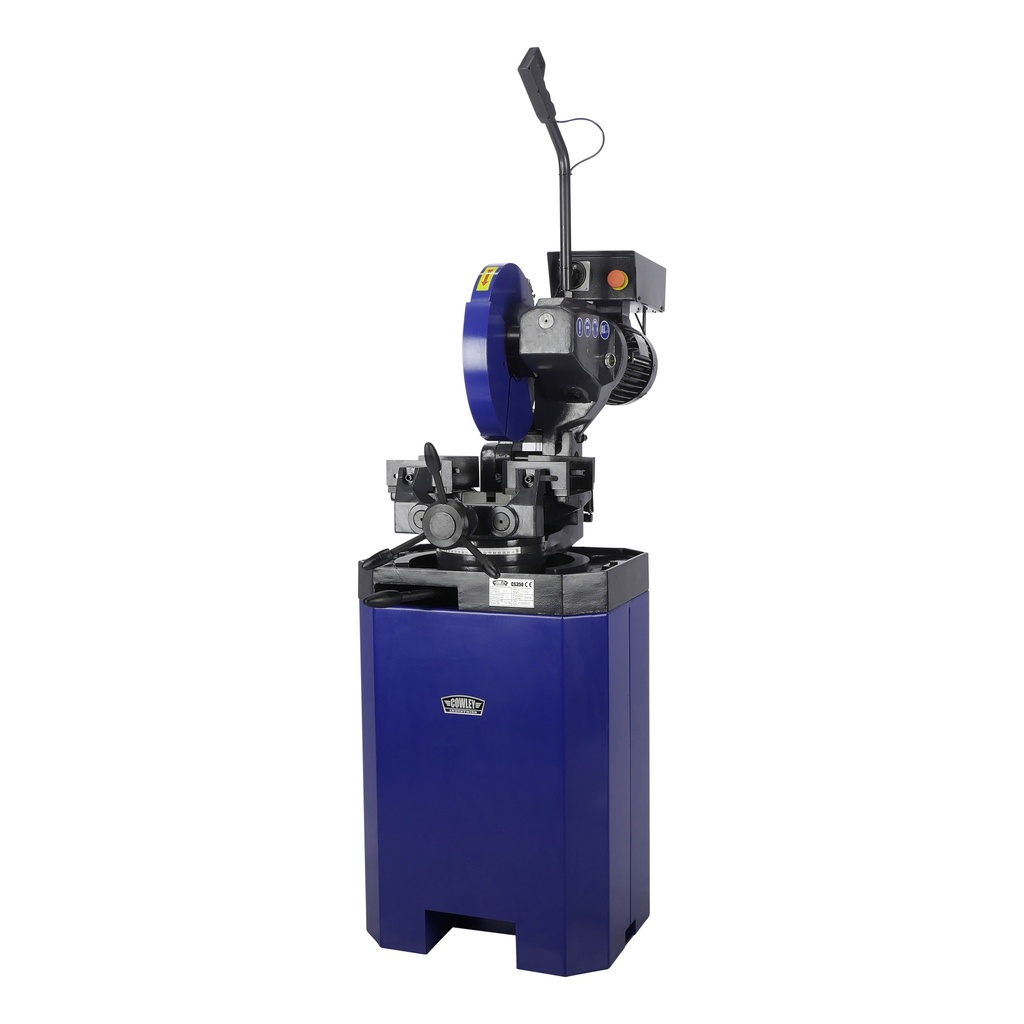

Metal circular saw / sawing machine
This Cowley circular saw is ideal for cutting and shortening round or rectangular metal materials. This robust model features the following useful features
Double clamp
Angle of the clamp can be adjusted
Rotatable head 45 degrees
Material stop
2 speeds
The machines comes with a saw blade of 350mm, a base of 470 x 580 x 770mm and a cooling unit.
Specifications:
saw blade diameter = 350mm
axle diameter = 32mm
cutting capacity circular 90 degrees = 120mm
cutting capacity rectangular 90 degrees = 140 x 100mm
cutting capacity circular 45 degrees = 105mm
cutting capacity rectangular 45 degrees = 100 x 100mm
blade speed 1 = 18rpm
blade speed 2 = 36rpm
max. opening clamp = 145mm
motor power = 1,3kW
voltage = 400V
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 770 mm |
| Produkt Breite | 580 mm |
| Produkt Höhe | 470 mm |
| Produktgewicht | 190,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 980 mm |
| Breite des Pakets | 620 mm |
| Paket Höhe | 950 mm |
| Gewicht des Pakets | 250,00 Kg |
