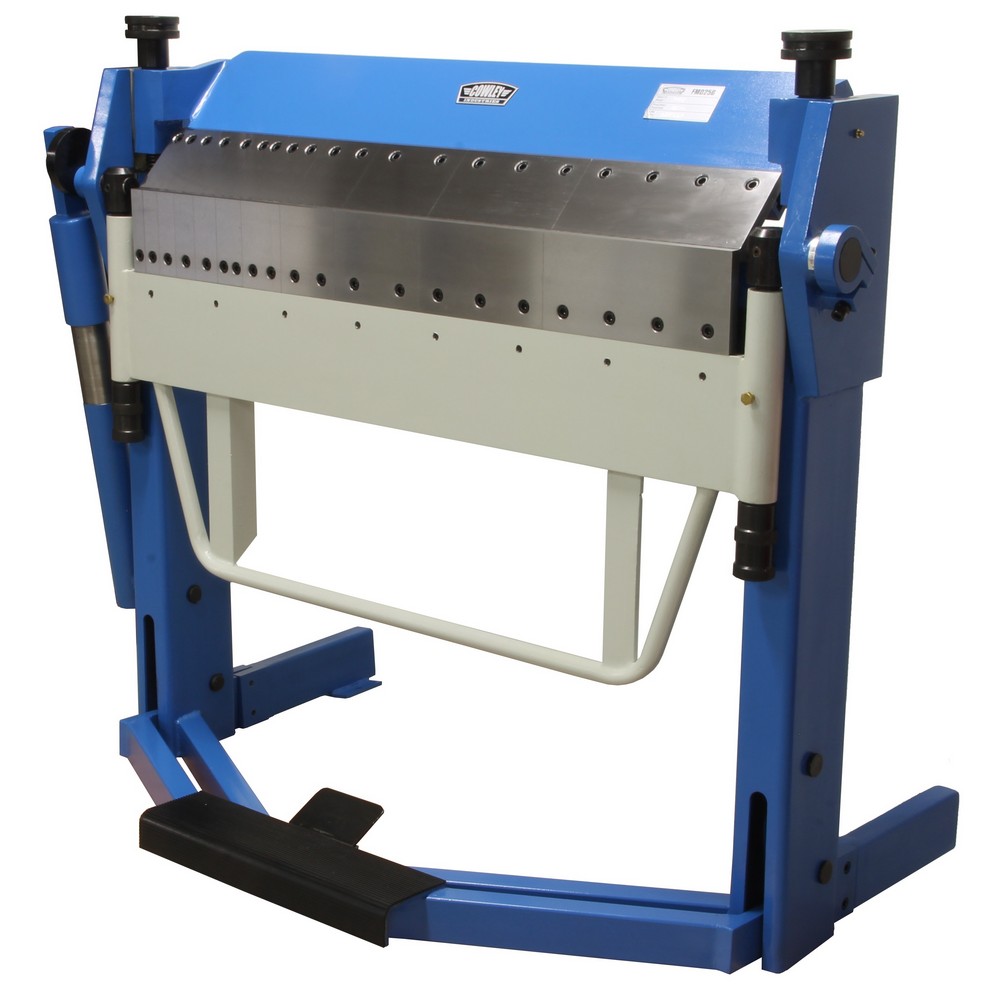

Pan & box brake segments with footpedal
- max. working length = 1020mm
- sigment size left to right:
25mm 30mm 35mm 40mm 45mm 50mm 75mm 100mm 150mm 270mm
- sigment height = 120mm
- max. thickness = 2mm
- folding angle = 0 - 135 degrees
- max. clamping bar lift = 47mm
- double folders
- nice backgauge
- clamp by foot control
Dimensions du produit :
| Length | 1 350 mm |
|---|---|
| Width | 850 mm |
| Height | 1 280 mm |
| Weight | 320,0 kg |
Dimensions de l'emballage :
| Length | 1 460 mm |
|---|---|
| Width | 620 mm |
| Height | 1 310 mm |
| Weight | 350,00 kg |
