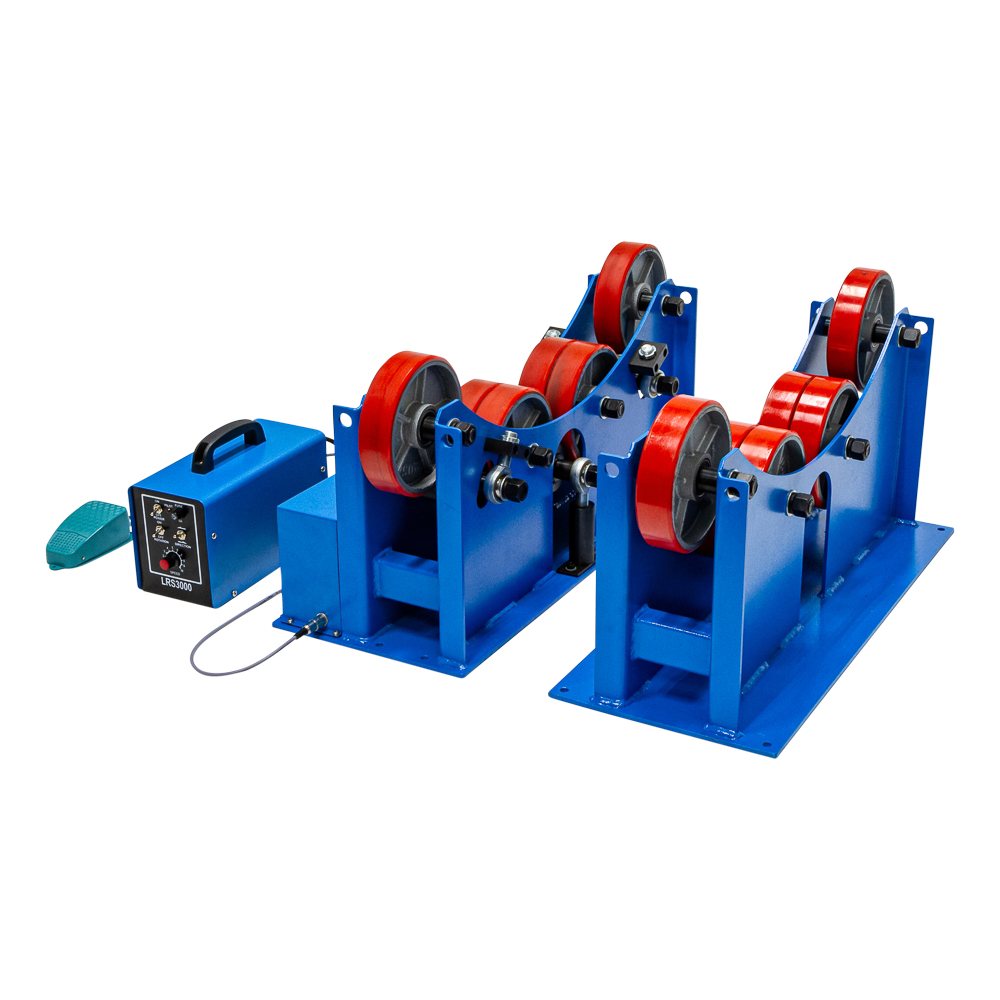

Welding turning roll
This Cowley welding turning roll is used for placing and rotating round workpieces, such as pipes, under a welding head. By setting the desired rotational speed you can weld extremely precisely. Therefore the machine contributes to the improvement of the safety, precision, effectiveness and speed of the welding work.
With the help of the control box it is easy to set the rotation on/off, rotation direction left/right and rotation speed. Finally, the machine is operated with the foot pedal.
Technical specifications:
power supply = 230V
frequency = 50/60 Hz
power = 400W
load capacity = 3000kg
rotation speed = 100-1100mm/min
diameter range = 70 - 1200mm
diameter rollers = 200mm
width rollers = 50mm
measurements control box = 320 x 140 x 180mm
measurements machine = 810 x 660 x 435mm
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 0 mm |
| Largeur du produit | 0 mm |
| Hauteur du produit | 0 mm |
| Poids du produit | 152,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 985 mm |
| Largeur du paquet | 770 mm |
| Hauteur du paquet | 560 mm |
| Poids du Colis | 186,00 Kg |
| Package Type: | |
| 1 Pcs |
