Welding turning roll 3000kg

Brand: Cowley

Product Code: LRS3000

EAN: 8720028089314

Availability: Sold Out

Expected back in stock: 4 - 6 weeks

https://www.valkenpower.com/web/image/product.template/59318/image_1920?unique=5fd3591

€ 2,117.50 Incl. VAT 2117.5 EUR € 2,117.50

€ 1,750.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

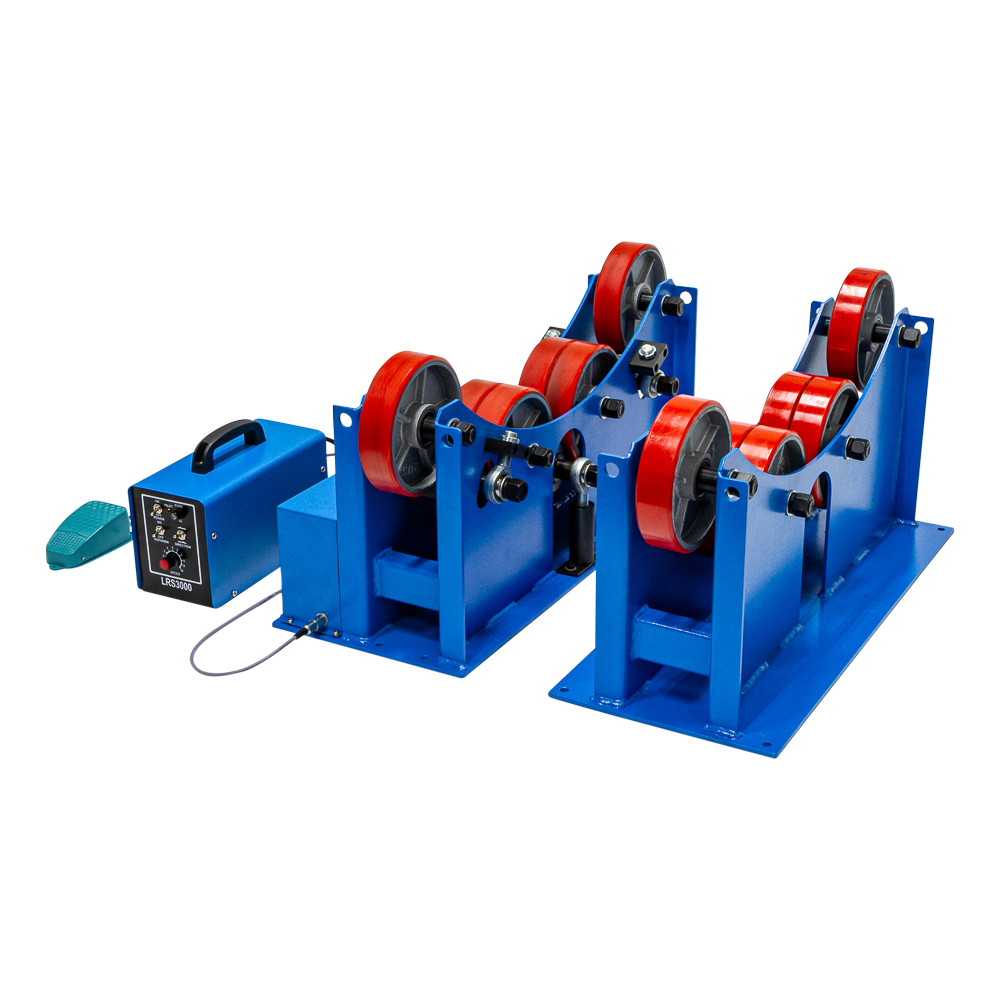

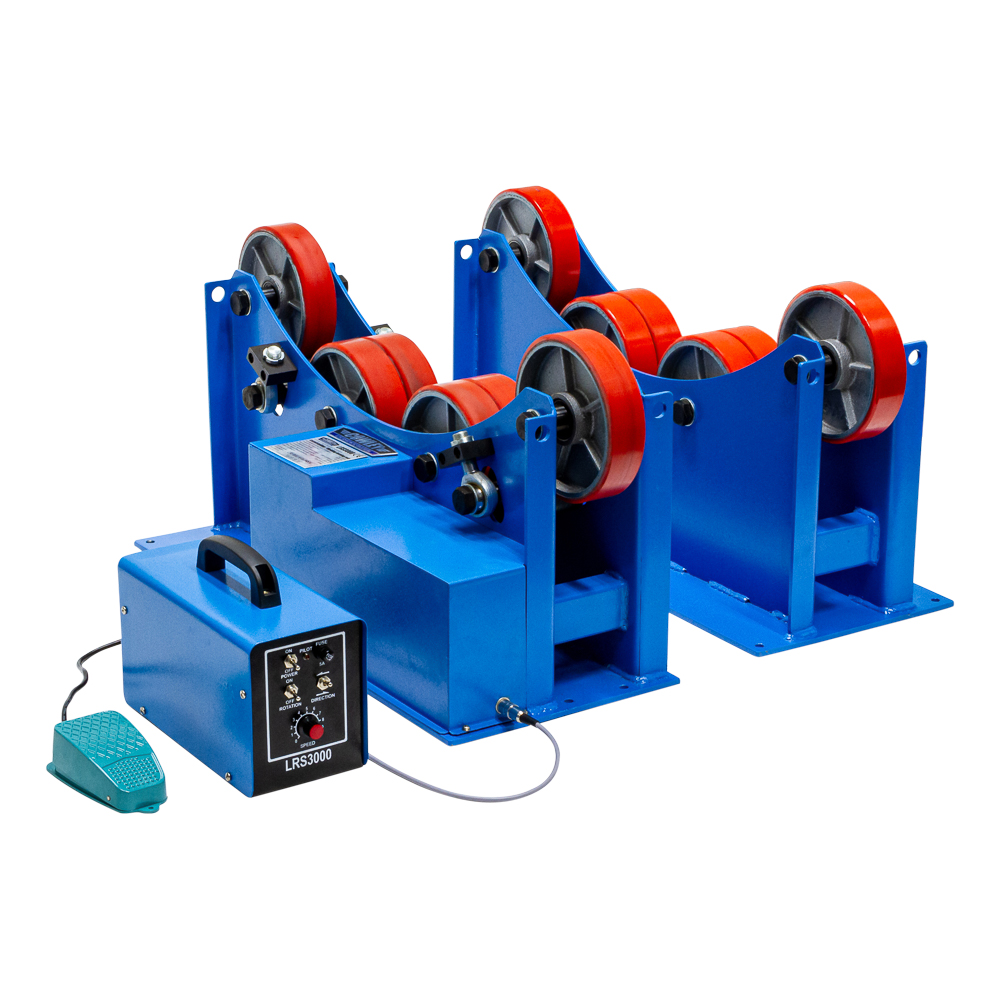

    Welding turning roll

    This Cowley welding turning roll is used for placing and rotating round workpieces, such as pipes, under a welding head. By setting the desired rotational speed you can weld extremely precisely. Therefore the machine contributes to the improvement of the safety, precision, effectiveness and speed of the welding work.

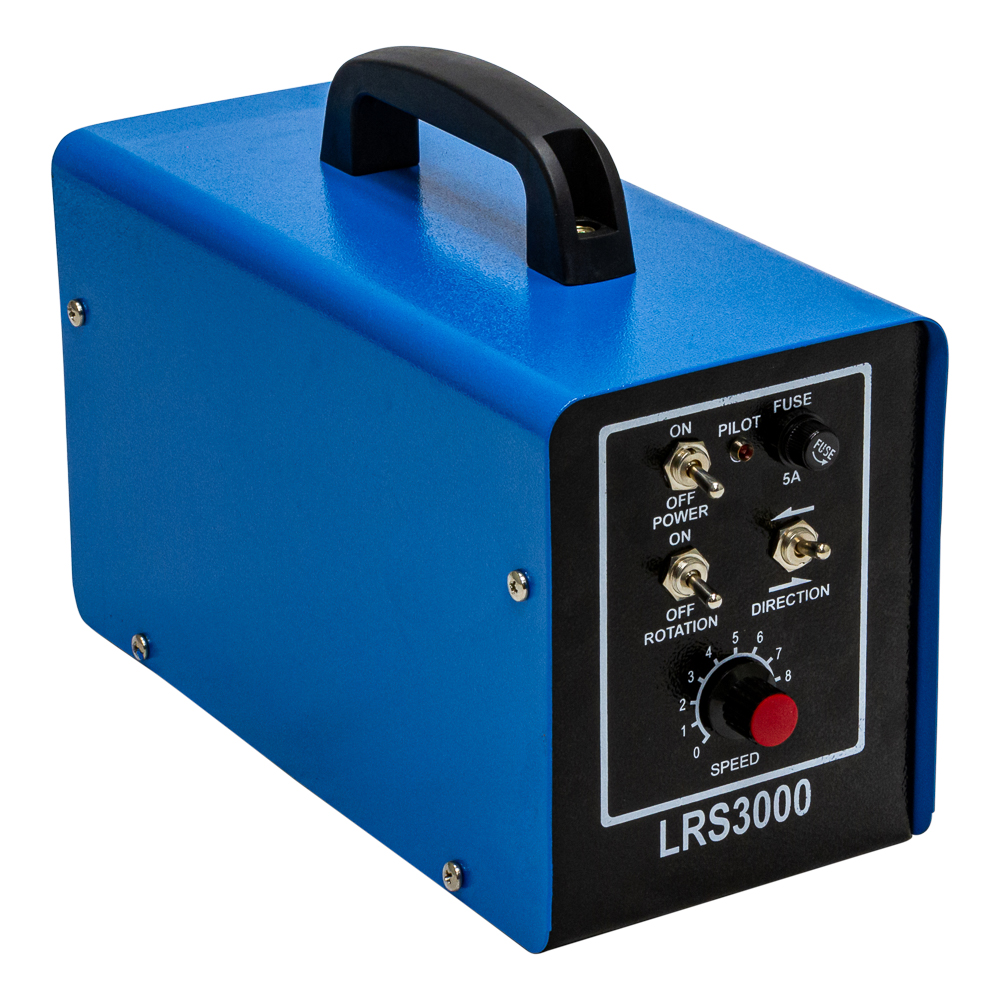

    With the help of the control box it is easy to set the rotation on/off, rotation direction left/right and rotation speed. Finally, the machine is operated with the foot pedal.

    Technical specifications:

    • power supply = 230V

    • frequency = 50/60 Hz

    • power = 400W

    • load capacity = 3000kg

    • rotation speed = 100-1100mm/min

    • diameter range = 70 - 1200mm

    • diameter rollers = 200mm

    • width rollers = 50mm

    • measurements control box = 320 x 140 x 180mm

    • measurements  machine = 810 x 660 x 435mm

    Product Dimensions:
    Product Length 0 mm
    Product Width 0 mm
    Product Height 0 mm
    Product Weight 152.0 Kg
    Package Dimensions:
    Package Length 985 mm
    Package Width 770 mm
    Package Height 560 mm
    Package Weight 186.00 Kg

    • Wide range from 70 to 1200mm

    • Capacity of 3000kg

    • Foot pedal for start-stop function
