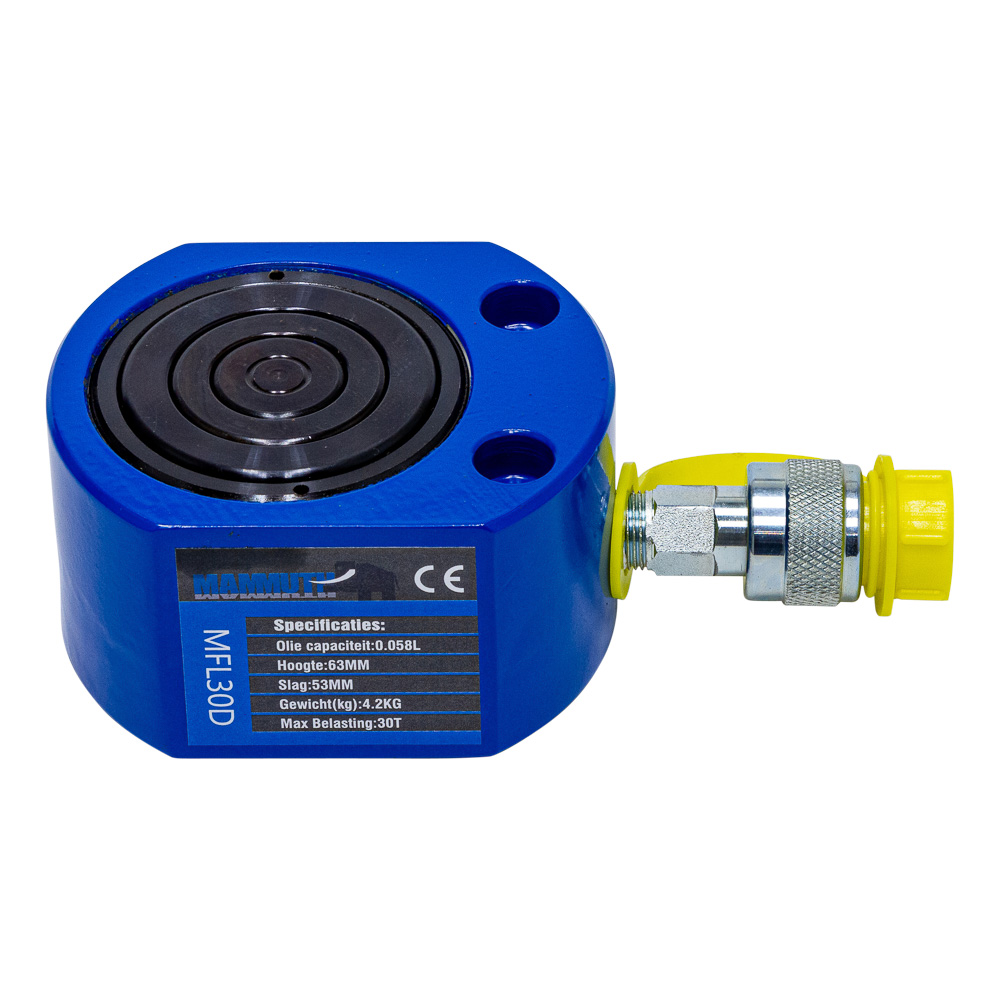

Flat cylinder double
The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
output = 30 Ton
stroke = 53mm
effective area = 33,1cm^2
oil capacity = 0,058 L
height of product = 63mm
extended height = 118mm
outside diameter = 115x95mm
bore diameter = 75mm
plunger diameter = 63mm
max. pressure = 700bar
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 185 mm |
| Largeur du produit | 95 mm |
| Hauteur du produit | 120 mm |
| Poids du produit | 4,5 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 260 mm |
| Largeur du paquet | 155 mm |
| Hauteur du paquet | 110 mm |
| Poids du Colis | 5,00 Kg |
