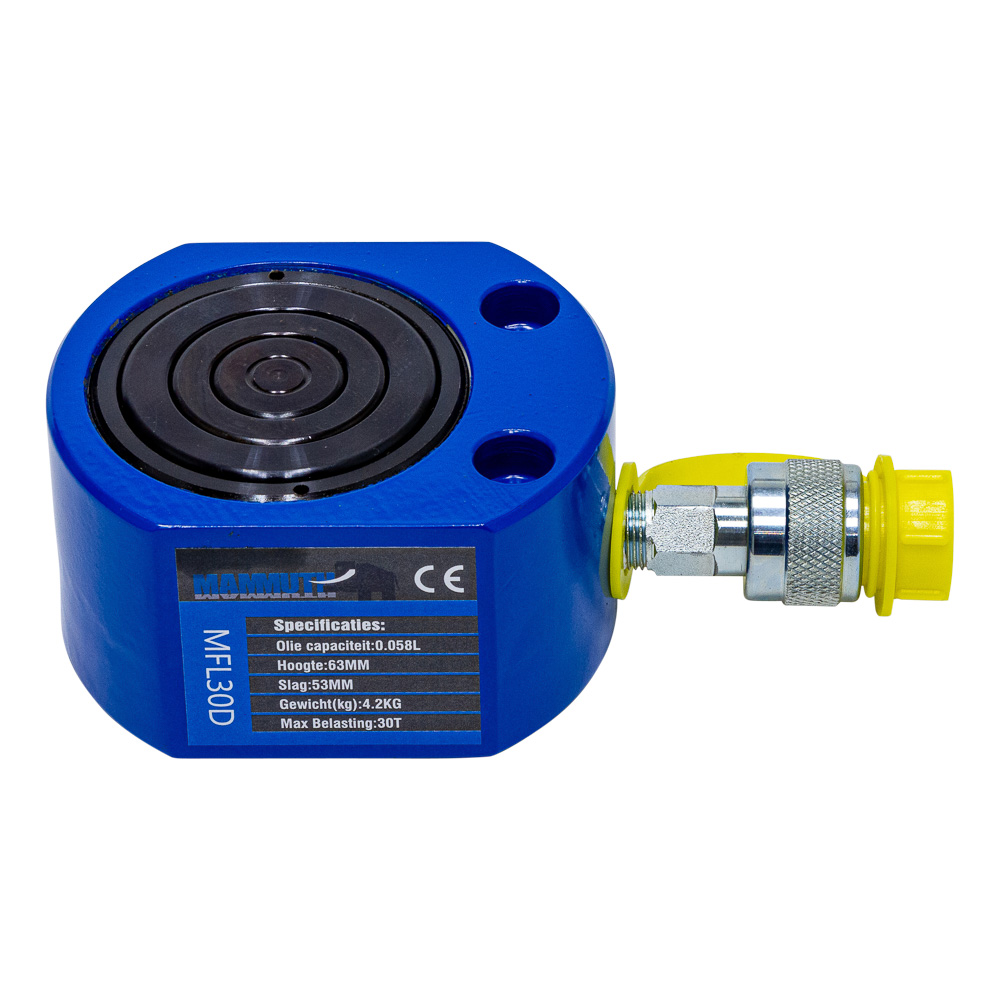

Flat cylinder double 30 ton stroke 53mm

Brand: Mammuth

Product Code: MFL30D

EAN: 8720028053445

Availability: Available

https://www.valkenpower.com/web/image/product.template/52599/image_1920?unique=edce301

€ 169.40 Incl. VAT 169.4 EUR € 169.40

€ 140.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Flat cylinder double

    The stroke from the double cylinders is higher then the stroke from the single cylinders.
    This cylinder is suit for working in narrowness.
    The surface of the plunger is finished with a chrome plate.

    • output = 30 Ton

    • stroke = 53mm

    • effective area = 33,1cm^2

    • oil capacity = 0,058 L

    • height of product = 63mm

    • extended height = 118mm

    • outside diameter = 115x95mm

    • bore diameter = 75mm

    • plunger diameter = 63mm

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 185 mm
    Product Width 95 mm
    Product Height 120 mm
    Product Weight 4.5 Kg
    Package Dimensions:
    Package Length 260 mm
    Package Width 155 mm
    Package Height 110 mm
    Package Weight 5.00 Kg
