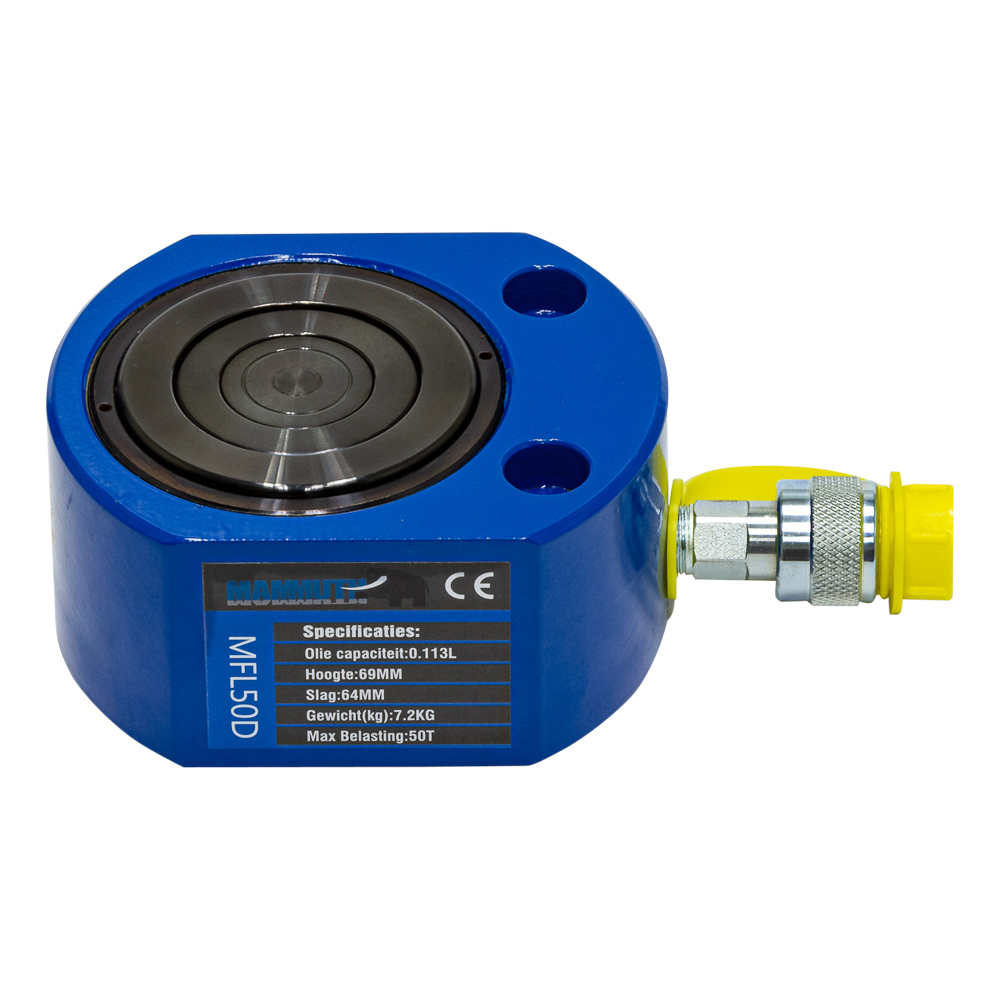

Flat cylinder double
The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 50 ton
stroke = 64mm
effective area = 56,7cm^2
oil capacity = 0,113 L
height of product = 69mm
extended height = 135mm
outside diameter = 138x115mm
bore diameter = 95mm
plunger diameter = 85mm
max. pressure = 700bar
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 215 mm |
| Largeur du produit | 120 mm |
| Hauteur du produit | 135 mm |
| Poids du produit | 7,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 225 mm |
| Largeur du paquet | 130 mm |
| Hauteur du paquet | 145 mm |
| Poids du Colis | 7,50 Kg |
