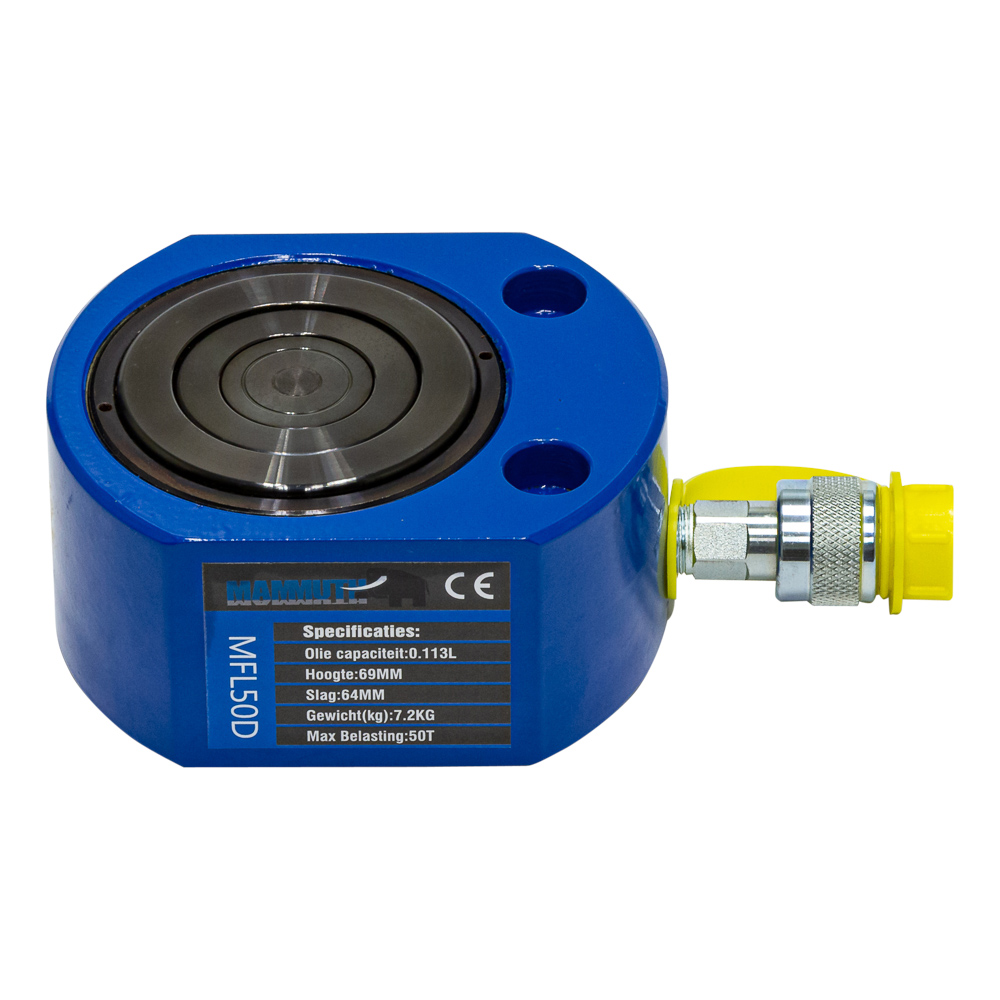

Flat cylinder 50 ton stroke 64mm

Brand: Mammuth

Product Code: MFL50D

EAN: 8720028053421

Availability: Available

https://www.valkenpower.com/web/image/product.template/52601/image_1920?unique=edce301

€ 242.00 Incl. VAT 242.0 EUR € 242.00

€ 200.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Flat cylinder double

    The stroke from the double cylinders is higher then the stroke from the single cylinders.
    This cylinder is suit for working in narrowness.
    The surface of the plunger is finished with a chrome plate.
    Plunger has the function of retracting automatically.

    • output = 50 ton

    • stroke = 64mm

    • effective area = 56,7cm^2

    • oil capacity = 0,113 L

    • height of product = 69mm

    • extended height = 135mm

    • outside diameter = 138x115mm

    • bore diameter = 95mm

    • plunger diameter = 85mm

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 215 mm
    Product Width 120 mm
    Product Height 135 mm
    Product Weight 7.0 Kg
    Package Dimensions:
    Package Length 225 mm
    Package Width 130 mm
    Package Height 145 mm
    Package Weight 7.50 Kg
