Ml250yhg

Équipement de soudure / Équipement de soudage MIG / MAG Marque : Soldatech Soldatech

Code produit : ML250YHG

EAN : 8720028090471

Disponibilité : Disponible

€ 1 391,50 TVA incluse https://schema.org/InStock 1391.5 EUR € 1 391,50

€ 1 150,00

  • Tension
  • Fréquence
  • Puissance d'entrée
  • Circuit breaker
  • No load Voltage
  • Duty cycle @20C
  • Duty cycle @40C
  • Welding current range
  • Weldable welding wire
  • Protection class

Cette combinaison n'existe pas.

Livraison rapide à partir d'un stock important.
Paiement sécurisé via différentes options de paiement.
politique de retour de 14 jours.

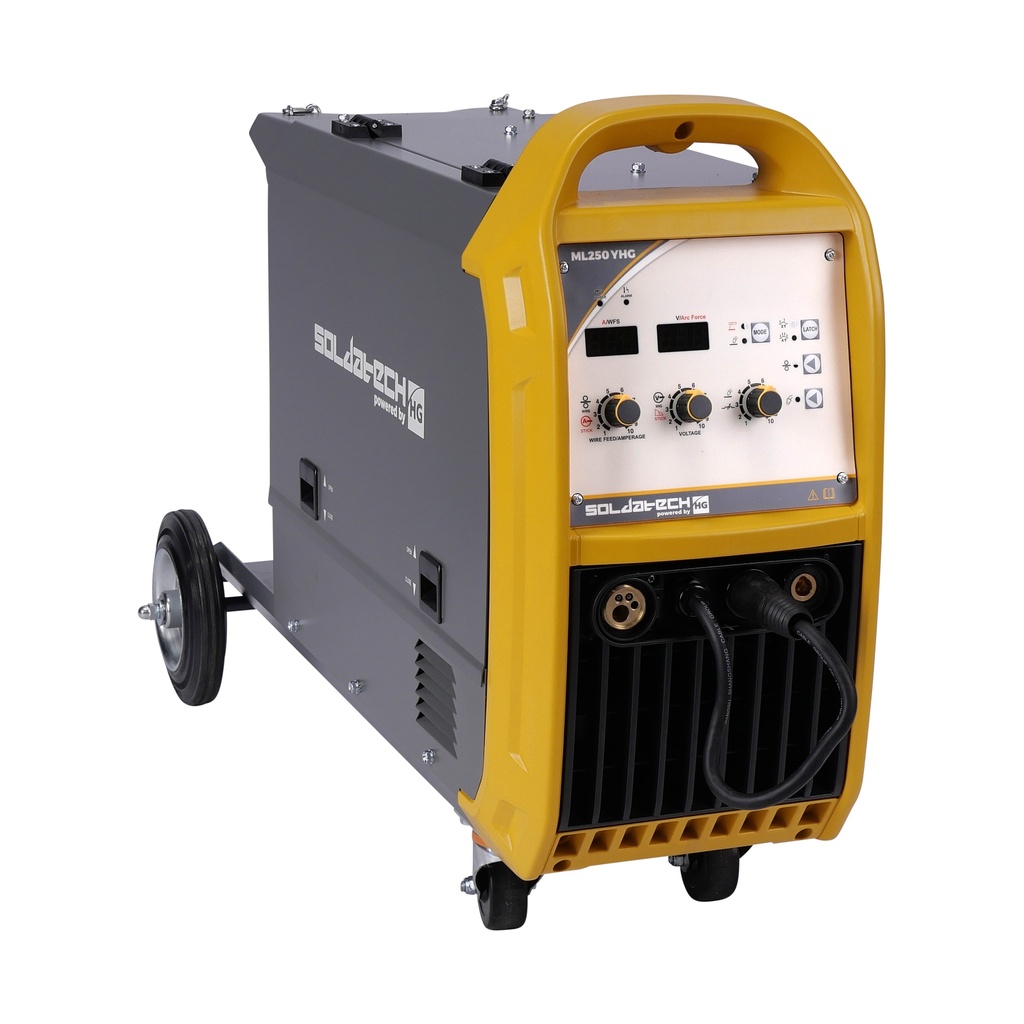

MIG/MAG 250A welding inverter / inverter / welding machine

This Soldatech powered by HG MIG / MAG welding machine is standard equipped with a carrying platform to attach the gas bottle. This machine makes it possible to carry out various welding processes with ease, including MIG welding and also electrode welding.

The modern IGBT inverter technology ensures that the ML250YHG delivers sustainable performance with more power and a very high duty cycle. The ML250YHG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures high-quality welding performance for a long time.

The hot-start/anti-stick function increases the welding current quickly, so that the electrode does not stick to the workpiece during ARC welding.

Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).

Each ML250YHG comes standard with:

  • Soldatech MLT24M3 MIG torch with Euro connector and 3m cable

  • Twistlock electrode torch 3m 25mm²
  • Welding ground clamp with 3m 25mm² cable

  • European 13mm Dinse couplers

  • Gas line of 4m with quick coupling

  • 5-pin 32A plug with 3m 4x2.5mm² cable

  • 1x wire feed roll: 0.8 + 1.0

Technical specifications:

  • voltage = 400V

  • frequency = 50/60Hz

  • fuse protection = 3x 16A

  • input power = 11kVA

  • start-up voltage = 55V

  • duty cycle = 60% - 250A / 100% - 194A (at 40 degrees ambient temperature)

  • welding current range = MIG 50 - 250 / MMA 30 - 250

  • weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6mm

  • protection class = IP21S

  • dimensions = 990 x 495 x 720mm

  • weight = 45.5kg

Dimensions du produit :
Longueur du produit 900 mm
Largeur du produit 450 mm
Hauteur du produit 710 mm
Poids du produit 47,0 Kg
Dimensions de l'emballage :
Longueur du paquet 1 035 mm
Largeur du paquet 495 mm
Hauteur du paquet 735 mm
Poids du Colis 70,00 Kg

  • Tray with wheels and chain for gas bottle

  • Double wire feed

  • Infinitely adjustable

  • ABS shock resistant housing

  • 5 years warranty

Spécifications

Tension 400V - 3 Phase
Fréquence 50/60 Hz
Puissance d'entrée 11kVA
Circuit breaker 16A C-kar
No load Voltage 70V
Duty cycle @20C 80% - 250A
Duty cycle @40C 60% - 250A
Welding current range MIG 30 - 250A / MMA 20 - 200A
Weldable welding wire 0.8 / 1.0 / 1.2 / 1.6 mm
Protection class IP21S
