MIG MAG welding machine 250A

Brand: Soldatech

Product Code: ML250YHG

EAN: 8720028090471

Availability: Available

https://www.valkenpower.com/web/image/product.template/59755/image_1920?unique=8de4b90

€ 1,391.50 Incl. VAT 1391.5 EUR € 1,391.50

€ 1,150.00

  • Voltage
  • Frequency
  • Circuit breaker
  • Input power
  • No load Voltage
  • Duty cycle @20C
  • Duty cycle @40C
  • Welding current range
  • Weldable welding wire
  • Protection class

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

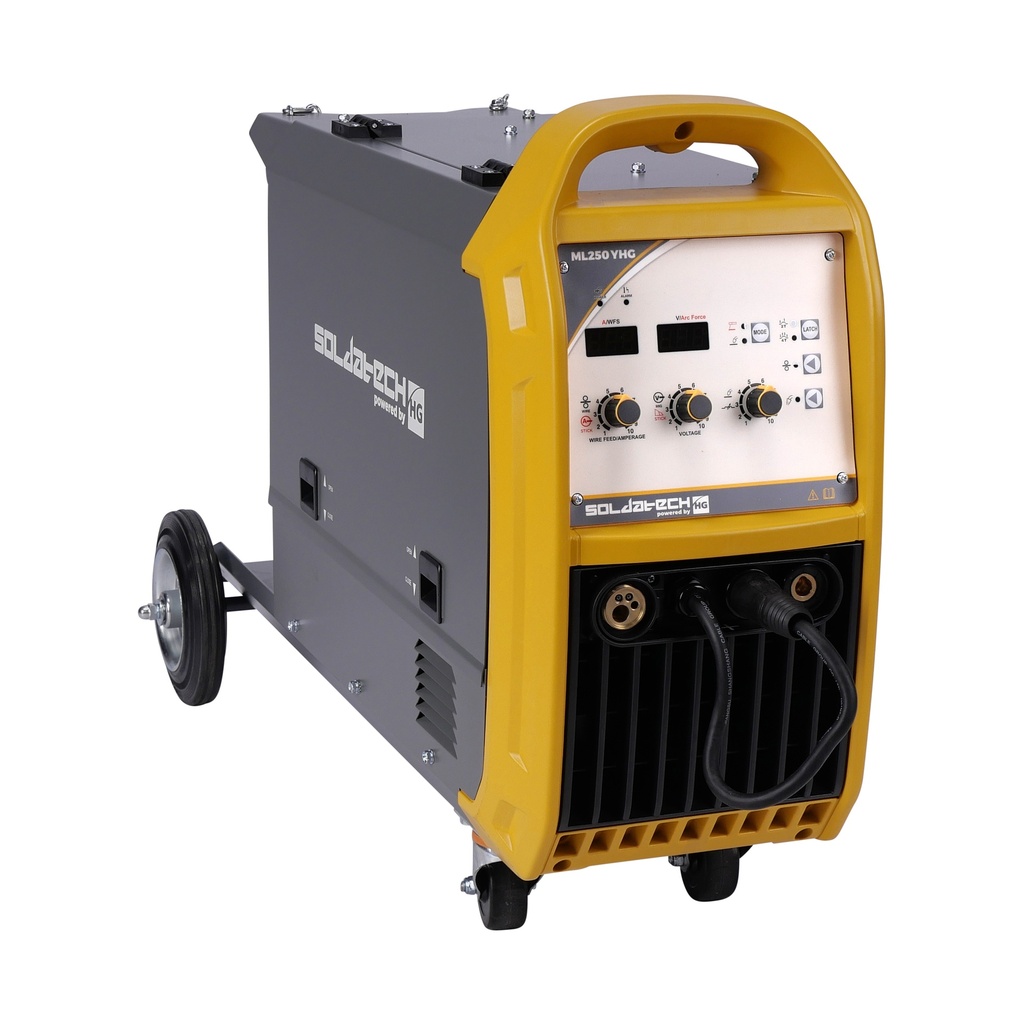

MIG/MAG 250A welding inverter / inverter / welding machine

This Soldatech powered by HG MIG / MAG welding machine is standard equipped with a carrying platform to attach the gas bottle. This machine makes it possible to carry out various welding processes with ease, including MIG welding and also electrode welding.

The modern IGBT inverter technology ensures that the ML250YHG delivers sustainable performance with more power and a very high duty cycle. The ML250YHG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures high-quality welding performance for a long time.

The hot-start/anti-stick function increases the welding current quickly, so that the electrode does not stick to the workpiece during ARC welding.

Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).

Each ML250YHG comes standard with:

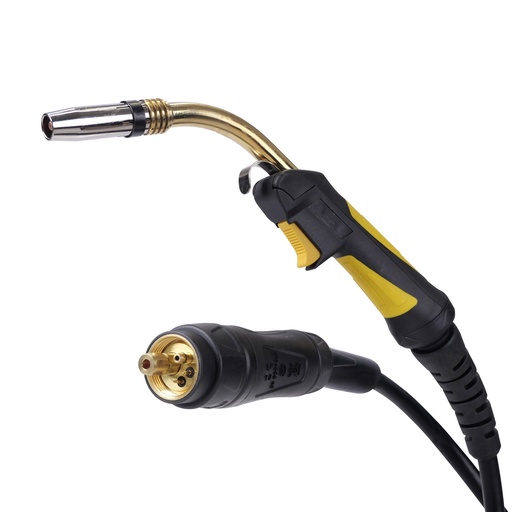

  • MLT24M3 MIG torch with Euro connector 3m cable

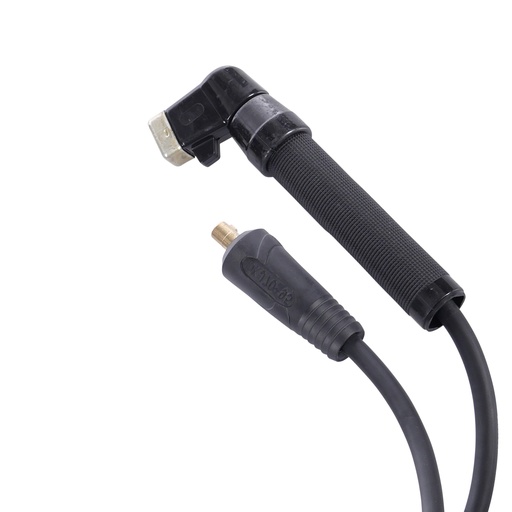

  • Twistlock electrode torch 3m 25mm²

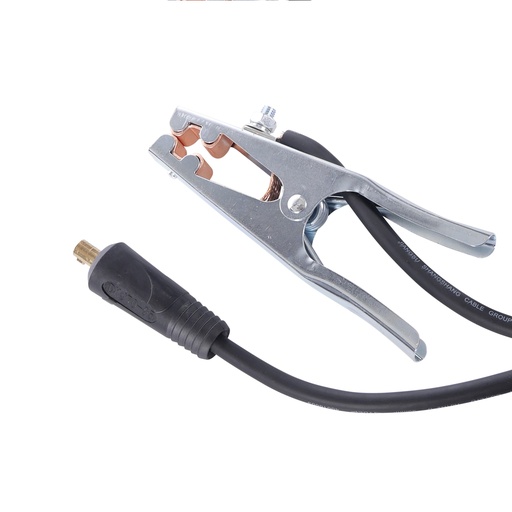

  • Welding ground clamp with 3m 25mm² cable

  • European dinse couplers 13mm

  • Gas line including quick coupling 4m

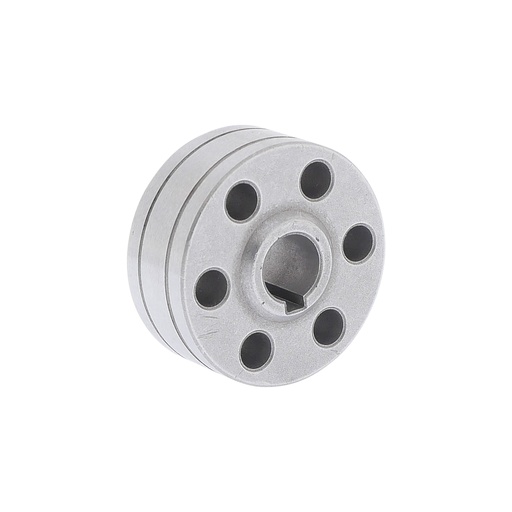

  • 2x wire feed roll: 0.8 + 1.0
  • 5-pin 32A plug with 3m 4x2.5mm² cable

Technical specifications:

  • voltage = 400V

  • frequency = 50/60Hz

  • circuit breaker = 3x 16A C-char

  • input power = 11kVA

  • start-up voltage = 55V

  • duty cycle (at 20°C ambient temperature) = 80% - 250A

  • duty cycle (at 40°C ambient temperature) = 60% - 250A

  • welding current range MIG/MAG = 30 - 250A

  • welding current range MMA = 20 - 200A

  • weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6mm

  • protection class = IP21S

  • dimensions = 990 x 495 x 720mm

  • weight = 45.5kg

Product Dimensions:
Product Length 990 mm
Product Width 495 mm
Product Height 720 mm
Product Weight 45.5 Kg
Package Dimensions:
Package Length 1,035 mm
Package Width 495 mm
Package Height 735 mm
Package Weight 70.00 Kg

  • Tray with wheels and chain for gas bottle

  • Double wire feed

  • Infinitely adjustable

  • ABS shock resistant housing

  • 5 years warranty

Specifications

Voltage 400V - 3 Phase
Frequency 50/60Hz
Circuit breaker 16A C-char
Input power 11kVA
No load Voltage 70V
Duty cycle @20C 80% - 250A
Duty cycle @40C 60% - 250A
Welding current range MIG 30 - 250A / MMA 20 - 200A
Weldable welding wire 0.8 / 1.0 / 1.2 / 1.6 mm
Protection class IP21S
