MIG/MAG 500A welding inverter / synergetic inverter / welding machine

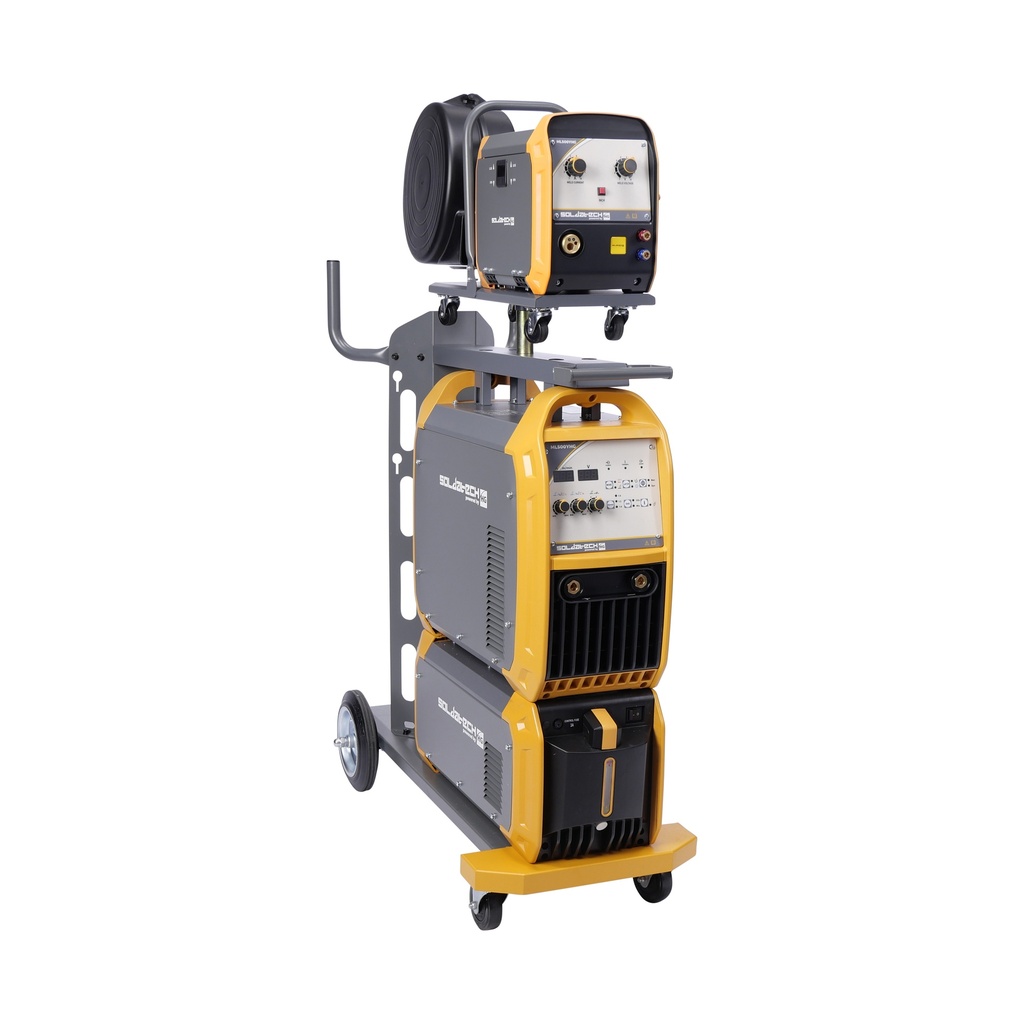

This Soldatech powered by HG MIG / MAG welding machine can be set both synergistically and manually, equipped as standard with a solid trolley that can easily hold a 50L bottle. This synergetic machine makes it possible to perform various welding processes including MIG welding and also electrode welding with ease.
The modern IGBT inverter technology ensures that the ML500YHG delivers sustainable performance with more power and a very high duty cycle. The ML500YHG is also standard equipped with a powerful water cooler that, in combination with a built-in fan, prevents overheating and ensures high-quality welding performance is guaranteed for a long time.
The mobile wire feeder unit is also equipped with a control panel on which the welding voltage and current, among other things, can be easily adjusted. The power source is also equipped with preprogrammed synergetic programs for welding various materials.
Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).
Each ML500YHG comes standard with:
Water-cooled Soldatech MLT501M4 MIG torch
Welding ground clamp with 3m 50mm² cable
European dinse couplers 13mm
Gas line including quick coupling 12m
Intermediate connection bundle 5m
5-pin 32A plug with 3m 4x4mm² cable
4x wire feed roll: 2x 0.8 + 1.0 and 2x 1.2V + 1.6V
Technical specifications:
voltage = 400V - 3 phase
frequency = 50/60Hz
circuit breaker = 32A B-char
input power = 27.5kVA
no load voltage = 73V
duty cycle (at 20°C ambient temperature) = 100% - 500A
duty cycle (at 40°C ambient temperature) = 60% - 500A
welding current range MIG/MAG = 40 - 500A
welding current range MMA = 40 - 490A
weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6mm
cooling unit content = 6L
protection class = IP21S
dimensions = 1133 x 498 x 1508mm
weight = 112kg
Specifications
| Tension | 400V - 3 Phase |
| Fréquence | 50/60 Hz |
| No load voltage | 73V |
| Puissance d'entrée | 27.5kVA |
| Circuit breaker | 32A B-char |
| Welding current range | MIG 40 - 500A / MMA 40 - 490A |
| Cooling unit content | 6L |
| Duty cycle @20C | 100% - 500A |
| Duty cycle @40C | 60% - 500A |
| Weldable welding wire | 0.8 / 1.0 / 1.2 / 1.6 mm |
| Protection class | IP21S |
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 1 133 mm |
| Largeur du produit | 498 mm |
| Hauteur du produit | 1 508 mm |
| Poids du produit | 112,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 1 180 mm |
| Largeur du paquet | 565 mm |
| Hauteur du paquet | 1 765 mm |
| Poids du Colis | 135,00 Kg |
