MIG MAG welding machine synergetic 500A

Brand: Soldatech

Product Code: ML500YHG

EAN: 8720028090495

Availability: Available

https://www.valkenpower.com/web/image/product.template/59757/image_1920?unique=4b1c3c1

€ 3,811.50 Incl. VAT 3811.5 EUR € 3,811.50

€ 3,150.00

  • Voltage
  • Frequency
  • Circuit breaker
  • Input power
  • No load Voltage
  • Duty cycle @20C
  • Duty cycle @40C
  • Welding current range
  • Weldable welding wire
  • Protection class
  • Cooling unit content

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

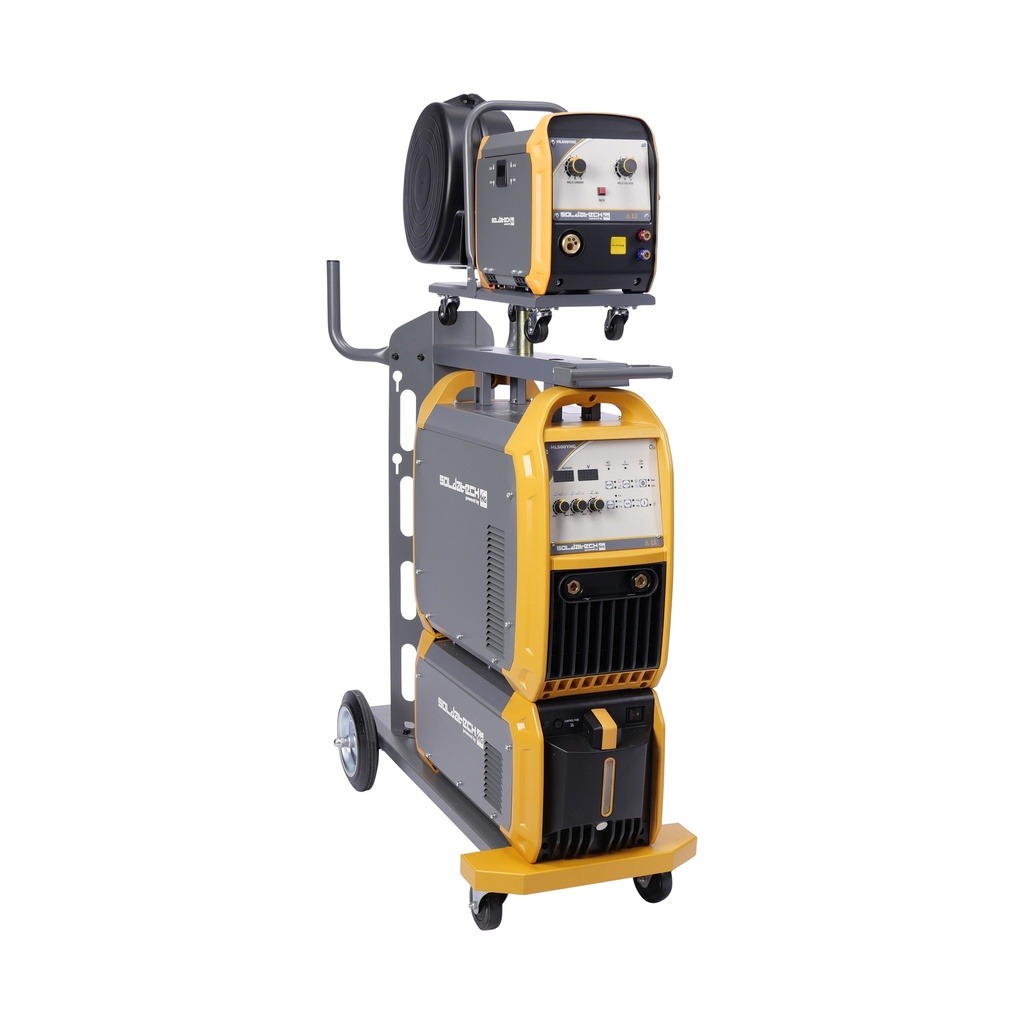

MIG/MAG 500A welding inverter / synergetic inverter / welding machine

This Soldatech powered by HG MIG / MAG welding machine can be set both synergistically and manually, equipped as standard with a solid trolley that can easily hold a 50L bottle. This synergetic machine makes it possible to perform various welding processes including MIG welding and also electrode welding with ease.

The modern IGBT inverter technology ensures that the ML500YHG delivers sustainable performance with more power and a very high duty cycle. The ML500YHG is also standard equipped with a powerful water cooler that, in combination with a built-in fan, prevents overheating and ensures high-quality welding performance is guaranteed for a long time.

The mobile wire feeder unit is also equipped with a control panel on which the welding voltage and current, among other things, can be easily adjusted. The power source is also equipped with preprogrammed synergetic programs for welding various materials.

Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).

Each ML500YHG comes standard with:

  • Water-cooled Soldatech MLT501M4 MIG torch

  • Welding ground clamp with 3m 50mm² cable

  • European dinse couplers 13mm

  • Gas line including quick coupling 12m

  • Intermediate connection bundle 5m

  • 5-pin 32A plug with 3m 4x4mm² cable

  • 4x wire feed roll: 2x 0.8 + 1.0 and 2x 1.2V + 1.6V

Technical specifications:

  • voltage = 400V - 3 phase

  • frequency = 50/60Hz

  • circuit breaker = 32A B-char

  • input power = 27.5kVA

  • no load voltage = 73V

  • duty cycle (at 20°C ambient temperature) = 100% - 500A

  • duty cycle (at 40°C ambient temperature) = 60% - 500A

  • welding current range MIG/MAG = 40 - 500A

  • welding current range MMA = 40 - 490A

  • weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6mm

  • cooling unit content = 6L

  • protection class = IP21S

  • dimensions = 1133 x 498 x 1508mm

  • weight = 112kg

Product Dimensions:
Product Length 1,133 mm
Product Width 498 mm
Product Height 1,508 mm
Product Weight 112.0 Kg
Package Dimensions:
Package Length 1,180 mm
Package Width 565 mm
Package Height 1,765 mm
Package Weight 135.00 Kg

  • Very high duty cycle

  • Mobile wire feed unit

  • Synergetic

  • ABS shock resistant housing

  • 5 years warranty

Specifications

Voltage 400V - 3 Phase
Frequency 50/60Hz
Circuit breaker 32A B-char
Input power 27.5kVA
No load Voltage 73V
Duty cycle @20C 100% - 500A
Duty cycle @40C 60% - 500A
Welding current range MIG 40 - 500A / MMA 40 - 490A
Weldable welding wire 0.8 / 1.0 / 1.2 / 1.6 mm
Protection class IP21S
Cooling unit content 6L
