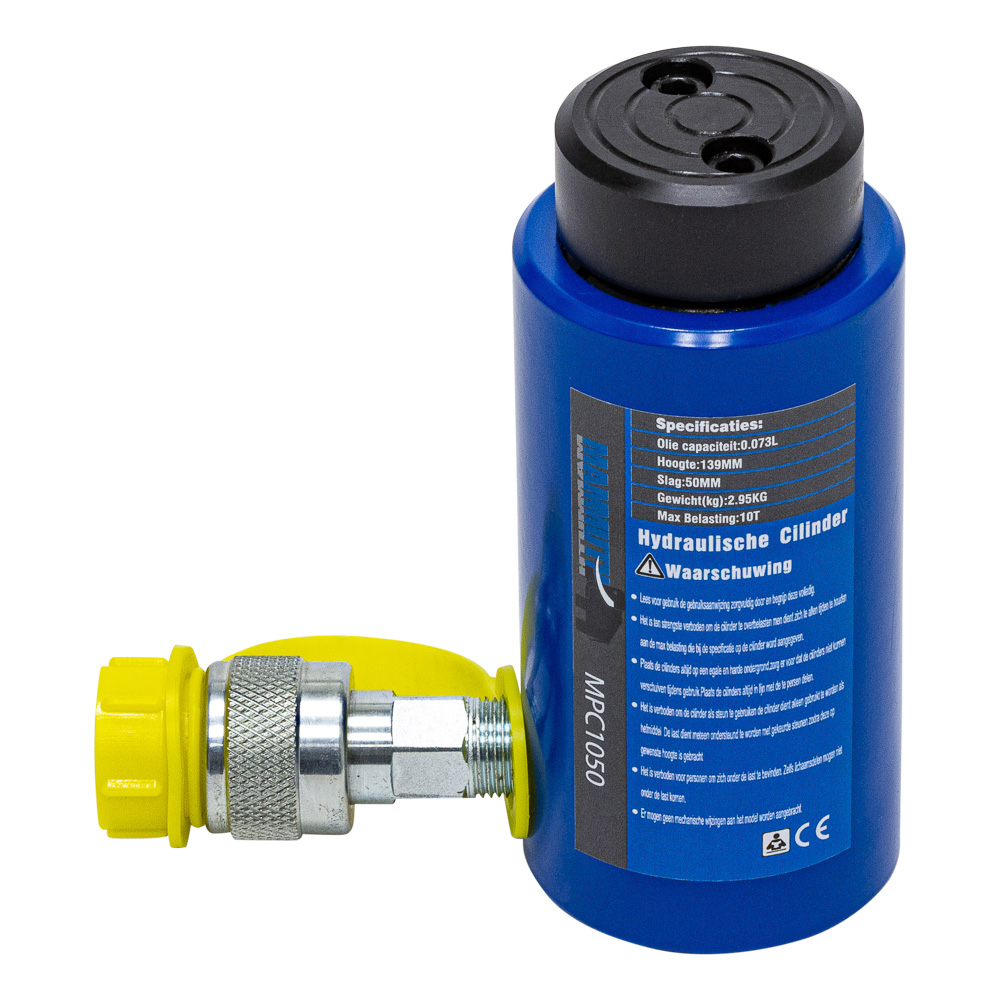

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 10 ton
stroke = 50mm
effective area = 15,2cm^2
oil capacity = 0,075 L
height of product = 139mm
extended height = 189mm
outside diameter = 62mm
bore diameter = 44mm
plunger diameter = 38mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 21mm
saddle is removable
max. pressure = 700bar
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 130 mm |
| Largeur du produit | 60 mm |
| Hauteur du produit | 145 mm |
| Poids du produit | 3,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 390 mm |
| Largeur du paquet | 185 mm |
| Hauteur du paquet | 130 mm |
| Poids du Colis | 4,30 Kg |
