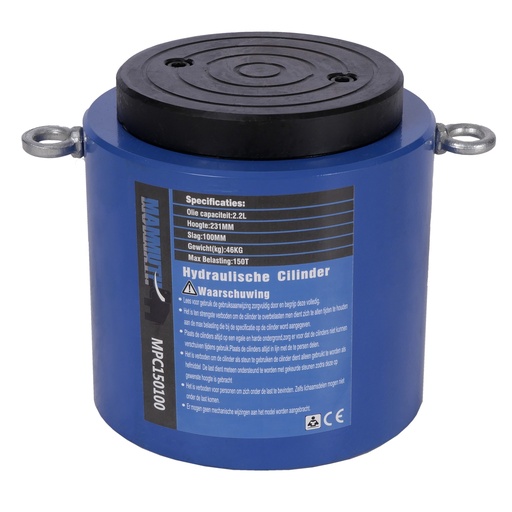

Hydraulic cylinderHardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate.Plunger has the function of retracting automatically.Surface coating resists corrosion.
output = 150 ton
stroke = 100mm
effective area = 201cm^2
oil capacity = 2,010 L
height of product = 216mm
extended height = 331mm
outside diameter = 207mm
bore diameter = 160mm
plunger diameter = 140mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 31mm
saddle is removable
max. pressure = 700bar
Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion.

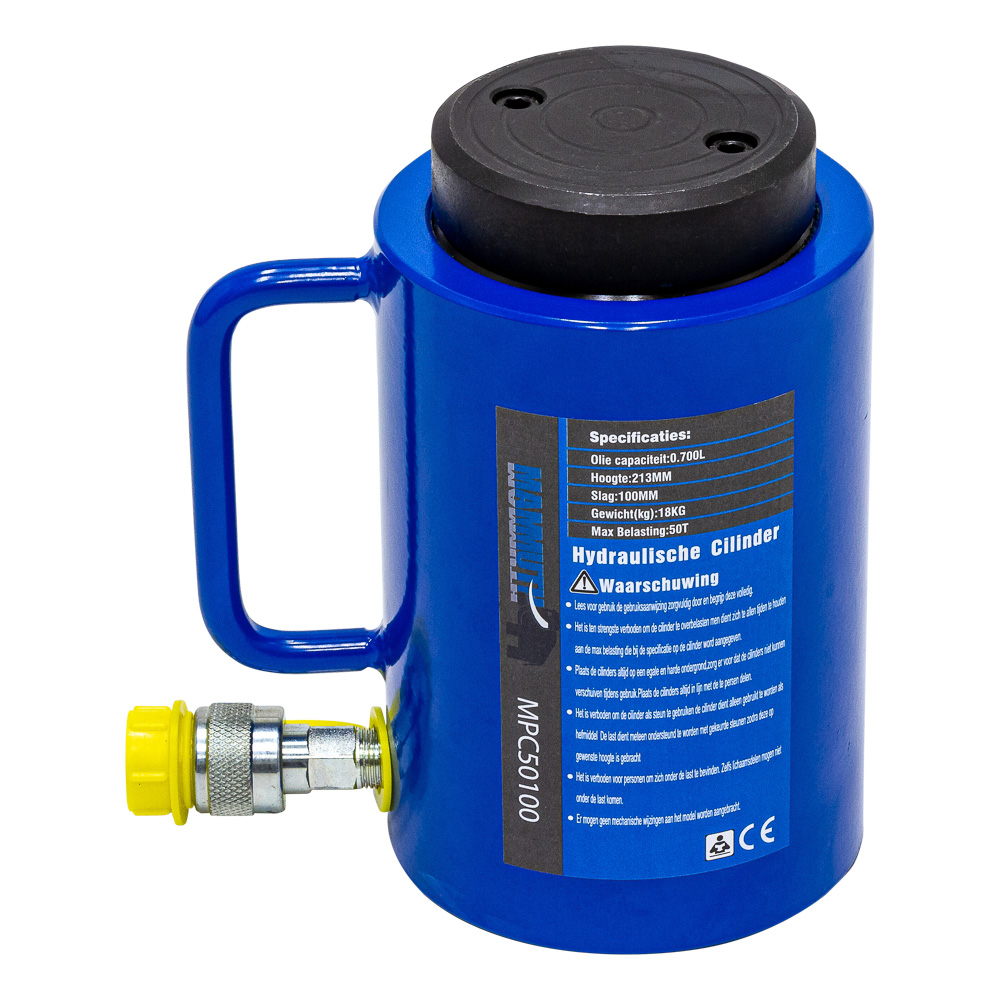

output = 50 ton
effective area = 70,9cm^2
oil capacity = 0,709 L
height of product = 212mm
extended height = 313mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm

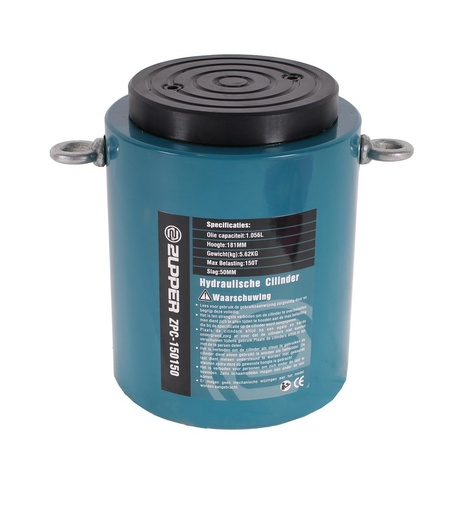

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 150 ton - stroke = 150mm - effective area = 201cm^2 - oil capacity = 3,015 L - height of product = 266mm - extended height = 431mm - outside diameter = 207mm - bore diameter = 160mm - plunger diameter = 140mm - thread for input oil port (ZG) = 3/8" - 20 - saddle protrusion form plgr = 31mm - saddle is removable - max. pressure = 700bar

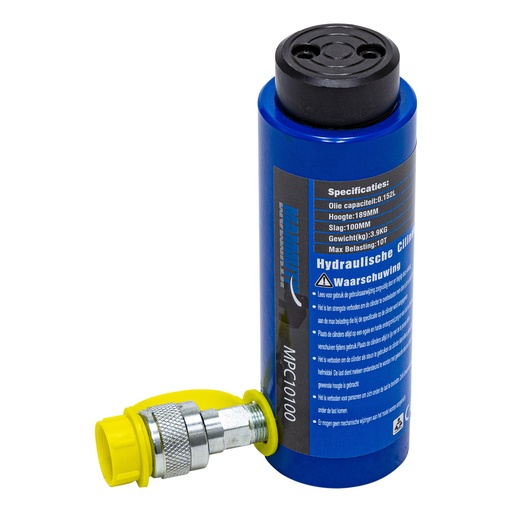

output = 10 ton
effective area = 15,2cm^2
oil capacity = 0,152 L
height of product = 191mm
extended height = 289mm
outside diameter = 62mm
bore diameter = 44mm
plunger diameter = 38mm
saddle protrusion form plgr = 21mm

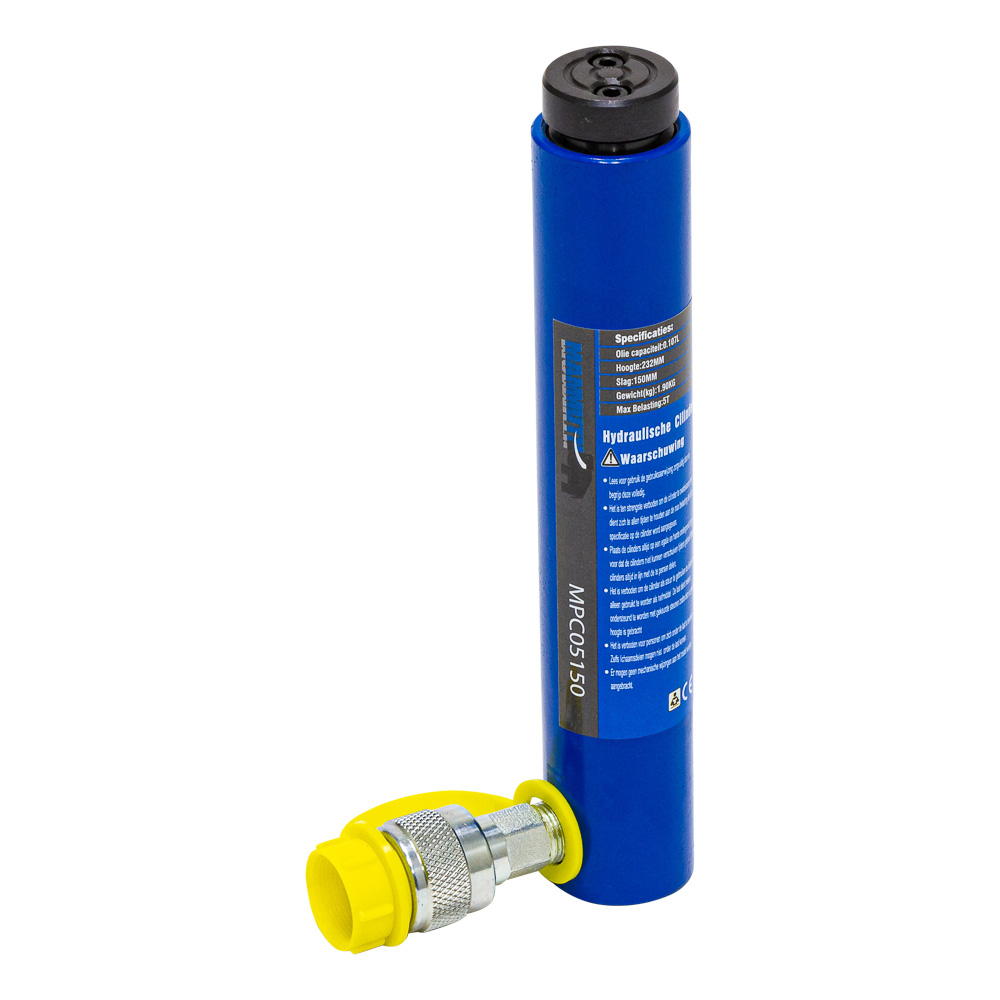

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 5 ton - stroke = 150mm - effective area = 9,6cm^2 - oil capacity = 0,108 L - height of product = 233mm - extended height = 382mm - outside diameter = 40mm - bore diameter = 30mm - plunger diameter = 25mm - thread for input oil port (ZG) = 1/4" - 18 - saddle protrusion form plgr = 13mm - saddle is removable - max. pressure = 700bar

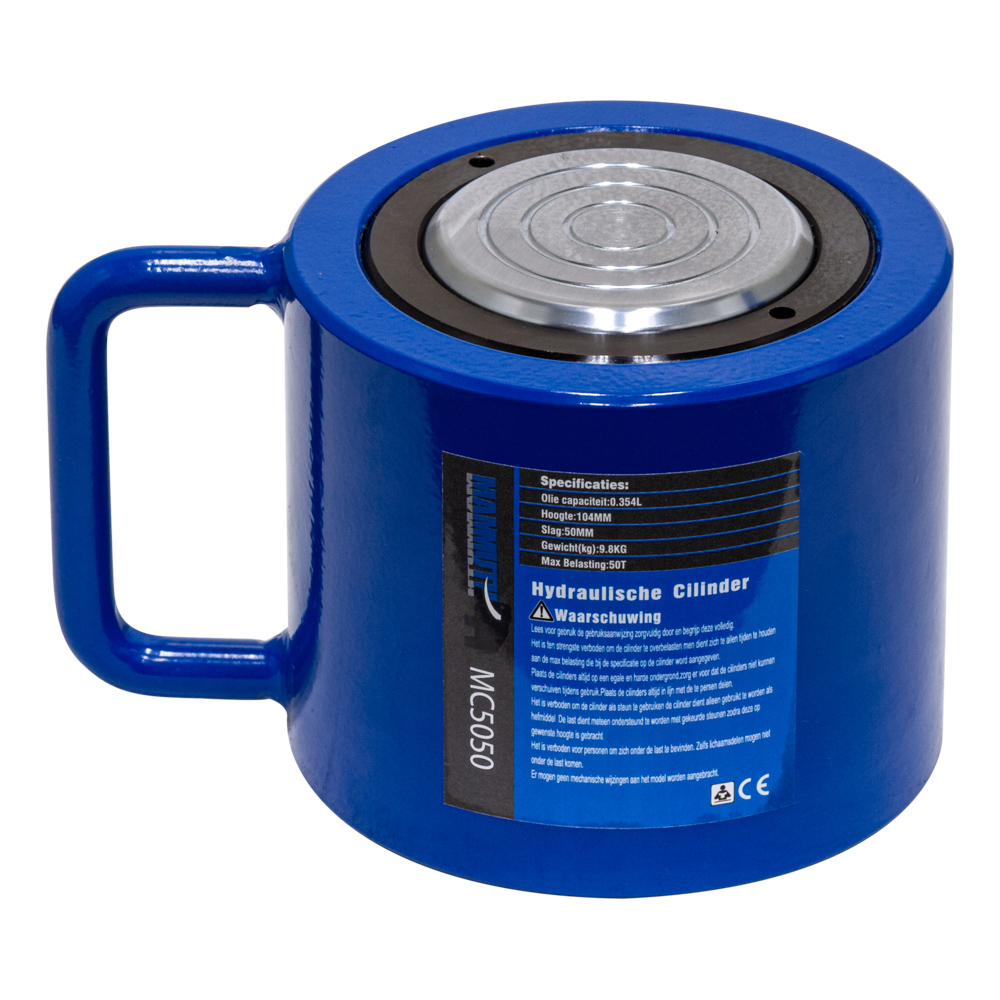

Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically.
stroke = 50mm
effective area = 56,7cm^2
oil capacity = 0,354 L
height of product = 104mm
extended height = 154mm
plunger diameter = 65mm
thread for input oil port (ZG) = 3/8" - 19
saddle protrusion form plgr = 2mm

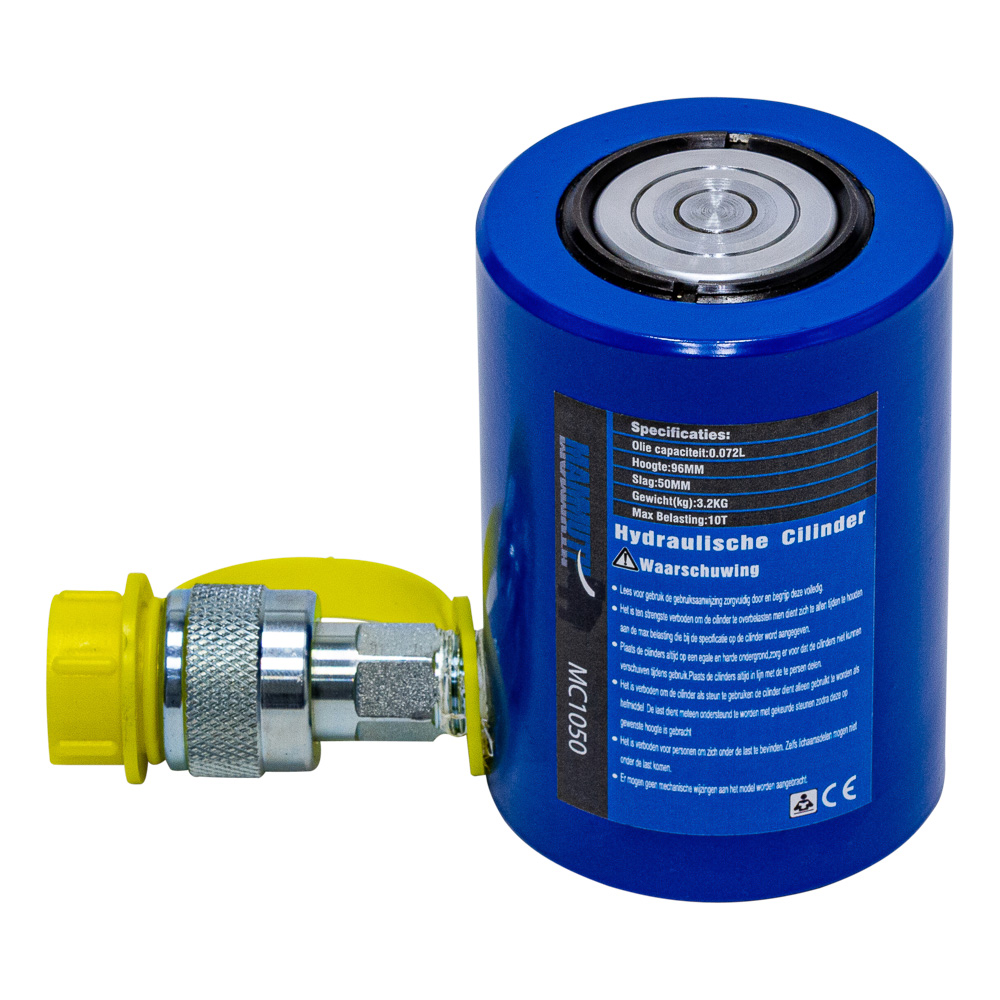

Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 10 ton - stroke = 50mm - effective area = 15,2cm^2 - oil capacity = 0,075 L - height of product = 106mm - extended height = 156mm - outside diameter = 73mm - bore diameter = 44mm - plunger diameter = 38mm - thread for input oil port (ZG) = 3/8" - 16,3 - max. pressure = 700bar

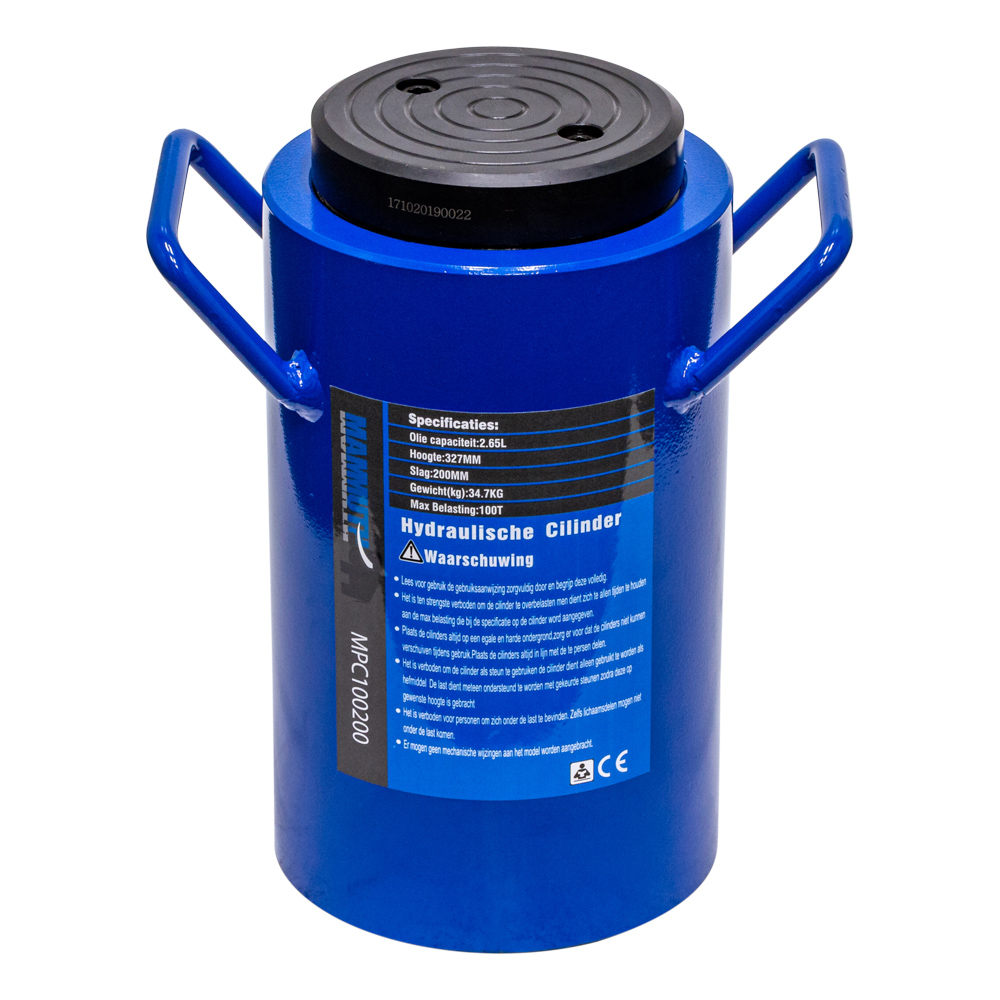

output = 100 ton
stroke = 200mm
effective area = 132,7cm^2
oil capacity = 2,65 L
height of product = 312mm
extended height = 527mm
outside diameter = 175mm
bore diameter = 130mm
plunger diameter = 110mm
thread for input oil port (ZG) = 3/8" - 22,5
saddle protrusion form plgr = 27mm

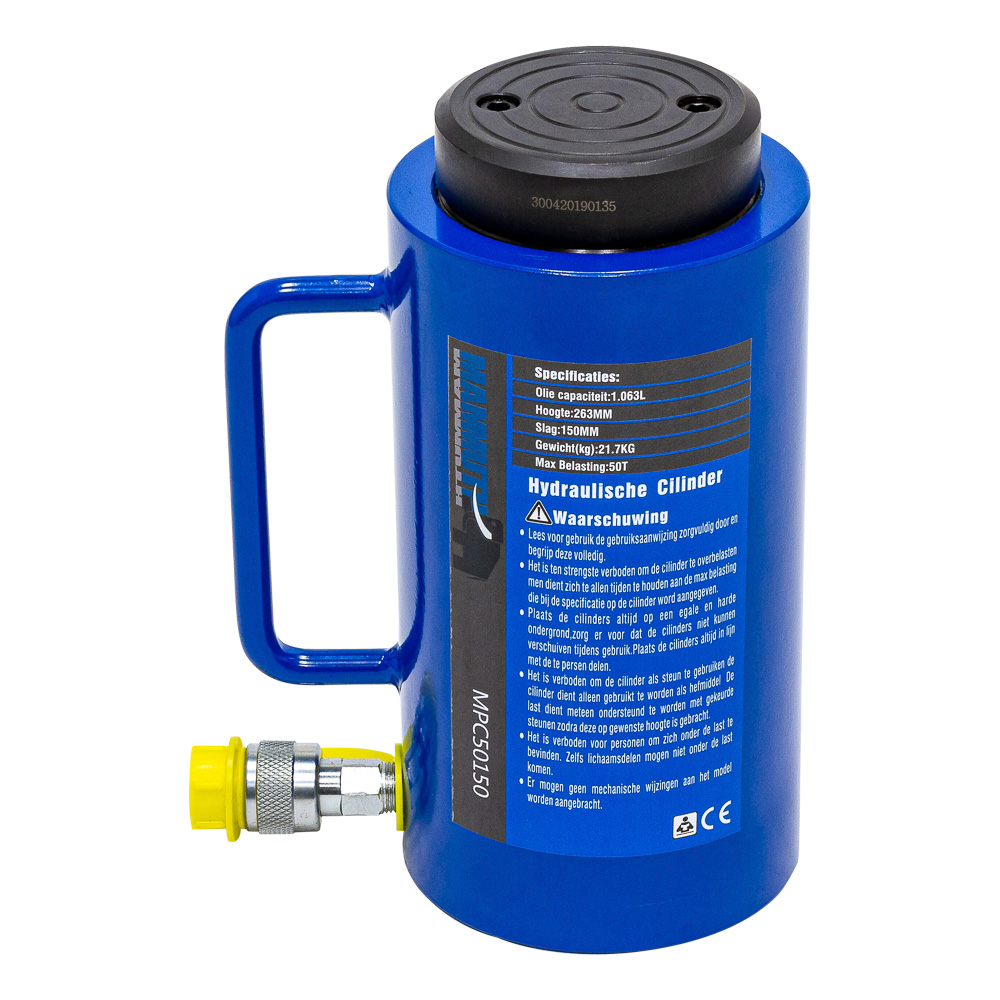

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically.Surface coating resists corrosion.
stroke = 150mm
oil capacity = 1,063 L
height of product = 262mm
extended height = 413mm

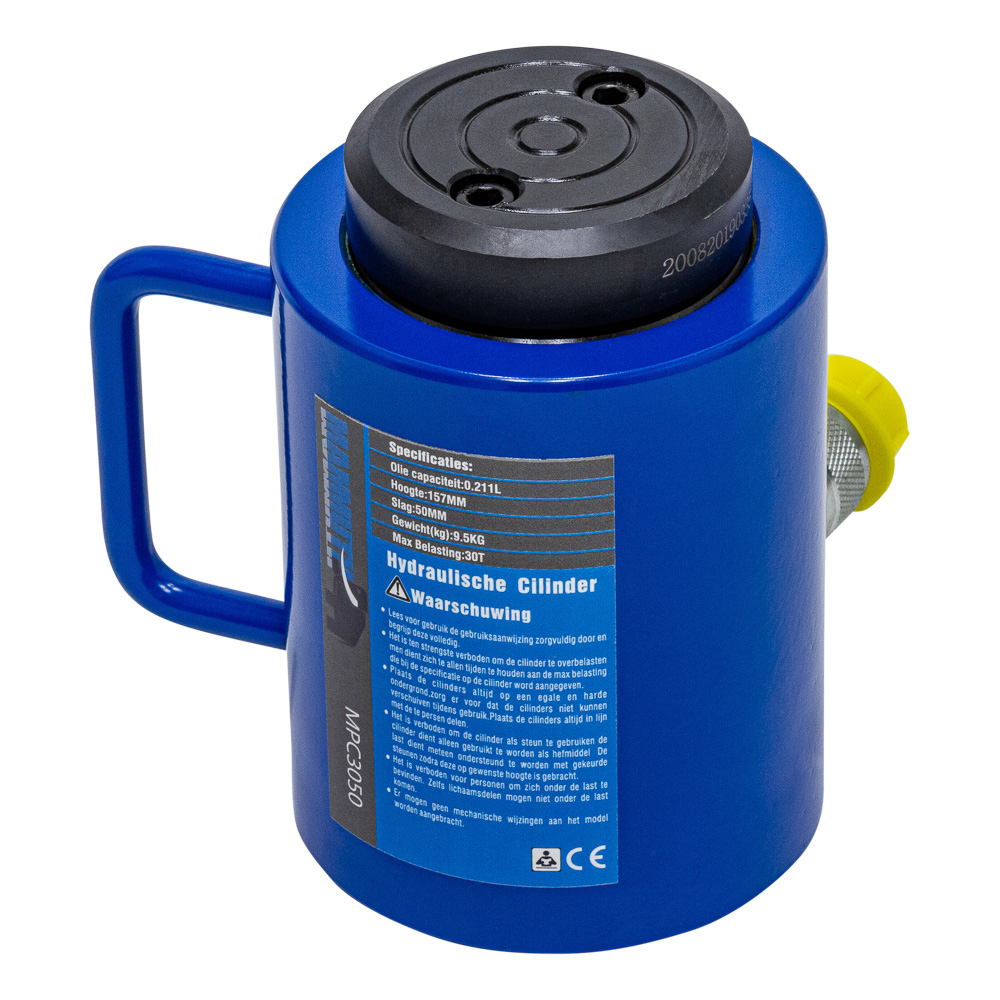

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 30 ton - stroke = 50mm - effective area = 44,2cm^2 - oil capacity = 0,221 L - height of product = 157mm - extended height = 207mm - outside diameter = 107mm - bore diameter = 75mm - plunger diameter = 65mm - thread for input oil port (ZG) = 3/8" - 23 - saddle protrusion form plgr = 22mm - saddle is removable - max. pressure = 700bar

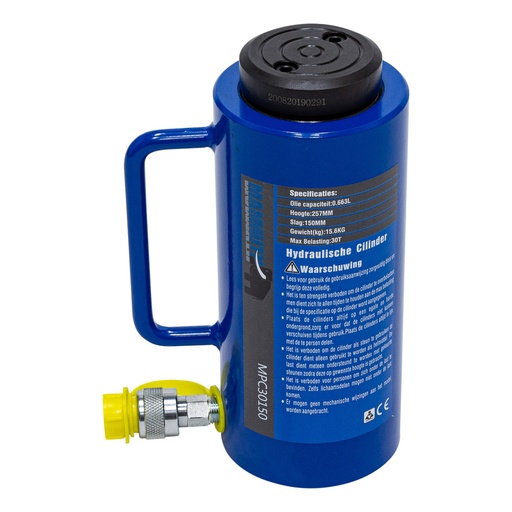

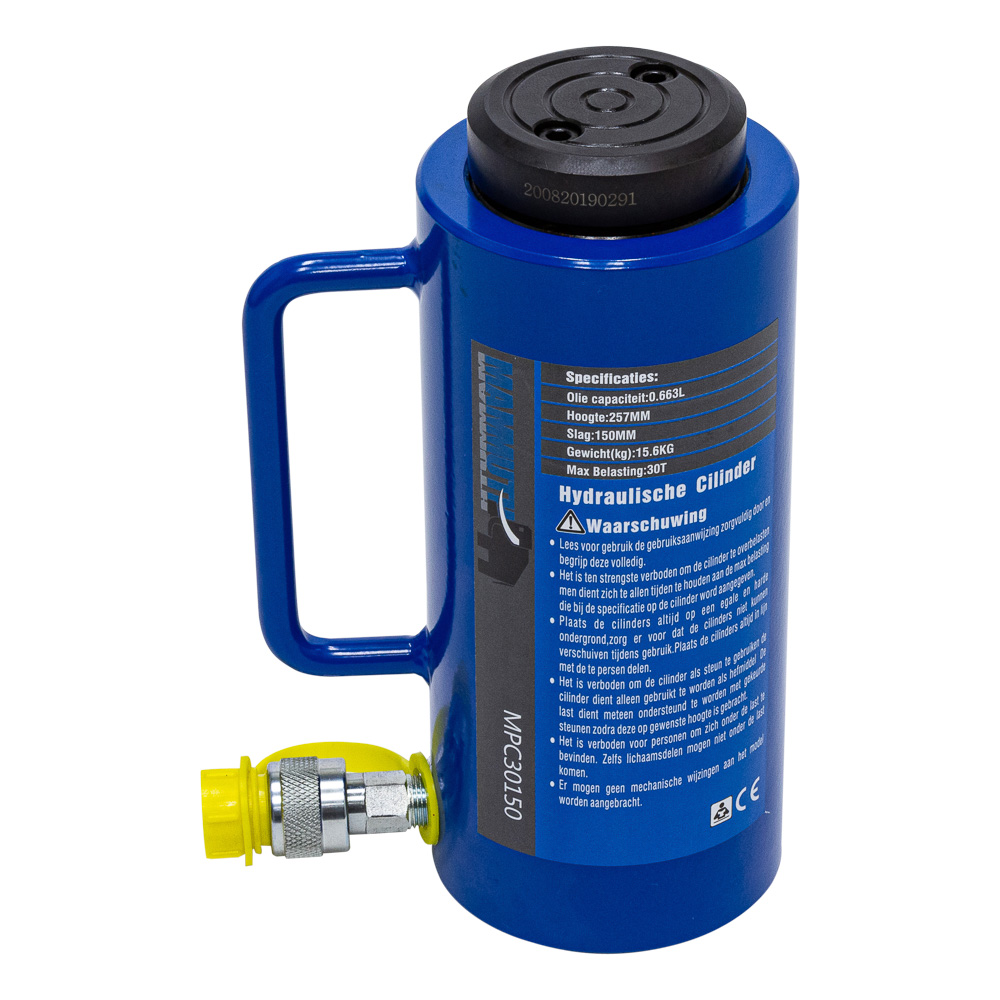

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 30 ton - stroke = 150mm - effective area = 44,2cm^2 - oil capacity = 0,663 L - height of product = 256mm - extended height = 407mm - outside diameter = 107mm - bore diameter = 75mm - plunger diameter = 65mm - thread for input oil port (ZG) = 3/8" - 23 - saddle protrusion form plgr = 22mm - saddle is removable - max. pressure = 700bar

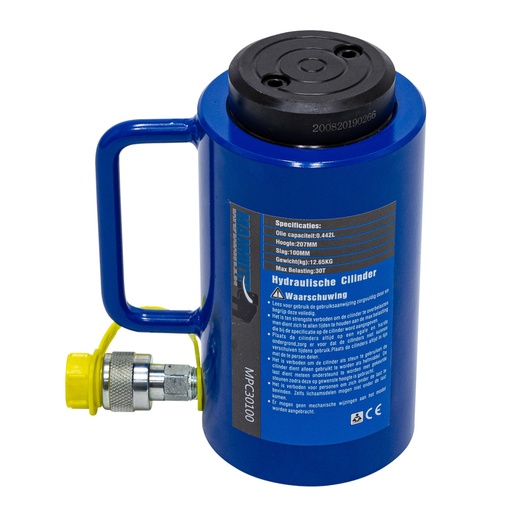

output = 30 ton
effective area = 44,2cm^2
oil capacity = 0,442 L
height of product = 209mm
extended height = 307mm
outside diameter = 107mm
bore diameter = 75mm
thread for input oil port (ZG) = 3/8" - 23
saddle protrusion form plgr = 22mm

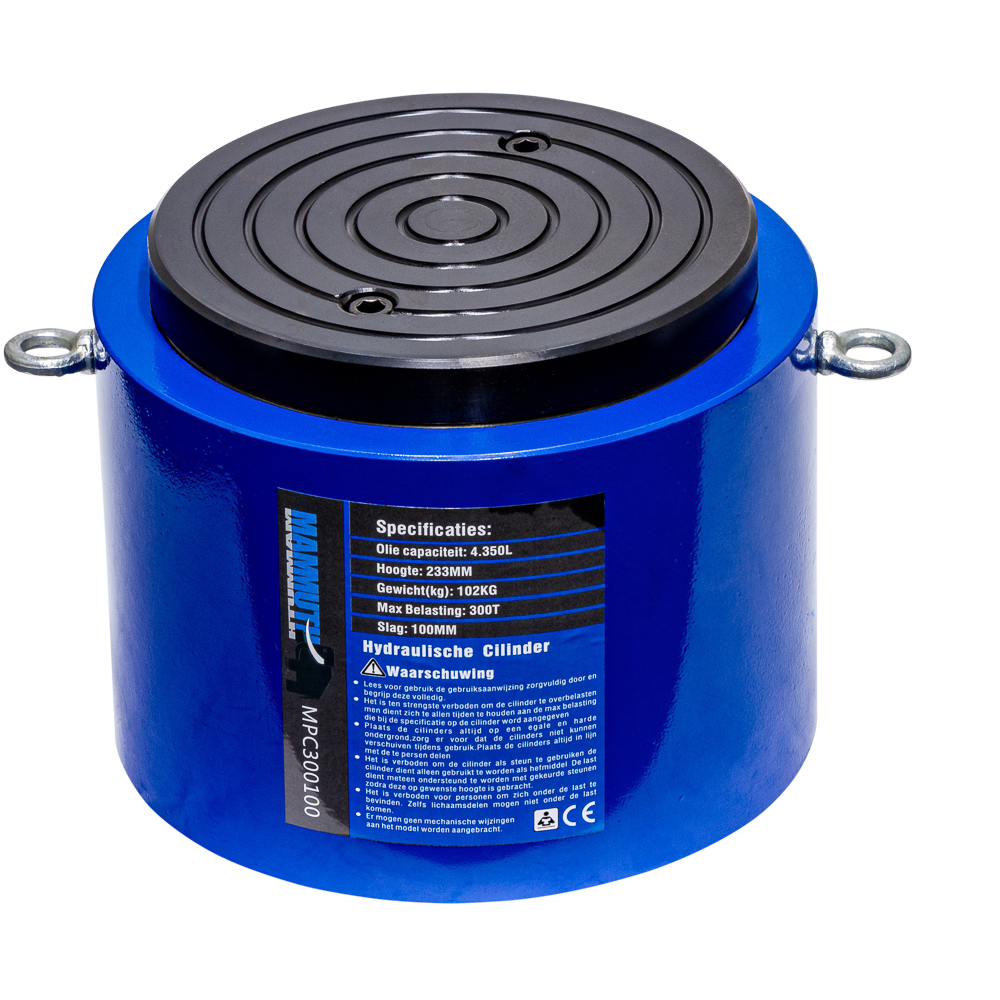

output = 300 ton
effective area = 415,3cm^2
oil capacity = 4,153 L
height of product = 233mm
extended height = 333mm
outside diameter = 287mm
bore diameter = 230mm
plunger diameter = 210mm
thread for input oil port (ZG) = 3/8" - 25,7

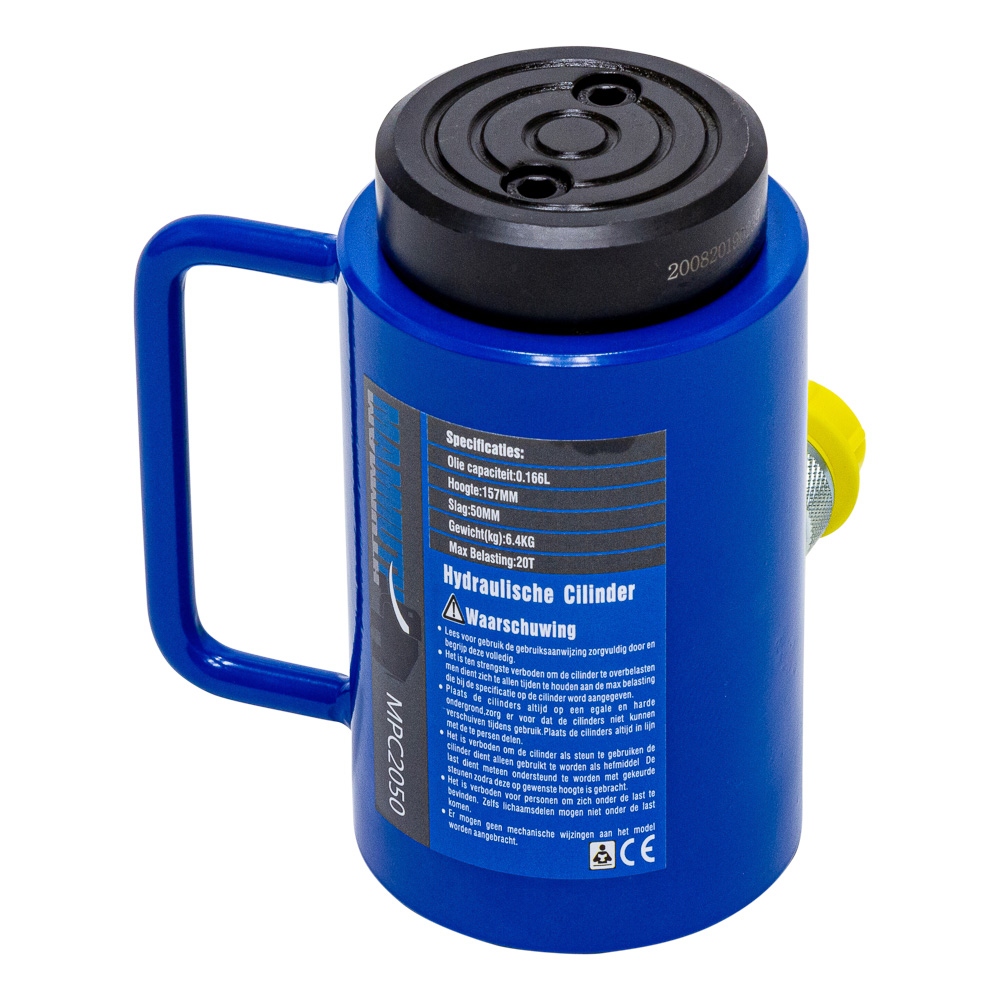

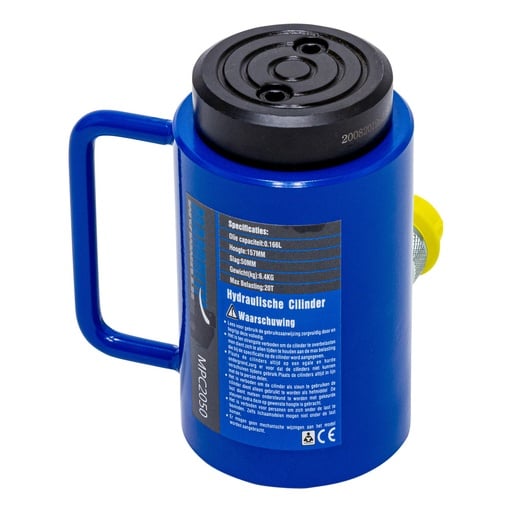

output = 20 ton
effective area = 26,4cm^2
oil capacity = 0,140 L
height of product = 157mm
extended height = 207mm
outside diameter = 88mm
bore diameter = 65mm
plunger diameter = 58mm
saddle protrusion form plgr = 20mm

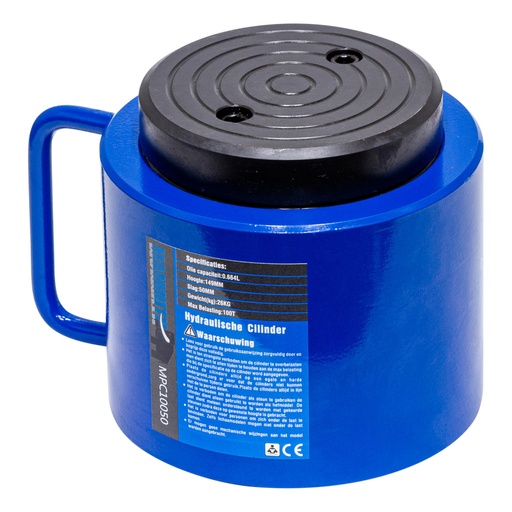

oil capacity = 0,660 L
height of product = 162mm
extended height = 199mm
outside diameter = 177mm
oil capacity = 1,327 L
extended height = 349mm

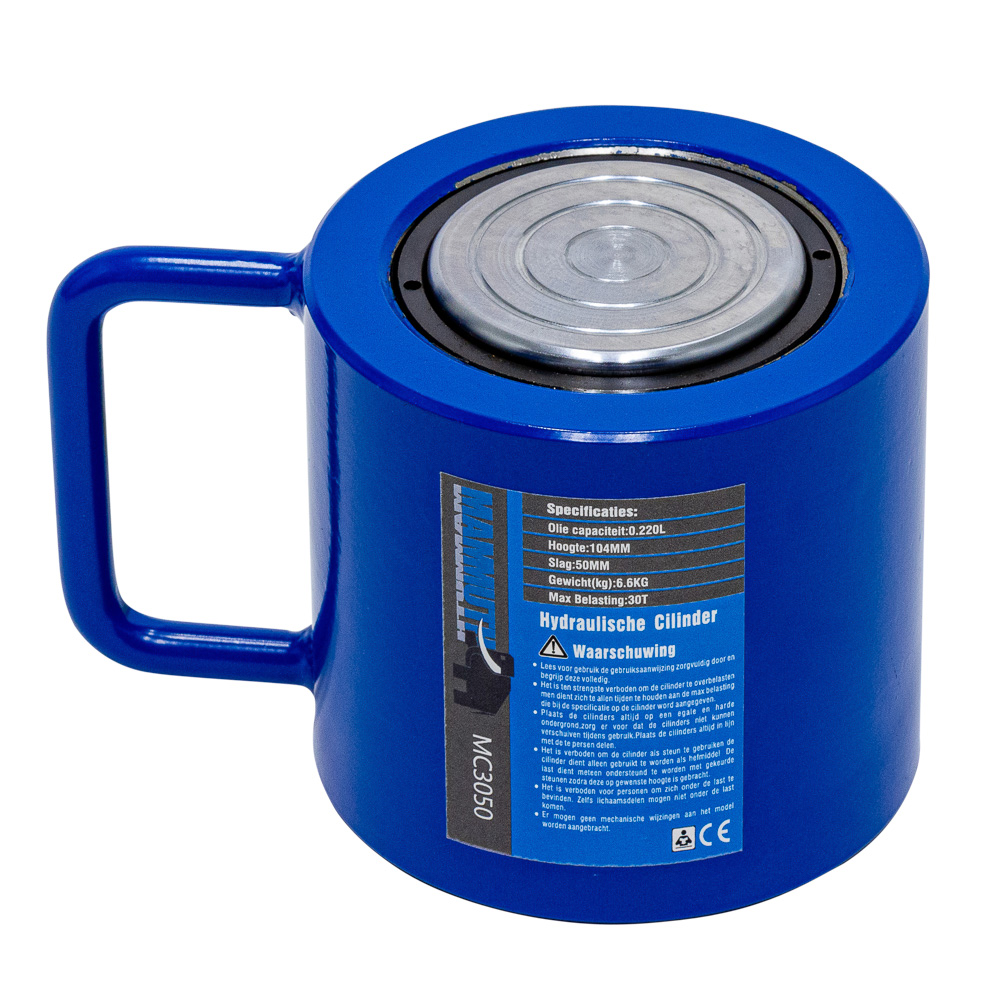

Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 30 ton - stroke = 50mm - effective area = 31,1cm^2 - oil capacity = 0,22 L - height of product = 104mm - extended height = 154mm - outside diameter = 105mm - bore diameter = 75mm - plunger diameter = 86mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 2mm - saddle is removable - max. pressure = 700bar

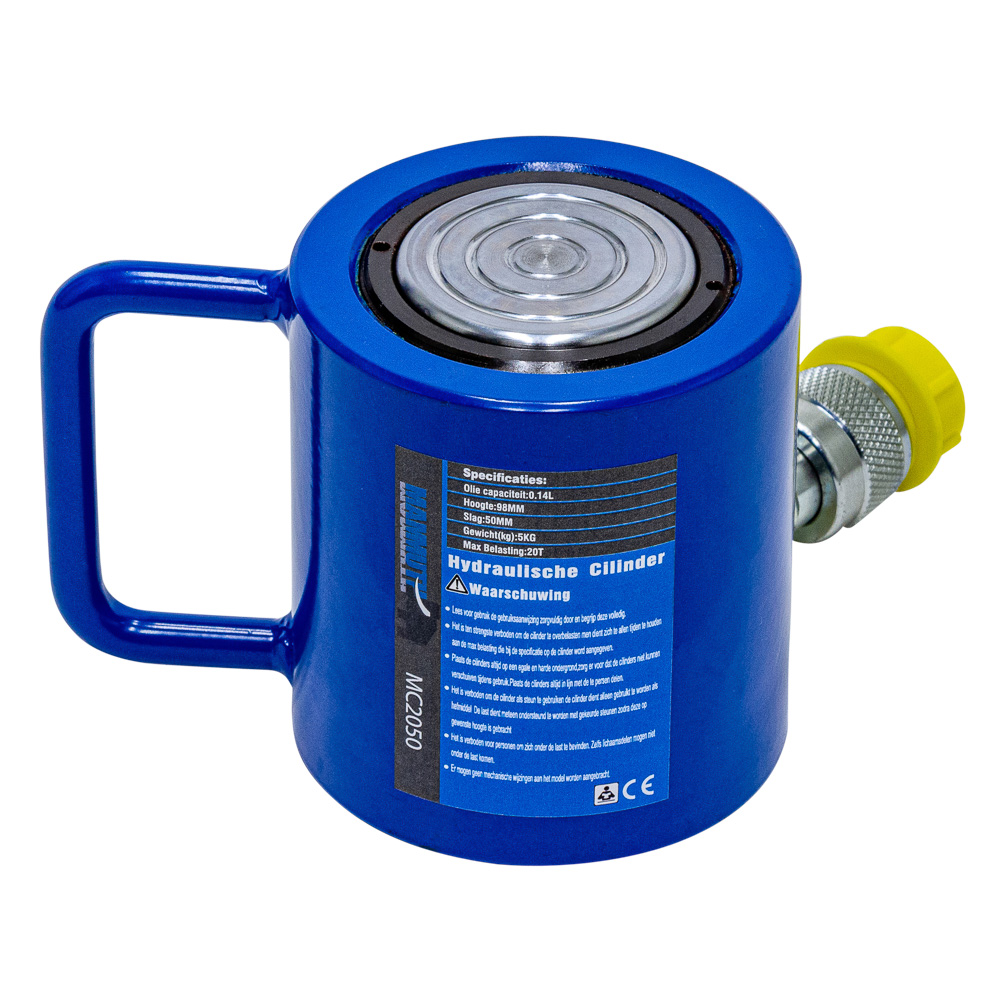

Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 20 ton - stroke = 50mm - effective area = 22cm^2 - oil capacity = 0,14 L - height of product = 98mm - extended height = 148mm - outside diameter = 88mm - bore diameter = 65mm - plunger diameter = 53mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 2mm - saddle is removable - max. pressure = 700bar

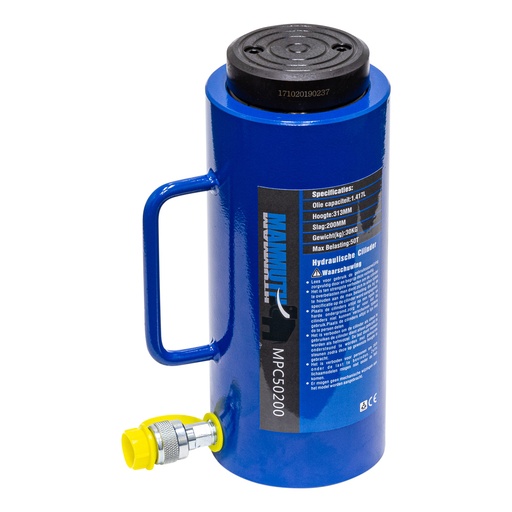

oil capacity = 1,417 L
extended height = 513mm

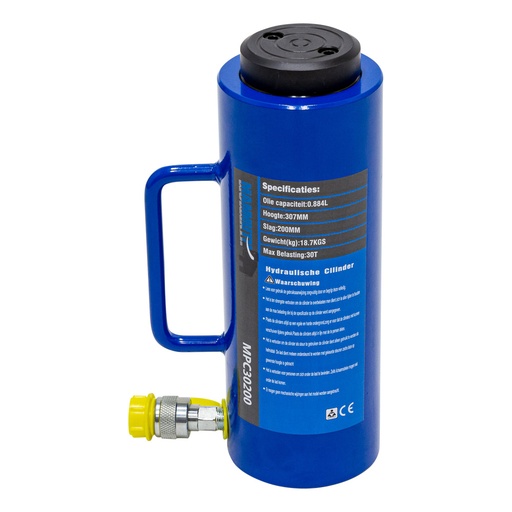

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 30 ton - stroke = 200mm - effective area = 44,2cm^2 - oil capacity = 0,884 L - height of product = 308mm - extended height = 507mm - outside diameter = 107mm - bore diameter = 75mm - plunger diameter = 65mm - thread for input oil port (ZG) = 3/8" - 23 - saddle protrusion form plgr = 22mm - saddle is removable - max. pressure = 700bar
