Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 300 ton - stroke = 50mm - effective area = 514,5cm^2 - oil capacity = 2,08 L - height of product = 181mm - extended height = 231mm - outside diameter = 287mm - bore diameter = 230mm - plunger diameter = 210mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 31mm - saddle is removable - max. pressure = 700bar

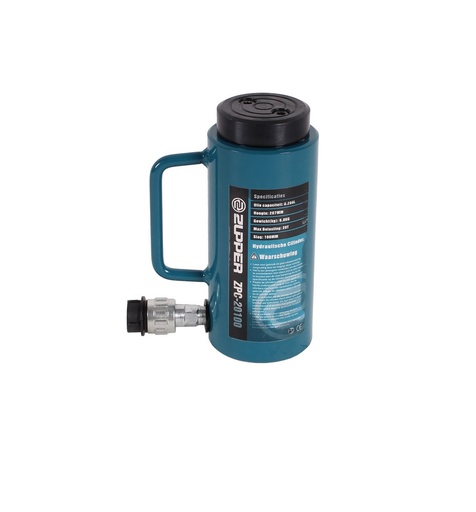

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 20 ton - stroke = 100mm - effective area = 33,2cm^2 - oil capacity = 0,332 L - height of product = 207mm - extended height = 307mm - outside diameter = 88mm - bore diameter = 65mm - plunger diameter = 55mm - thread for input oil port (ZG) = 3/8" - 23 - saddle protrusion form plgr = 21mm - saddle is removable - max. pressure = 700bar
Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 200 ton - stroke = 50mm - effective area = 280,4cm^2 - oil capacity = 1,402 L - height of product = 171mm - extended height = 231mm - outside diameter = 237mm - bore diameter = 189mm - plunger diameter = 169mm - thread for input oil port (ZG) = 3/8" - 25 - saddle protrusion form plgr = 31mm - saddle is removable - max. pressure = 700bar

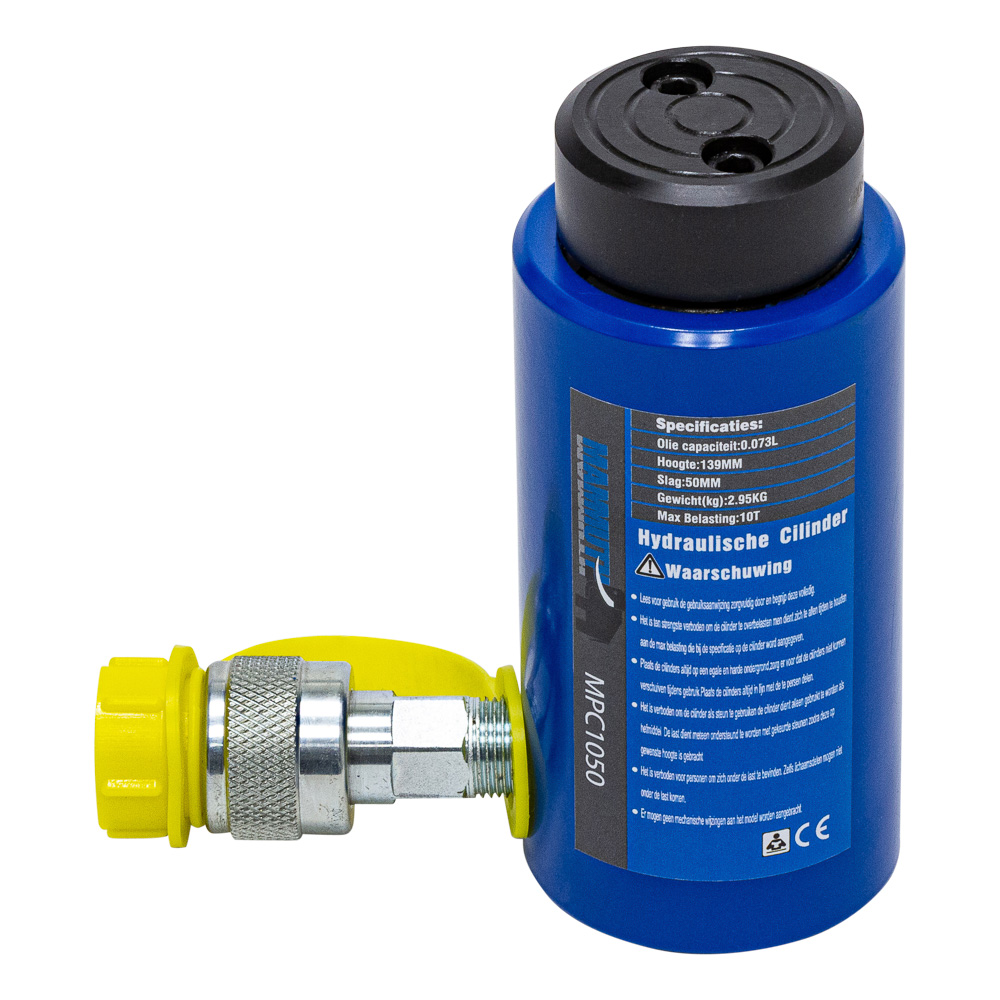

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion.
output = 10 ton
stroke = 50mm
effective area = 15,2cm^2
oil capacity = 0,075 L
height of product = 139mm
extended height = 189mm
outside diameter = 62mm
bore diameter = 44mm
plunger diameter = 38mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 21mm
saddle is removable
max. pressure = 700bar

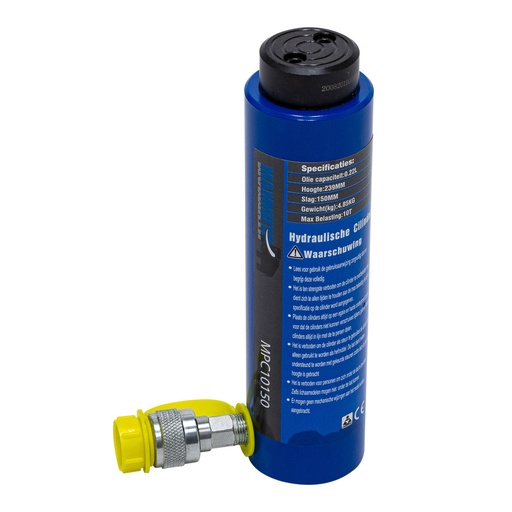

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 10 ton - stroke = 150mm - effective area = 15,2cm^2 - oil capacity = 0,228 L - height of product = 241mm - extended height = 389mm - outside diameter = 62mm - bore diameter = 44mm - plunger diameter = 38mm - thread for input oil port (ZG) = 3/8" - 20 - saddle protrusion form plgr = 21mm - saddle is removable - max. pressure = 700bar

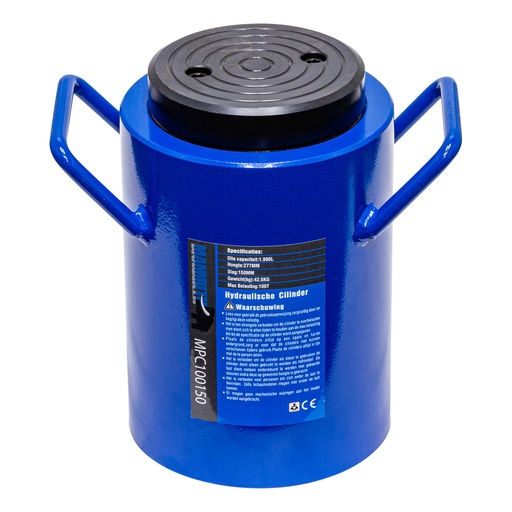

output = 100 ton
stroke = 150mm
effective area = 132,7cm^2
oil capacity = 1,990 L
height of product = 262mm
extended height = 427mm
outside diameter = 175mm
bore diameter = 130mm
plunger diameter = 110mm
thread for input oil port (ZG) = 3/8" - 22,5
saddle protrusion form plgr = 27mm

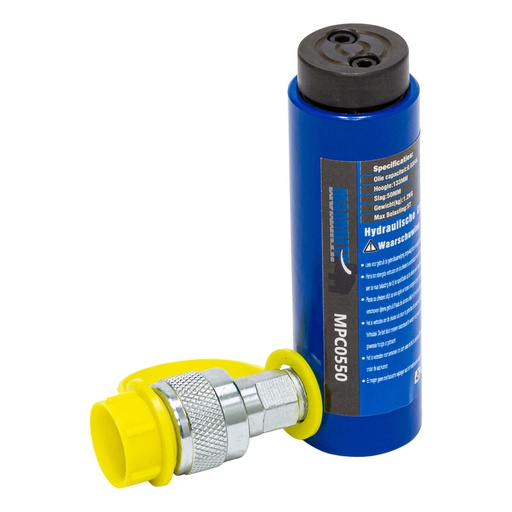

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 5 ton - stroke = 50mm - effective area = 9,6cm^2 - oil capacity = 0,036 L - height of product = 133mm - extended height = 183mm - outside diameter = 40mm - bore diameter = 30mm - plunger diameter = 25mm - thread for input oil port (ZG) = 1/4" - 18 - saddle protrusion form plgr = 13mm - saddle is removable - max. pressure = 700bar

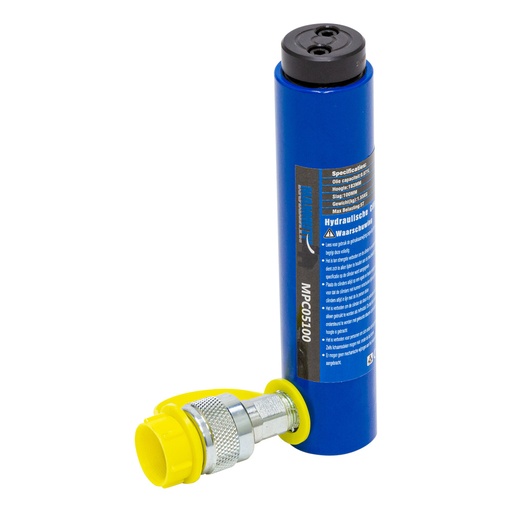

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 5 ton - stroke = 100mm - effective area = 9,6cm^2 - oil capacity = 0,071 L - height of product = 183mm - extended height = 283mm - outside diameter = 40mm - bore diameter = 30mm - plunger diameter = 25mm - thread for input oil port (ZG) = 1/4" - 18 - saddle protrusion form plgr = 13mm - saddle is removable - max. pressure = 700bar

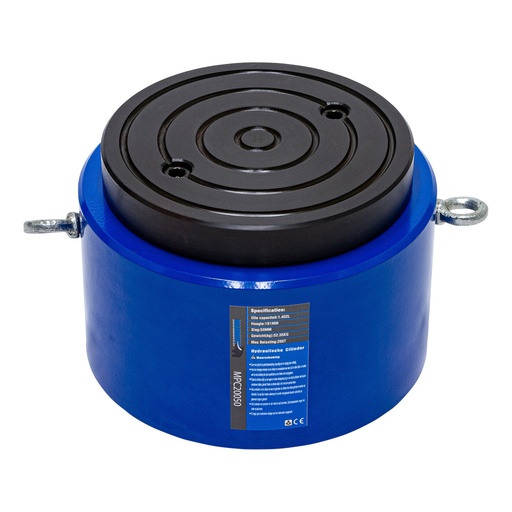

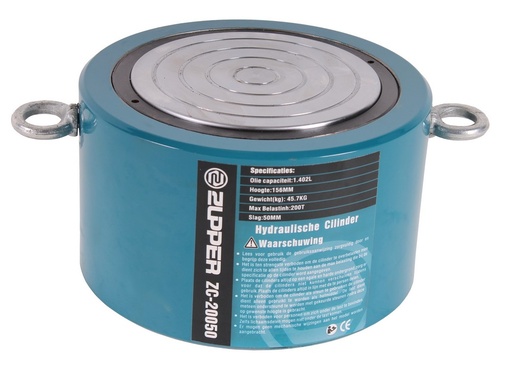

Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 200 ton - stroke = 50mm - effective area = 224,2cm^2 - oil capacity = 1,402 L - height of product = 156mm - extended height = 206mm - outside diameter = 237mm - bore diameter = 189mm - plunger diameter = 169mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 2mm - saddle is removable - max. pressure = 700bar

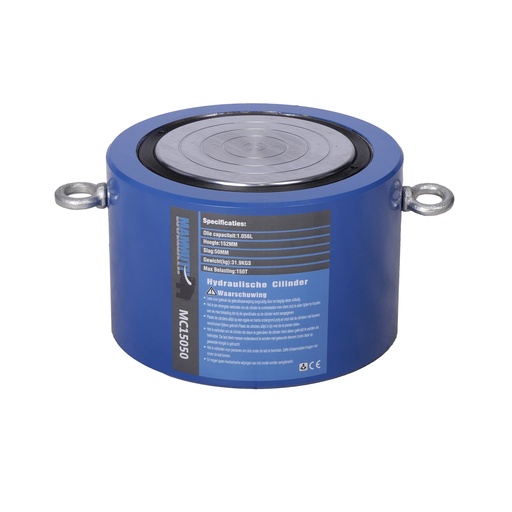

Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically.
output = 150 ton
effective area = 162,8cm^2
oil capacity = 1,056 L
height of product = 152mm
extended height = 202mm
outside diameter = 207mm
bore diameter = 164mm
plunger diameter = 144mm
thread for input oil port (ZG) = 3/8" - 19
saddle protrusion form plgr = 2mm

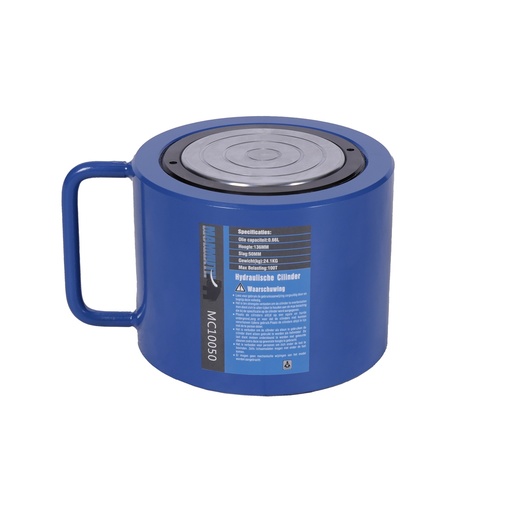

Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the MFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically.
effective area = 95cm^2
oil capacity = 0,66 L
height of product = 136mm
extended height = 186mm
bore diameter = 140mm

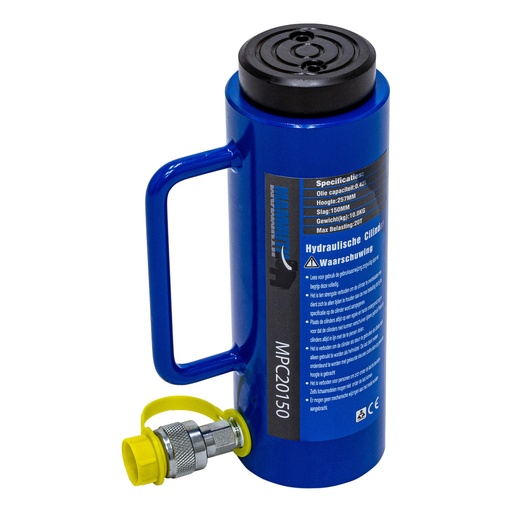

output = 20 ton
effective area = 33,2cm^2
oil capacity = 0,498 L
height of product = 254mm
extended height = 407mm
outside diameter = 88mm
bore diameter = 65mm
plunger diameter = 55mm
thread for input oil port (ZG) = 3/8" - 23

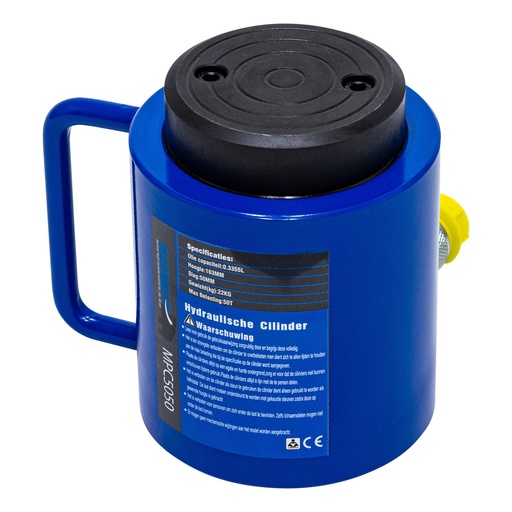

output = 50 ton
effective area = 70,9cm^2
oil capacity = 0,355 L
height of product = 162mm
extended height = 213mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm

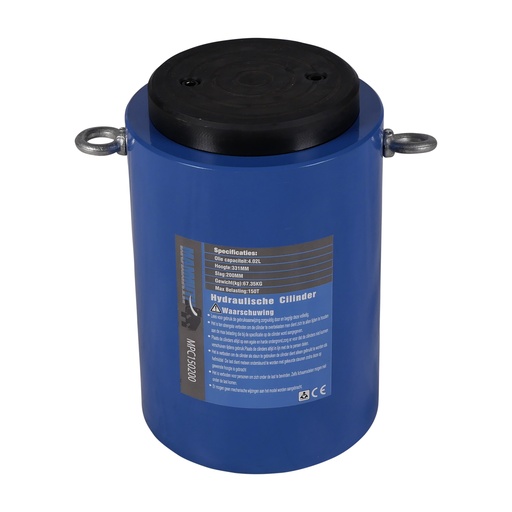

Technical specifications:
stroke = 200mm
effective area = 201cm^2
oil capacity = 4,020L
height of product = 316mm
extended height = 531mm
bore diameter = 160mm
plunger diameter = 140mm
saddle protrusion form plgr = 31mm

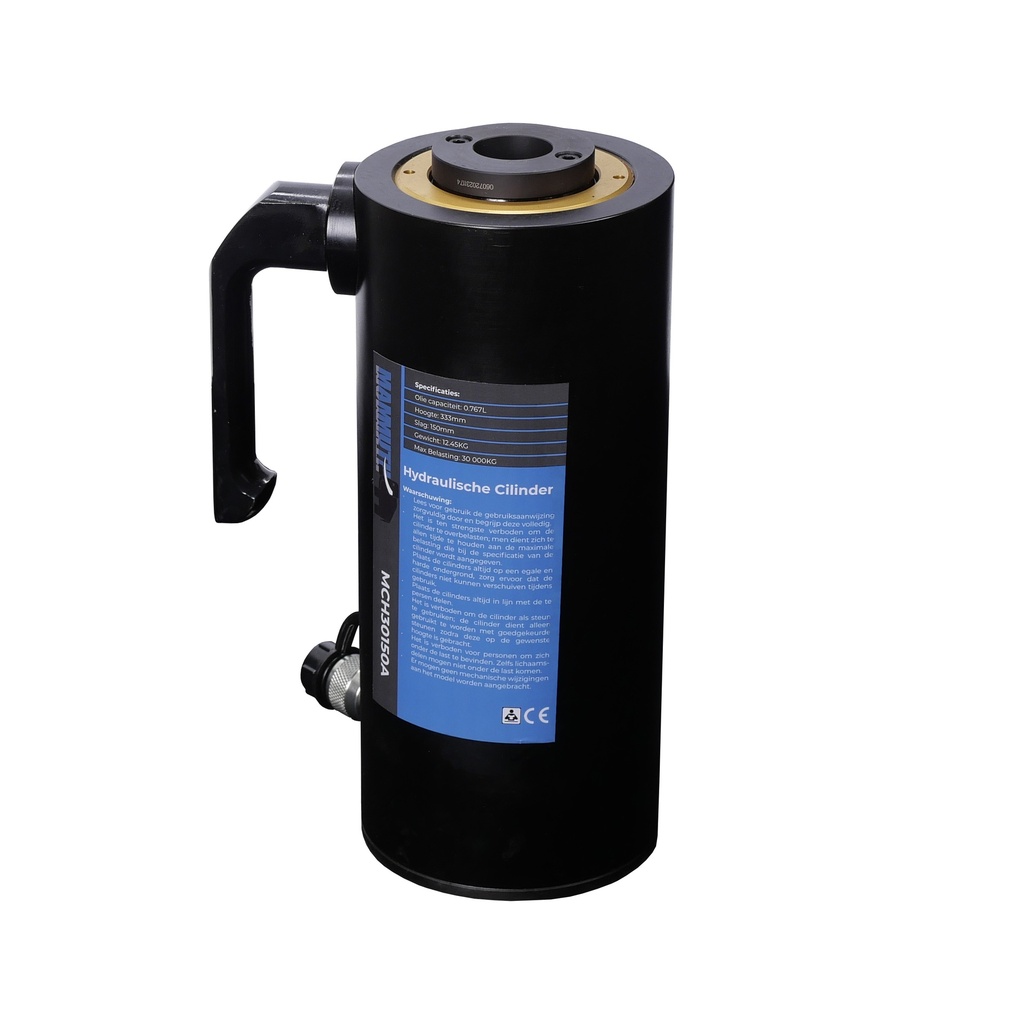

Le vérin hydraulique en aluminium 30 tonnes de Mammuth se distingue comme choix optimal lorsque l'on a besoin d'un vérin plus léger et plus portable pour diverses applications, notamment la tension, les tests, la traction et le levage. Doté d'un piston creux avec un filetage interne pour une fixation sécurisée à la composante tirée, ce vérin est conçu pour des pressions allant jusqu'à 700 bar.Conçu comme un vérin simple effet, il utilise un ressort de rappel à haute résistance pour faciliter la rétraction rapide.L'utilisation de l'aluminium dans la construction contribue non seulement à la conception légère du vérin, mais offre également une résistance inhérente à la corrosion par rapport à l'acier. Cela en fait un excellent choix pour les applications dans des environnements corrosifs. Pour protéger davantage le vérin et prolonger sa durée de vie, toutes les surfaces sont finies avec un revêtement dur pour résister aux dommages.Le vérin comprend des poignées pour faciliter son utilisation, et un tube central flottant est incorporé pour améliorer la durée de vie du joint d'étanchéité. La plaque de base et le support en acier offrent une protection contre les dommages liés aux charges. Une bague d'arrêt intégrée empêche un dépassement excessif du piston et est suffisamment robuste pour résister à la capacité totale du vérin. De plus, un ressort de rappel à haute résistance assure une rétraction rapide du vérin.

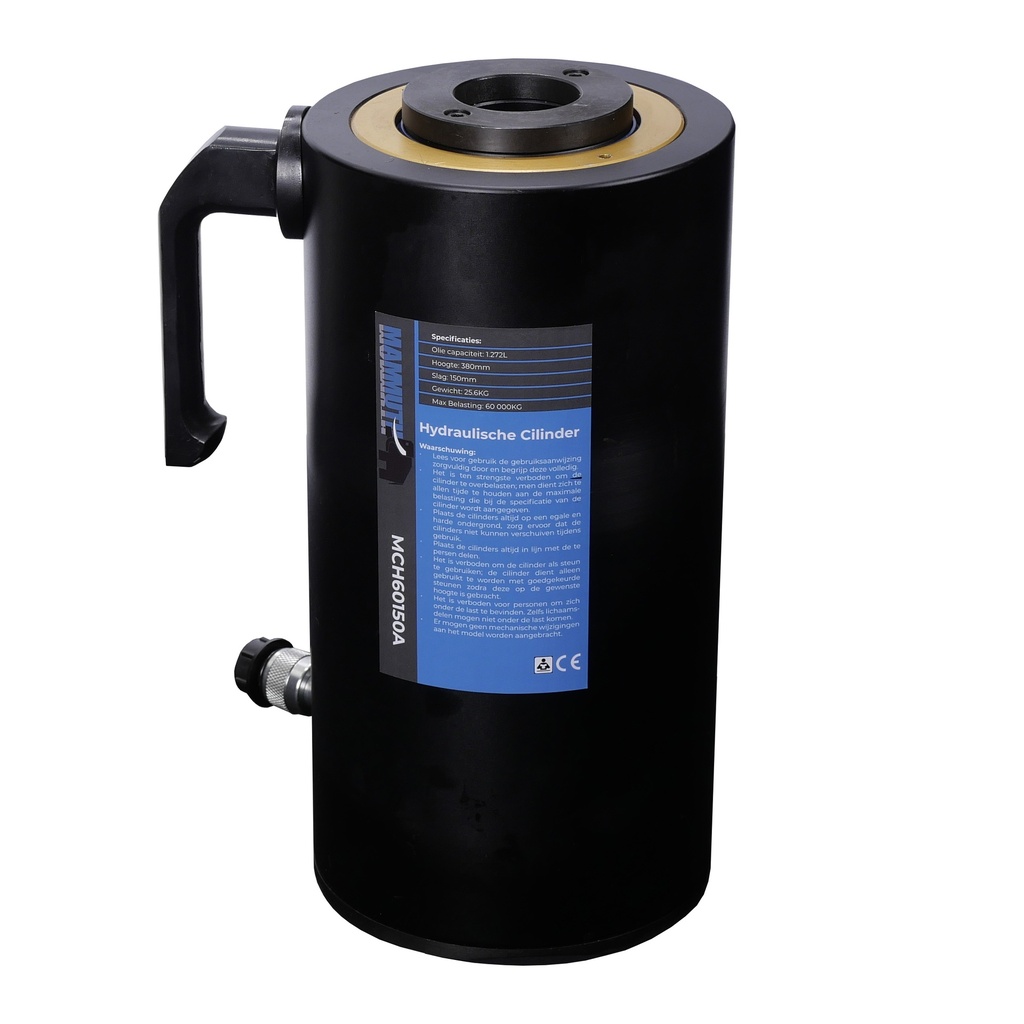

Le vérin hydraulique en aluminium de 60 tonnes de Mammuth se distingue comme le choix optimal lorsque l'on a besoin d'un vérin plus léger et plus portable pour diverses applications, notamment la tension, les tests, la traction et le levage. Doté d'un piston creux, ce vérin est conçu pour des pressions allant jusqu'à 700 bars.Conçu comme un vérin à simple effet, il utilise un ressort de rappel à haute résistance pour faciliter la rétraction rapide.L'utilisation de l'aluminium dans la construction contribue non seulement au design léger du vérin, mais offre également une résistance inhérente à la corrosion par rapport à l'acier. Cela en fait un excellent choix pour les applications dans des environnements corrosifs. Pour protéger davantage le vérin et prolonger sa durée de vie, toutes les surfaces sont finies avec un revêtement dur pour résister aux dommages.Le vérin comprend des poignées pour faciliter son utilisation, et un tube central flottant est incorporé pour améliorer la durée de vie des joints d'étanchéité. La plaque de base et la selle en acier offrent une protection contre les dommages liés à la charge. Une bague d'arrêt intégrée empêche le dépassement excessif du piston et est suffisamment robuste pour résister à la capacité maximale du vérin. De plus, un ressort de rappel à haute résistance assure une rétraction rapide du vérin.
