Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 300 ton - stroke = 50mm - effective area = 514,5cm^2 - oil capacity = 2,08 L - height of product = 181mm - extended height = 231mm - outside diameter = 287mm - bore diameter = 230mm - plunger diameter = 210mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 31mm - saddle is removable - max. pressure = 700bar

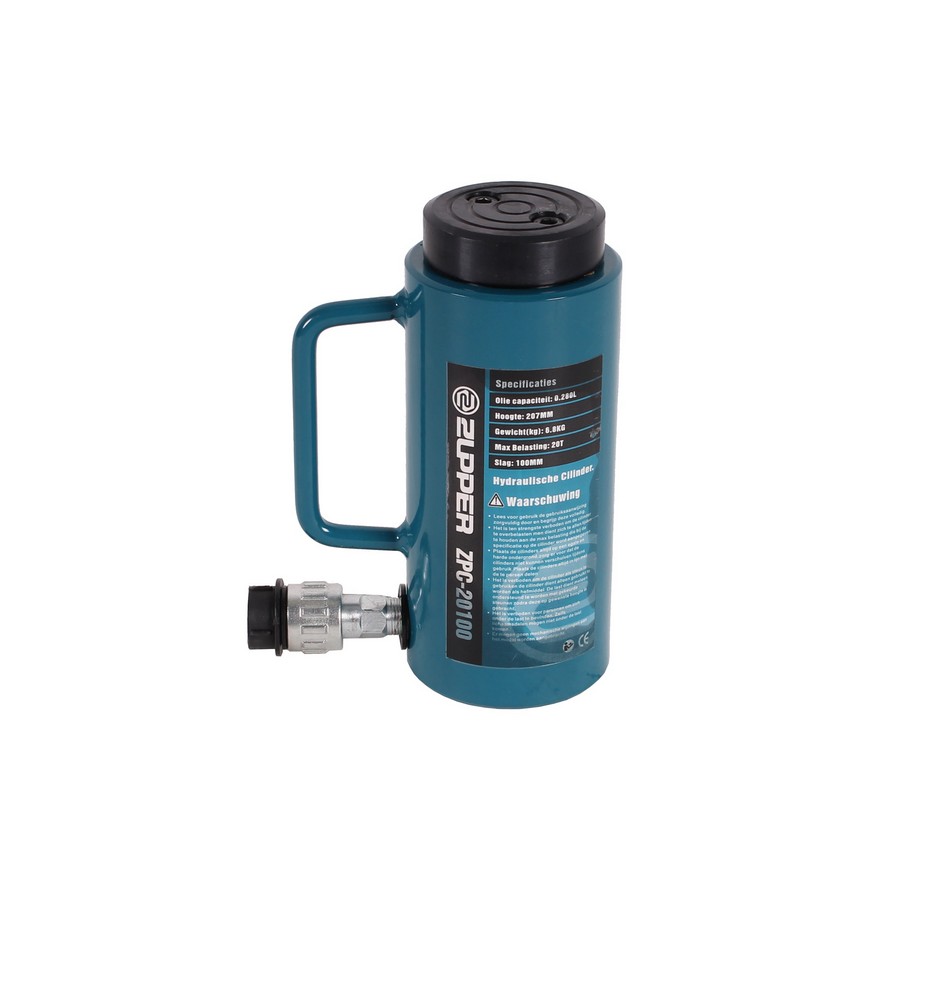

Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 20 ton - stroke = 100mm - effective area = 33,2cm^2 - oil capacity = 0,332 L - height of product = 207mm - extended height = 307mm - outside diameter = 88mm - bore diameter = 65mm - plunger diameter = 55mm - thread for input oil port (ZG) = 3/8" - 23 - saddle protrusion form plgr = 21mm - saddle is removable - max. pressure = 700bar

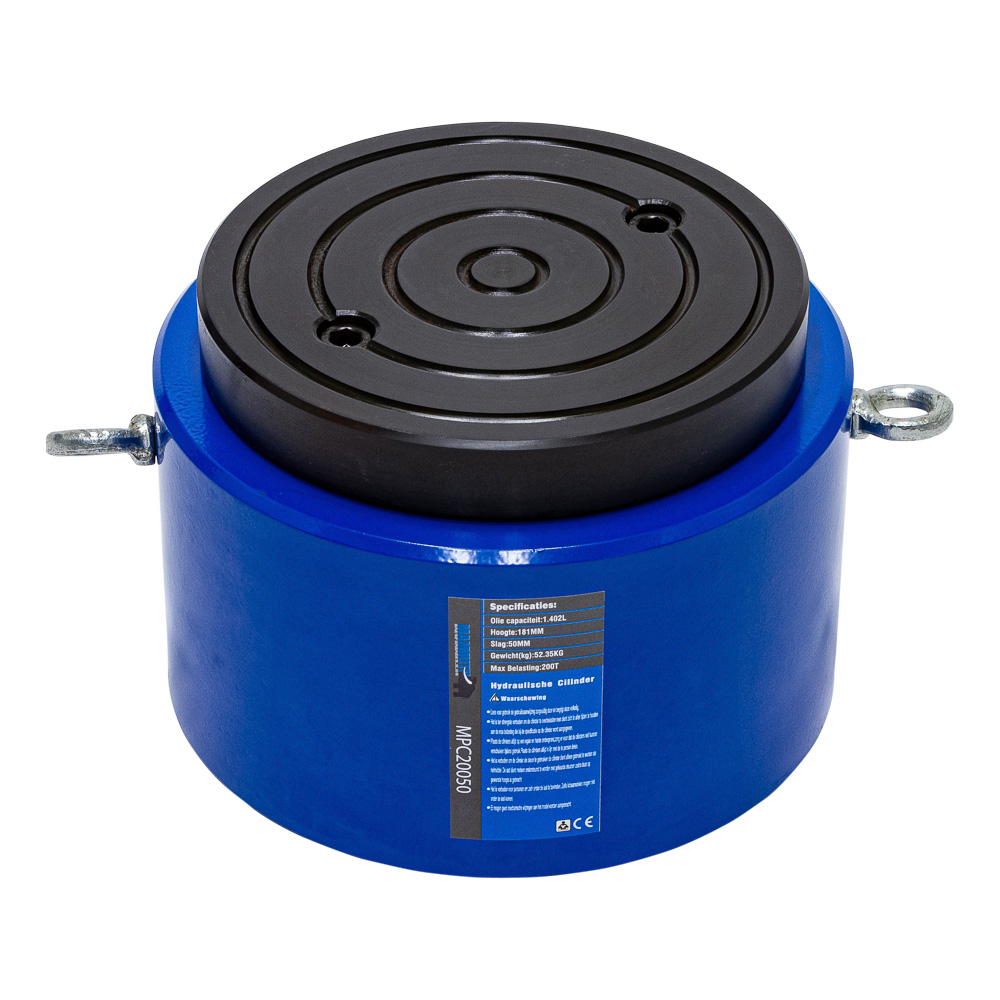

Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 200 ton - stroke = 50mm - effective area = 280,4cm^2 - oil capacity = 1,402 L - height of product = 171mm - extended height = 231mm - outside diameter = 237mm - bore diameter = 189mm - plunger diameter = 169mm - thread for input oil port (ZG) = 3/8" - 25 - saddle protrusion form plgr = 31mm - saddle is removable - max. pressure = 700bar

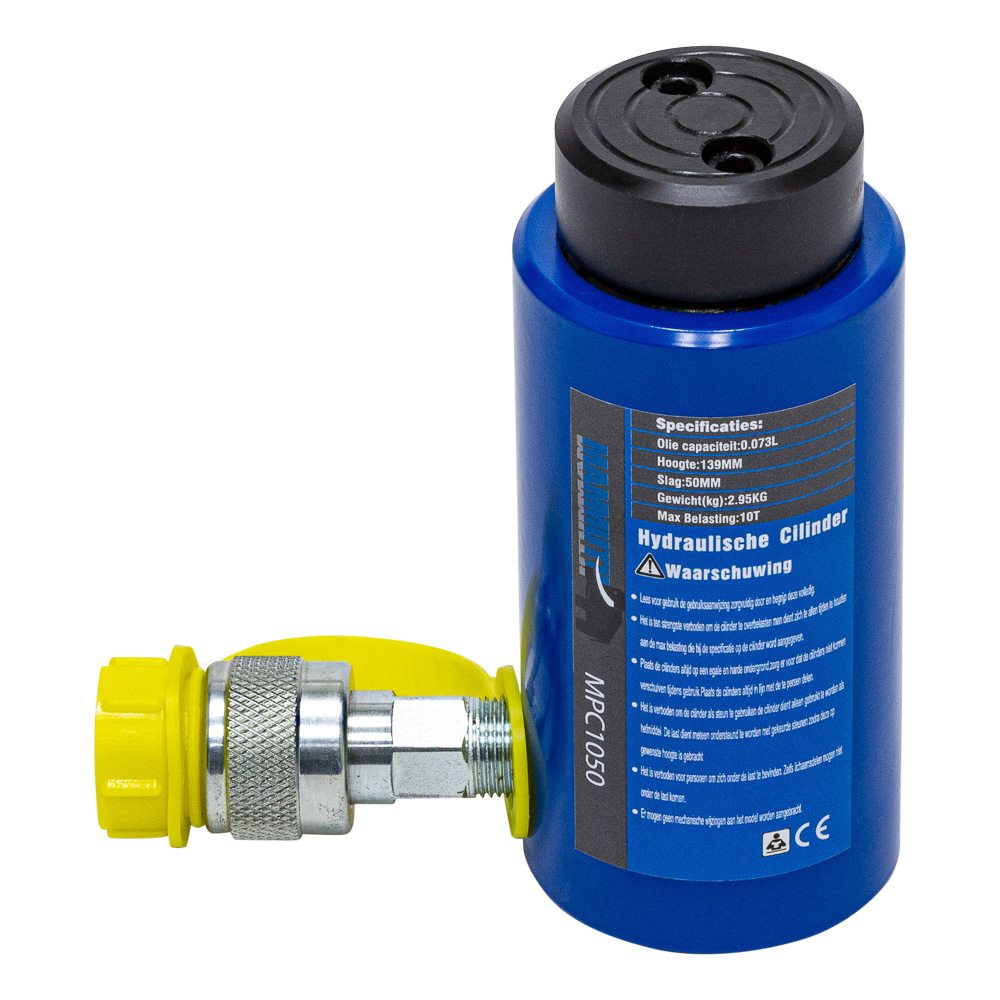

Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion.
output = 10 ton
stroke = 50mm
effective area = 15,2cm^2
oil capacity = 0,075 L
height of product = 139mm
extended height = 189mm
outside diameter = 62mm
bore diameter = 44mm
plunger diameter = 38mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 21mm
saddle is removable
max. pressure = 700bar

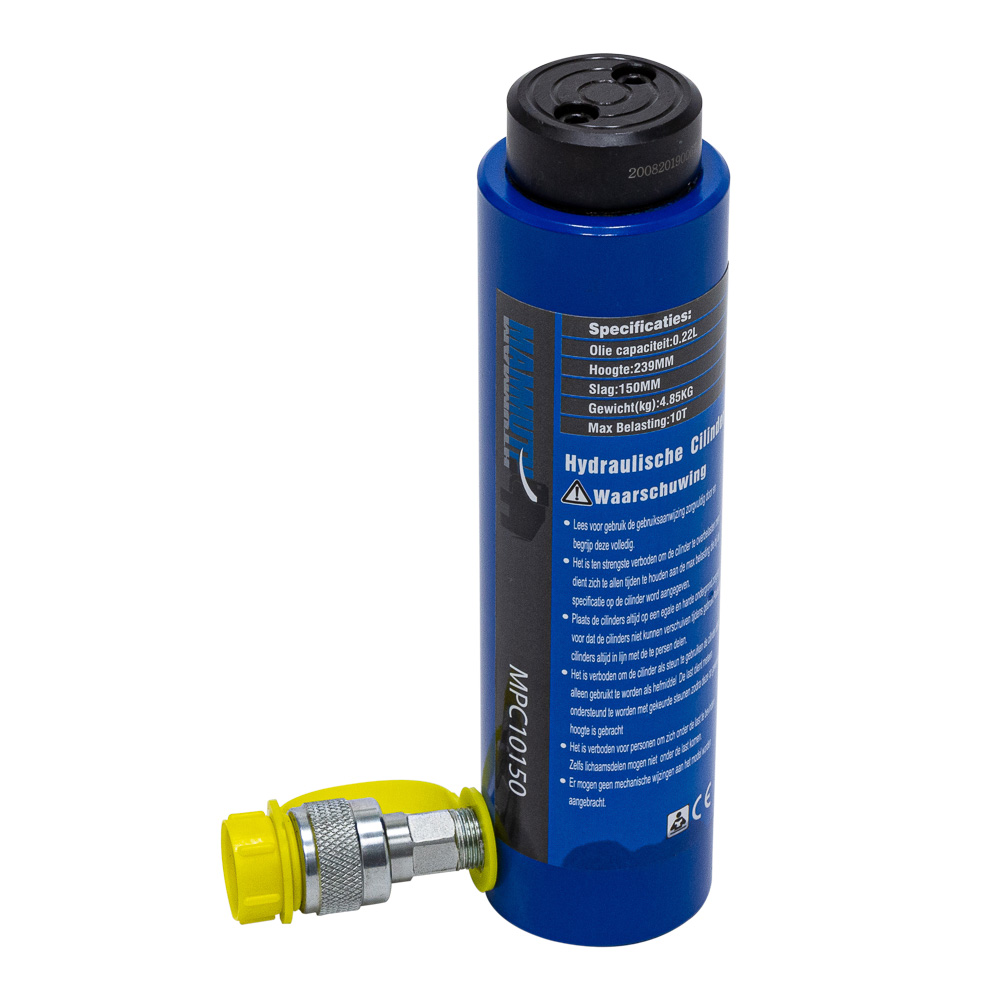

Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 10 ton - stroke = 150mm - effective area = 15,2cm^2 - oil capacity = 0,228 L - height of product = 241mm - extended height = 389mm - outside diameter = 62mm - bore diameter = 44mm - plunger diameter = 38mm - thread for input oil port (ZG) = 3/8" - 20 - saddle protrusion form plgr = 21mm - saddle is removable - max. pressure = 700bar

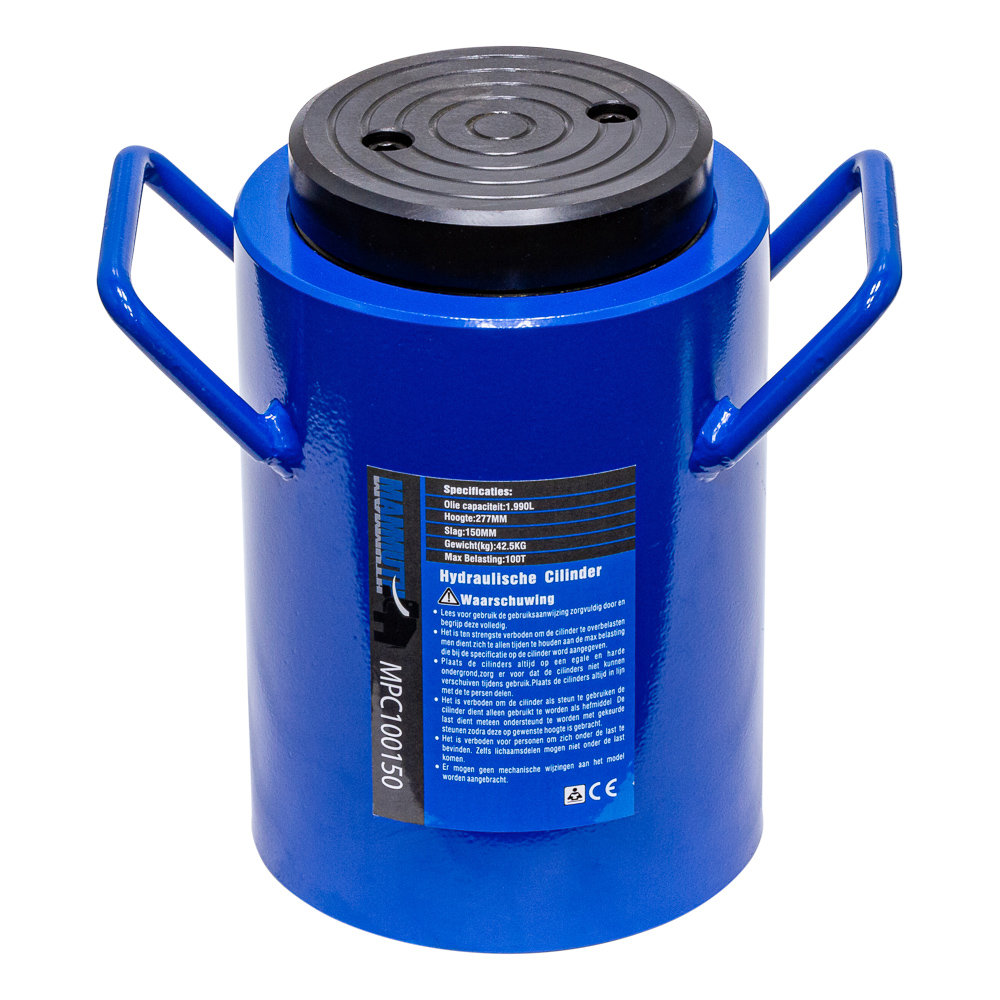

output = 100 ton
stroke = 150mm
effective area = 132,7cm^2
oil capacity = 1,990 L
height of product = 262mm
extended height = 427mm
outside diameter = 175mm
bore diameter = 130mm
plunger diameter = 110mm
thread for input oil port (ZG) = 3/8" - 22,5
saddle protrusion form plgr = 27mm

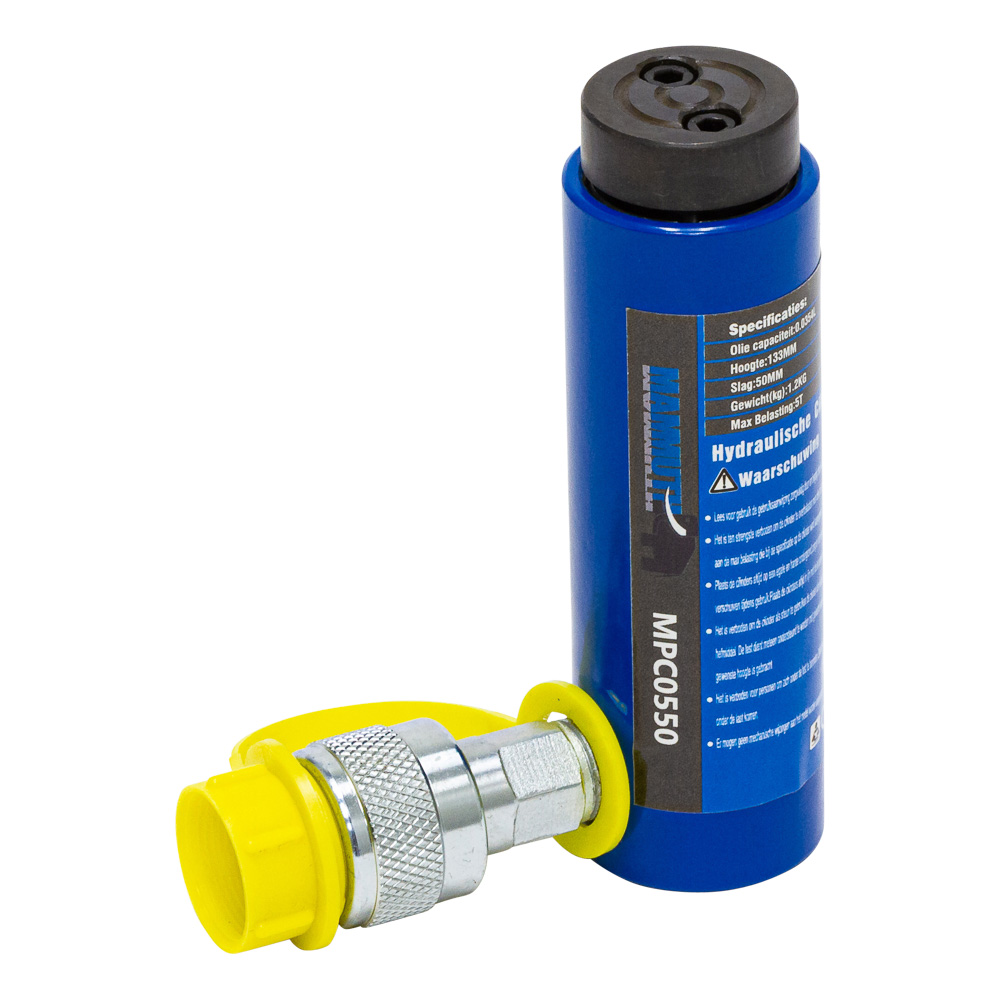

Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 5 ton - stroke = 50mm - effective area = 9,6cm^2 - oil capacity = 0,036 L - height of product = 133mm - extended height = 183mm - outside diameter = 40mm - bore diameter = 30mm - plunger diameter = 25mm - thread for input oil port (ZG) = 1/4" - 18 - saddle protrusion form plgr = 13mm - saddle is removable - max. pressure = 700bar

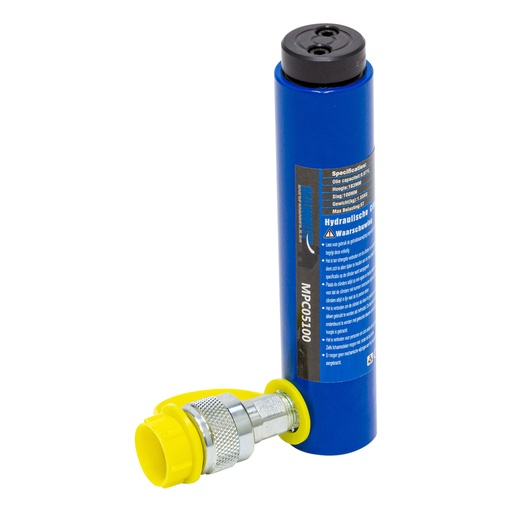

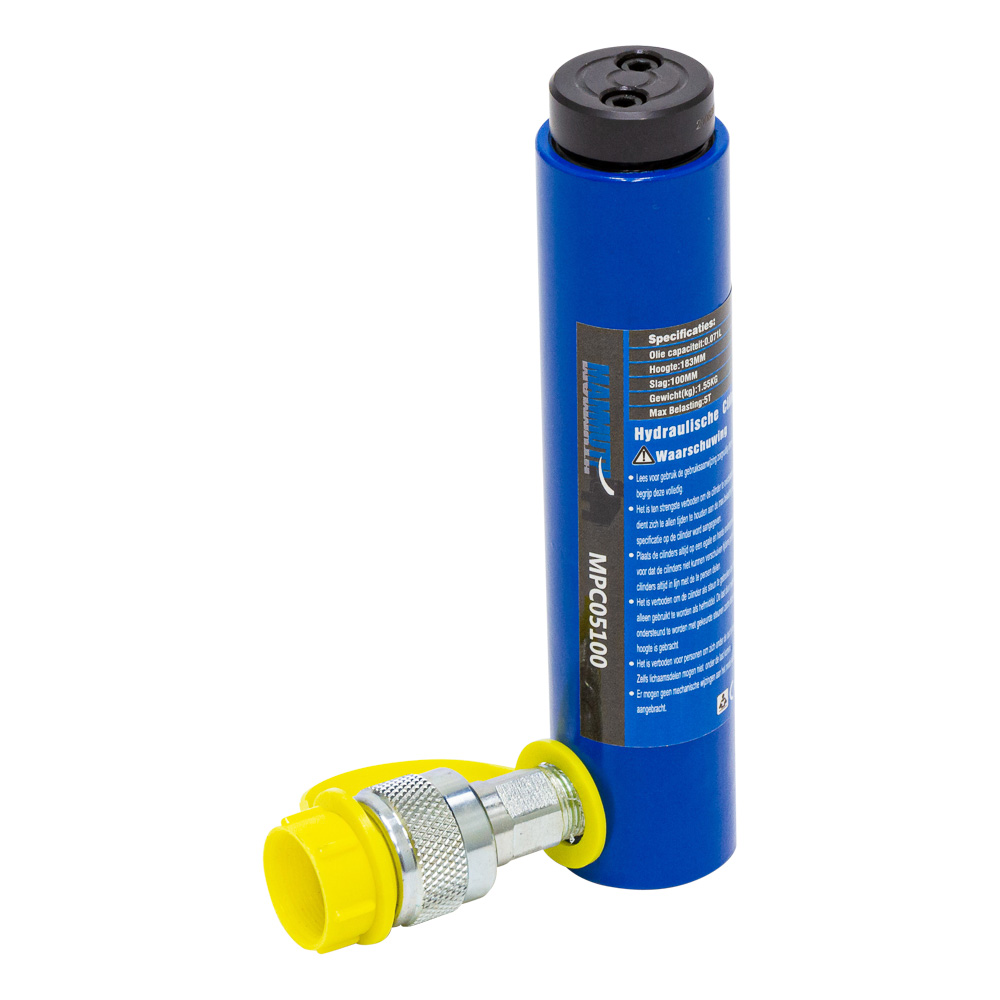

Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 5 ton - stroke = 100mm - effective area = 9,6cm^2 - oil capacity = 0,071 L - height of product = 183mm - extended height = 283mm - outside diameter = 40mm - bore diameter = 30mm - plunger diameter = 25mm - thread for input oil port (ZG) = 1/4" - 18 - saddle protrusion form plgr = 13mm - saddle is removable - max. pressure = 700bar

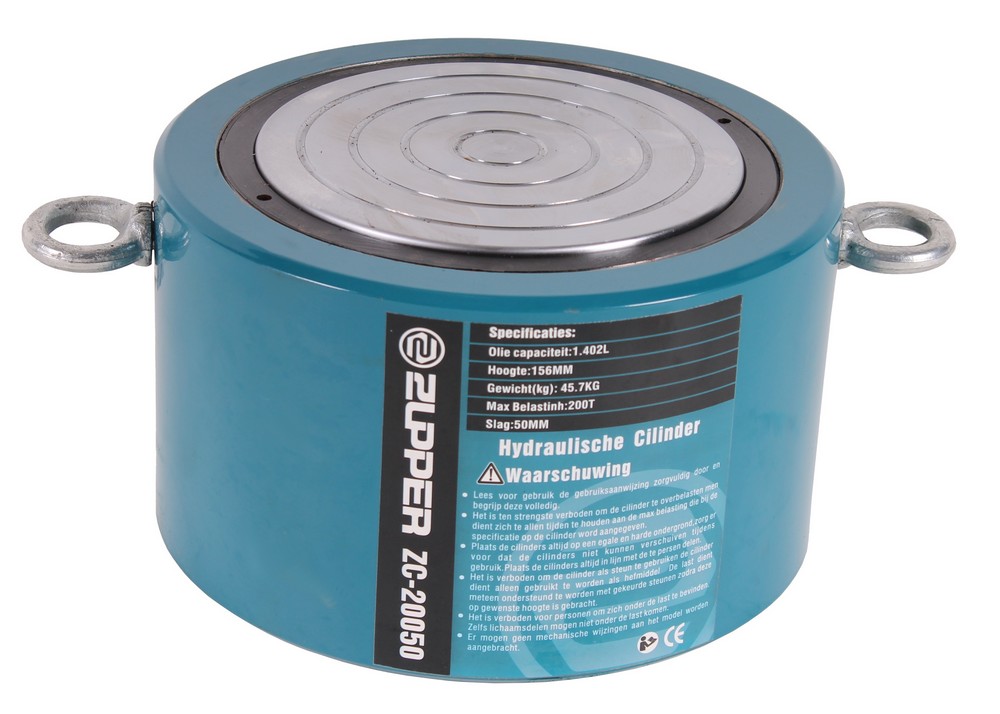

Hydraulikzylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 200 ton - stroke = 50mm - effective area = 224,2cm^2 - oil capacity = 1,402 L - height of product = 156mm - extended height = 206mm - outside diameter = 237mm - bore diameter = 189mm - plunger diameter = 169mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 2mm - saddle is removable - max. pressure = 700bar

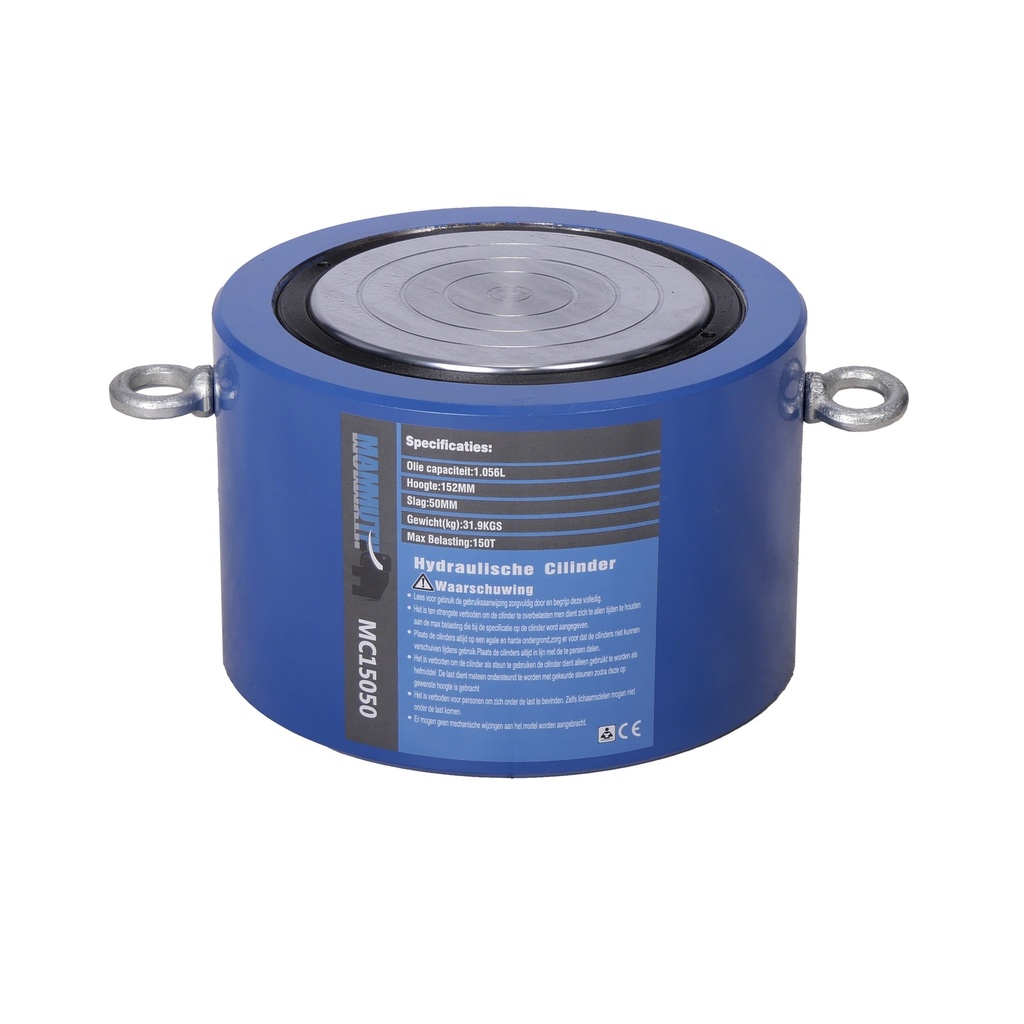

Hydraulikzylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate.Plunger has the function of retracting automatically.
output = 150 ton
effective area = 162,8cm^2
oil capacity = 1,056 L
height of product = 152mm
extended height = 202mm
outside diameter = 207mm
bore diameter = 164mm
plunger diameter = 144mm
thread for input oil port (ZG) = 3/8" - 19
saddle protrusion form plgr = 2mm

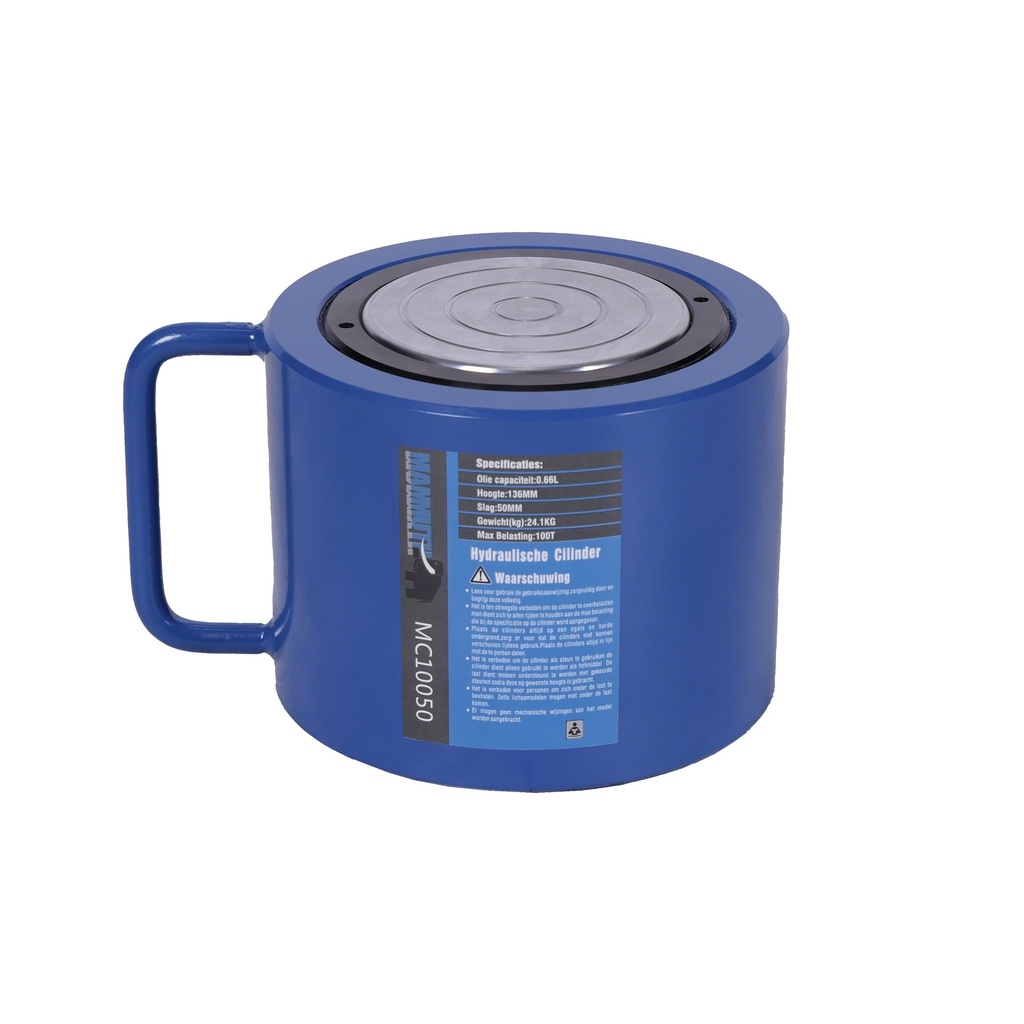

It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the MFL cylinders are recommended. The surface of principle axis is finished with chrome plate.Plunger has the function of retracting automatically.
effective area = 95cm^2
oil capacity = 0,66 L
height of product = 136mm
extended height = 186mm
bore diameter = 140mm

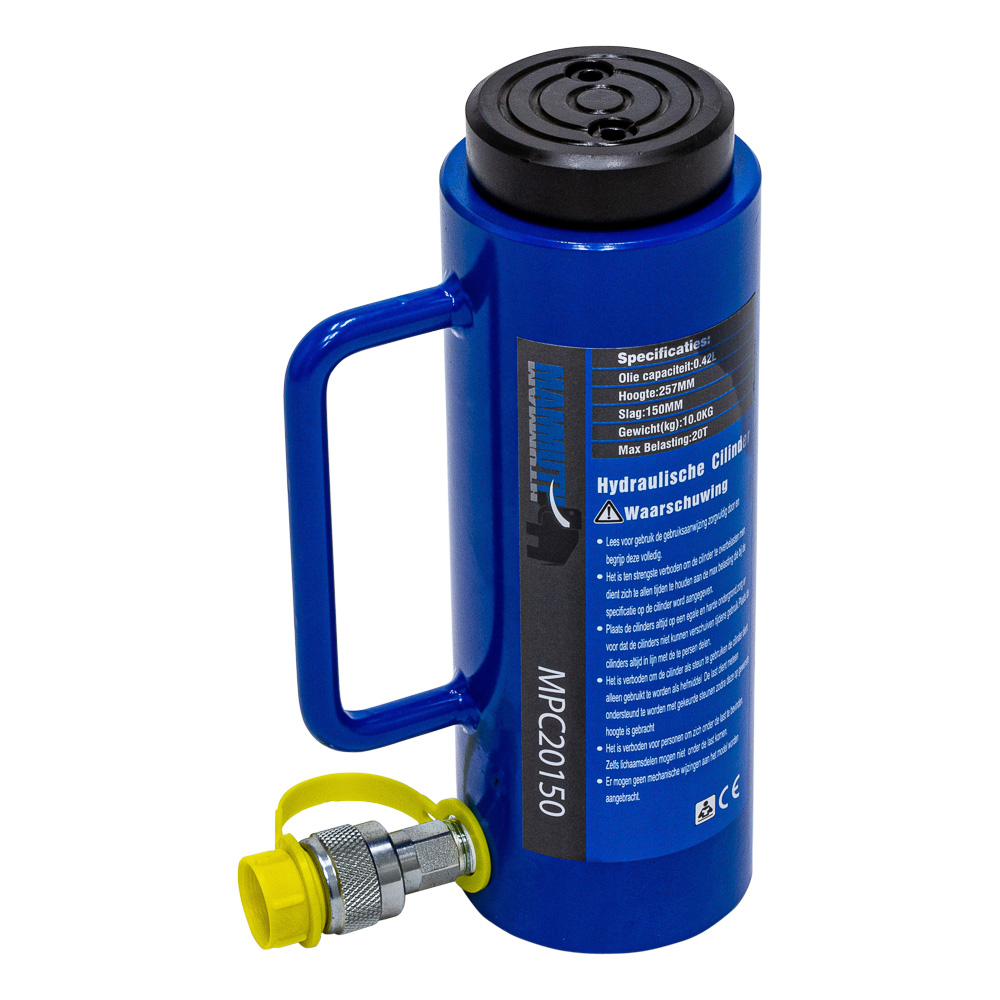

output = 20 ton
effective area = 33,2cm^2
oil capacity = 0,498 L
height of product = 254mm
extended height = 407mm
outside diameter = 88mm
bore diameter = 65mm
plunger diameter = 55mm
thread for input oil port (ZG) = 3/8" - 23

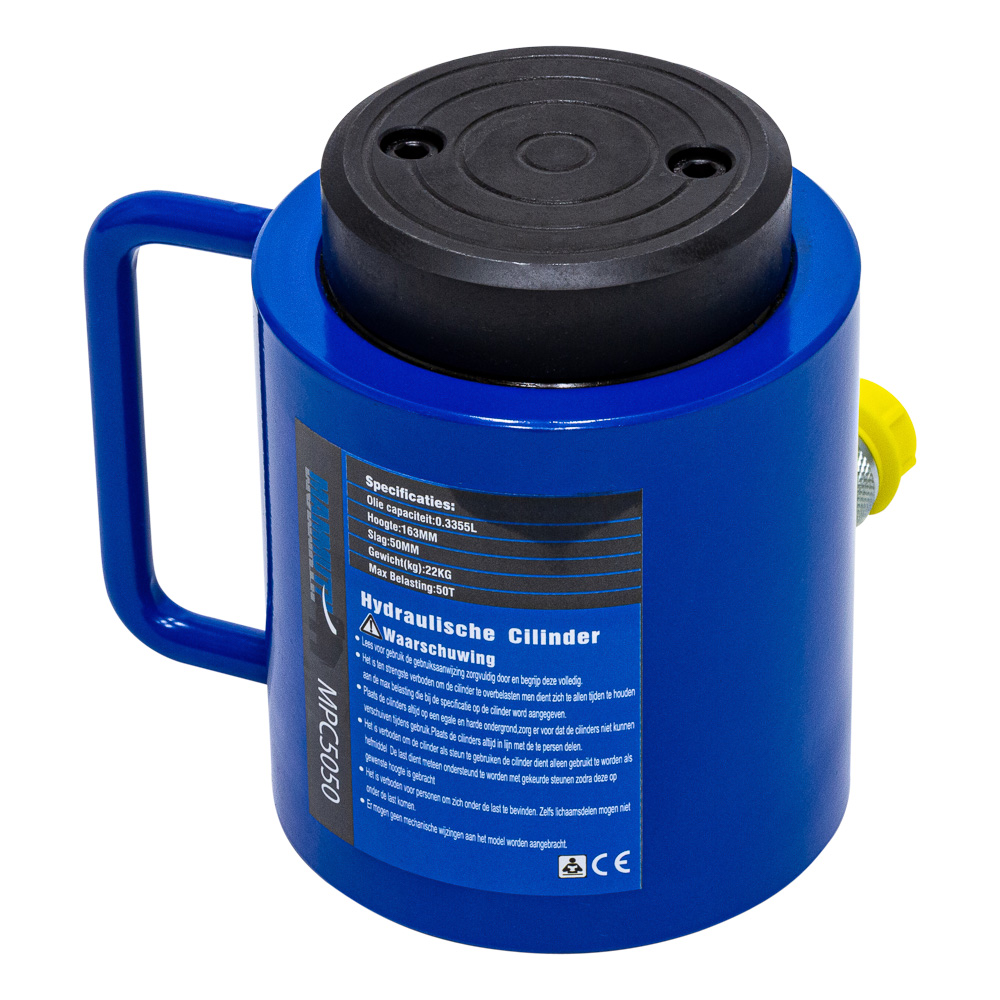

output = 50 ton
effective area = 70,9cm^2
oil capacity = 0,355 L
height of product = 162mm
extended height = 213mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm

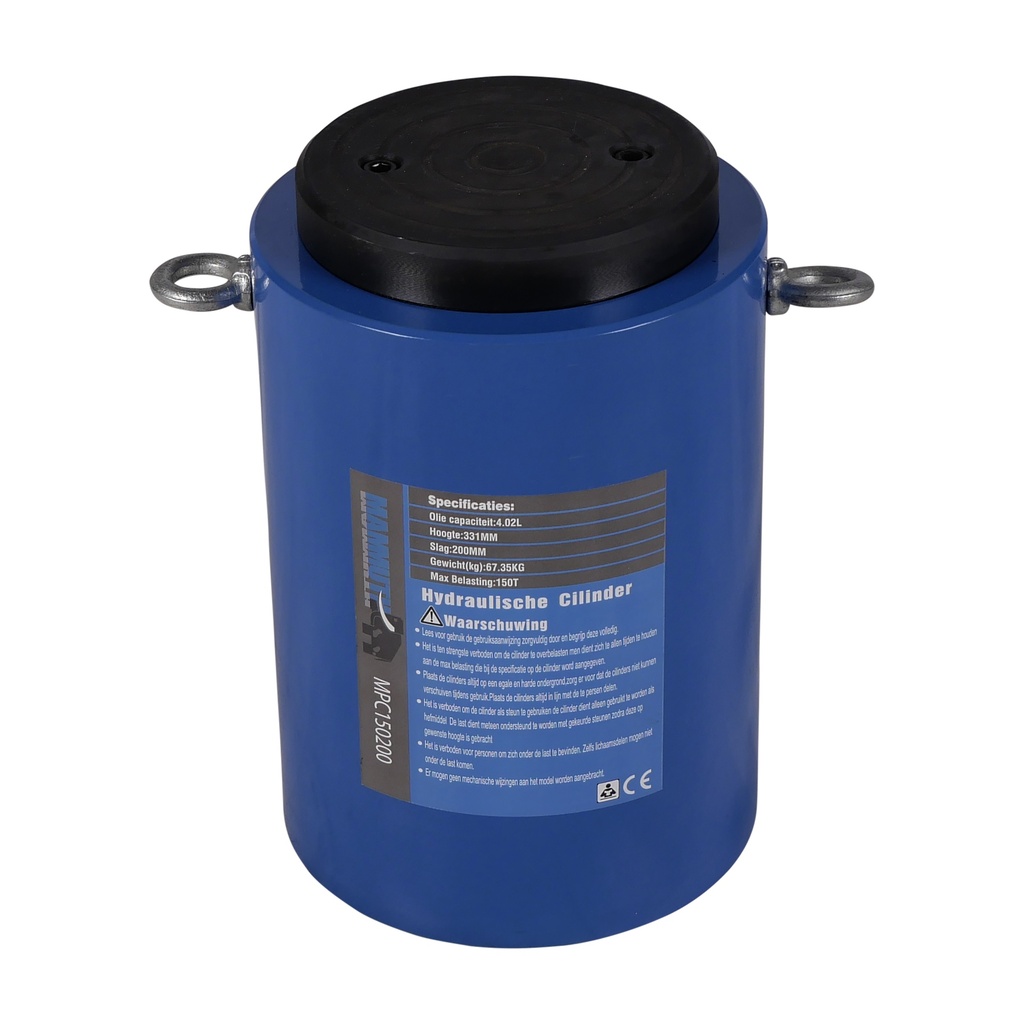

Hardy underlay to avoid axis break when it is overloading.The surface of principle axis is finished with chrome plate.Plunger has the function of retracting automatically.Surface coating resists corrosion.
Technical specifications:
stroke = 200mm
effective area = 201cm^2
oil capacity = 4,020L
height of product = 316mm
extended height = 531mm
bore diameter = 160mm
plunger diameter = 140mm
saddle protrusion form plgr = 31mm

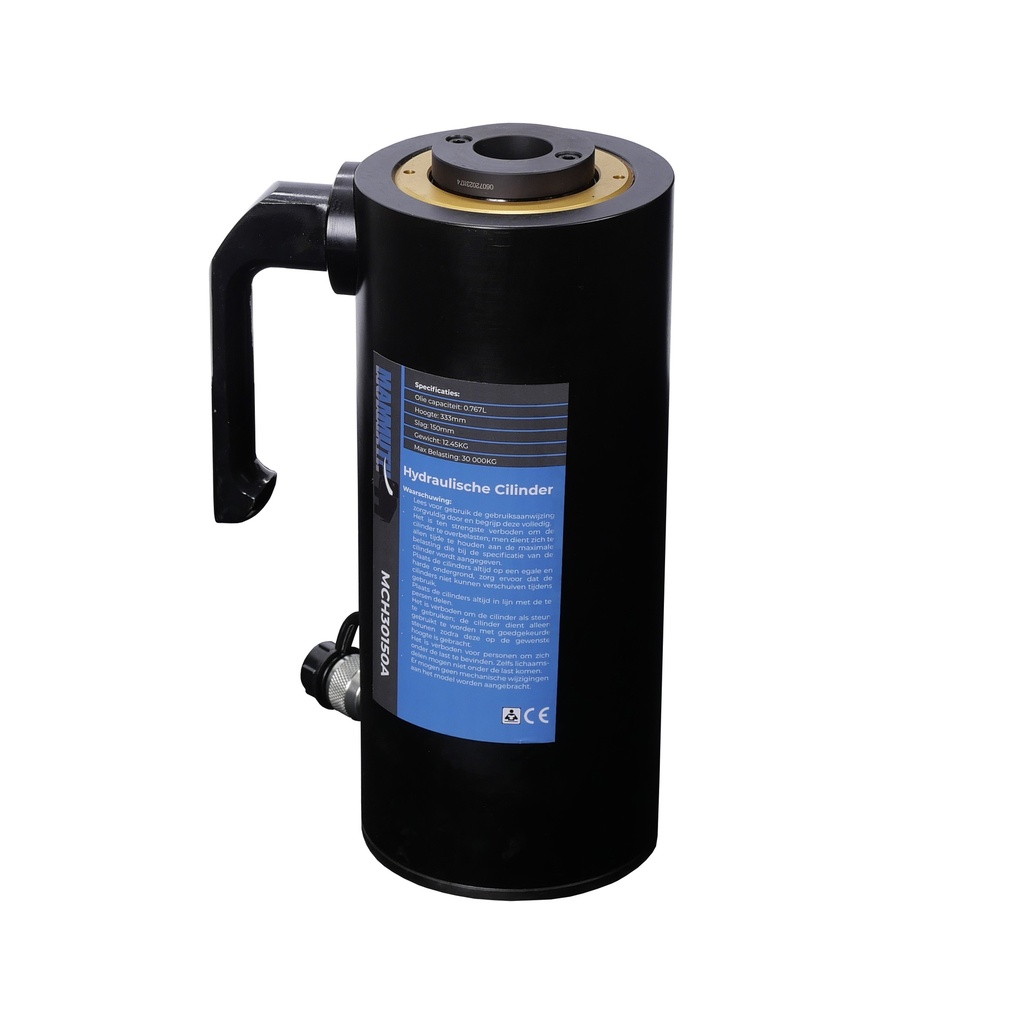

Der hydraulische Aluminiumzylinder 30 Tonnen von Mammuth zeichnet sich als optimale Wahl aus, wenn ein leichterer und tragbarer Zylinder für verschiedene Anwendungen wie Spannen, Testen, Ziehen und Heben erforderlich ist. Mit einem Hohlkolben ist dieser Zylinder für Drücke von bis zu 700 bar ausgelegt.Als einwirkender Zylinder konzipiert, verwendet er eine hochfeste Rückzugfeder, um schnelles Zurückziehen zu erleichtern.Der Einsatz von Aluminium in der Konstruktion trägt nicht nur zum leichten Design des Zylinders bei, sondern bietet im Vergleich zu Stahl auch eine inhärente Beständigkeit gegen Korrosion. Dies macht ihn zu einer ausgezeichneten Wahl für Anwendungen in korrosiven Umgebungen. Um den Zylinder weiter zu schützen und seine Lebensdauer zu verlängern, sind alle Oberflächen mit einer harten Beschichtung versehen, um Schäden zu widerstehen.Der Zylinder enthält Griffe für eine einfache Handhabung und ein schwebendes Mittelrohr ist integriert, um die Abdichtungslebensdauer zu verbessern. Die Stahl-Basisplatte und der Sattel bieten Schutz vor lastinduzierten Schäden. Ein integrierter Anschlagring verhindert ein Überfahren der Kolbenstange und ist robust genug, um die volle Kapazität des Zylinders zu bewältigen. Darüber hinaus sorgt eine hochfeste Rückzugfeder für schnelles Zurückziehen des Zylinders.

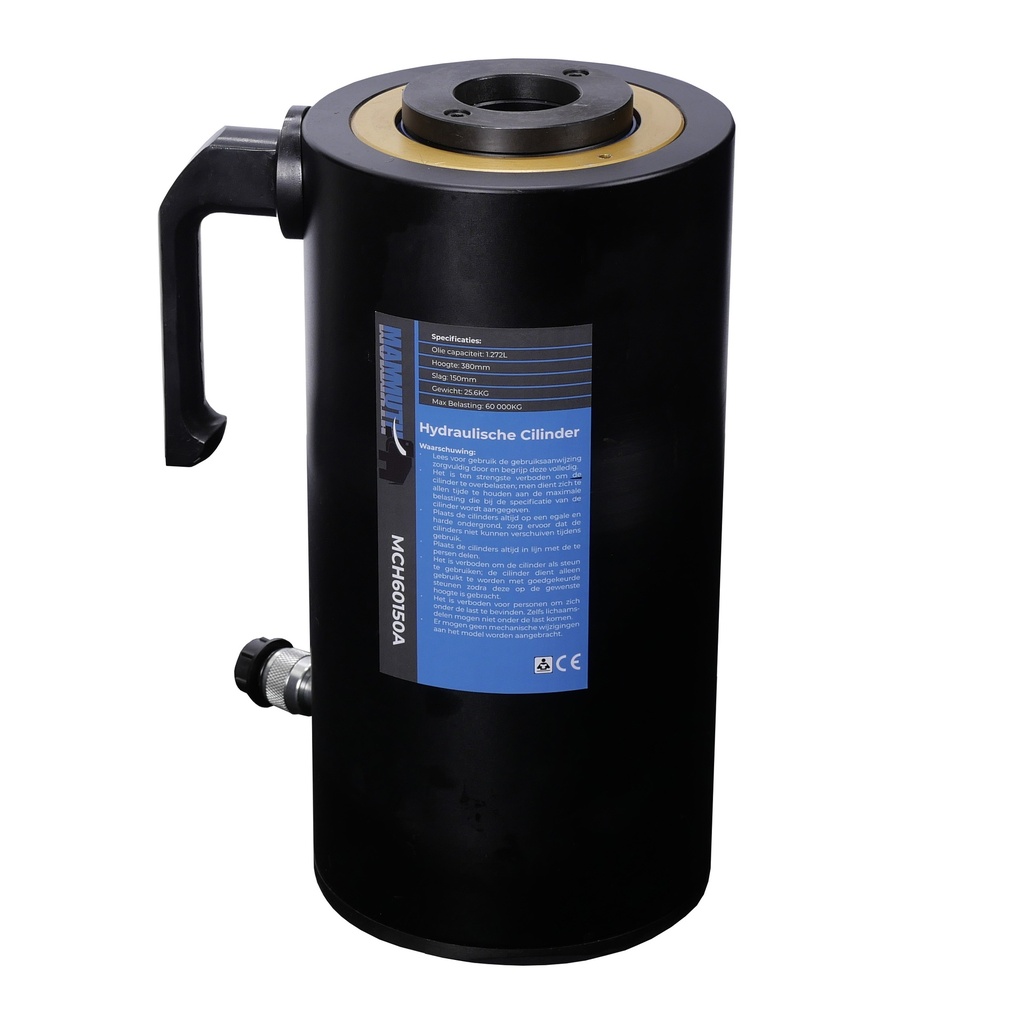

Der hydraulische Aluminiumzylinder 60 Tonnen von Mammuth zeichnet sich als optimale Wahl aus, wenn ein leichterer und tragbarer Zylinder für verschiedene Anwendungen wie Spannen, Testen, Ziehen und Heben erforderlich ist. Mit einem Hohlkolben ist dieser Zylinder für Drücke von bis zu 700 bar ausgelegt.Als einwirkender Zylinder konzipiert, verwendet er eine hochfeste Rückzugfeder, um schnelles Zurückziehen zu erleichtern.Der Einsatz von Aluminium in der Konstruktion trägt nicht nur zum leichten Design des Zylinders bei, sondern bietet im Vergleich zu Stahl auch eine inhärente Beständigkeit gegen Korrosion. Dies macht ihn zu einer ausgezeichneten Wahl für Anwendungen in korrosiven Umgebungen. Um den Zylinder weiter zu schützen und seine Lebensdauer zu verlängern, sind alle Oberflächen mit einer harten Beschichtung versehen, um Schäden zu widerstehen.Der Zylinder enthält Griffe für eine einfache Handhabung und ein schwebendes Mittelrohr ist integriert, um die Abdichtungslebensdauer zu verbessern. Die Stahl-Basisplatte und der Sattel bieten Schutz vor lastinduzierten Schäden. Ein integrierter Anschlagring verhindert ein Überfahren der Kolbenstange und ist robust genug, um die volle Kapazität des Zylinders zu bewältigen. Darüber hinaus sorgt eine hochfeste Rückzugfeder für schnelles Zurückziehen des Zylinders.
