Plasma cutter / plasma cutting machine

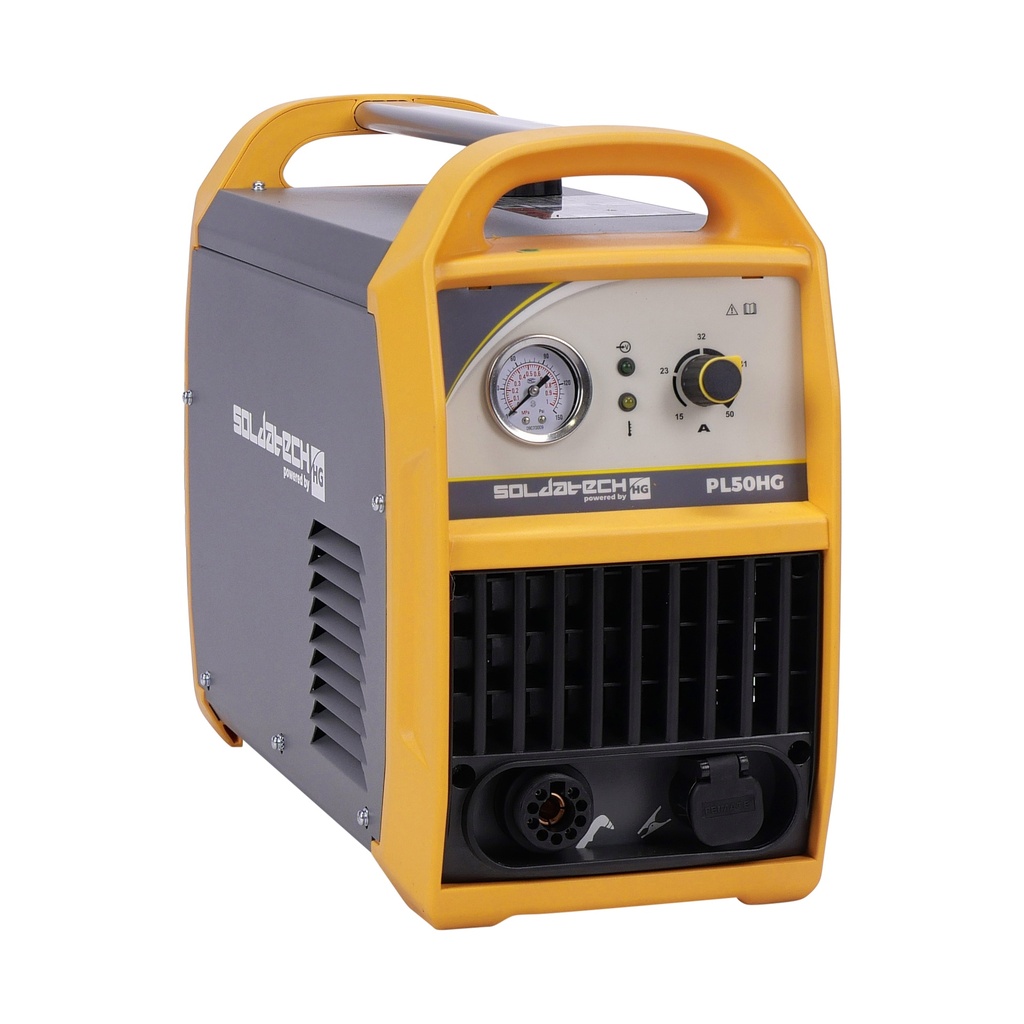

This Soldatech powered by HG plasma cutter cuts various materials with high-quality results. The PL50HG is a compact, powerful and easy to operate plasma cutter equipped with Pilot ARC pre-ignition. This in combination with the HF ignition makes this cutter very easy to ignite and it is capable of cutting through rusted, coated or structured material up to 20mm without any difficulty.

The PL50HG has a user-friendly control panel and can even be adjusted during cutting work to achieve the best cutting result.

The modern IGBT inverter technology not only ensures that the PL50HG delivers long-lasting performance with more power, but it also makes the welder lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Ideal for cutting low alloy steel, stainless steel and aluminum alloys.

Each PL50HG comes standard with:

Soldatech PL80M5 plasma torch with 5m cable
Welding ground clamp with 2m 16mm² cable
Gas line of 4m with hose clamps
Neoprene power cable 2m 3x2.5mm²
European dinse couplers 9mm

Technical specifications:

voltage = 230V - 1 phase
frequency = 50/60Hz
circuit breaker = 20A C-kar
input power = 7.6kVA
duty cycle (at 20°C ambient temperature) = 60% - 50A
duty cycle (at 40°C ambient temperature) = 20% - 50A
welding current range = 15 - 50A
max. unloaded voltage = 293V
max. cutting thickness = 20mm
air consumption = 220L/min
protection class = IP21S
dimensions = 459 x 200 x 338mm
weight = 11kg

Dimensions du produit :
Longueur du produit	459 mm
Largeur du produit	200 mm
Hauteur du produit	338 mm
Poids du produit	11,0 Kg
Dimensions de l'emballage :
Longueur du paquet	525 mm
Largeur du paquet	305 mm
Hauteur du paquet	420 mm
Poids du Colis	17,20 Kg

Datasheet_PL50HG.pdf

Fréquence	50/60 Hz
Tension	230V - 1 Phase
Puissance d'entrée	7.6kVA
Max. cutting thickness	20mm
Circuit breaker	20A C-char
Max. unloaded voltage	293V
Duty cycle @20C	60% - 50A
Cutting current range	15 - 50A
Duty cycle @40C	20% - 50A
Air consumption	220L/min
Protection class	IP21S
