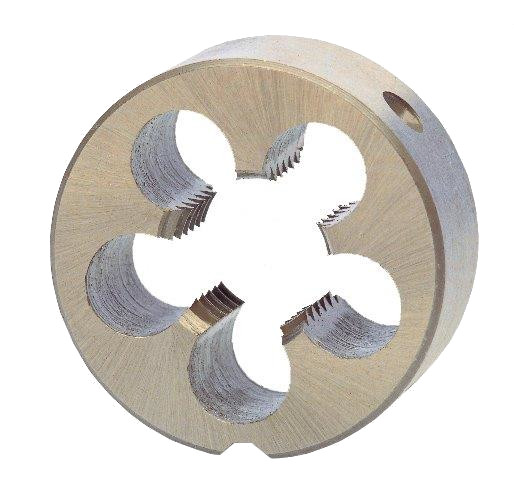

Round dies
HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.
Technical specificaties:
size = M5
pitch = 0,80mm
diameter = 20mm
thickness = 7mm
DIN EN 22568
material = HSS - G
right hand
fully ground
Dimensions du produit :
| Length | 20 mm |
|---|---|
| Width | 20 mm |
| Height | 7 mm |
| Weight | 0,02 kg |
Dimensions de l'emballage :
| Length | 90 mm |
|---|---|
| Width | 45 mm |
| Height | 18 mm |
| Weight | 0,03 kg |
