Electric shop press with hand winch 100 ton

Équipement d'atelier / Presses hydrauliques / Presse de travail électrique Marque : Mammuth Mammuth

Code produit : SP100HEL

EAN : 8720028072774

Disponibilité : Disponible

€ 6 050,00 TVA incluse https://schema.org/InStock 6050.0 EUR € 6 050,00

€ 5 000,00

    Cette combinaison n'existe pas.

    Livraison rapide à partir d'un stock important.
    Paiement sécurisé via différentes options de paiement.
    politique de retour de 14 jours.

    Garage press / bearing press / frame press

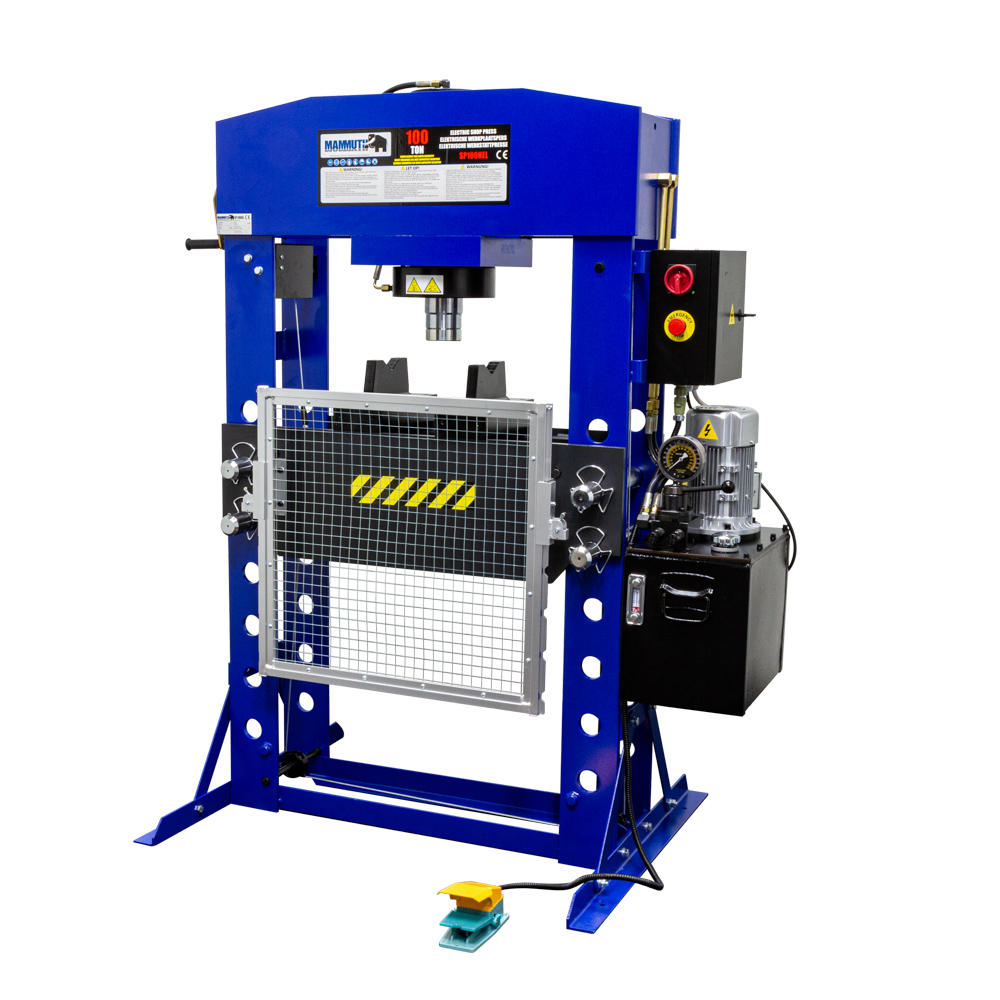

    This Mammuth electric press is very suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires a lot of power. The is press is of high quality and consists of a heavy, robust, fully welded frame. This makes the press very solid and stable.
    The work bed is easy to adjust in height using the winch and handle. The cylinder can also be slid from left to right using the same handle.

    The press comes standard with a safety grille, foot pedal, emergency stop and two press blocks.

    Please note: the press is supplied without CH22 hydraulic oil (29 liters).

    Specifications:

    • capacity = 100 ton

    • cylinder stroke = 300mm

    • bed width = 800mm

    • bed depth = 342mm

    • working range = 945mm

    • power = 1,5kW

    • voltage = 400V

    • speed = 1400rpm

    • outgoing press speed = 12 - 24cm/min or 2 - 2,33mm/sec

    • incoming press speed = 21 - 23cm/min or 3,5 - 3,83mm/sec

    Packed in 2 boxes:
    115 x 42 x 216cm 735kg
    52,5 x 36,5 x 79cm 85kg

    Dimensions du produit :
    Longueur du produit 1 199 mm
    Largeur du produit 990 mm
    Hauteur du produit 1 900 mm
    Poids du produit 755,0 Kg
    Dimensions de l'emballage :
    Longueur du paquet 1 000 mm
    Largeur du paquet 2 110 mm
    Hauteur du paquet 1 220 mm
    Poids du Colis 823,00 Kg

    • Electric hydraulic pump

    • Fully welded frame

    • Equipped with hand winch

    • Protection by safety grille

    • Operation by foot pedal
