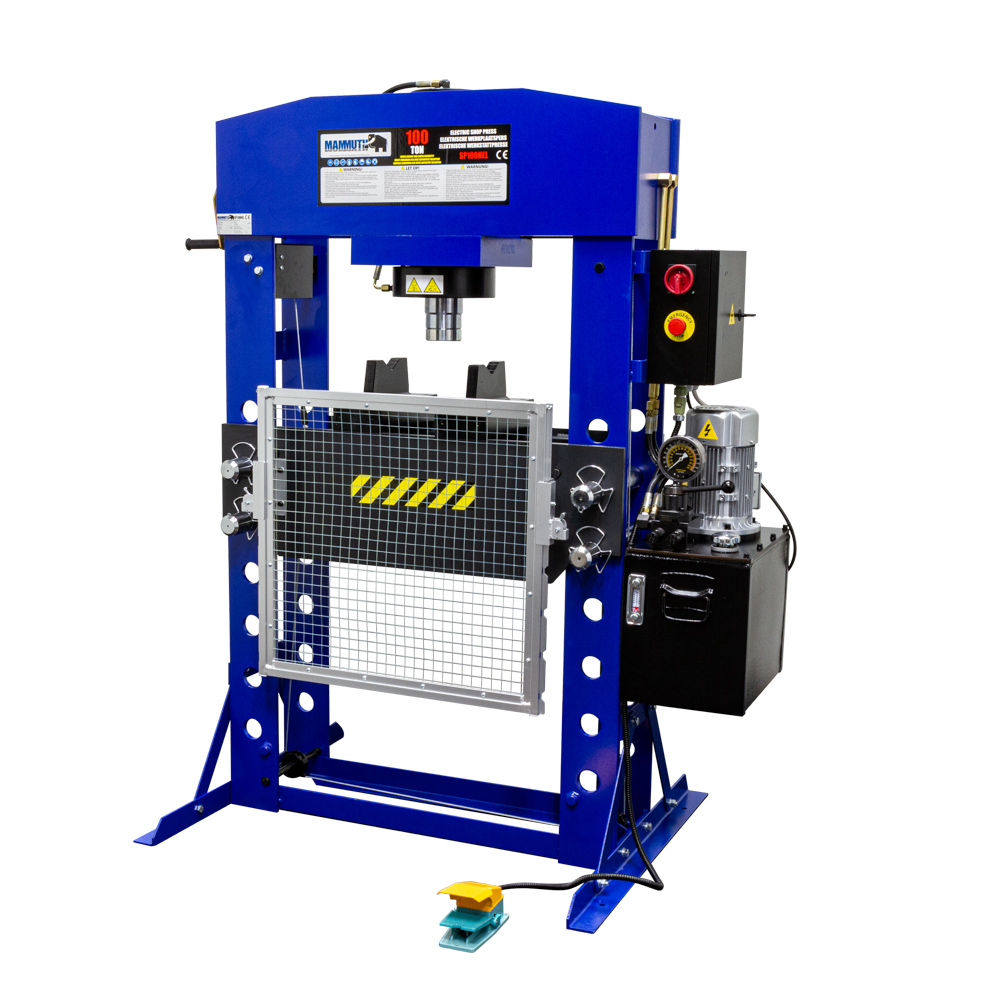

Electric shop press with hand winch 100 ton

Brand: Mammuth

Product Code: SP100HEL

EAN: 8720028072774

Availability: Sold Out

Expected back in stock: 2 - 4 weeks

https://www.valkenpower.com/web/image/product.template/50062/image_1920?unique=6556faf

€ 6,050.00 Incl. VAT 6050.0 EUR € 6,050.00

€ 5,000.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Garage press / bearing press / frame press

    This Mammuth electric press is very suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires a lot of power. The is press is of high quality and consists of a heavy, robust, fully welded frame. This makes the press very solid and stable.
    The work bed is easy to adjust in height using the winch and handle. The cylinder can also be slid from left to right using the same handle.

    The press comes standard with a safety grille, foot pedal, emergency stop and two press blocks.

    Please note: the press is supplied without CH22 hydraulic oil (29 liters).

    Specifications:

    • capacity = 100 ton

    • cylinder stroke = 300mm

    • bed width = 800mm

    • bed depth = 342mm

    • working range = 945mm

    • power = 1,5kW

    • voltage = 400V

    • speed = 1400rpm

    • outgoing press speed = 12 - 24cm/min or 2 - 2,33mm/sec

    • incoming press speed = 21 - 23cm/min or 3,5 - 3,83mm/sec

    Packed in 2 boxes:
    115 x 42 x 216cm 735kg
    52,5 x 36,5 x 79cm 85kg

    Product Dimensions:
    Product Length 1,199 mm
    Product Width 990 mm
    Product Height 1,900 mm
    Product Weight 755.0 Kg
    Package Dimensions:
    Package Length 1,000 mm
    Package Width 2,110 mm
    Package Height 1,220 mm
    Package Weight 823.00 Kg

    • Electric hydraulic pump

    • Fully welded frame

    • Equipped with hand winch

    • Protection by safety grille

    • Operation by foot pedal
