Tl200achg

Équipement de soudure / Équipement de soudure TIG Marque : Soldatech Soldatech

Code produit : TL200ACHG

EAN : 8720028090860

Disponibilité : Disponible

€ 1 270,50 TVA incluse https://schema.org/InStock 1270.5 EUR € 1 270,50

€ 1 050,00

  • Fréquence
  • Tension
  • Puissance d'entrée
  • No load Voltage
  • Circuit breaker
  • Duty cycle @20C
  • Duty cycle @40C
  • Welding current range
  • Protection class

Cette combinaison n'existe pas.

Livraison rapide à partir d'un stock important.
Paiement sécurisé via différentes options de paiement.
politique de retour de 14 jours.

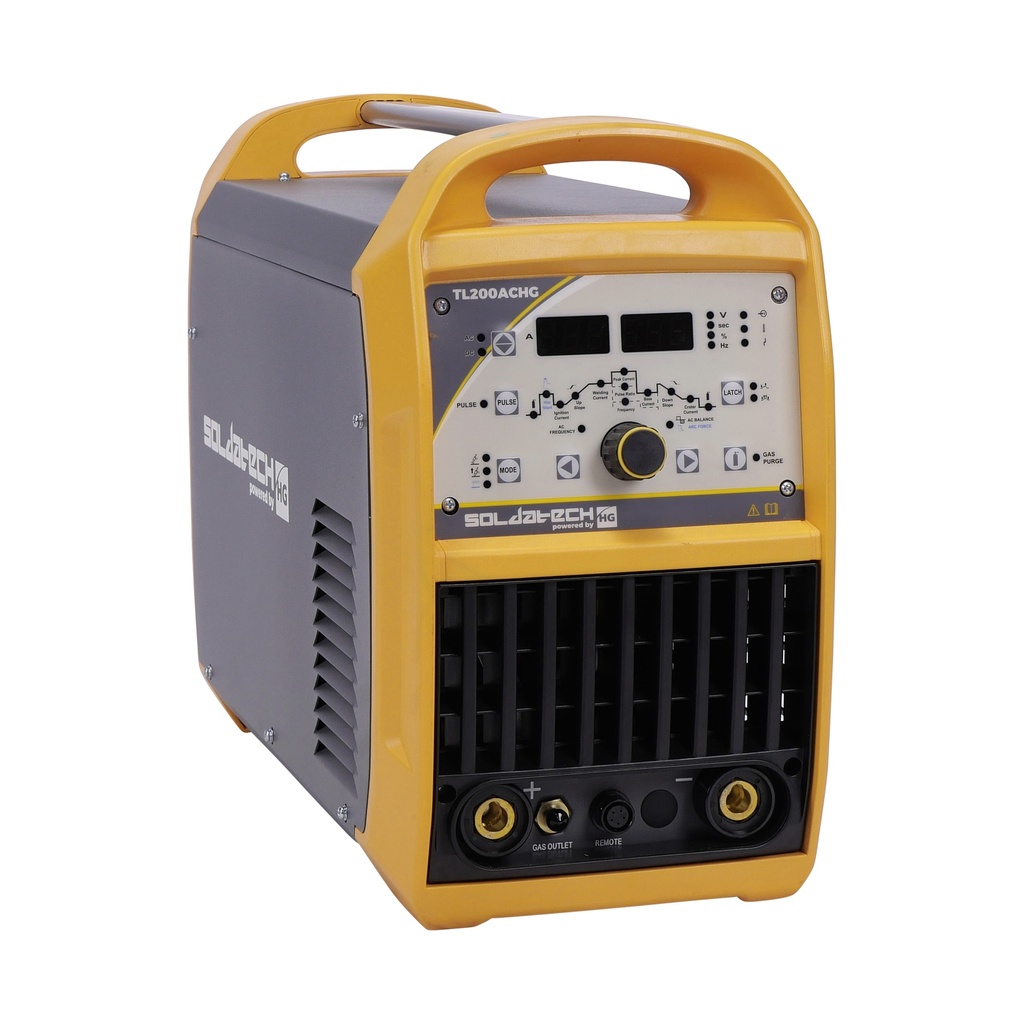

TIG AC / DC welding inverter 200A / IGBT TIG AC / DC inverter / welder / welding machine

This portable Soldatech powered by HG TIG welding machine is a convenient and easy to use device that is capable of handling a wide range of materials with different welding processes, including AC/DC Pulse, TIG and MMA welding. The adjustment and selection buttons allow for all parameters of the TL200ACHG to be easily set correctly, so that every welding job can be completed with high-quality results.

The modern IGBT inverter technology ensures that the TL200ACHG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures high-quality welding performance over a long period of time.

The infinitely adjustable digital display shows the welding processes and options very clearly. The HF ignition ensures that the device starts up without any problems at all times.

The supplied TLT24M4 flex torch has a flexible head that allows TIG welding in any position. The TIG torch is also equipped with remote control with which the ampere range can be variably adjusted during welding.

The hot-start/anti-stick function increases the welding current quickly, thereby preventing the electrode from sticking to the workpiece during ARC welding.

Ideal for welding aluminum stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.

Each TL200ACHG comes standard with:

  • Soldatech TLT26M4 remote flex TIG torch with 4m cable

  • Workpiece clamp with 3m 16mm² cable

  • Standard 13mm Dinse cable coupling

  • 3m gas pipe, including hose clamps

  • 3-pin 32A plug with 2m 3x4mm² cable

Technical specifications:

  • voltage = 230V

  • frequency = 50/60Hz

  • fuse protection = 16A C-kar

  • input power = 8.05kVA

  • protection class = IP21S

  • no load voltage = 68V
  • duty cycle (at 20°C ambient temperature) = 35% - 200A
  • duty cycle (at 40°C ambient temperature) = 35% - 200A
  • welding current range MMA = 5 - 170A
  • welding current range DC TIG = 5 - 200A
  • welding current range AC TIG = 10 - 200A
  • dimensions = 508 x 241 x 408mm

  • weight = 19.5kg

Dimensions du produit :
Longueur du produit 508 mm
Largeur du produit 241 mm
Hauteur du produit 408 mm
Poids du produit 19,5 Kg
Dimensions de l'emballage :
Longueur du paquet 525 mm
Largeur du paquet 305 mm
Hauteur du paquet 420 mm
Poids du Colis 21,50 Kg

  • Flexible torch with bendable head

  • AC/DC Pulse function

  • Infinitely adjustable

  • ABS shock resistant housing

  • 5 years warranty

Spécifications

Fréquence 50/60 Hz
Tension 230V - 1 Phase
Puissance d'entrée 8.05kVA
No load Voltage 68V
Circuit breaker 16A B-char
Duty cycle @20C 35% - 200A
Duty cycle @40C 35% - 200A
Welding current range MMA 5 - 170A / DC TIG 5 - 200A / AC TIG 10 - 200A
Protection class IP21S
