TIG welding machine AC DC 200A

[TL200ACHG] TIG welding machine AC DC 200A

Welding and cutting equipment / TIG welding machines Brand: Soldatech Soldatech

Product Code: TL200ACHG

EAN: 8720028090860

Availability: Available


€ 1,050.00 1050.0 EUR € 1,050.00

€ 1,050.00

Not Available For Sale

  • Frequency
  • Voltage
  • Input power
  • No load Voltage
  • Circuit breaker
  • Duty cycle @20C
  • Duty cycle @40C
  • Welding current range
  • Protection class

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

TIG AC / DC welding inverter 200A / IGBT TIG AC / DC inverter / welder / welding machine

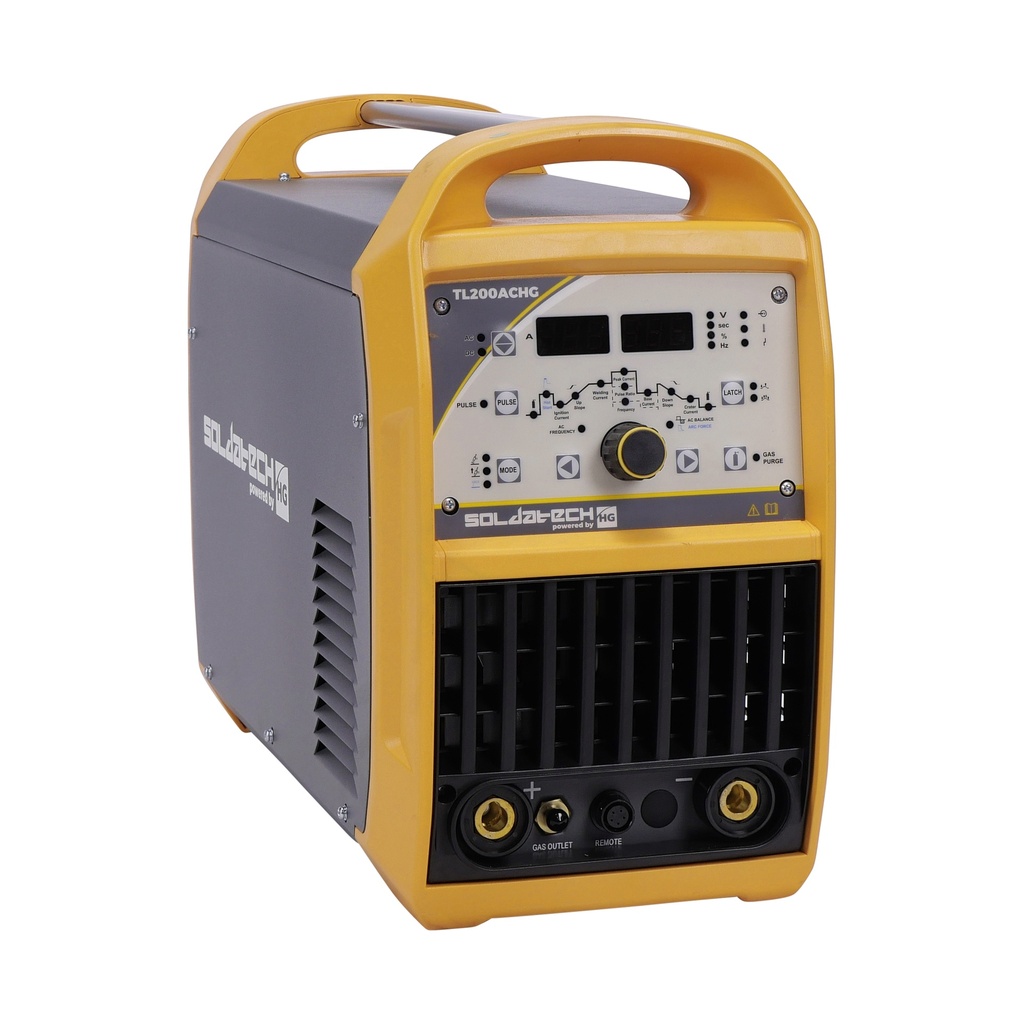

This portable Soldatech powered by HG TIG welding machine is a convenient and easy to use device that is capable of handling a wide range of materials with different welding processes, including AC/DC Pulse, TIG and MMA welding. The adjustment and selection buttons allow for all parameters of the TL200ACHG to be easily set correctly, so that every welding job can be completed with high-quality results.

The modern IGBT inverter technology ensures that the TL200ACHG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures high-quality welding performance over a long period of time.

The infinitely adjustable digital display shows the welding processes and options very clearly. The HF ignition ensures that the device starts up without any problems at all times.

The supplied TLT24M4 flex torch has a flexible head that allows TIG welding in any position. The TIG torch is also equipped with remote control with which the ampere range can be variably adjusted during welding.

The hot-start/anti-stick function increases the welding current quickly, thereby preventing the electrode from sticking to the workpiece during ARC welding.

Ideal for welding aluminum stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.

Each TL200ACHG comes standard with:

  • Soldatech TLT26M4 remote flex TIG torch with 4m cable

  • Welding ground clamp with 3m 16mm² cable

  • European dinse couplers 13mm

  • Gas line including quick coupling 3m

  • 3-pin 32A plug with 2m 3x4mm² cable

Technical specifications:

  • voltage = 230V - 1 phase

  • frequency = 50/60Hz

  • fuse protection = 16A B-char

  • input power = 8.05kVA

  • no load voltage = 68V

  • duty cycle (at 20°C ambient temperature) = 35% - 200A

  • duty cycle (at 40°C ambient temperature) = 35% - 200A

  • welding current range MMA = 5 - 170A

  • welding current range DC TIG = 5 - 200A
  • welding current range AC TIG = 10 - 200A
  • protection class = IP21S
  • dimensions = 508 x 241 x 408mm

  • weight = 19.5kg

Product Dimensions:
Product Length 508 mm
Product Width 241 mm
Product Height 408 mm
Product Weight 19.5 Kg
Package Dimensions:
Package Length 525 mm
Package Width 305 mm
Package Height 420 mm
Package Weight 21.50 Kg

  • Flexible torch with bendable head

  • AC/DC Pulse function

  • Infinitely adjustable

  • ABS shock resistant housing

  • 5 years warranty


Frequency 50/60 Hz
Voltage 230V - 1 Phase
Input power 8.05kVA
No load Voltage 68V
Circuit breaker 16A B-char
Duty cycle @20C 35% - 200A
Duty cycle @40C 35% - 200A
Welding current range MMA 5 - 170A / DC TIG 5 - 200A / AC TIG 10 - 200A
Protection class IP21S
