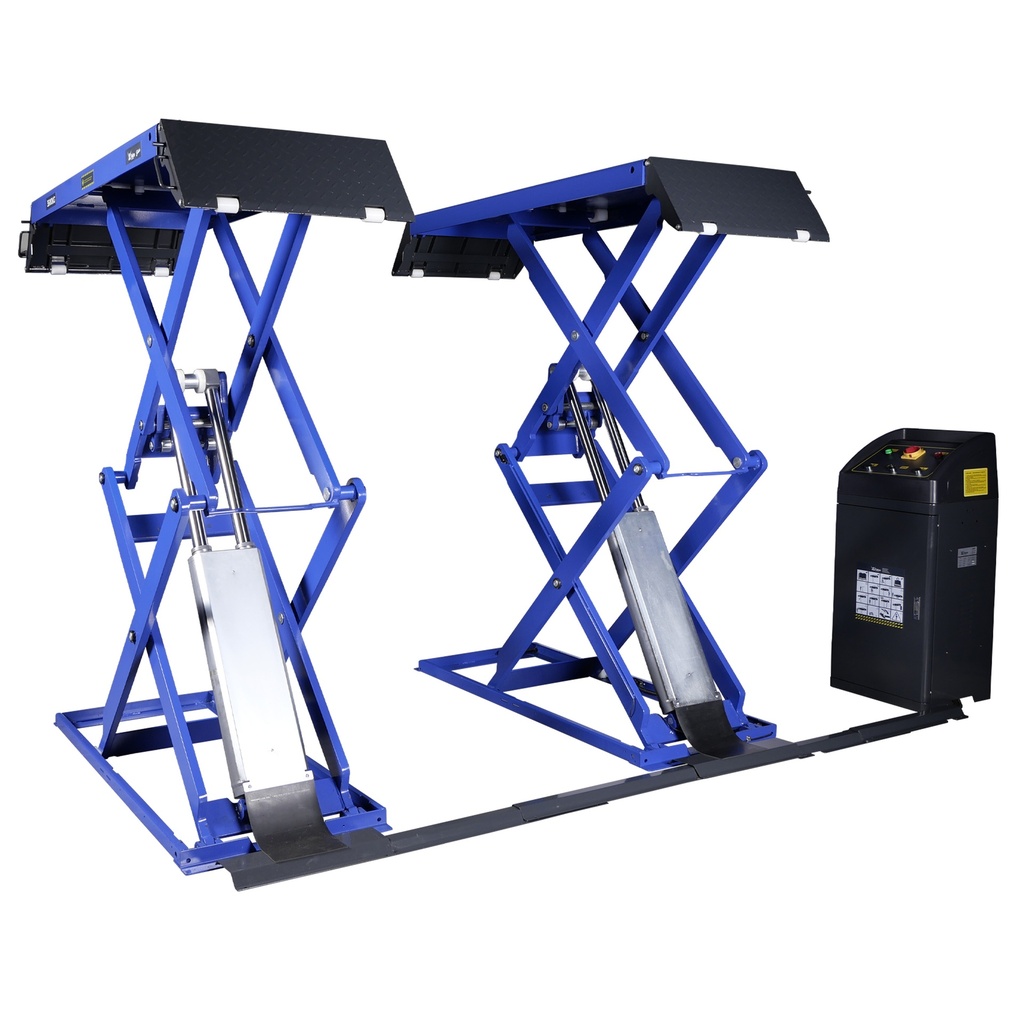

fully automatic scissor lift / scissor lift / double scissor bridge / auto lift / auto lift bridge / scissor bridge
This Falco Sollevatori double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.
Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.
Thanks to its robust construction and thoughtful design, this double scissor lift is standard equipped with the following convenient features:
- total platform length of 2042mm
- master-slave hydraulic system
- electro-hydraulic lift with 4 cylinders
- automatic air bleeding function
- photocell for safety and platform synchronisation
- low profile with minimum lifting height of 110mm
- automatic synchronisation
- automatic overload protection
- control valve for controlling the speed when dropping
- limit sensor for limiting the maximum lifting height and the minimum safety height
- deadman operation when lifting and lowering
- foot protection including acoustic protection signal
- deliverd incl 4pcs 25mm lifting blocks and 4pcs 65mm lifting blocks
- Dutch manual including maintenance protocol and CE certificate 2006/42/EG
- homologated and certified product according to EN1493:2010
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 2 042 mm |
| Largeur du produit | 2 160 mm |
| Hauteur du produit | 1 900 mm |
| Poids du produit | 780,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 2 000 mm |
| Largeur du paquet | 680 mm |
| Hauteur du paquet | 1 120 mm |
| Poids du Colis | 800,00 Kg |
