Double scissor lift master-slave 3500kg 400V

[VL8235A] Double scissor lift master-slave 3500kg 400V

Lifts / Crosslifts Brand: Falco Sollevatori Falco Sollevatori

Product Code: VL8235A

EAN: 8720028101399

Availability: Sold Out

Expected back in stock: 2 - 4 weeks

https://www.valkenpower.com/web/image/product.template/61878/image_1920?unique=75bae73

€ 3,750.00 3750.0 EUR € 3,750.00

€ 3,750.00

Not Available For Sale

  • Lifting capacity
  • Lifting height min.
  • Voltage
  • Lifting height max. incl. pads
  • Platform length incl. ramps
  • Platform width
  • Distance between the platforms
  • Oil type
  • Motor capacity
  • Lifting time

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

fully automatic scissor lift / scissor lift / double scissor bridge / auto lift / auto lift bridge / scissor bridge

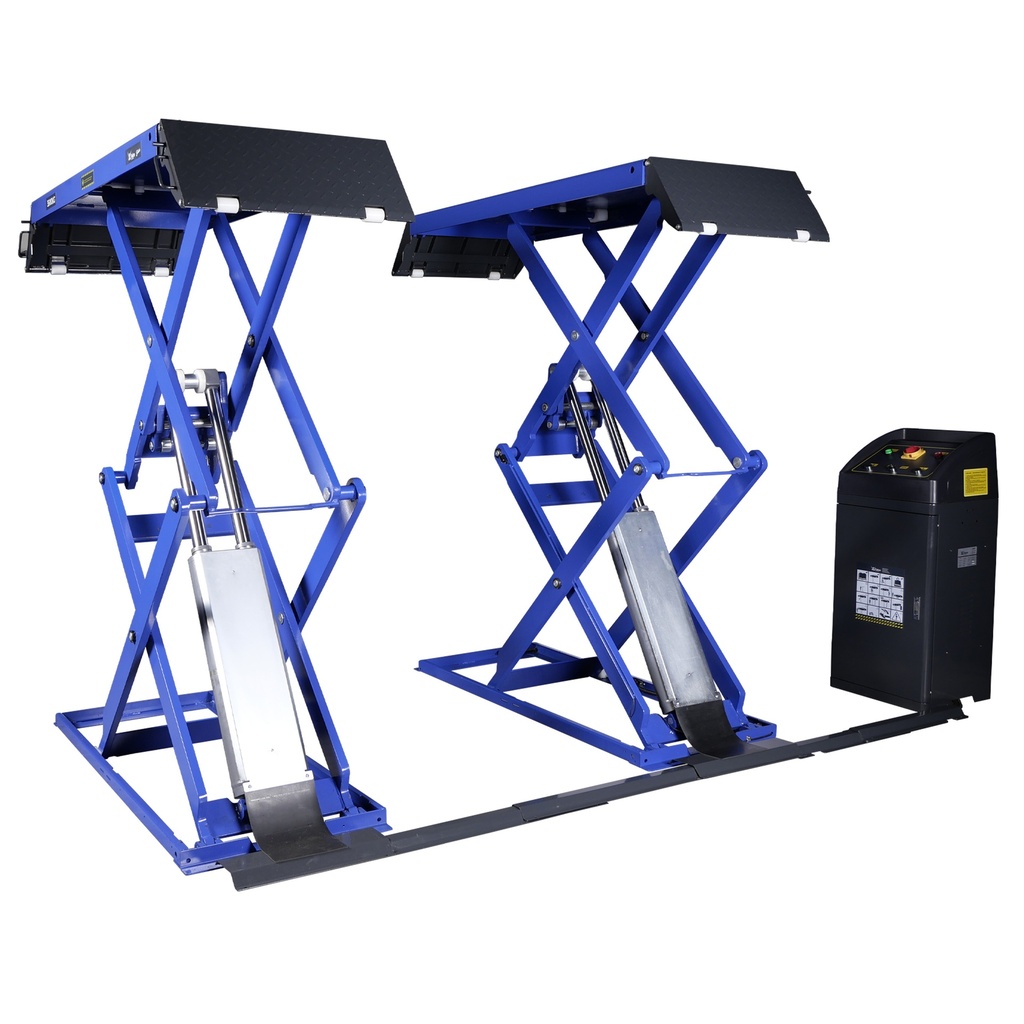

This Falco Sollevatori double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.
Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.
Thanks to its robust construction and thoughtful design, this double scissor lift is standard equipped with the following convenient features:

  • total platform length of 2042mm
  • master-slave hydraulic system
  • electro-hydraulic lift with 4 cylinders
  • automatic air bleeding function
  • photocell for safety and platform synchronisation
  • low profile with minimum lifting height of 110mm
  • automatic synchronisation
  • automatic overload protection
  • control valve for controlling the speed when dropping
  • limit sensor for limiting the maximum lifting height and the minimum safety height
  • deadman operation when lifting and lowering
  • foot protection including acoustic protection signal
  • deliverd incl 4pcs 25mm lifting blocks and 4pcs 65mm lifting blocks
  • Dutch manual including maintenance protocol and CE certificate 2006/42/EG
  • homologated and certified product according to EN1493:2010
Product Dimensions:
Product Length 2,042 mm
Product Width 2,160 mm
Product Height 1,900 mm
Product Weight 780.0 Kg
Package Dimensions:
Package Length 2,000 mm
Package Width 680 mm
Package Height 1,120 mm
Package Weight 800.00 Kg

  • High lifting capacity 3500 kg
  • Max. lifting height 1965 mm
  • Master-slave syste: lift is safe in any position
  • Adjustable wide ramps / extensions
  • Automatic overload protection

Specifications

Lifting capacity 3500 kg
Lifting height min. 110 mm
Voltage 400V - 3 Phase
Lifting height max. incl. pads 1995 mm
Platform length incl. ramps 2045 mm
Platform width 630 mm
Distance between the platforms 900 mm
Oil type CH32 / CH46
Motor capacity 3 kW
Lifting time 35 sec.
