Tire balancer / wheel balancer

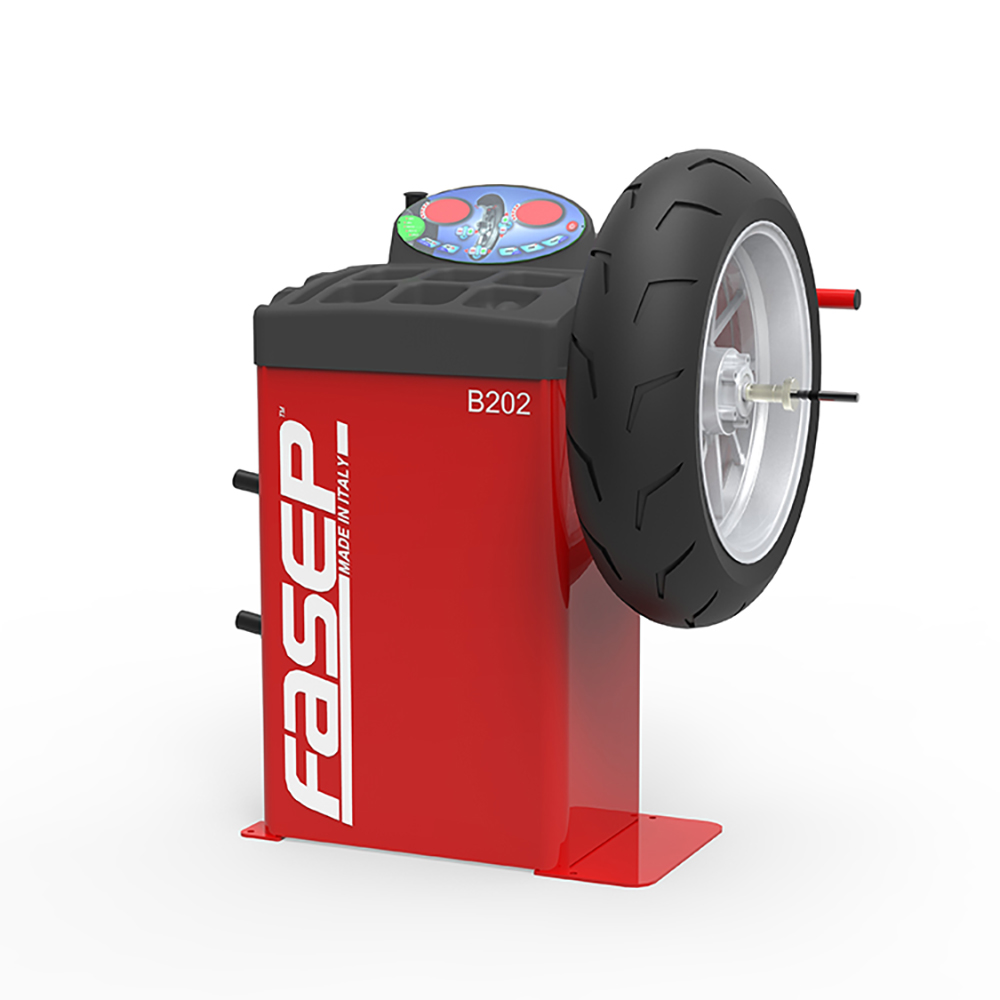

The Fasep "Moto" balancing machine is ideal for accurate, simple and fast balancing of motor wheels. It is no longer necessary to convert standard balancing machines with adapters and such, which saves a lot of time.
The machine has the following features:
3D-console with control panel for easy access to all functions.
Motor shaft of 14mm with multiple adapters to tension most motor wheels.
Storage space for weights, cones and tools.
Flange holders on the side of the machine
ISO 9001 standard
voltage = 230V / 50Hz
motor power = 5W
speed = 75 - 125rpm
rim diameter = 8" (200mm) - 26" (650mm)
max. wheel diameter = 34" (850mm)
max. rim width = 16" (415mm)
max. capacity = 70kg
cycle duration = 4 - 15 sec.
measurement accuracy = 1 gram
Each B202 comes standard with: a motor shaft 14mm, cone set, rim width meter, open-ended spanner and 4 ground anchors.
|Product Length||900 mm|
|Product Width||460 mm|
|Product Height||950 mm|
|Product Weight||45.0 Kg|
|Package Length||910 mm|
|Package Width||490 mm|
|Package Height||1,120 mm|
|Package Weight||49.00 Kg|
