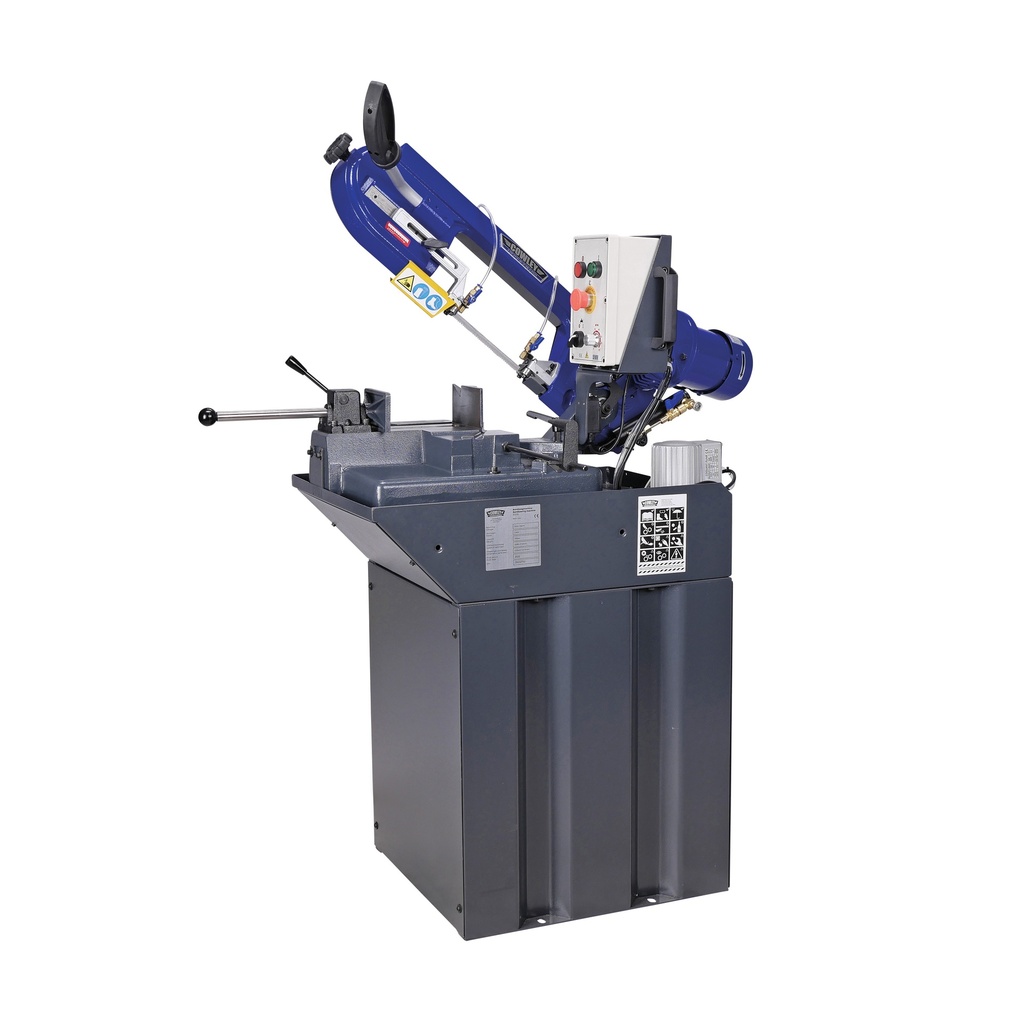

This metal-cutting band saw from Cowley comes with a support cabinet and can easily be dismounted for portable use.
The band saw is equipped with a user-friendly low-voltage control panel including emergency switch, which makes it very easy and safe to operate. Additionally it has an adjustable automatic hydraulic feed which makes it possible to set and adjust the lowering feed speed and make controlled cuts automatically.
Thanks to the adjustable quintuple bearing saw blade guidance it has a high cutting precision, and the low speed of the motor ensures a longer life.
The cutting speed is stepless adjustable from 20-66 m/min which makes it ideal for cutting steel, aluminium, stainless steel, teflon, plastic and many more materials.
The built in cooling system keeps the blade cooled and lubricated and washes away any chips or cutting residue.
This model also supplied a manual band tension system, engine overload safety, and a collection tray for metal chips.
Convenient to use in construction companies, shipyards and for industrial metal-cutting use.
The band saw has an adjustable cutting angle from 0° - 60° and is equipped with an adjustable material stop for fast and correct cutting.
Furthermore, the bandsaw is provided with a quick clamping system which allows the operator to clamp materials in & out very fast.
This model comes with a small set of maintenance tools.
Features:
- User-friendly control panel
- Automatic / hydraulic down feed
- Adjustable 5 bearing sawblade guidance
- Emergency stop
- Quick clamping system
- Bi-metal saw blade
- Cast iron machine clamp
- Maintenance-free bearings
- Built-in cooling pump
- Adjustable material stop
- Adjustable cutting angle 0° - 60°
Technical specifications:
- Voltage = 230V/ 50Hz
- Power = 1.1kW
- Band saw speed = 20-66 m/min
- Blade Speeds = variable
- Dimensions = 950 x 530 x 1520 mm
- Weight = 105 kg
Blade dimensions:
- Band saw length = 1735mm
- Band saw width = 12.7mm
- Band saw thickness = 0.9mm
Adjustable cutting angle 0° to 60° using a quick locking handle, and an automatic turn-off system.
Cutting capacity:
- 0° round 150 mm
- 0° square 150 x 150 mm
- 45° round 100 mm
- 45 ° rectangular 130 x 100 mm
- 60 ° round 60 mm
- 60 ° square 60 x 60 mm
| Product Dimensions: | |
|---|---|
| Product Length | 950 mm |
| Product Width | 530 mm |
| Product Height | 1,520 mm |
| Product Weight | 105.0 Kg |
| Package Dimensions: | |
| Package Length | 1,160 mm |
| Package Width | 575 mm |
| Package Height | 734 mm |
| Package Weight | 116.00 Kg |
