band saw machine / metal band saw / metal cutting bandsaw / band saw / european type horizontal bandsaw

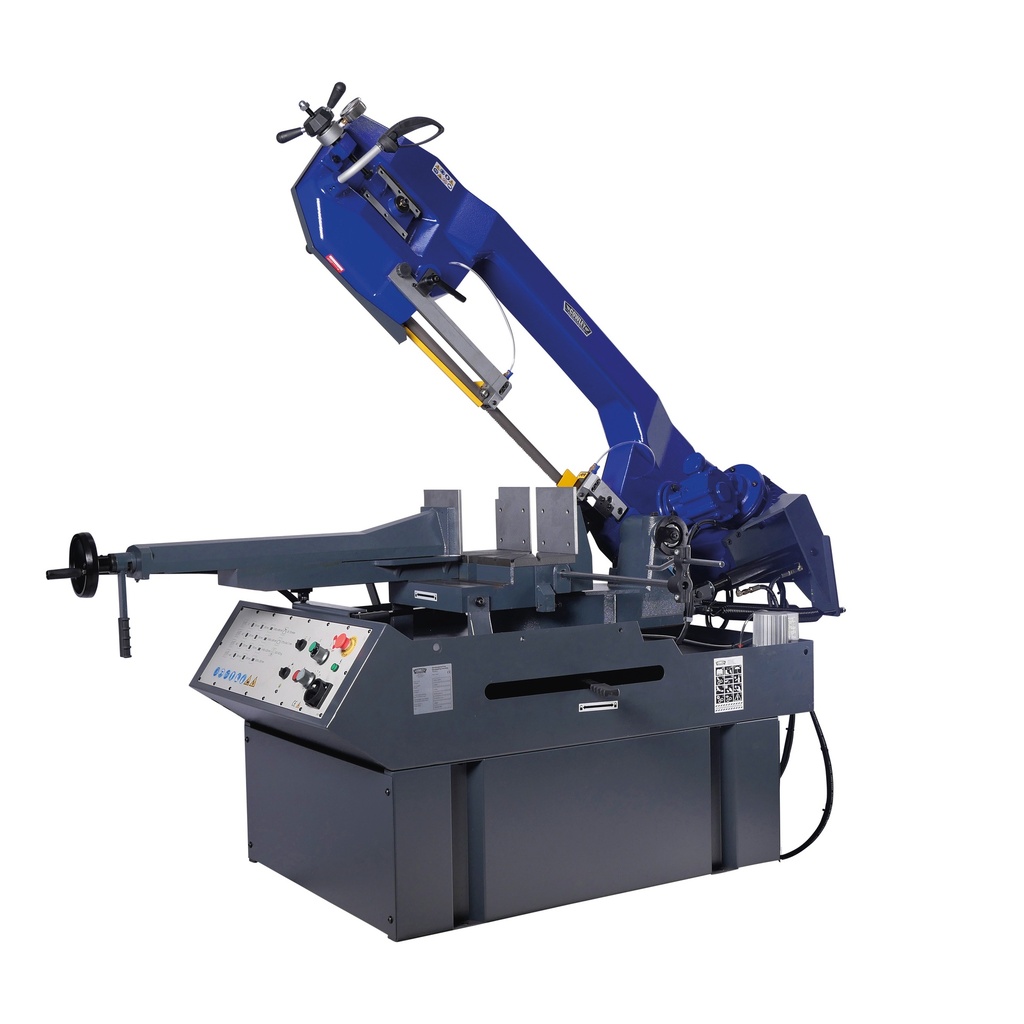

This Cowley band saw machine has a solid metal base, with an integrated control panel in the frontside of the frame.
The machine is equipped with a more secure user-friendly low-voltage control panel including an emergency switch, making it very easy and safe to operate. Additionally it has an adjustable automatic hydraulic feed which makes it possible to set and adjust the lowering feed speed and make controlled cuts automatically.
Thanks to the adjustable Double bearing saw blade guidance it has a high cutting precision, and the low speed of the motor ensures a longer life.
Euro type horizontal bandsaw is adjustable in cutting angle and has a high sawing precision.
The machine has 2 fixed cutting speeds 35 and 70 m/min.
The cast iron machine clamp has a quick vise clamping system that allows you to move in different directions: from side to side, as well as back and forth. You can adjust the clamping angle and then fix at the angle you need. The vise is strengthened and expanded to increase clamping force to keep the workpiece more stable during machining.
The chips that are formed during the sawing process can remain in the cavities between the teeth and interfere with normal cutting, so the machine is equipped stainless steel circular abrasive brush for band saw blades allow to gently and effectively clean between the teeth of the saw blade without dulling the cutting edge of the blade.
Cast iron body provides a high stability and less vibration during cutting. Using the handwheel, the saw blade is hydraulically tightened and the tightening force can be read on the pressure gauge. This professional Band saw machine is recommended for working with metals. This low-noise model is suitable for sawing pipes and profiles of alu, steel and stainless steel.
The band saw is equipped with a built-in flow-controlled cooling system with coolant and electric pump, due to this the cooling of the saw blade ensures a long working cycle and cutting precision.
Band saw equipped with an adjustable material clamp with dual lock quick system.
Сutting angle level lock is integrated into the cabinet. The band saw has an adjustable cutting angle from 0° to -45° and is equipped with an adjustable material stop for fast and correct cutting.
Electric motor with reducer and ISO certified, electrical installations in accordance with CE standards.
This model comes with a small set of maintenance tools.
- User-friendly control panel on the front
- Automatic / hydraulic down feed with saw blade system
- Adjustable double bearing sawblade guidance
- Emergency stop
- Automatic switch off after cutting
- Quick clamping system
- Bi-metal saw blade
- Cast iron machine clamp
- Saw blade pressure gauge
- Maintenance-free bearings
- Built-in cooling pump
- Adjustable material stop
- Blade tension adjustment
- Adjustable cutting angle -45° - +60
- Voltage = 400V/ 50Hz 3-phase
- Power = 2.2kW
- Band saw speed = 35 - 70 m/min
- Working table height = 890mm
- Blade Speeds = 2
- Weight = 522kg
- Band saw length = 3770mm
- Band saw width = 34mm
- Band saw thickness = 1.1mm
Adjustable cutting angle -45° - +60 using a quick locking handle, and an automatic turn-off system
- -45 ° round 290 mm
- -45 ° square 250 mm
- -45 ° rectangular 250 x 250 mm
- 0 ° round 355 mm
- 0 ° square 280 mm
- 0 ° rectangular 280 × 490 mm
- 45 ° round 355 mm
- 45 ° square 280 mm
- 45 ° rectangular 280 x 340 mm
- 60 ° round 230 mm
- 60 ° square 180 mm
- 60° rectangular 230 x 220 mm
|Product Length||2,170 mm|
|Product Width||900 mm|
|Product Height||1,550 mm|
|Product Weight||565.0 Kg|
|Package Length||2,262 mm|
|Package Width||970 mm|
|Package Height||1,122 mm|
|Package Weight||634.00 Kg|
