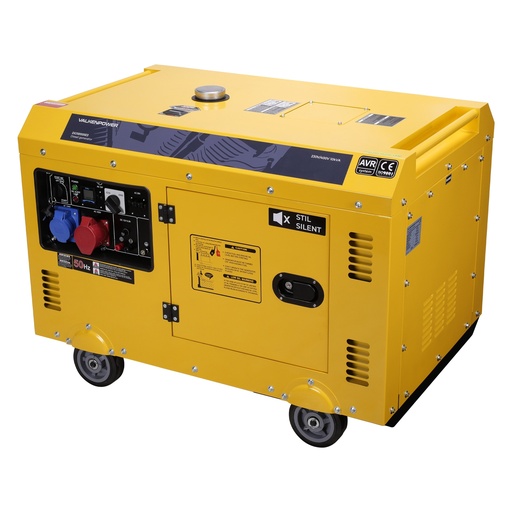

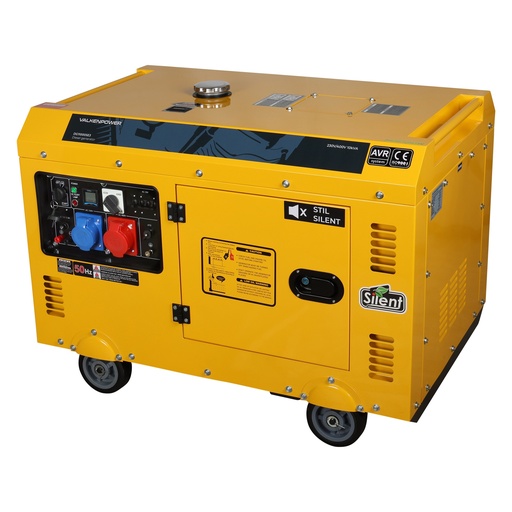

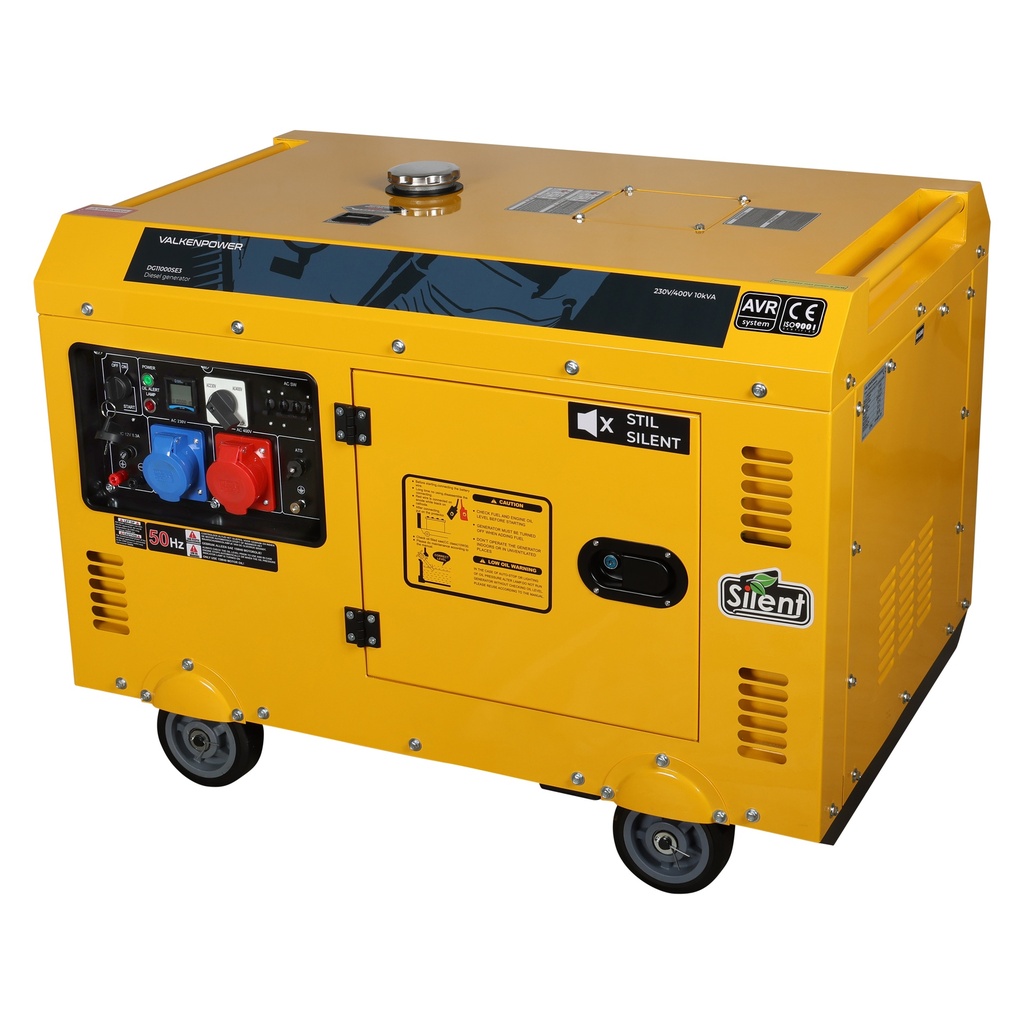

Diesel generator set silent / easy open type
This powerful 10kVA diesel generator set is equipped with both a 32A 380V and a 230V connection. The set is very suitable for events and such.The generator is equipped with an oil security. This prevents damage to the engine. If the oil level is too low, the engine is automatically switched off. Also, a red light flashes on the control panel. Technical specifications:
frequency = 50Hz
rated AC voltage = 230V / 400V
DC output = 12V / 8.3A
rated output (400V) = 7.5 kW
max. output (400V) = 8.0 kW
rated output (230V) = 6.5kW
max. output (230V) = 7kW
rated current (400V) = 11A
rated current (230V) = 32A
speed = 3000rpm
sound level (@1m) = 87 dB
fuel tank capacity = 30L
consumption = 3,44L/hour at maximum power
isonorm = 9001
Standard features:
volt meter
hertz meter
oil warning light
electric starter
Equipped with 32A 400V 5-pin plug and 32A 230V 3-pin plug.

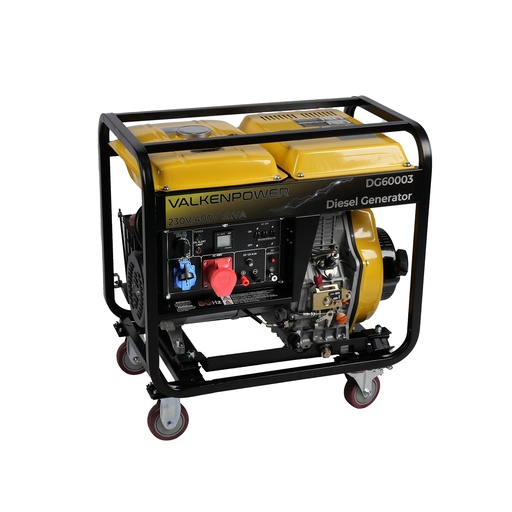

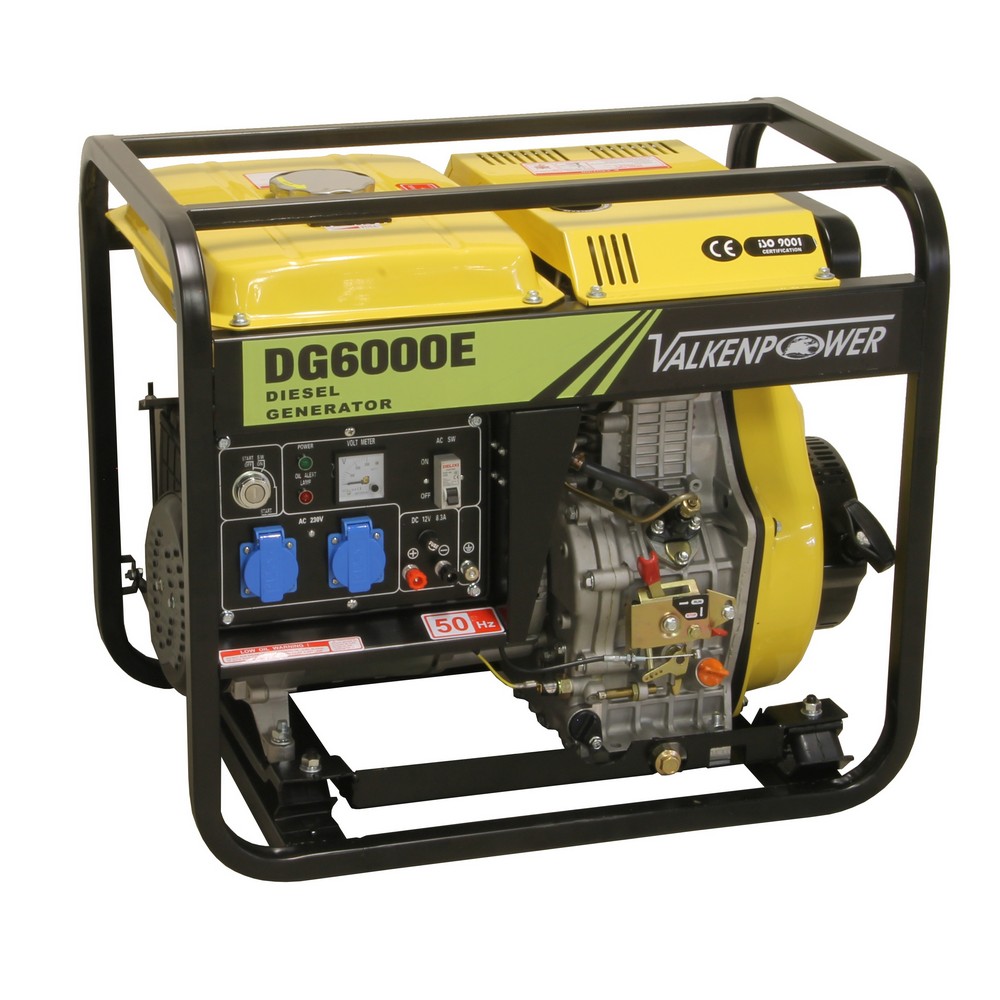

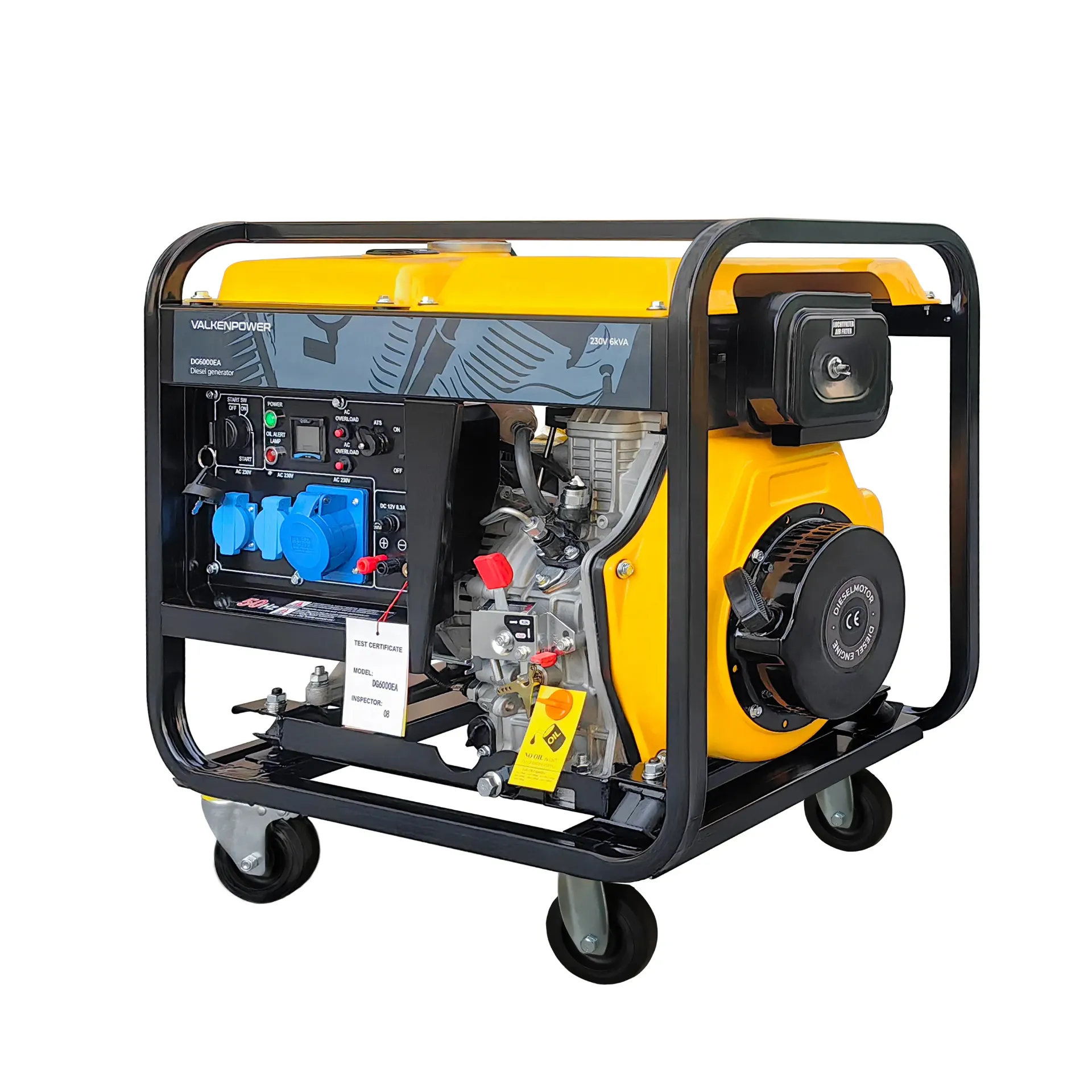

Diesel generator set open type This diesel generator is equipped with an oil security. This prevents damage to the engine. If the oil level is too low, the engine is automatically switched off. Also, a red light flashes on the control panel. Technical specifications: - frequency = 50Hz - rated AC voltage = 230V - DC output = 12V/8.3A - rated output = 5.0 kW - max. output = 5.5 kW - rated current = 21.7A - dB (7m) = 85 - fuel tank capacity = 12.5L - cylinder capacity = 418cc - isonorm = 9001 - electric starter Standard features: - voltmeter - oil warning light - oil alert system

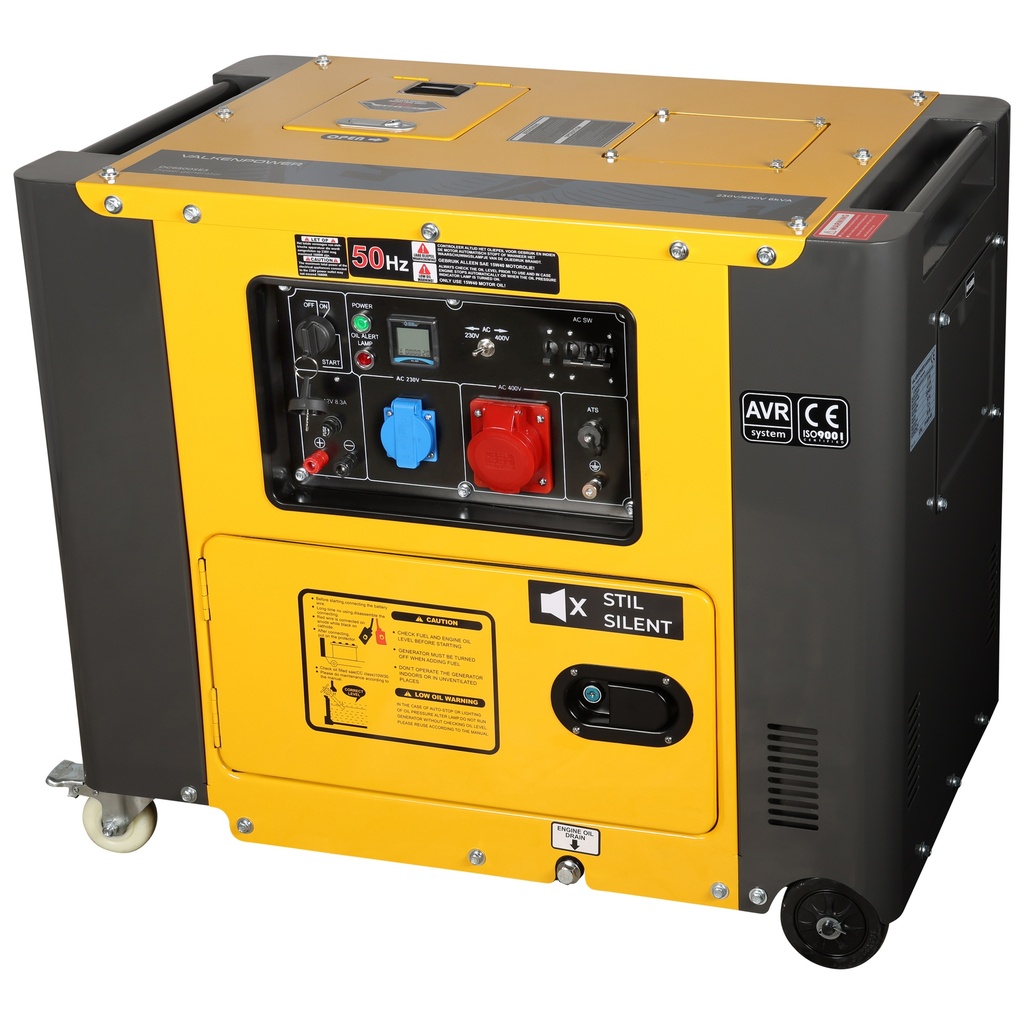

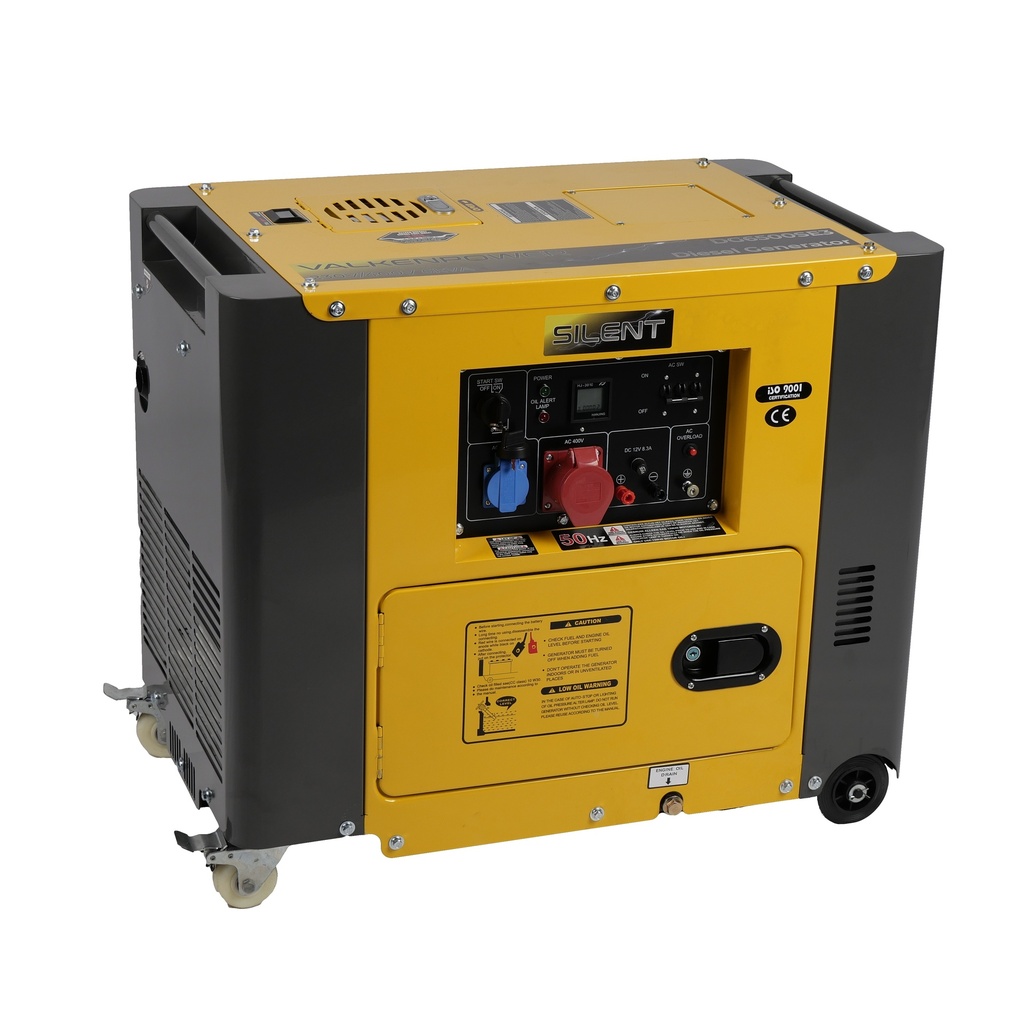

Diesel generator set silent / easy open type This diesel generator is equipped with an oil security. This prevents damage to the engine. If the oil level is too low, the engine is automatically switched off. Also, a red light flashes on the control panel. Technical specifications: - frequency = 50Hz - rated AC voltage = 400V - DC output = 12V/8.3A - max. output = 5.0kW
- rated output = 4.6kW - rated current = 7.2A - fuel tank capacity = 16L - cylinder capacity = 418cc - isonorm = 9001 - electric starter Standard features: - voltmeter - oil warning light - oil alert system
Diesel generator set open type This diesel generator is equipped with an oil security. This prevents damage to the engine. If the oil level is too low, the engine is automatically switched off. Also, a red light flashes on the control panel. Technical specifications:
rated AC voltage = 400V
DC output = 12V/8.3A
rated output = 5.0kW
max. output = 5.5kW
rated current = 7.2A
fuel tank capacity = 12.5L
cylinder capacity = 418cc
voltmeter
oil alert system

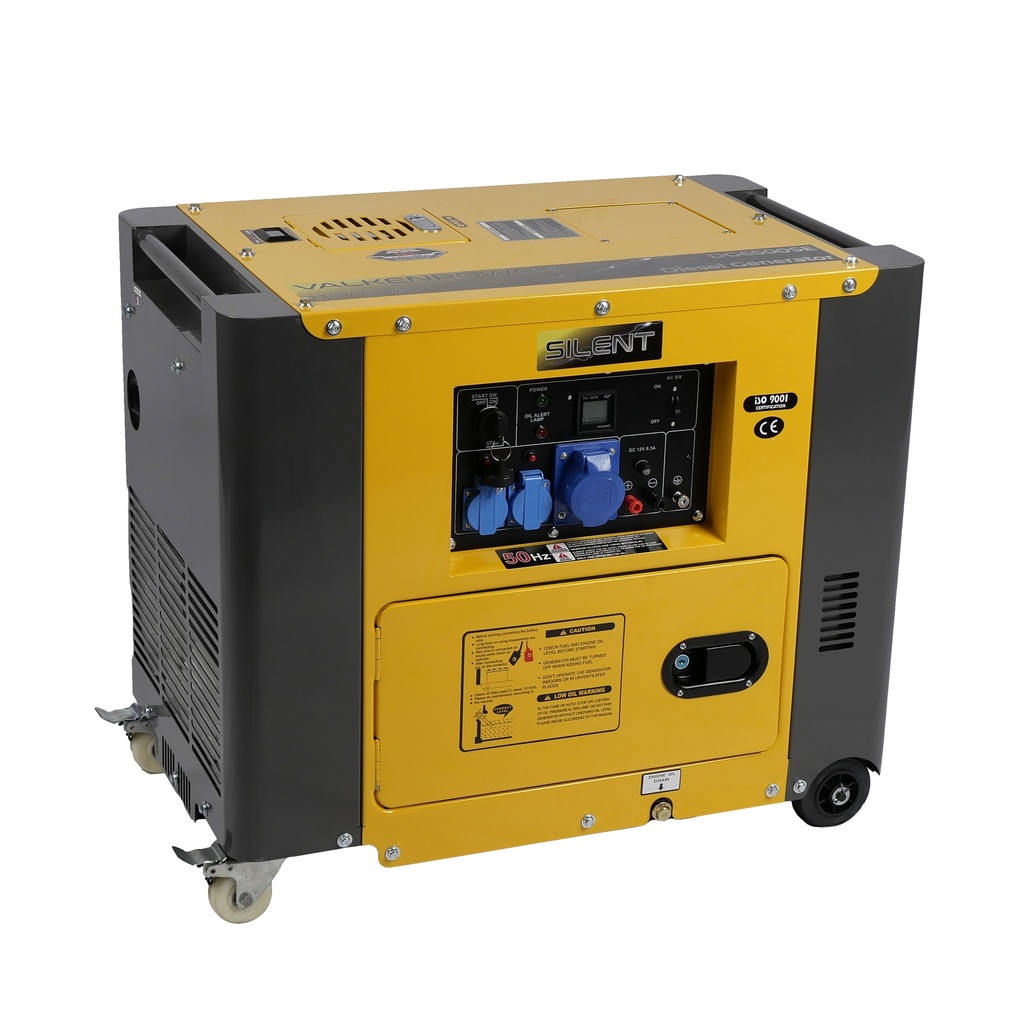

Diesel generator set silent / easy open type This diesel generator is equipped with an oil security. This prevents damage to the engine. If the oil level is too low, the engine is automatically switched off. Also, a red light flashes on the control panel. Technical specifications: - frequency = 50Hz - rated AC voltage = 230V - DC output = 12V/8.3A - rated output = 5.0 kW - max. output = 5.5 kW - rated current = 21.7A - dB (7m) = 75,2 - fuel tank capacity = 16L - cylinder capacity = 418cc - isonorm = 9001 - electric starter Standard features: - voltmeter - oil warning light - oil alert system
Diesel generator set silent
This Fogo silenced diesel generator with Mitsubishi engine is standard equipped with an AMF controller, real-time clock, operating hours counter, fuel level meter, overload protection and has the following features:
voltage accuracy = /- 0.5%
low level THD (total harmonic distortion) = < 3.5%
brushless dynamo
insulation class alternator = H
degree of protection alternator = IP23
Technical specifications:
max. power = 12.9kW
nominal power = 11.8kW
voltage = 400V / 50Hz
rated current = 21.2A
speed = 1500rpm
engine = Mitsubishi
type = S4L2-61SD
air cooled
number of cylinders = 4
oil capacity = 6L
cooling system capacity = 2.5L
fuel = diesel (EN 590)
fuel tank = 140L
consumption = 2.7L per hour (50% load) / 3.4L per hour (75% load) / 4.3L per hour (100% load) / 4.7L hour (110% load)
sound level = 91dB(A)
