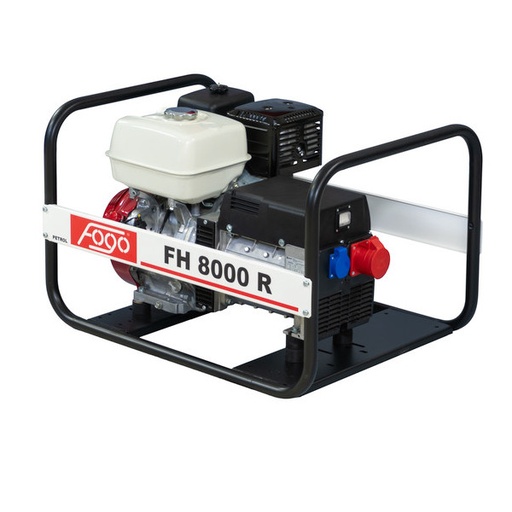

This Fogo gasoline power generator with Honda GX390 engine is standard equipped with digital AVR (automatic voltage regulator), 1 socket 400V 16A, 1 socket 230V 16A, overload protection and an oil level sensor.
Characteristics:
voltage stabilization /- 1,5% three phase
low level of THD (total harmonic distortion) ≤ 6%
alternator insulation class = H
alternator protection = IP23
Specifications:
3~ phase max. power = 6,2kW
3~ phase nominal power = 5,8kW
1~ phase max. power = 3,9kW
1~ phase nominal power = 3,5kW
current 3~ phase = 10,1A
current 1~ phase = 15,2A
voltage = 230/400V - 50Hz
engine = Honda
type = GX390
capacity = 389cm³
air cooled
number of cylinders = 1
stroke = 4
oil volume = 1,1L
manual start
fuel = petrol
fuel tank = 6,1L
consumption = 2,7L per hour
noise level = 97db(A)

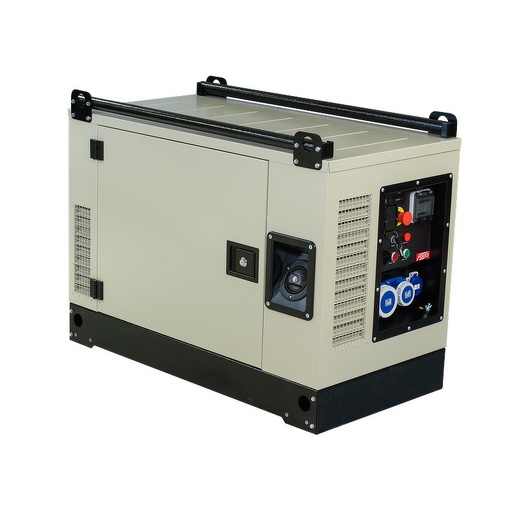

This Fogo silenced gasoline power generator with Honda GX390 engine is standard equipped with AVR (automatic voltage regulator), 2 sockets 230V 16A, 1 socket 230V 32A, overload protection, oil level sensor, silencer with exhaust adapter, battery, connection for ATS panel and a hourmeter.
voltage stabilization /- 2%
single phase power output socket of 32A
low noise level of 91dB(A)
max. power = 6,2kW
nominal power = 5,6kW
voltage = 230V / 50Hz
electric starter
fuel tank = 50L
noise level = 91db(A)

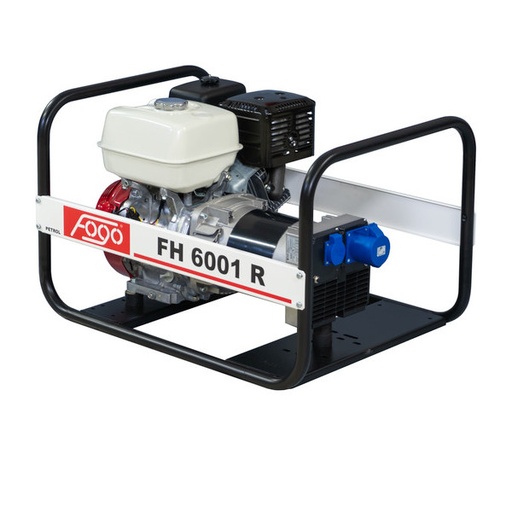

This Fogo gasoline power generator with Honda GX390 engine is standard equipped with AVR (automatic voltage regulator), 1 socket 230V 16A, 1 socket 230V 32A, overload protection and an oil level sensor.

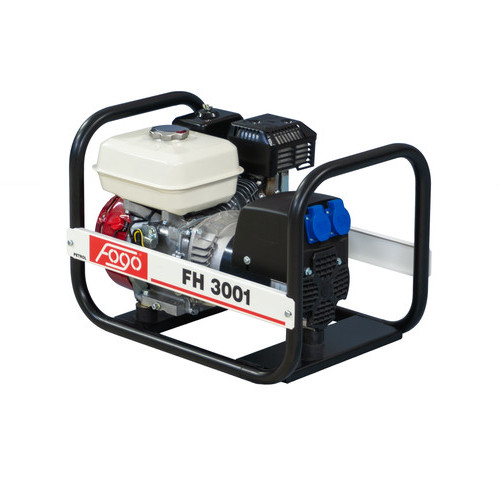

This Fogo gasoline power generator with Honda GX200 engine is standard equipped with 2 sockets 230V 16A, overload protection and an oil level sensor.
voltage stabilization 5 -10%
max. power = 3kW
nominal power = 2,7kW
type = GX200
capacity = 196cm³
oil volume = 0,6L
fuel tank = 3,1L
consumption = 1,4L per hour
noise level = 96db(A)
Europower generator Generator: - kVA max. = 4 - kVA cont. = 3,6 - amps (continuous) = 16A @ 1~230V Motor: - brand/type = Honda GX270 VXB7 - HP = 8 - power = 6kW (3000rpm), 1 cylinder gasoline, air cooled - cylindercapacity = 270cm3 - consumption @ 75% = 2l/h - tank = 5,3ltr - autonomy @75% last = 2,7uur - sound level = 71dB(A)@7m Alternator: - brand/type = Sincro ER2CAT brushless - nominal voltage = 1~230V - frequency = 50Hz - protection class = IP23 Version: - 2 sockets 230V - 16A - frame - oil level protection - recoil start - thermal protection

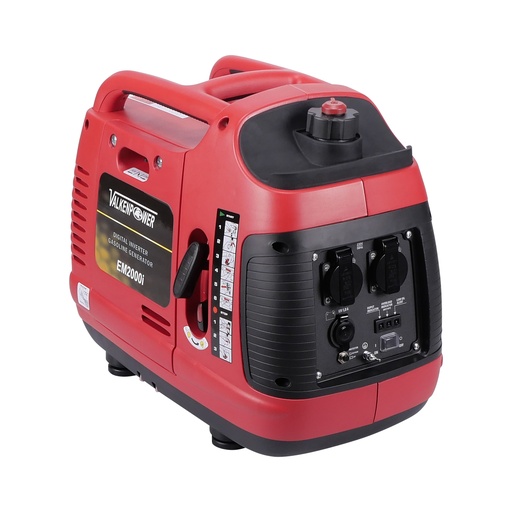

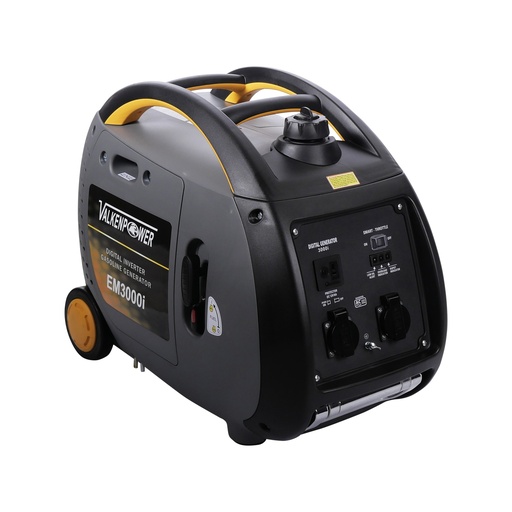

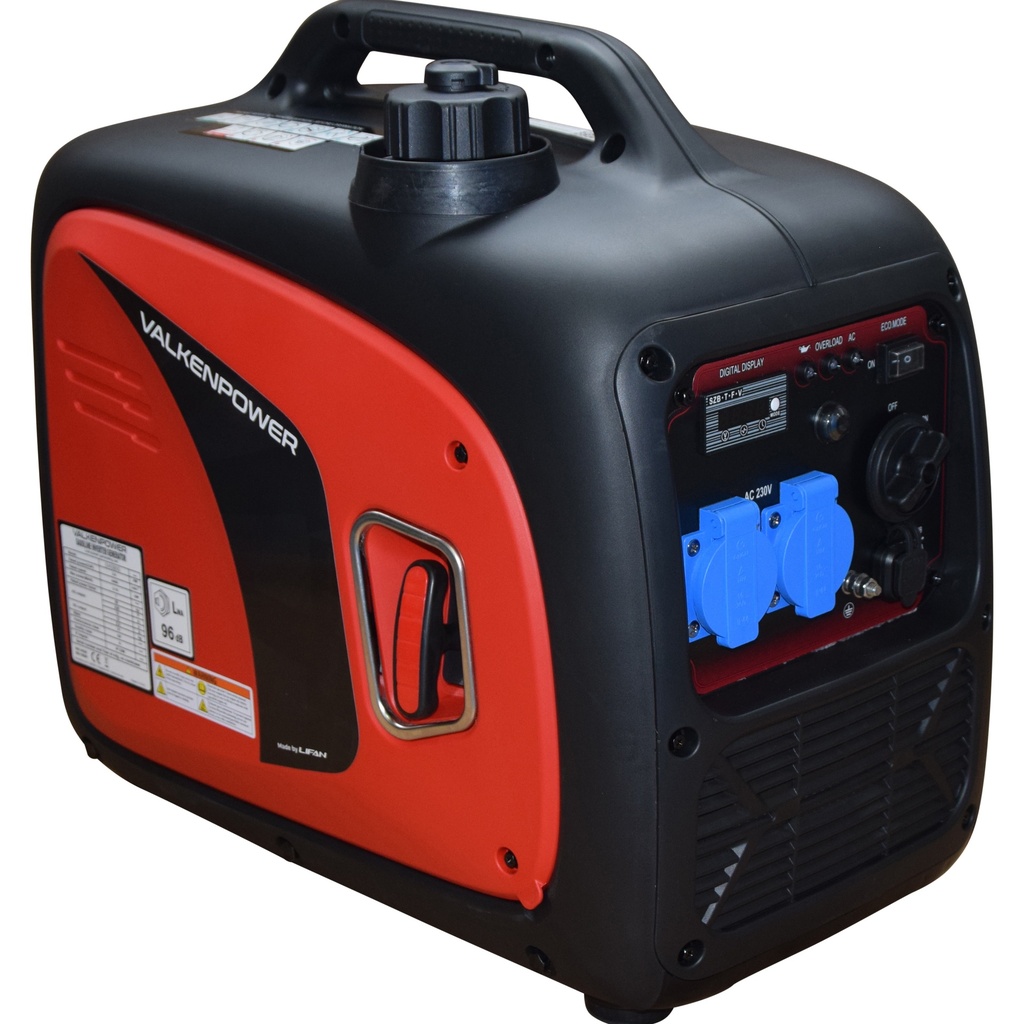

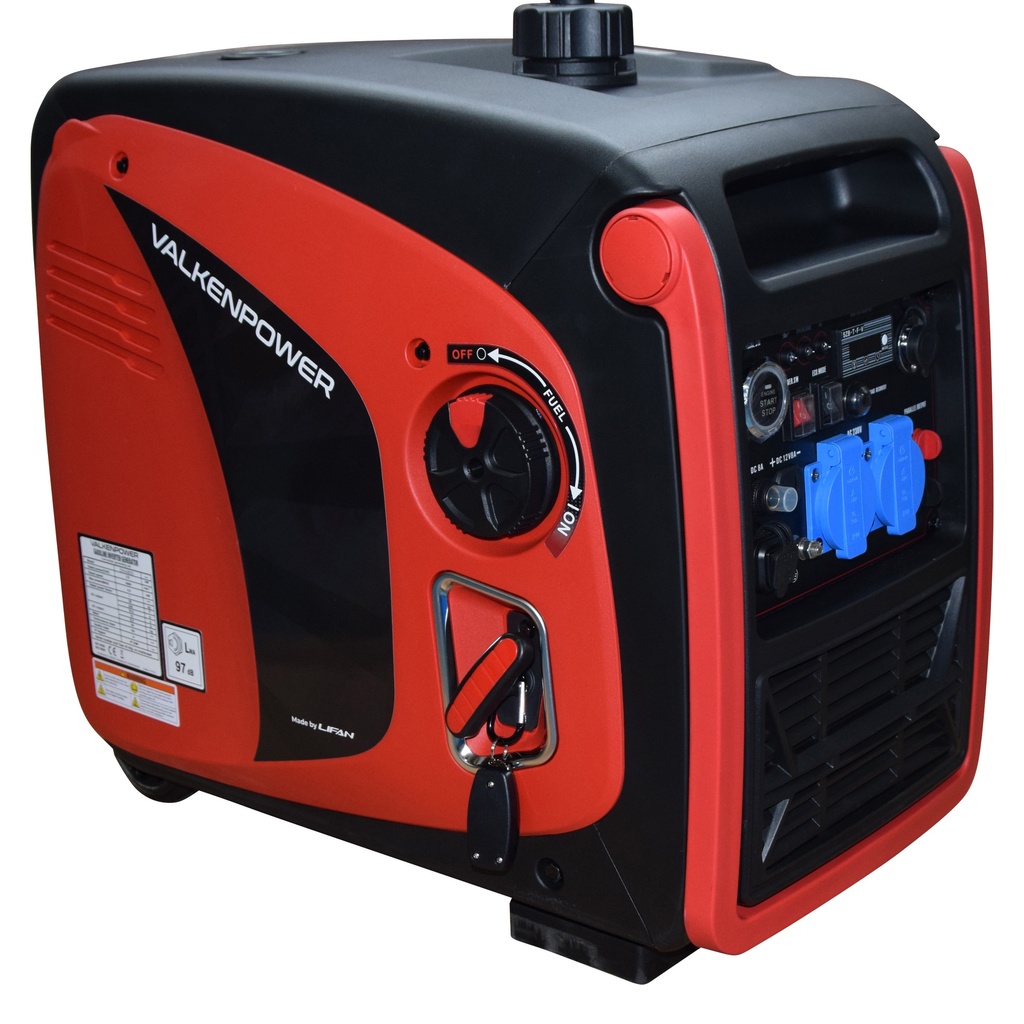

Digital invertor gasoline generator
This silent digital inverter has a constant voltage like an common household socket. Suitable for all sensitive electric devices because of inverter technology. So devices like fridges, TVs, computers, freezers etc. can be operated.
A digital inverter generator is up to 30% more compact than a common emergency generator at the same power level.
As the RPM adapts to the power output, the consumption is very low.
Specifications generator:
voltage = 230V
frequency = 50Hz
rated power = 2.6kVA
max. power = 3.0kVA
DC output = 12V 8A
DC max. current = 8A
sound level no load = 58 dB
sound level load = 65 dB
Specifications engine:
engine = 1 cylinder OHV 4-stroke gasoline
model = 166FI
capacity (bore x stroke) = 171cc (66 x 50mm)
compression ratio = 8.5:1
speed = 3800rpm
transistor ignition
oil capacity = 0,5L
fuel tank capacity = 4,8L

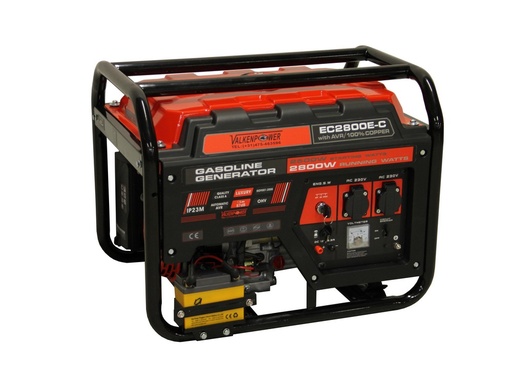

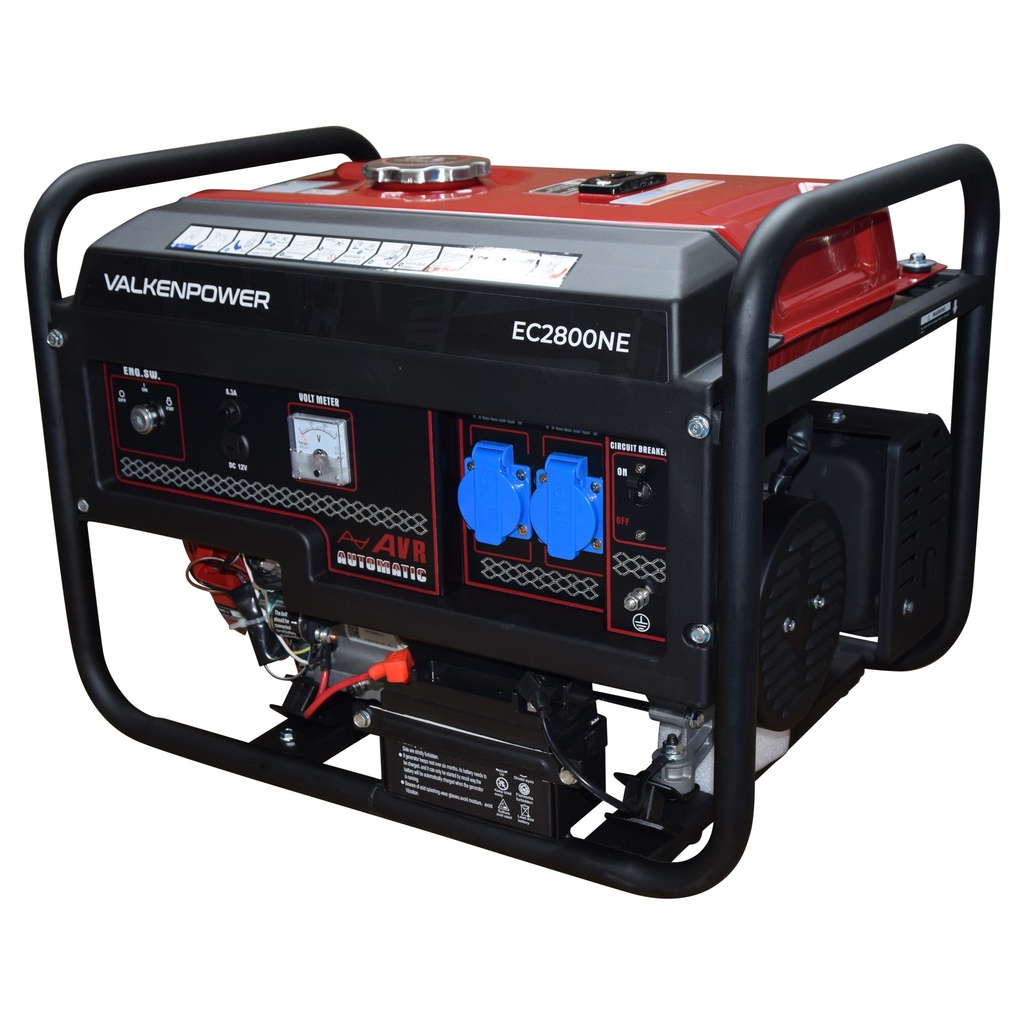

Gasoline generator electric start - capacity = 230V - frequency = 50Hz - starting watts = 2500W - running watts = 2800W - tank capacity = 17L - electric start - isonorm = 9001:2000 - operating noise level = 87dB - 100% koper - exhaust chromed - with AVR

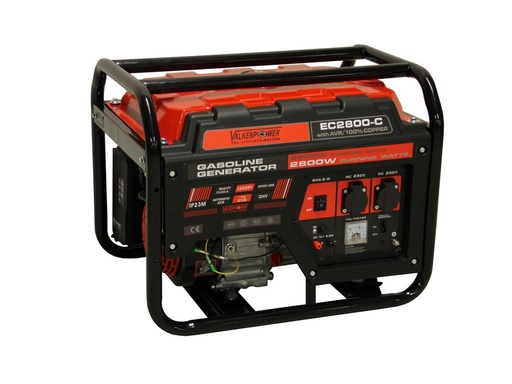

Gasoline generator hand stand start - capacity = 230V - frequency = 50Hz - starting watts = 2500W - running watts = 2800W - tank capacity = 17L - hand start - isonorm = 9001:2000 - operating noise level = 87dB - 100% koper - exhaust chromed - with AVR
Europower Generator EP3300 3kva 230V with GX200T VSP
Generator:
- kva max. = 3
- kva cont. = 2,7
- ampere (continuous) = 12A @ 1~230V
Motor:
- PK = 5,5
- power = 4,1kW (3000rpm), 1 cylinder gasoline air cooled
- cylindercapacity = 196cm3
- consumption @ 75% = 1,3lph
- tank = 3,1ltr
- autonomy @75% last = 2,4uur
- sound level = 73dB(A)@7m
Alternator:
- mecc alte S16W-90/C brushless
- nominal voltage = 1~230V
- frequency = 50Hz
- protection class = IP23
Version:
- 2 sockets 230V - 16A
- frame
- oil level protection
- recoil start
- thermal protection

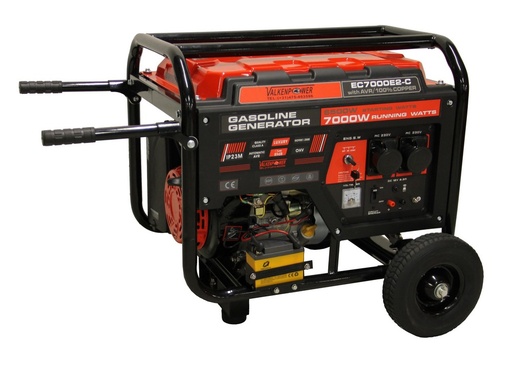

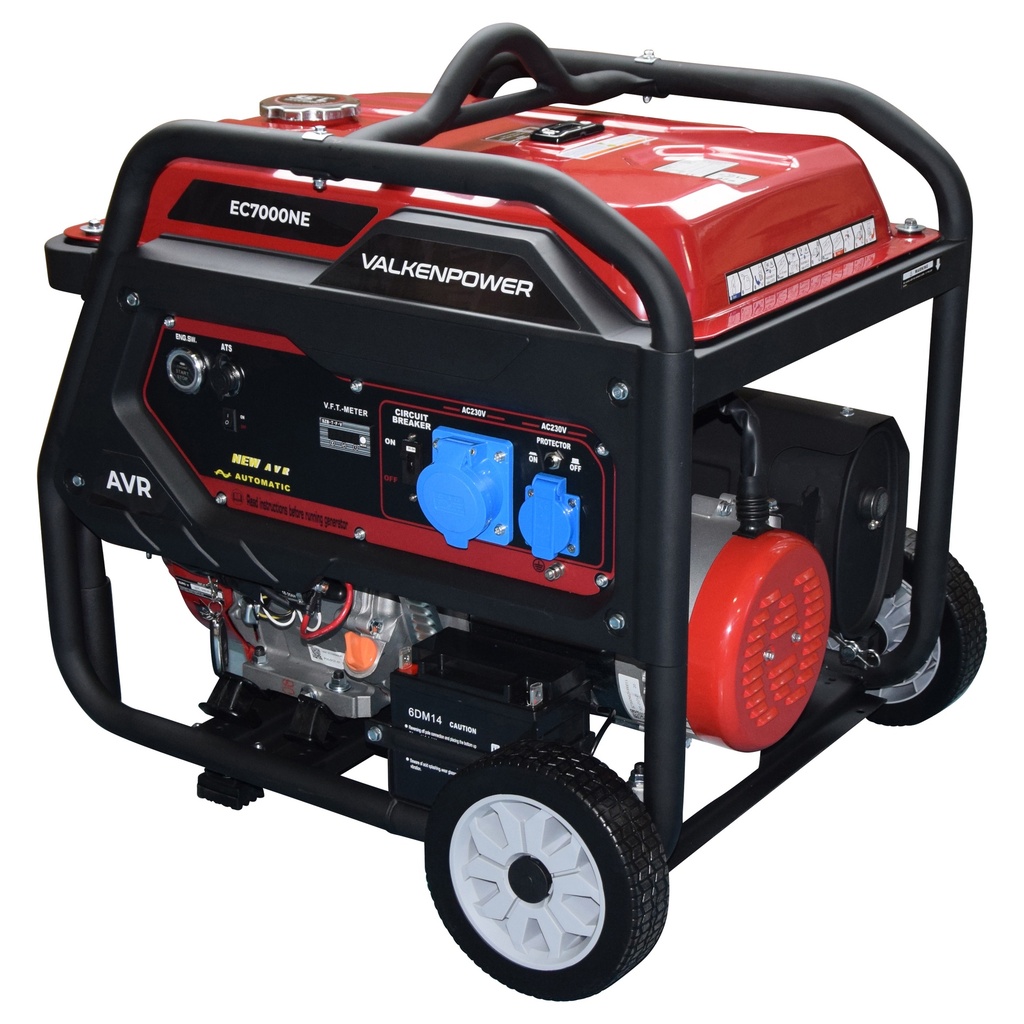

Gasoline generator electric start - capacity = 230V - frequency = 50Hz - starting watts = 7000W - running watts = 6500W - tank capacity = 28L - electric start - isonorm = 9001:2000 - operating noise level = 89dB - 100% koper - exhaust chromed - with AVR
frequency = 50/60Hz
max. DC output = 8,3A
engine = 4-stroke gasoline
engine speed = 4500rpm
oil capacity = 0,4L
fuel tank capacity = 3,2L
