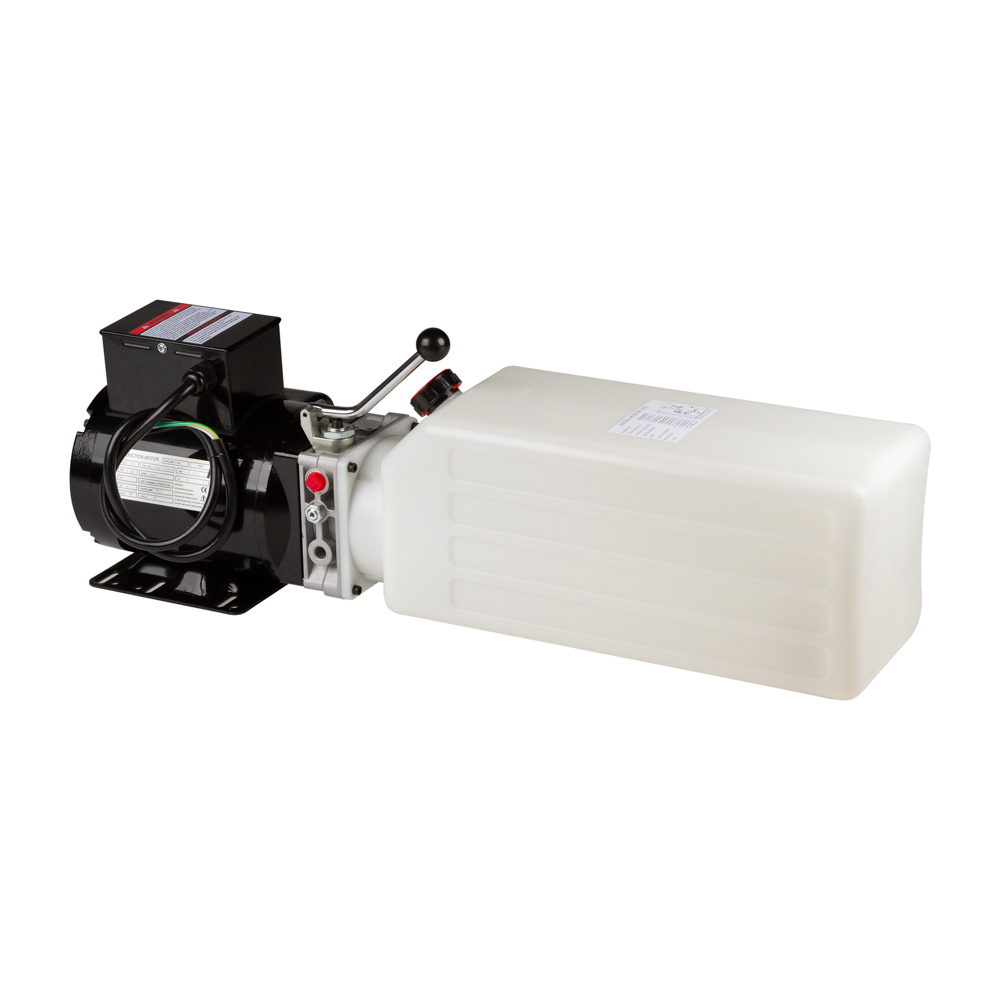

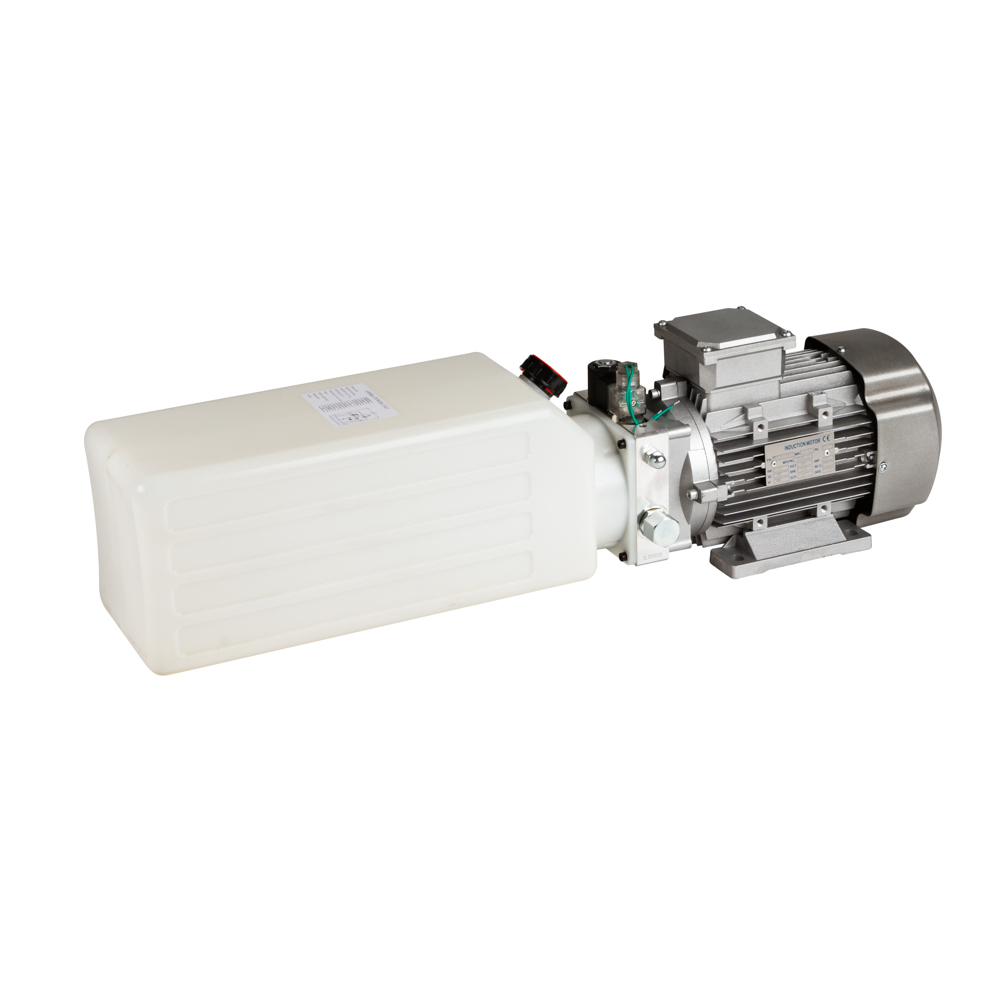

Hydraulic pump unit / hydraulic power pack
motor power = 2,2kW
voltage = 380V AC
displacement = 2.1 cc/r
max. pressure = 200bar (20MPa)
tank capacity = 10L
motor speed = 2850rpm
voltage = 230V AC
output = M14 x 1,5

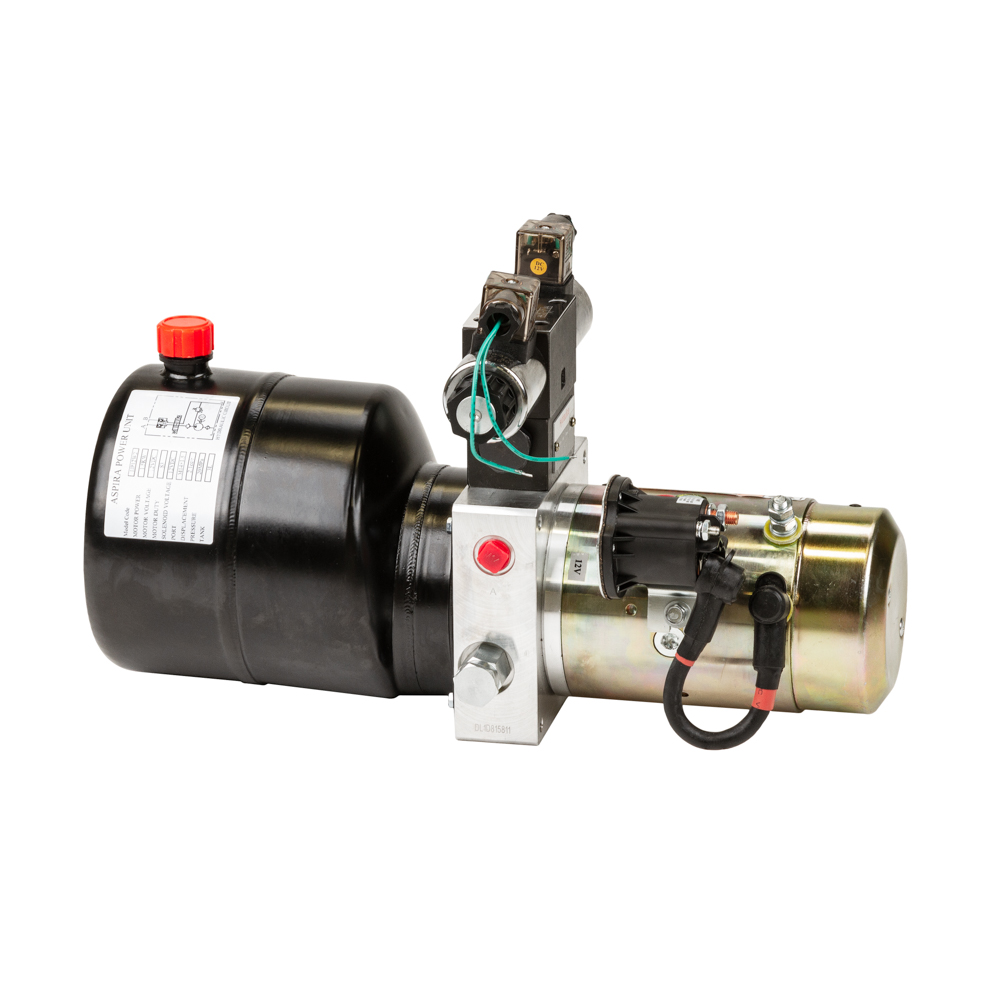

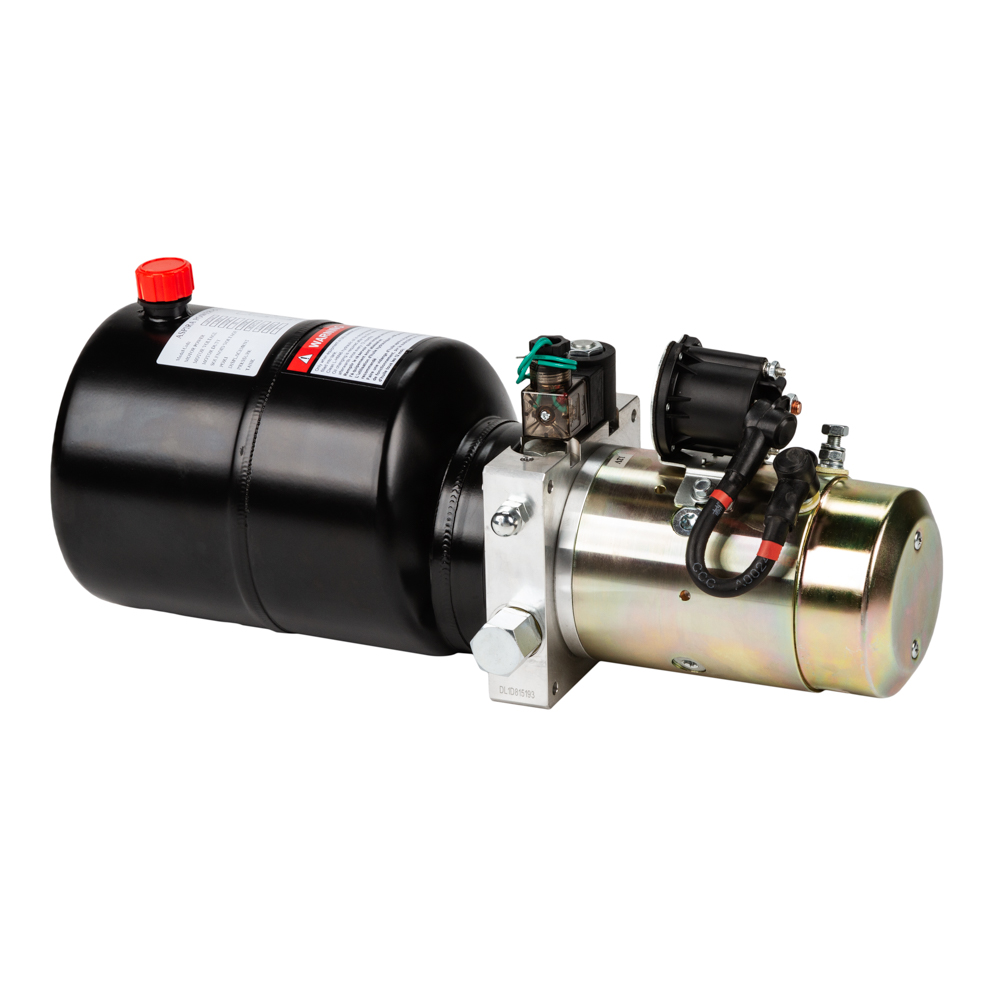

This single-acting hydraulic pump is equipped with a lowering valve and a solenoid with which the lowering speed can be adjusted.
Technical specifications:
voltage solenoid = 24V DC
motor power = 1,5kW
voltage = 12V AC
tank capacity = 3L
voltage = 12V DC
tank capacity = 5L

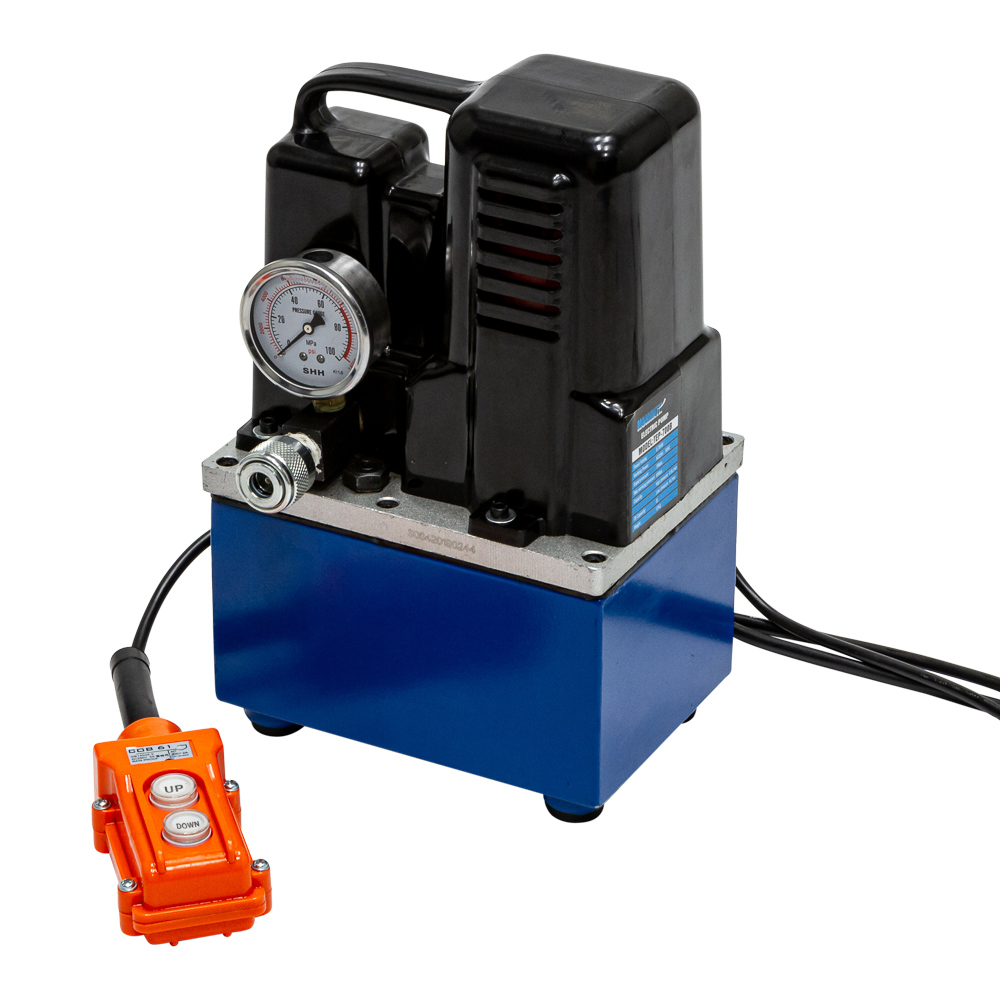

Electric hydraulic pump Small volume pump with high-performance motor. The speed and electric power are automatically adjusted during lifting. Even under high pressure (32MPa), the pump starts easy. Easy to take anywhere. - voltage = AC220V 50Hz - rated power = 0,75Kw - low pressure = 2,5 Mpa / 25bar - high pressure = 70Mpa / 700bar - max. working pressure = 80Mpa / 800bar - output low pressure = 1,3L/min - output hoge druk = 0,23L/min - oil capacity = 1,8Ltr

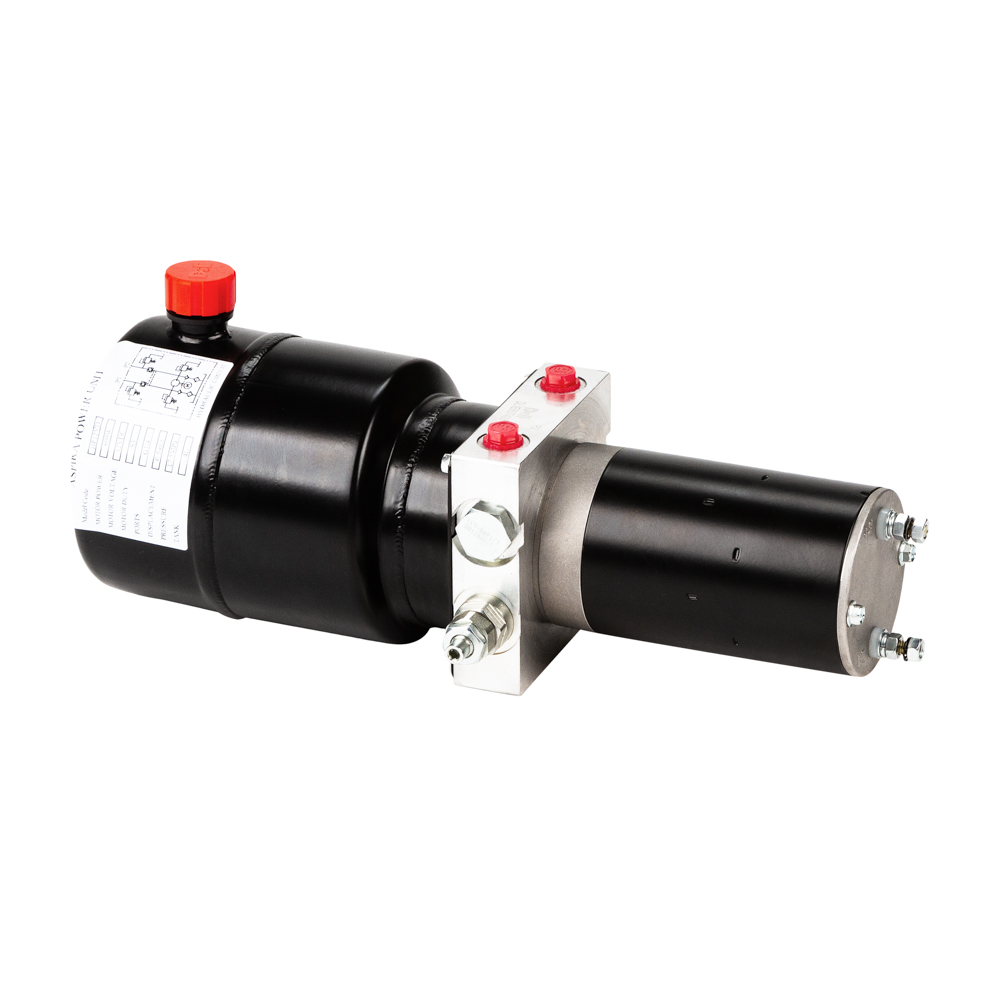

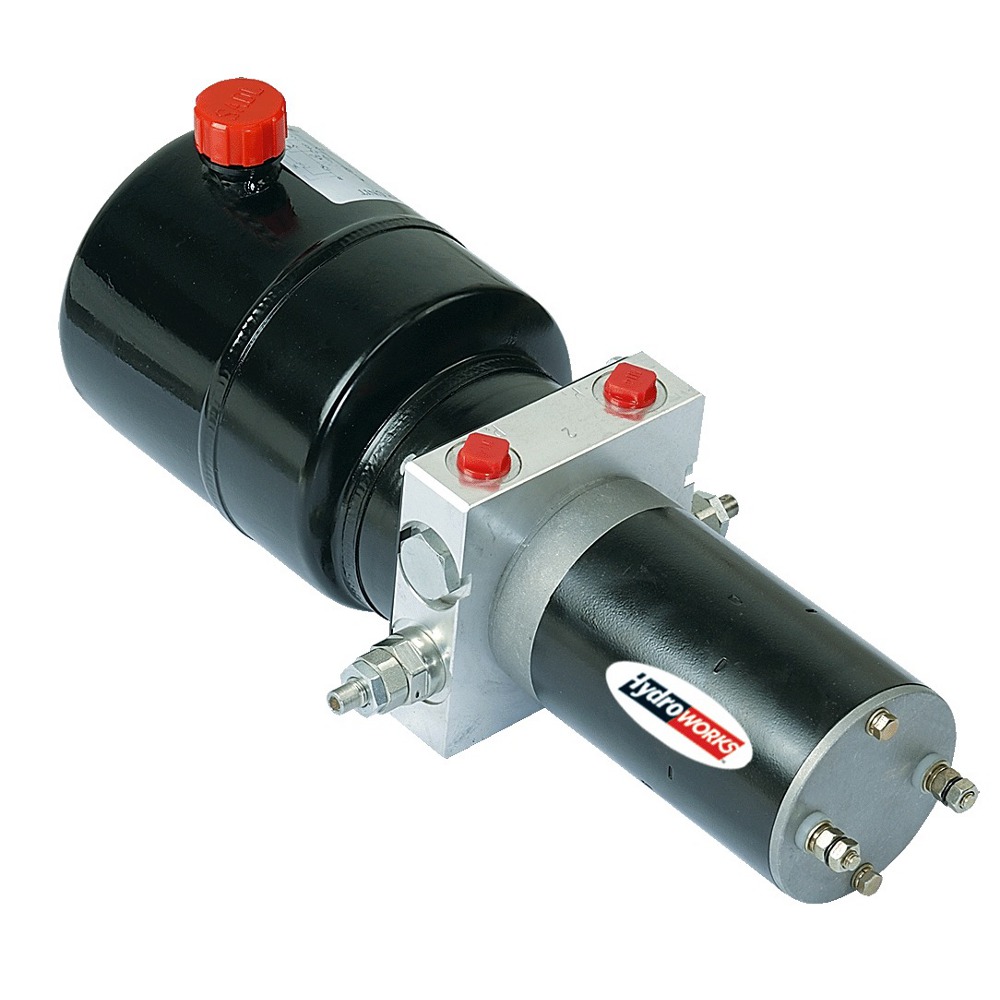

Bi-directional power unit bi-directional motor design eliminates the need for a directional control valve - motor voltage = 24V DC - motor power = 0,8kw - flow = 4 LPM - pressure range = 35 - 200bar - relief presetting = 170bar - tank size = 1,4L
Hydraulic pump unit / hydraulic powerpackBi-directional motor design eliminates the need for a directional control valve.
motor power = 0,8kW
displacement = 0.5 cc/r
max. pressure = 175bar (17,5MPa)
tank capacity = 1,4L

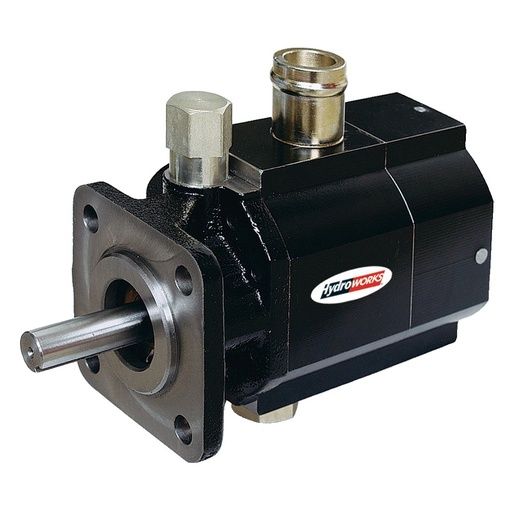

Gear pump 2 stage aluminum contstruction large displacement at low pressure, small displacement at high pressure max. pressure is 200bar range is 500 - 3600RPM excellent for log splitters, pressers and trash compactors - gear displacement: low pressure = 60LPM high pressure = 15LPM - required power = 11PK - shaft = 12,5mm - inlet = 1'' NPT - outlet = 1/2'' NPT

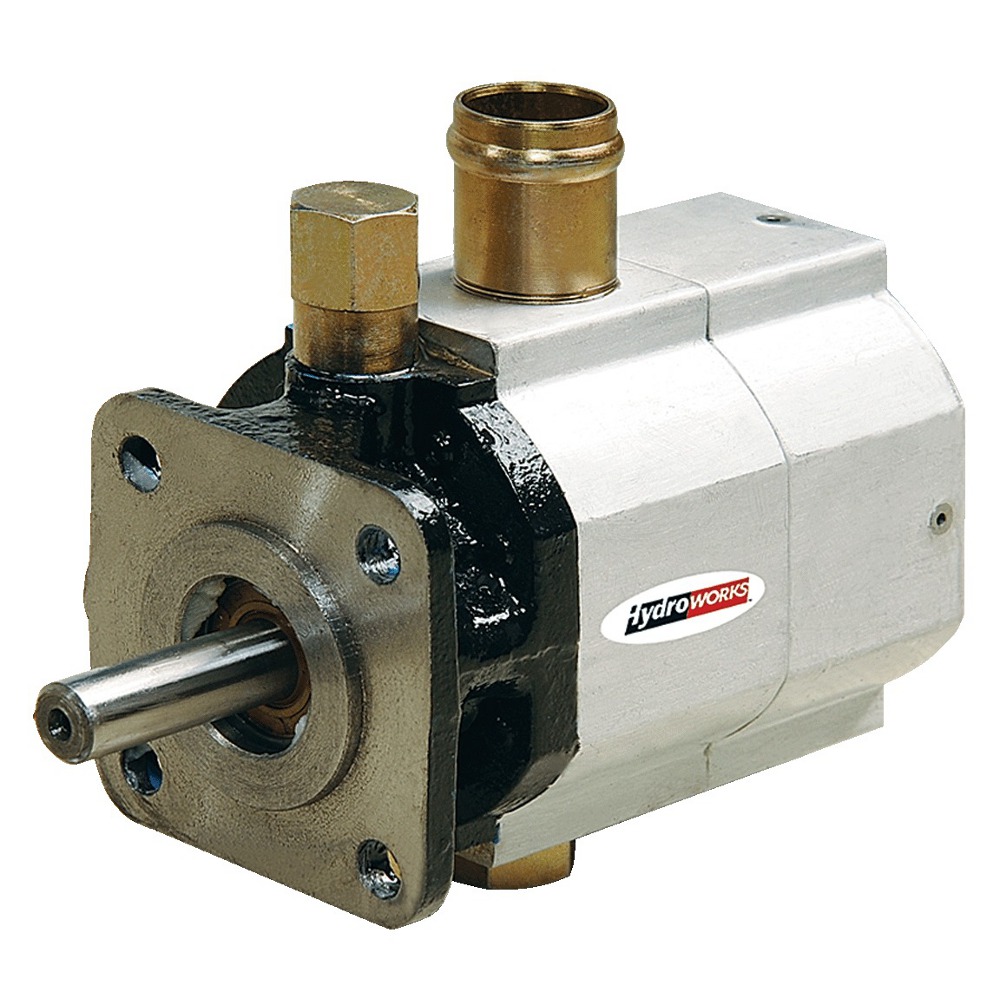

Gear pump 2 stage aluminum contstruction large displacement at low pressure, small displacement at high pressure max. pressure is 200bar excellent for log splitters, pressers and trash compactors - gear displacement: low pressure = 39,2LPM high pressure = 10LPM - required power = 5PK - shaft = 12,5mm - inlet = 3/4'' NPT - outlet = 1/2'' NPT CBNA-8.8/2.1

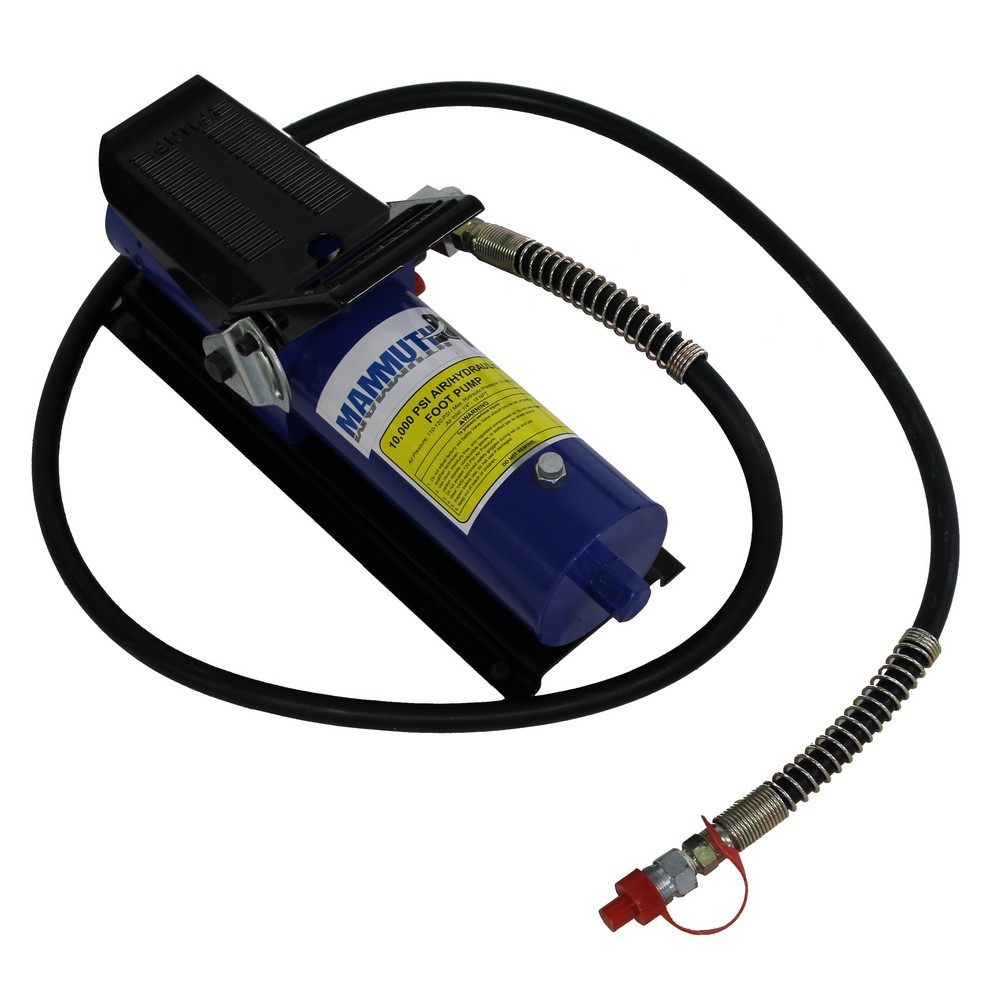

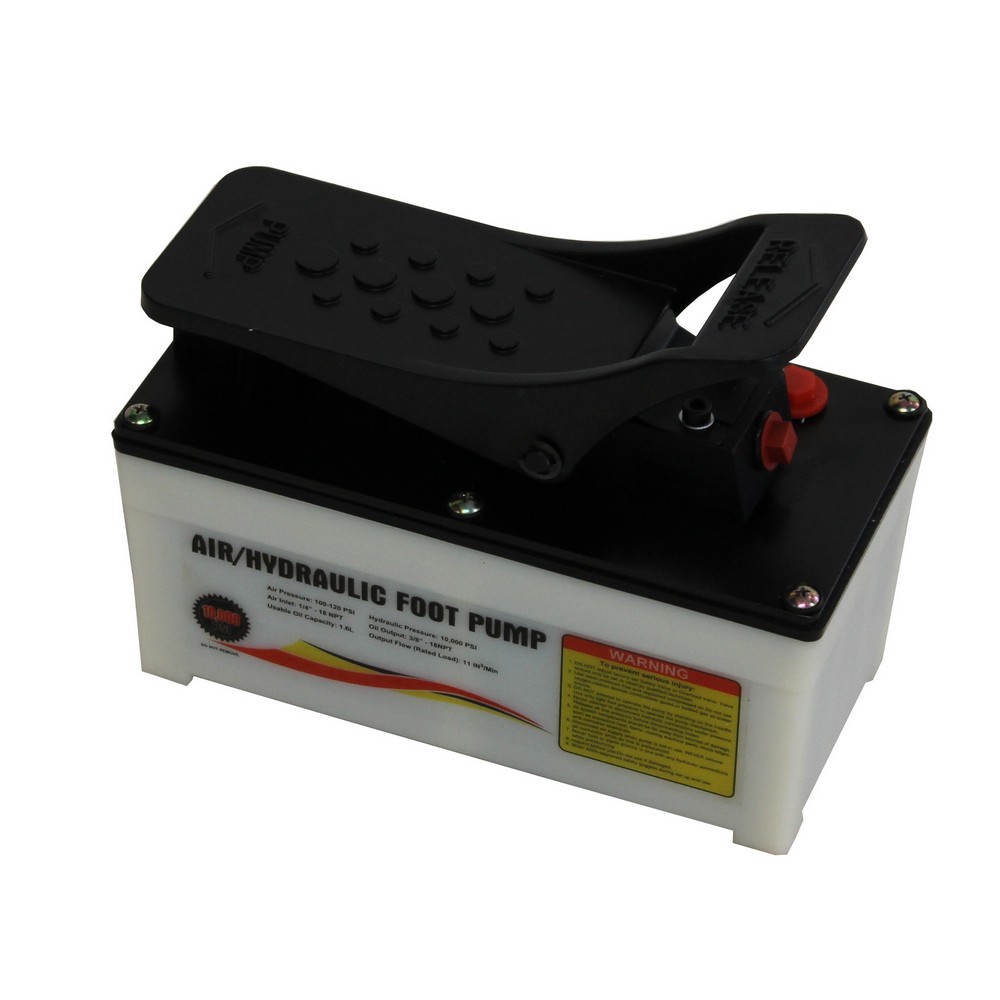

Hydraulic air pump - capacity = 1600ml - pressure = 700 bar - inlet port thread = 1/4"-18NPT - outlet port thread = 3/8"-18NPT - input air pressure = 6 - 10 bar - output flow rate no load = 0,7L/min - output flow rate with load = 0,18L/min

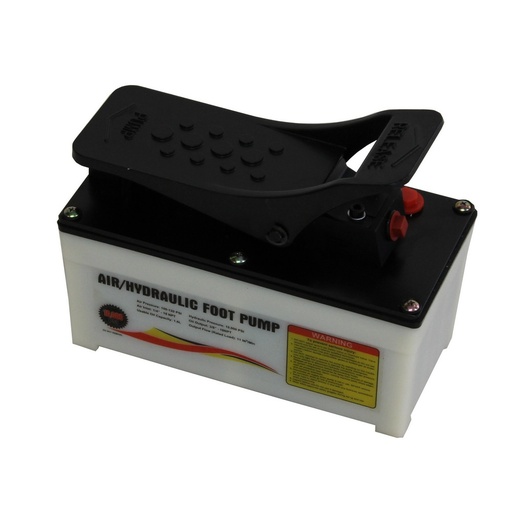

Hydraulic air pump - capacity = 680ml - pressure = 700 bar - inlet port thread = 1/4"-18NPT - outlet port thread = 1/4"-18NPT - input air pressure = 7 - 8,3 bar - output flow rate no load = 0,4L/min - output flow rate with load = 0,12L/min
