Zylinder 50 Tonne Schlag 50mm [MC5050] Zylinder 50 Tonne Schlag 50mm
mm mm mm Kg

Hydraulikzylinder

It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.

  • output = 50 ton

  • stroke = 50mm

  • effective area = 56,7cm^2

  • oil capacity = 0,354 L

  • height of product = 104mm

  • extended height = 154mm

  • outside diameter = 128mm

  • bore diameter = 95mm

  • plunger diameter = 65mm

  • thread for input oil port (ZG) = 3/8" - 19

  • saddle protrusion form plgr = 2mm

  • saddle is removable

  • max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MC5050 8720028050161
€ 145.20 Incl. VAT https://schema.org/SoldOut
€ 145.20 145.20000000000002 EUR

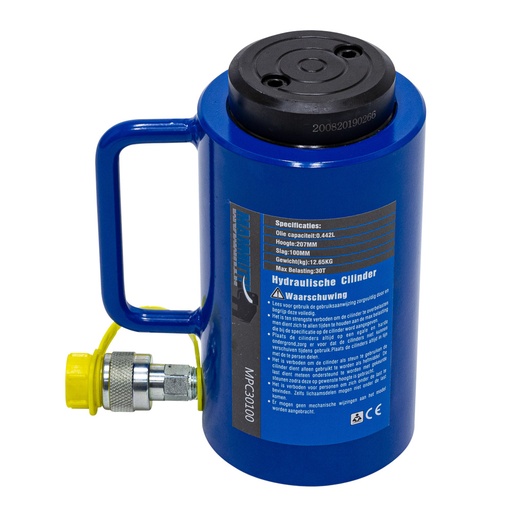

Zylinder 30 Tonne Schlag 100mm [MPC30100] Zylinder 30 Tonne Schlag 100mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

  • output = 30 ton

  • stroke = 100mm

  • effective area = 44,2cm^2

  • oil capacity = 0,442 L

  • height of product = 209mm

  • extended height = 307mm

  • outside diameter = 107mm

  • bore diameter = 75mm

  • plunger diameter = 65mm

  • thread for input oil port (ZG) = 3/8" - 23

  • saddle protrusion form plgr = 22mm

  • saddle is removable

  • max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC30100 8720028076925
€ 145.20 Incl. VAT https://schema.org/InStock
€ 145.20 145.20000000000002 EUR

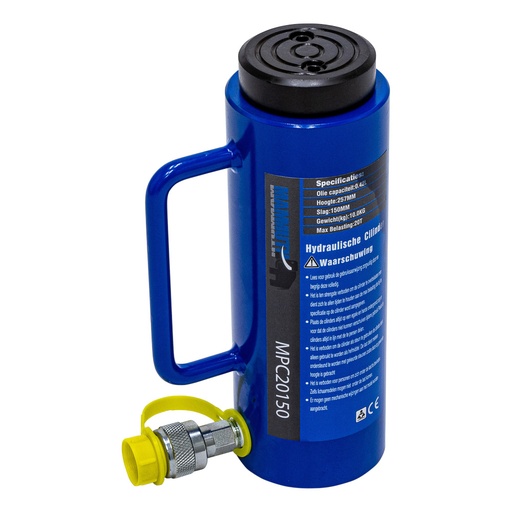

Zylinder 20 Tonne Schlag 100mm [MPC20150] Zylinder 20 Tonne Schlag 100mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

  • output = 20 ton

  • stroke = 150mm

  • effective area = 33,2cm^2

  • oil capacity = 0,498 L

  • height of product = 254mm

  • extended height = 407mm

  • outside diameter = 88mm

  • bore diameter = 65mm

  • plunger diameter = 55mm

  • thread for input oil port (ZG) = 3/8" - 23

  • saddle protrusion form plgr = 21mm

  • saddle is removable

  • max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC20150 8720028076956
€ 145.20 Incl. VAT https://schema.org/InStock
€ 145.20 145.20000000000002 EUR

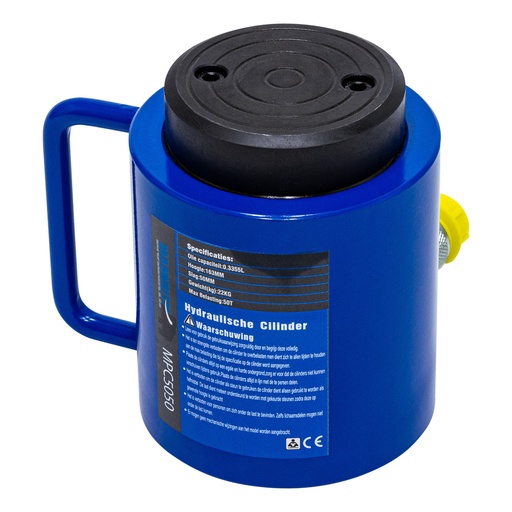

Zylinder 50 Tonne Schlag 50mm [MPC5050] Zylinder 50 Tonne Schlag 50mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

  • output = 50 ton

  • stroke = 50mm

  • effective area = 70,9cm^2

  • oil capacity = 0,355 L

  • height of product = 162mm

  • extended height = 213mm

  • outside diameter = 128mm

  • bore diameter = 95mm

  • plunger diameter = 85mm

  • thread for input oil port (ZG) = 3/8" - 24

  • saddle protrusion form plgr = 26mm

  • saddle is removable

  • max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC5050 8720028076871
€ 145.20 Incl. VAT https://schema.org/SoldOut
€ 145.20 145.20000000000002 EUR

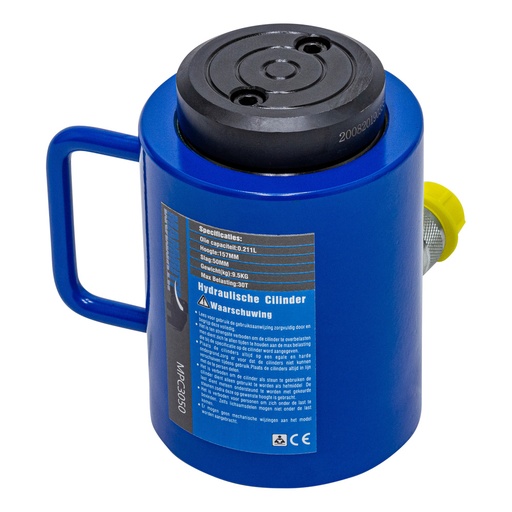

Zylinder 30 Tonne Schlag 50mm [MPC3050] Zylinder 30 Tonne Schlag 50mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

- output = 30 ton
- stroke = 50mm
- effective area = 44,2cm^2
- oil capacity = 0,221 L
- height of product = 157mm
- extended height = 207mm
- outside diameter = 107mm
- bore diameter = 75mm
- plunger diameter = 65mm
- thread for input oil port (ZG) = 3/8" - 23
- saddle protrusion form plgr = 22mm
- saddle is removable
- max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC3050 8720028076901
€ 121.00 Incl. VAT https://schema.org/SoldOut
€ 121.00 121.0 EUR
Zylinder 20 Tonne Schlag 100mm [MPC20100] Zylinder 20 Tonne Schlag 100mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

- output = 20 ton
- stroke = 100mm
- effective area = 33,2cm^2
- oil capacity = 0,332 L
- height of product = 207mm
- extended height = 307mm
- outside diameter = 88mm
- bore diameter = 65mm
- plunger diameter = 55mm
- thread for input oil port (ZG) = 3/8" - 23
- saddle protrusion form plgr = 21mm
- saddle is removable
- max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC20100 8720028049271
€ 114.95 Incl. VAT https://schema.org/SoldOut
€ 114.95 114.95 EUR

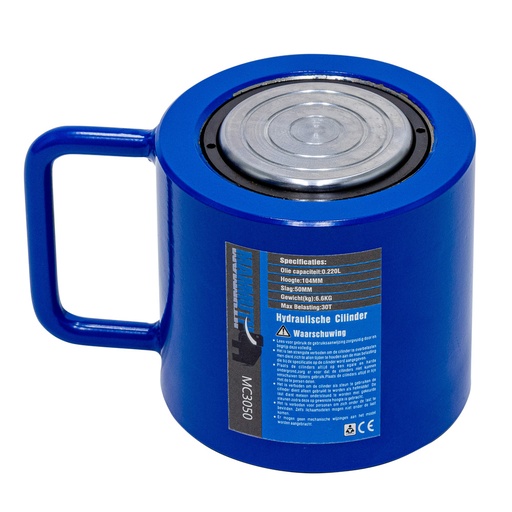

Zylinder 30 Tonne Schlag 50mm [MC3050] Zylinder 30 Tonne Schlag 50mm
mm mm mm Kg

Hydraulikzylinder

It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.

- output = 30 ton
- stroke = 50mm
- effective area = 31,1cm^2
- oil capacity = 0,22 L
- height of product = 104mm
- extended height = 154mm
- outside diameter = 105mm
- bore diameter = 75mm
- plunger diameter = 86mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MC3050 8720028053483
€ 108.90 Incl. VAT https://schema.org/SoldOut
€ 108.90 108.9 EUR

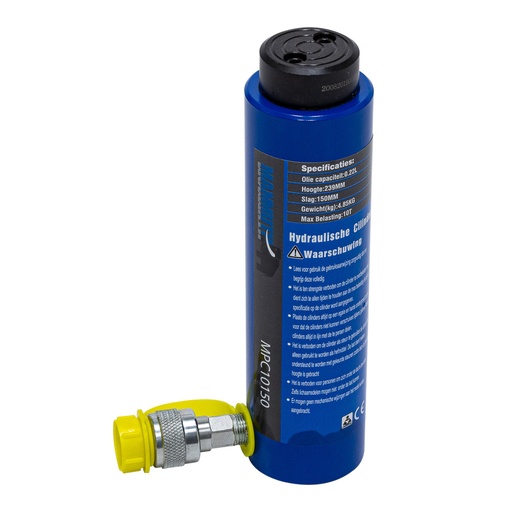

Zylinder 10 Tonne Schlag 150mm [MPC10150] Zylinder 10 Tonne Schlag 150mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

- output = 10 ton
- stroke = 150mm
- effective area = 15,2cm^2
- oil capacity = 0,228 L
- height of product = 241mm
- extended height = 389mm
- outside diameter = 62mm
- bore diameter = 44mm
- plunger diameter = 38mm
- thread for input oil port (ZG) = 3/8" - 20
- saddle protrusion form plgr = 21mm
- saddle is removable
- max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC10150 8720028046829
€ 108.90 Incl. VAT https://schema.org/InStock
€ 108.90 108.9 EUR

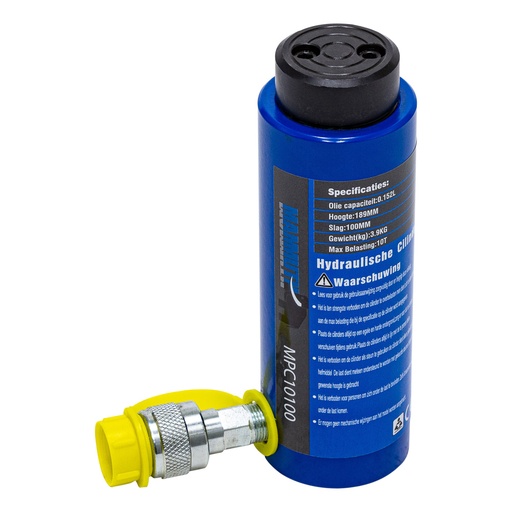

Zylinder 10 Tonne Schlag 100mm [MPC10100] Zylinder 10 Tonne Schlag 100mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

  • output = 10 ton

  • stroke = 100mm

  • effective area = 15,2cm^2

  • oil capacity = 0,152 L

  • height of product = 191mm

  • extended height = 289mm

  • outside diameter = 62mm

  • bore diameter = 44mm

  • plunger diameter = 38mm

  • thread for input oil port (ZG) = 3/8" - 20

  • saddle protrusion form plgr = 21mm

  • saddle is removable

  • max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC10100 8720028076994
€ 96.80 Incl. VAT https://schema.org/InStock
€ 96.80 96.8 EUR

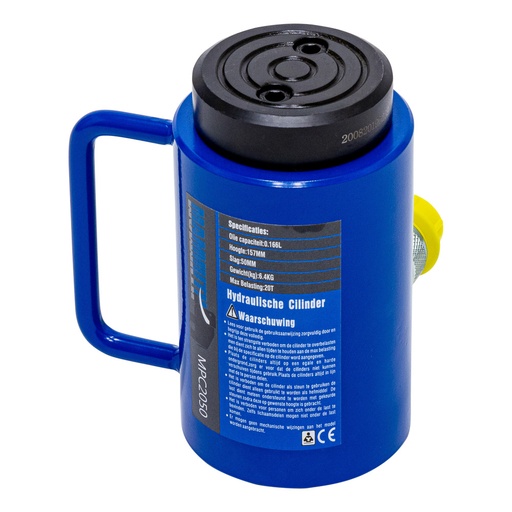

Zylinder 20 Tonne Schlag 50mm [MPC2050] Zylinder 20 Tonne Schlag 50mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

  • output = 20 ton

  • stroke = 50mm

  • effective area = 26,4cm^2

  • oil capacity = 0,140 L

  • height of product = 157mm

  • extended height = 207mm

  • outside diameter = 88mm

  • bore diameter = 65mm

  • plunger diameter = 58mm

  • thread for input oil port (ZG) = 3/8" - 19

  • saddle protrusion form plgr = 20mm

  • saddle is removable

  • max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC2050 8720028076949
€ 96.80 Incl. VAT https://schema.org/InStock
€ 96.80 96.8 EUR

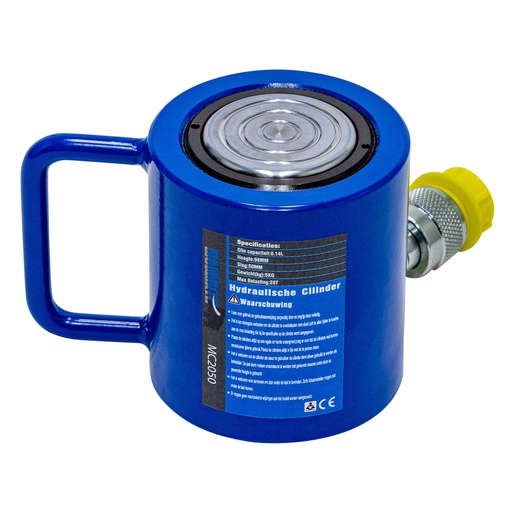

Zylinder 20 Tonne Schlag 50mm [MC2050] Zylinder 20 Tonne Schlag 50mm
mm mm mm Kg

Hydraulikzylinder

It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.

- output = 200 ton
- stroke = 50mm
- effective area = 22cm^2
- oil capacity = 0,14 L
- height of product = 98mm
- extended height = 148mm
- outside diameter = 88mm
- bore diameter = 65mm
- plunger diameter = 53mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MC2050 8720028075652
€ 96.80 Incl. VAT https://schema.org/SoldOut
€ 96.80 96.8 EUR

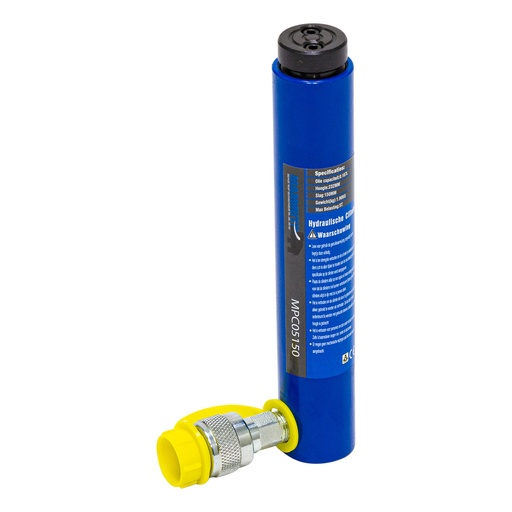

Zylinder 5 Tonne Schlag 150mm [MPC05150] Zylinder 5 Tonne Schlag 150mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

- output = 5 ton
- stroke = 150mm
- effective area = 9,6cm^2
- oil capacity = 0,108 L
- height of product = 233mm
- extended height = 382mm
- outside diameter = 40mm
- bore diameter = 30mm
- plunger diameter = 25mm
- thread for input oil port (ZG) = 1/4" - 18
- saddle protrusion form plgr = 13mm
- saddle is removable
- max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC05150 8720028077038
€ 78.65 Incl. VAT https://schema.org/InStock
€ 78.65 78.65 EUR

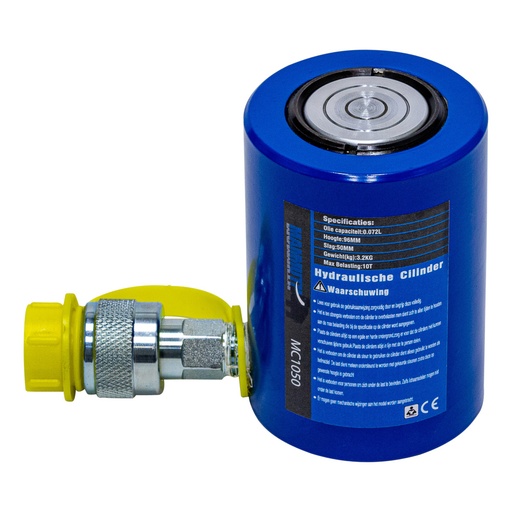

Zylinder 10 Tonne Schlag 50mm [MC1050] Zylinder 10 Tonne Schlag 50mm
mm mm mm Kg

Hydraulikzylinder

It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.

- output = 10 ton
- stroke = 50mm
- effective area = 15,2cm^2
- oil capacity = 0,075 L
- height of product = 106mm
- extended height = 156mm
- outside diameter = 73mm
- bore diameter = 44mm
- plunger diameter = 38mm
- thread for input oil port (ZG) = 3/8" - 16,3
- max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MC1050 8720028050178
€ 78.65 Incl. VAT https://schema.org/InStock
€ 78.65 78.65 EUR

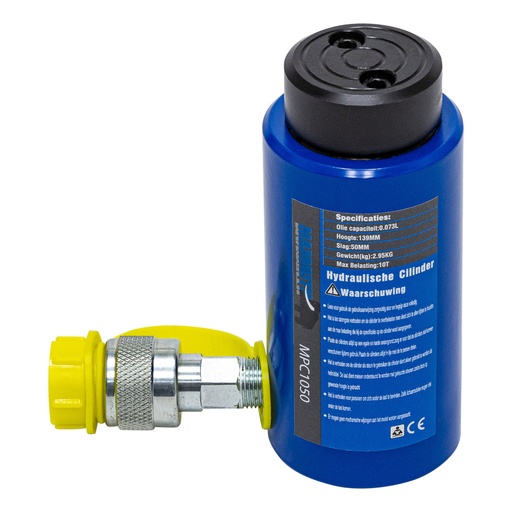

Zylinder 10 Tonne Schlag 50mm [MPC1050] Zylinder 10 Tonne Schlag 50mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

  • output = 10 ton

  • stroke = 50mm

  • effective area = 15,2cm^2

  • oil capacity = 0,075 L

  • height of product = 139mm

  • extended height = 189mm

  • outside diameter = 62mm

  • bore diameter = 44mm

  • plunger diameter = 38mm

  • thread for input oil port (ZG) = 3/8" - 20

  • saddle protrusion form plgr = 21mm

  • saddle is removable

  • max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC1050 8720028046812
€ 78.65 Incl. VAT https://schema.org/InStock
€ 78.65 78.65 EUR

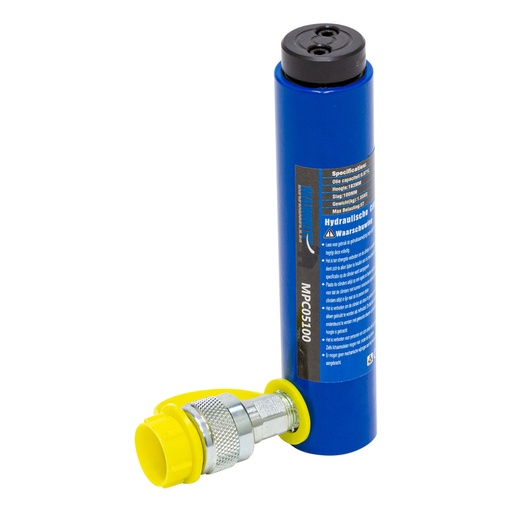

Zylinder 5 Tonne Schlag 100mm [MPC05100] Zylinder 5 Tonne Schlag 100mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

- output = 5 ton
- stroke = 100mm
- effective area = 9,6cm^2
- oil capacity = 0,071 L
- height of product = 183mm
- extended height = 283mm
- outside diameter = 40mm
- bore diameter = 30mm
- plunger diameter = 25mm
- thread for input oil port (ZG) = 1/4" - 18
- saddle protrusion form plgr = 13mm
- saddle is removable
- max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC05100 8720028046751
€ 60.50 Incl. VAT https://schema.org/InStock
€ 60.50 60.5 EUR

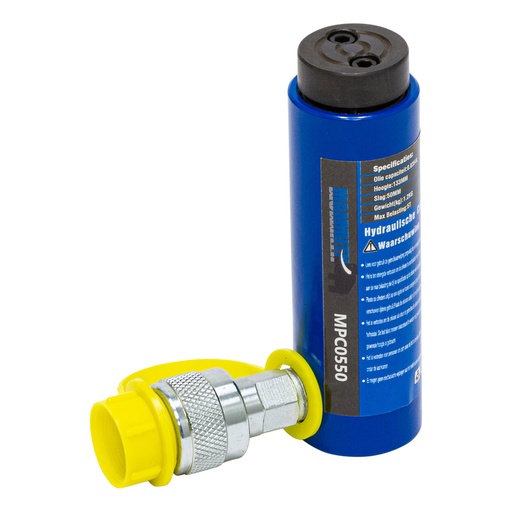

Zylinder 5 Tonne Schlag 50mm [MPC0550] Zylinder 5 Tonne Schlag 50mm
mm mm mm Kg

Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

- output = 5 ton
- stroke = 50mm
- effective area = 9,6cm^2
- oil capacity = 0,036 L
- height of product = 133mm
- extended height = 183mm
- outside diameter = 40mm
- bore diameter = 30mm
- plunger diameter = 25mm
- thread for input oil port (ZG) = 1/4" - 18
- saddle protrusion form plgr = 13mm
- saddle is removable
- max. pressure = 700bar

Hub- und Zuggeräte / Hydrauliekwerkzeugen / Zylinder Mammuth MPC0550 8720028046744
€ 48.40 Incl. VAT https://schema.org/InStock
€ 48.40 48.4 EUR
