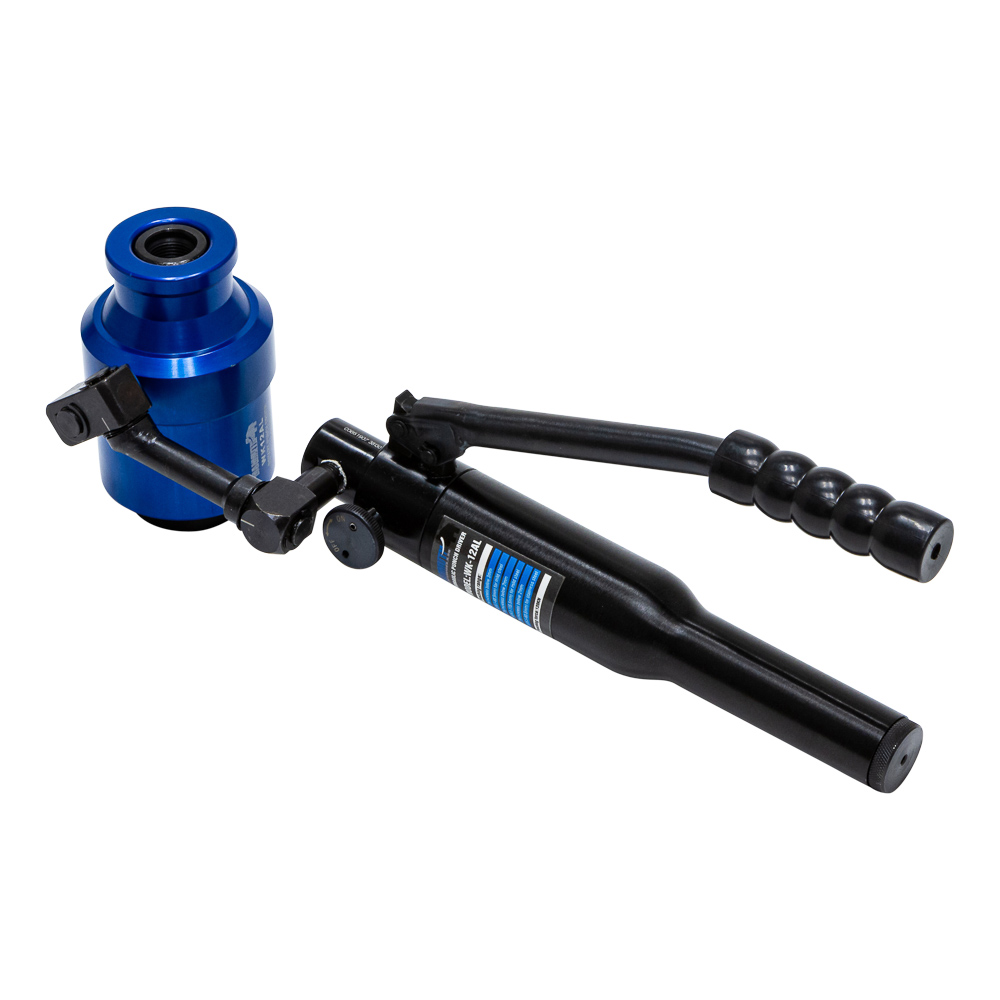

Punch driver with rotating head

Light weight design for easy and fast operation.

Strong punch driver suitable for punching aluminium and plate steel. Can punch up to 3,5mm in mild steel and 1,5mm in stainless steel.

180 degrees rotatable head.

- punch force = 120KN

- stroke = 27mm

including:

- round punches size 22.5, 28.3, 34.6, 43.2, 49.6, 61.5mm

- 1pc small draw stud

- 1pc mid-bolt

- 1pc spacer

- 1pc sealing kit

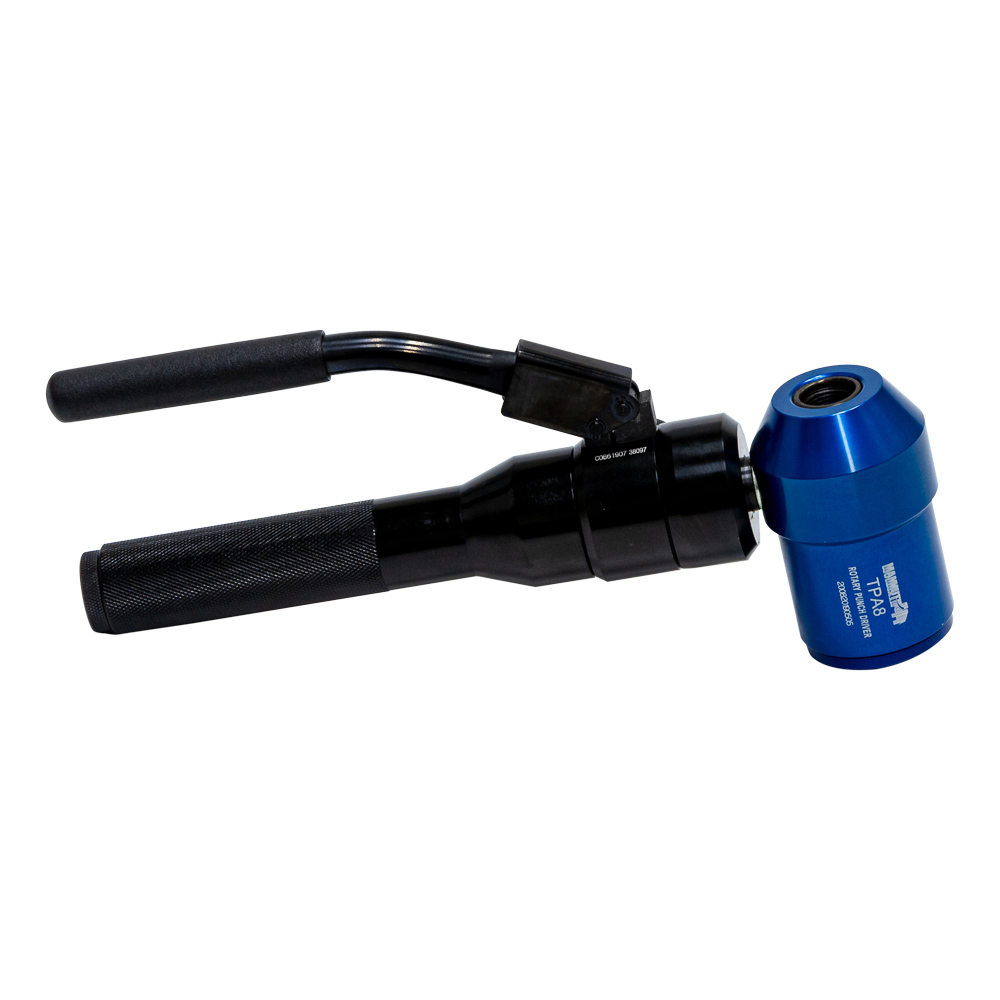

Hydraulic punch driver

Very suitable for punching plastics and aluminum.

Lightweight design for portability and fast, easy one-person operation.

- range = 22,5 - 61,5mm in 3,5mm mild steel, 1,5mm stainless steel

- punch power = 69KN

- stroke = 22mm

including:

- round punches size 22.5, 28.3, 34.6, 43.2, 49.6, 61.5mm

- 1pcs draw stud (7/16" x 3/4")

- 1pcs draw stud (3/4" x 3/4")

- 1pcs spacer

- spacer

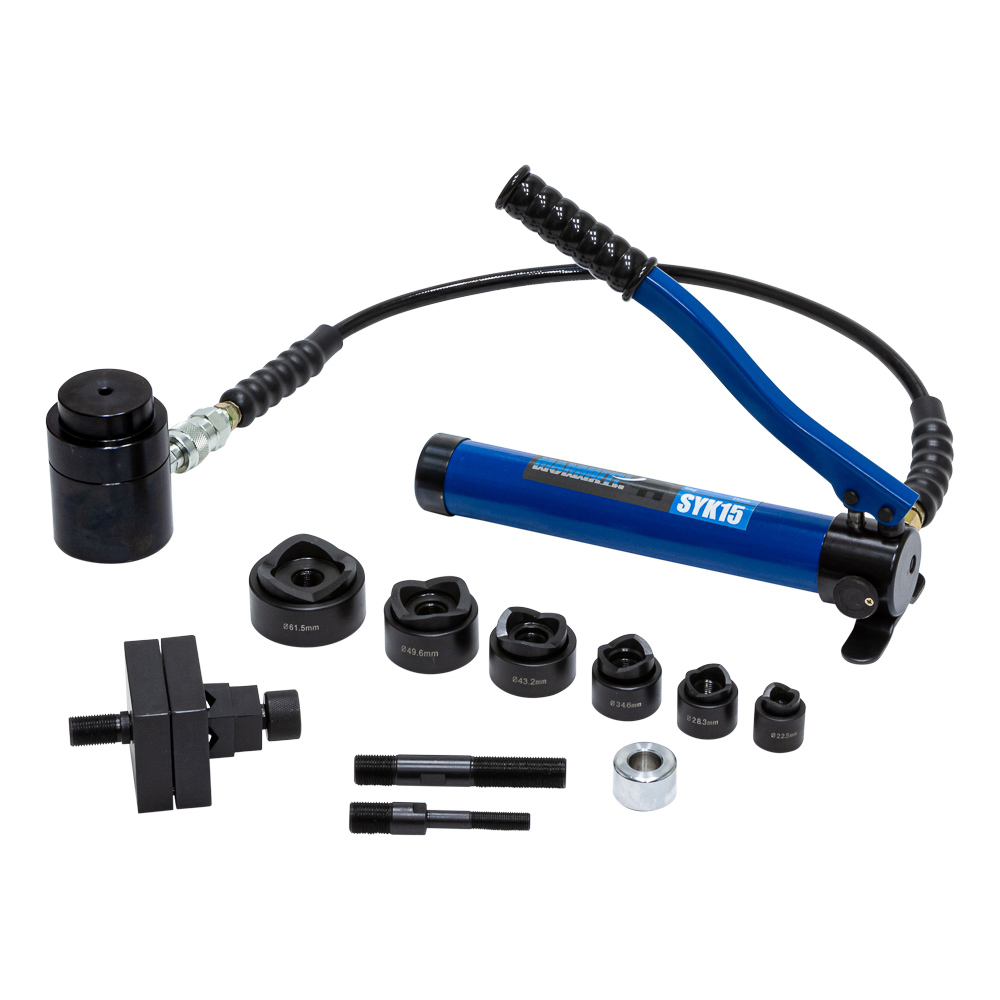

Hole punch with loose handpump

- punch range = diam. 21,5 - 61,5mm in 3,5mm steel
1,5mm in stainless steel
- punchforce = 150KN
- stroke = 25mm
- weight = 7,1kg

delivered in plastic box 4,4kg

accessories:
- round punch D-type = 22,5 - 28,3 - 34,6 - 43,2 - 49,6 - 61,5mm
- square punch = 32x32mm
- 1pcs draw stud (7/16" x 3/4")
- 1pcs draw stud (3/4" x 3/4")
- 1pcs spacer
- spacer

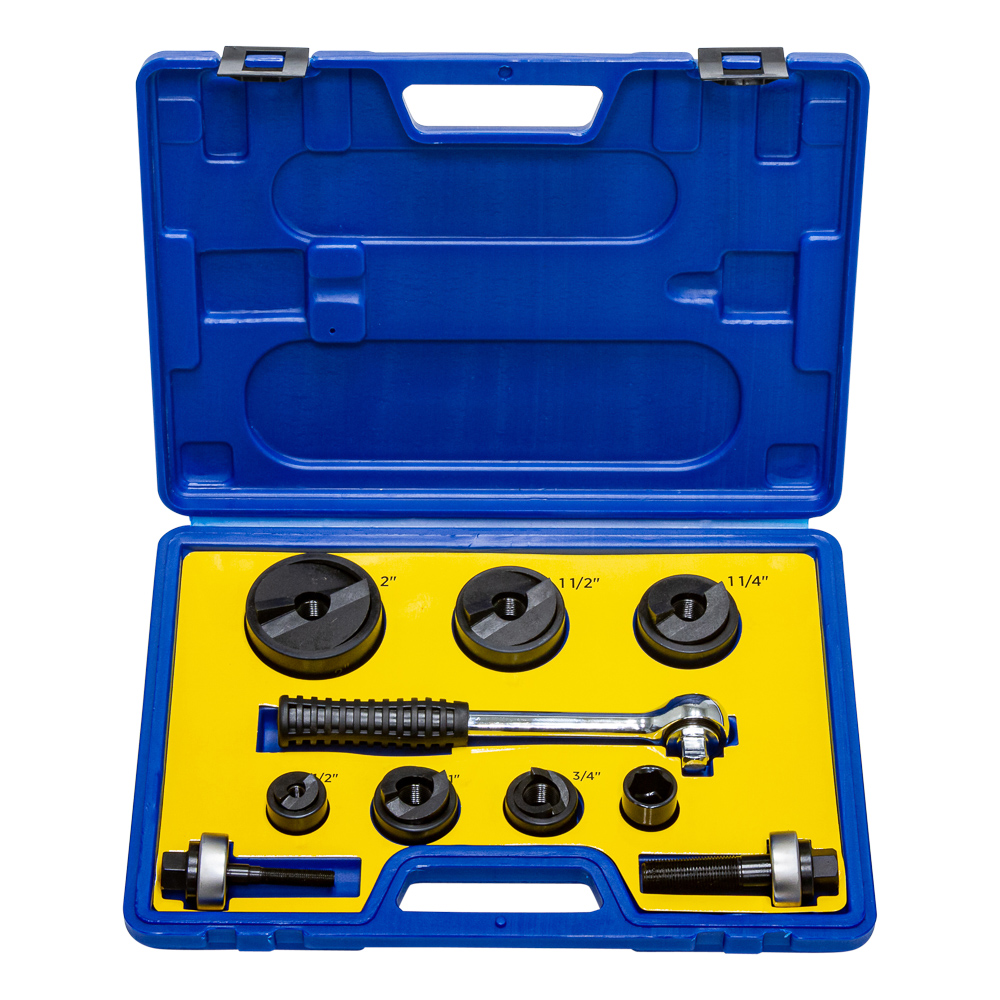

Punch driver with dies

- round punches = 22, 27.5, 34.3, 43, 49, 60.8mm

- max. thickness sheet metal = 3,5mm
