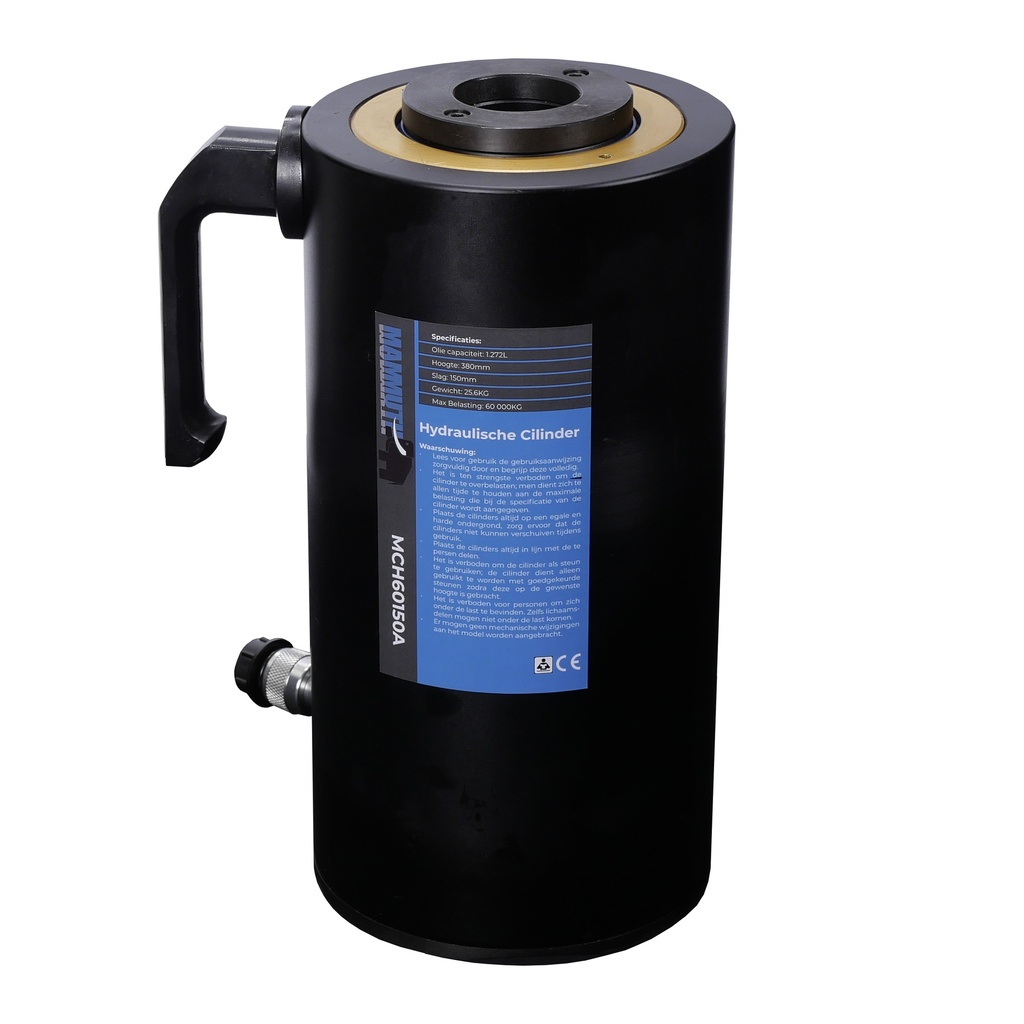

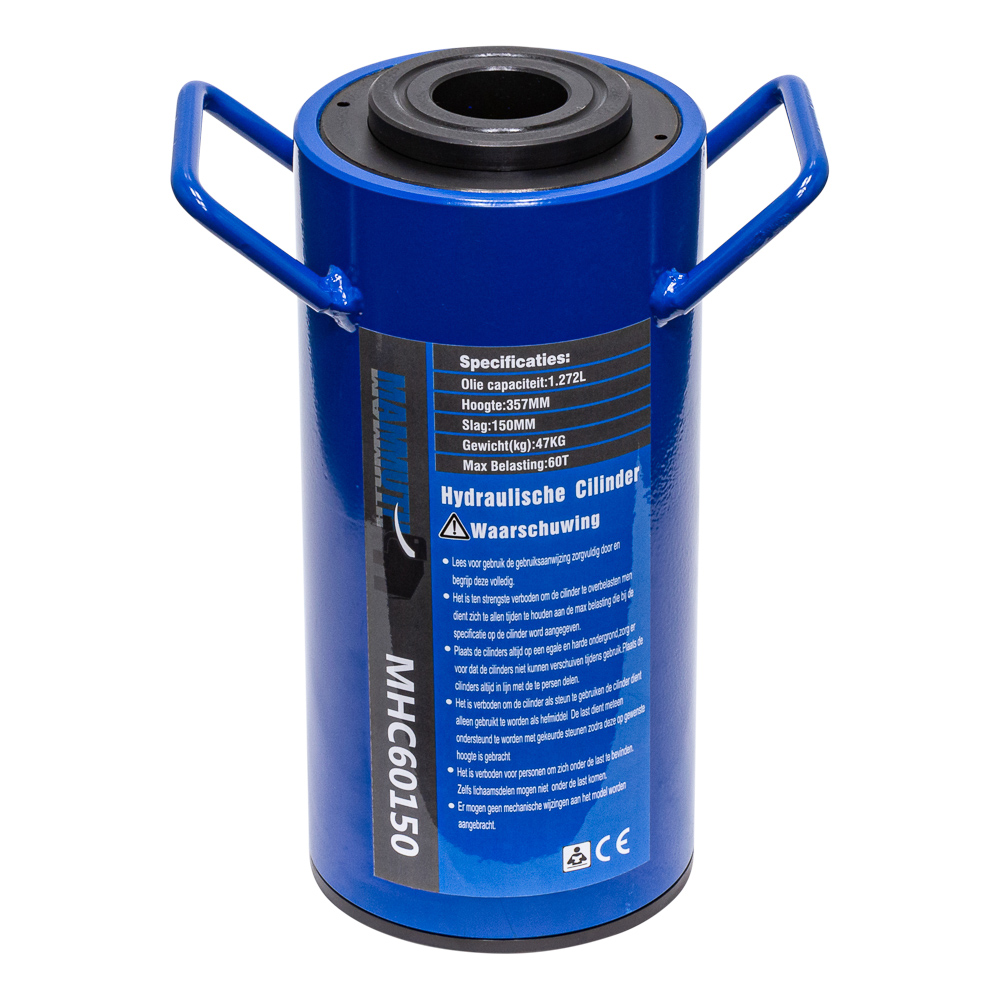

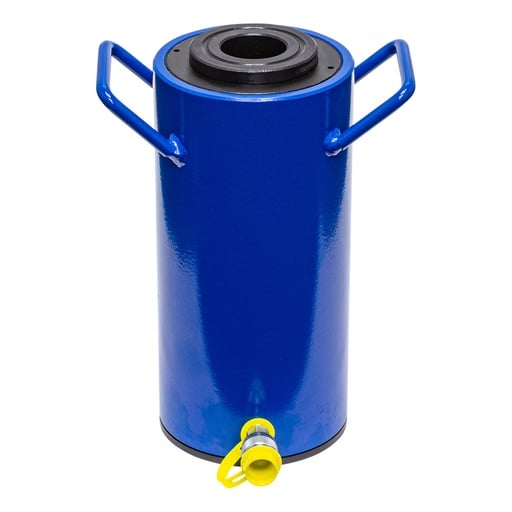

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

• output = 60 ton

• stroke = 100mm

• effective area = 84,7cm^2

• oil capacity = 1,272 L

• height of product = 380mm

• outside diameter = 187mm

• bore diameter = 135mm

• principal axis diameter = 100mm

• plunger diameter = 54mm

• oil supply hole thread (Rc) = 3/8"

• extended height = 12mm

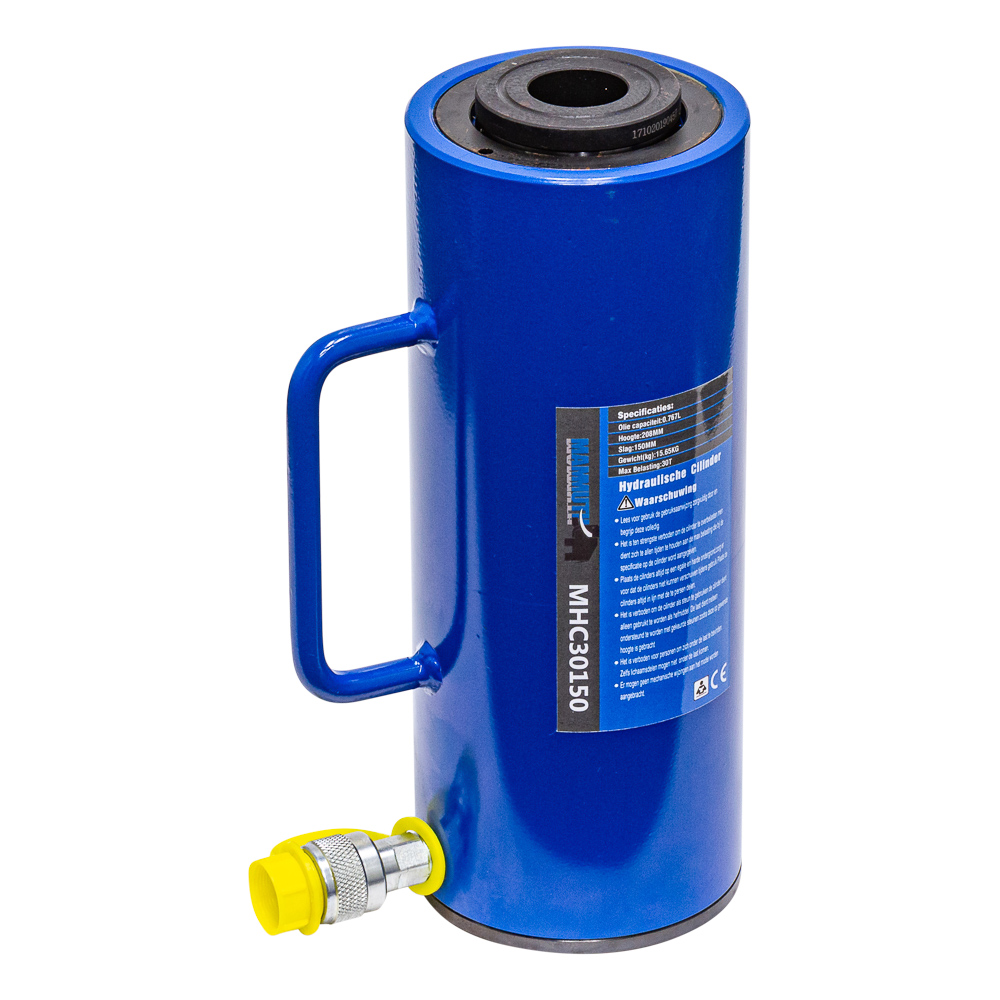

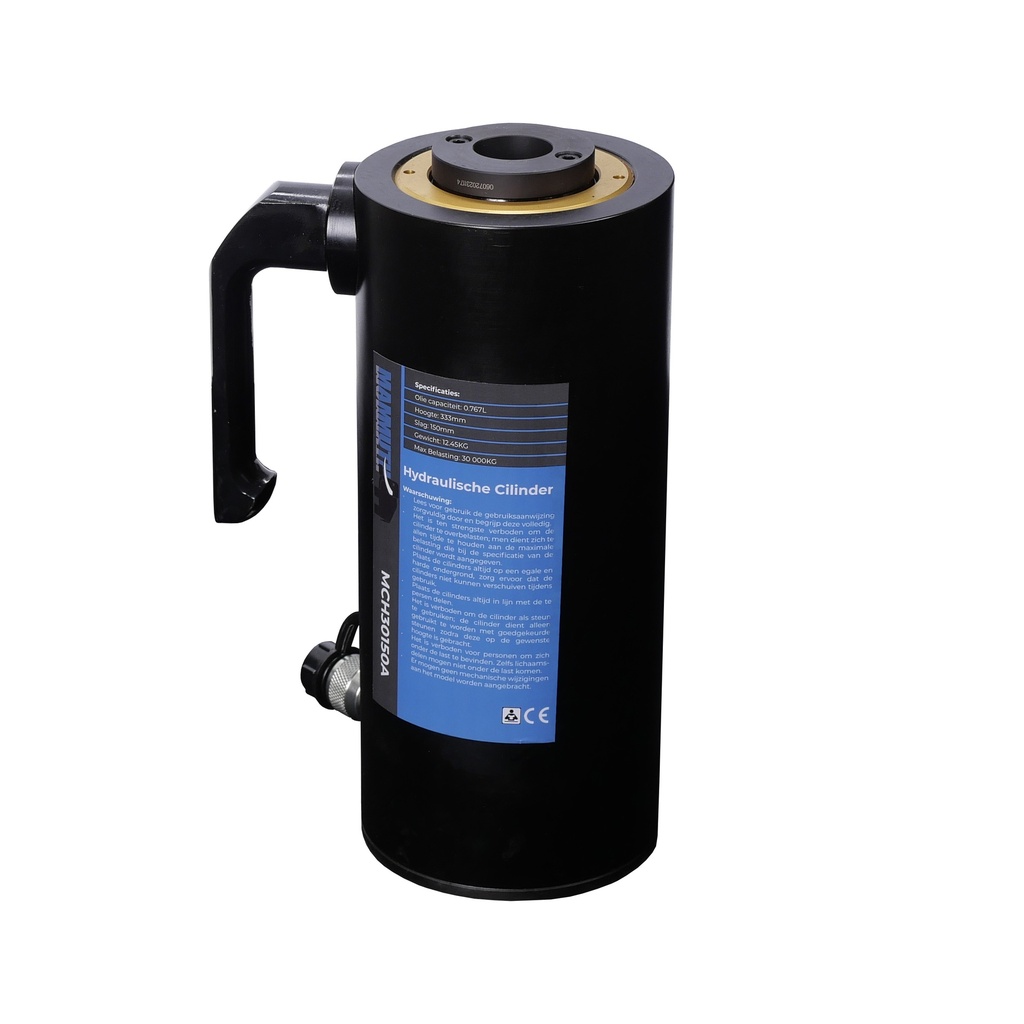

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

• output = 30 ton

• stroke = 150mm

• effective area = 51,1cm^2

• oil capacity = 0,767L

• height of product = 333mm

• outside diameter = 138mm

• bore diameter = 95mm

• principal axis diameter = 70mm

• plunger diameter = 34mm

• oil supply hole thread (Rc) = 3/8"

• extended height = 10mm

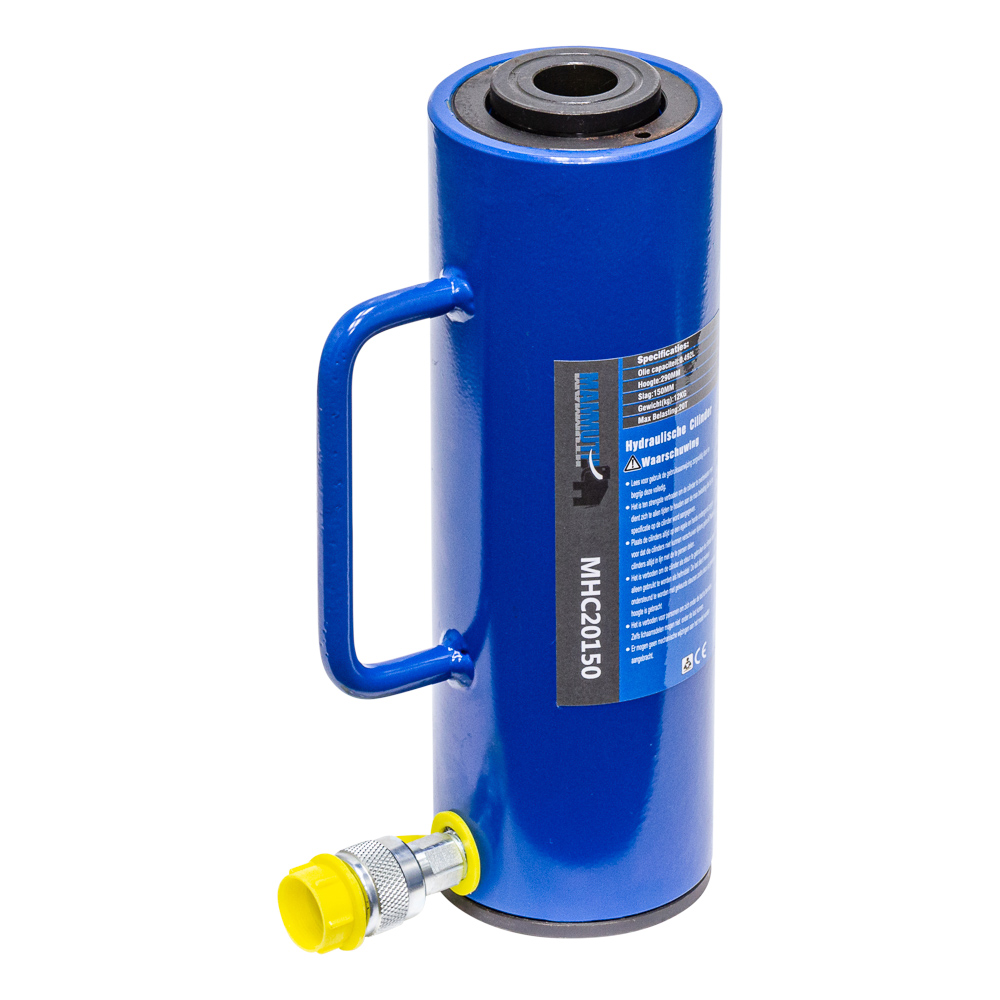

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

• output = 20 ton

• stroke = 150mm

• effective area = 32,8cm^2

• oil capacity = 0,492L

• height of product = 313mm

• outside diameter = 113mm

• bore diameter = 75mm

• principal axis diameter = 55mm

• plunger diameter = 27mm

• oil supply hole thread (Rc) = 3/8"

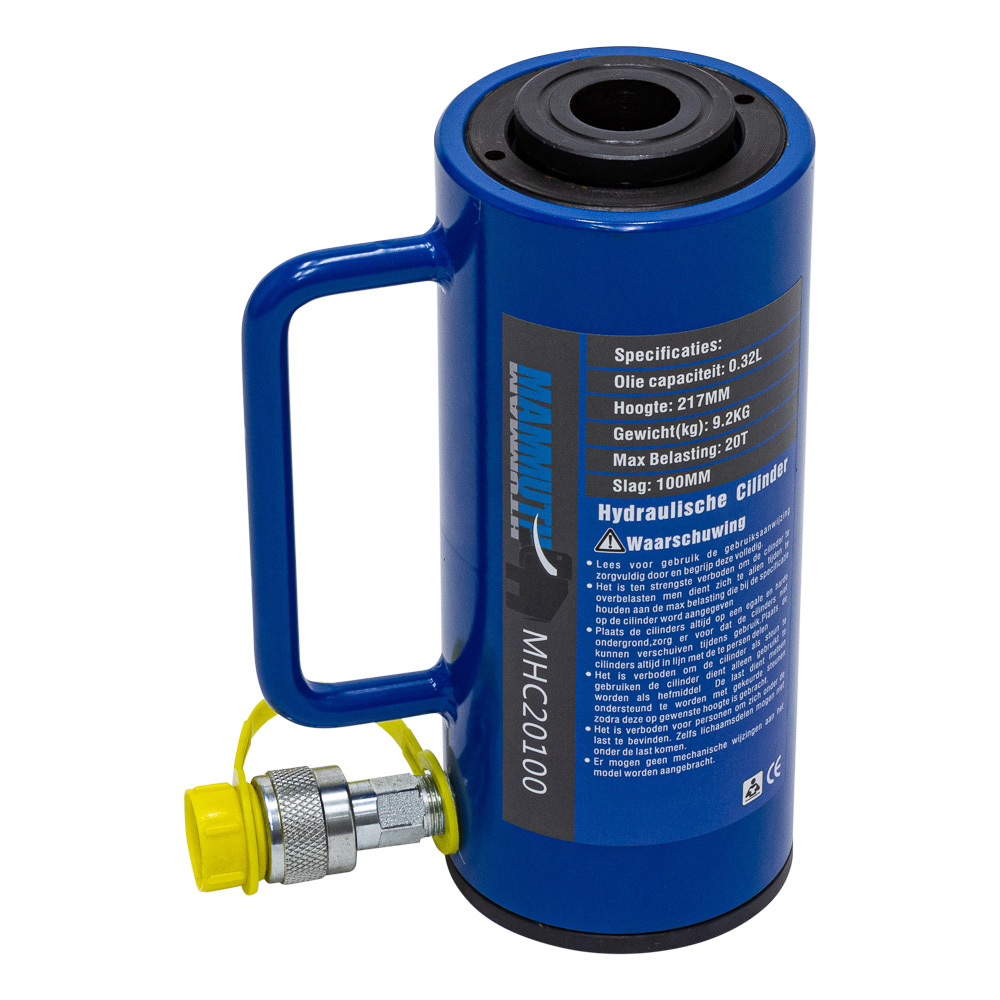

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

- output = 20 ton
- stroke = 100mm
- effective area = 32,8cm^2
- oil capacity = 0,328 L
- height of product = 228mm
- extended height = 266mm
- outside diameter = 95mm
- bore diameter = 75mm
- principal axis diameter = 55mm
- plunger diameter = 27mm
- oil supply hole thread (Rc) = 3/8"
- extended height = 7mm

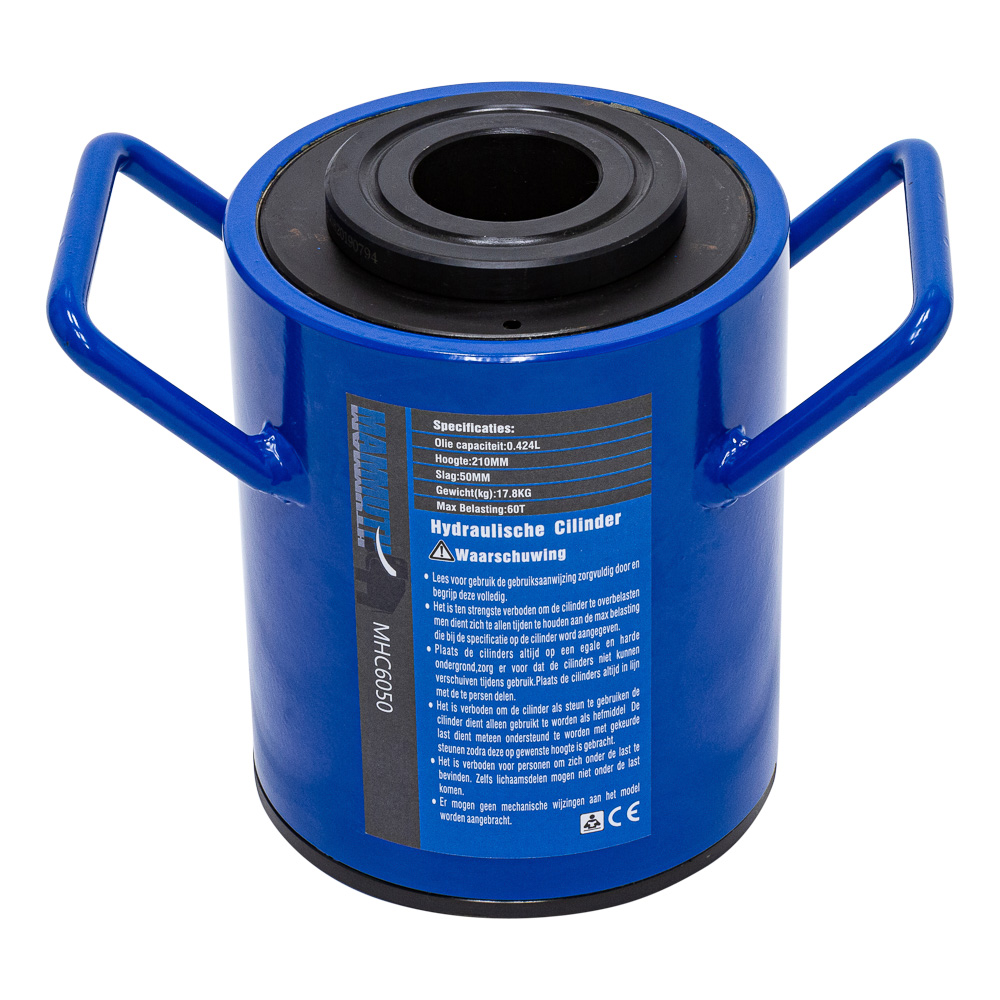

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

• output = 60 ton

• stroke = 50mm

• effective area = 84,7cm^2

• oil capacity = 0,424 L

• height of product = 210mm

• extended height = 261mm

• outside diameter = 165mm

• bore diameter = 135mm

• principal axis diameter = 100mm

• plunger diameter = 54mm

• oil supply hole thread (Rc) = 3/8"

• extended height = 12mm

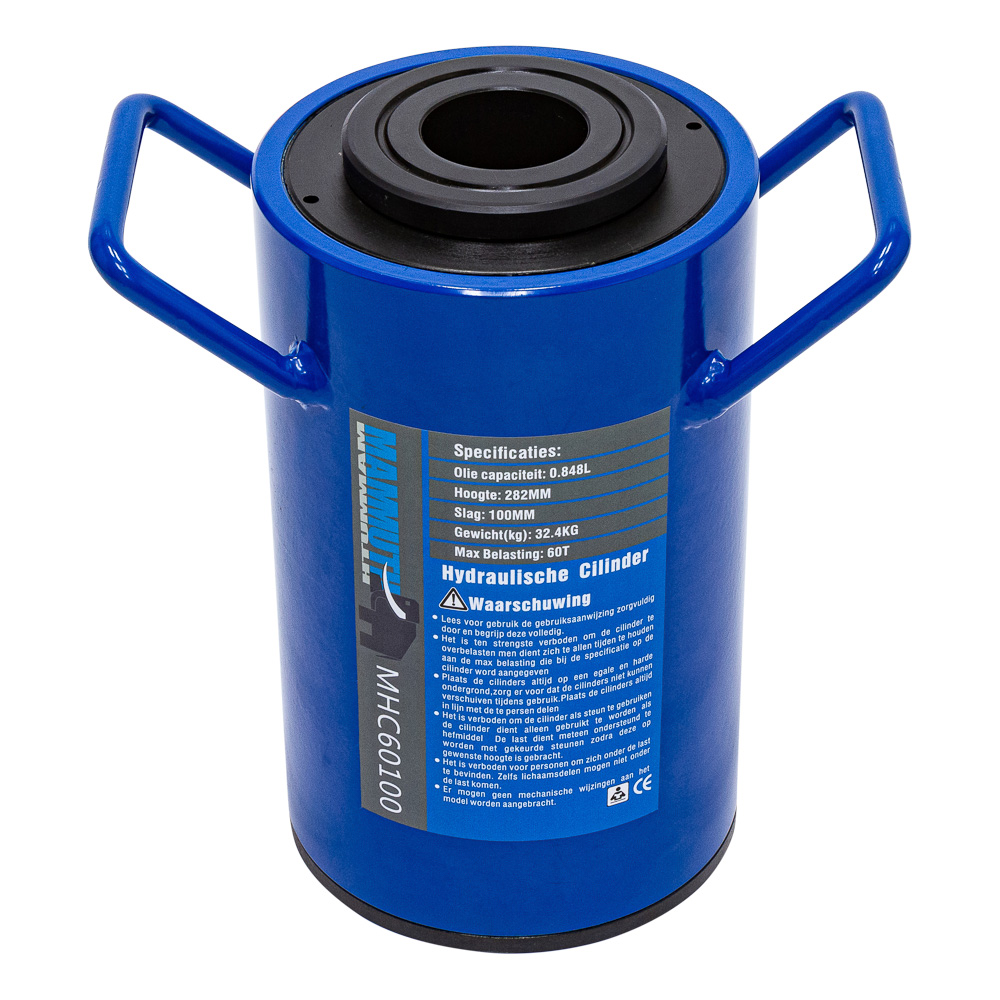

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

• output = 60 ton

• stroke = 100mm

• effective area = 84,7cm^2

• oil capacity = 0,848 L

• height of product = 315mm

• extended height = 311mm

• outside diameter = 187mm

• bore diameter = 135mm

• principal axis diameter = 100mm

• plunger diameter = 54mm

• oil supply hole thread (Rc) = 3/8"

• extended height = 12mm

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

• output = 20 ton

• stroke = 50mm

• effective area = 51,1cm^2

• oil capacity = 0,256 L

• height of product = 178mm

• extended height = 238mm

• outside diameter = 118mm

• bore diameter = 95mm

• principal axis diameter = 70mm

• plunger diameter = 34mm

• oil supply hole thread (Rc) = 3/8"

• extended height = 9mm

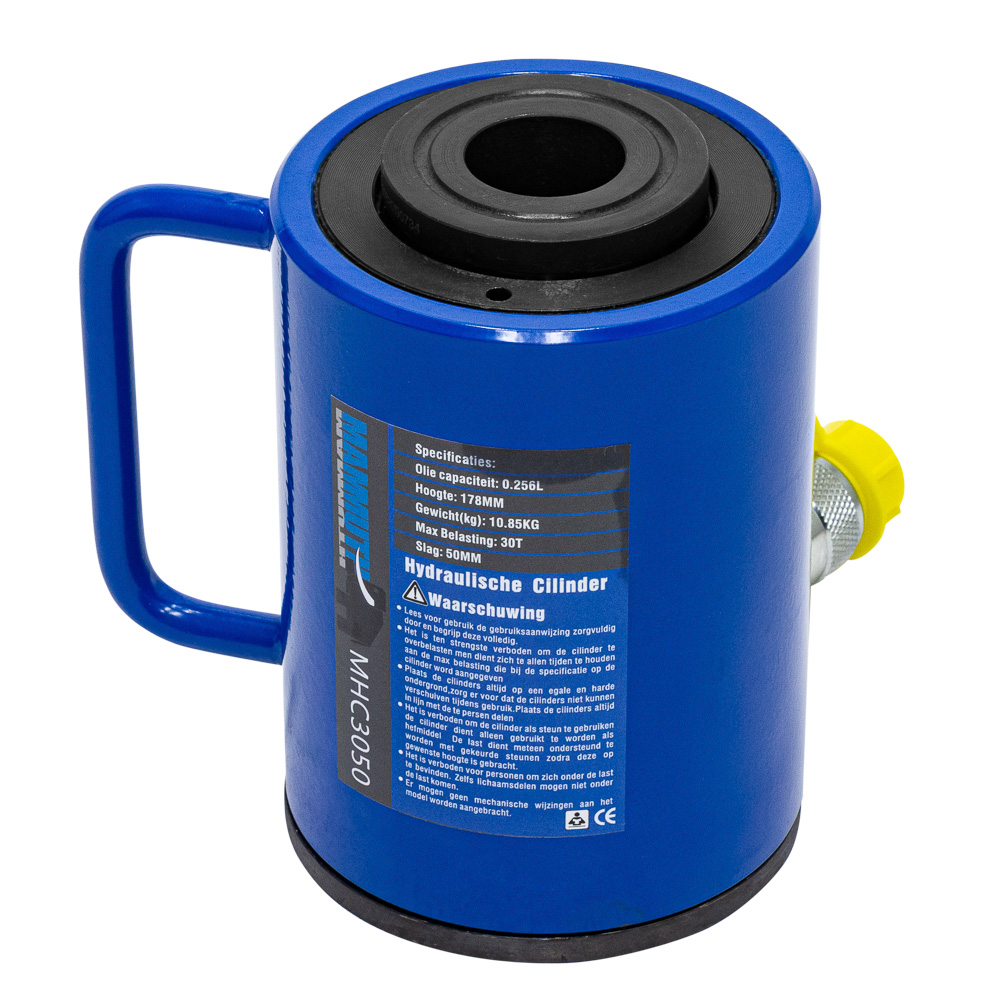

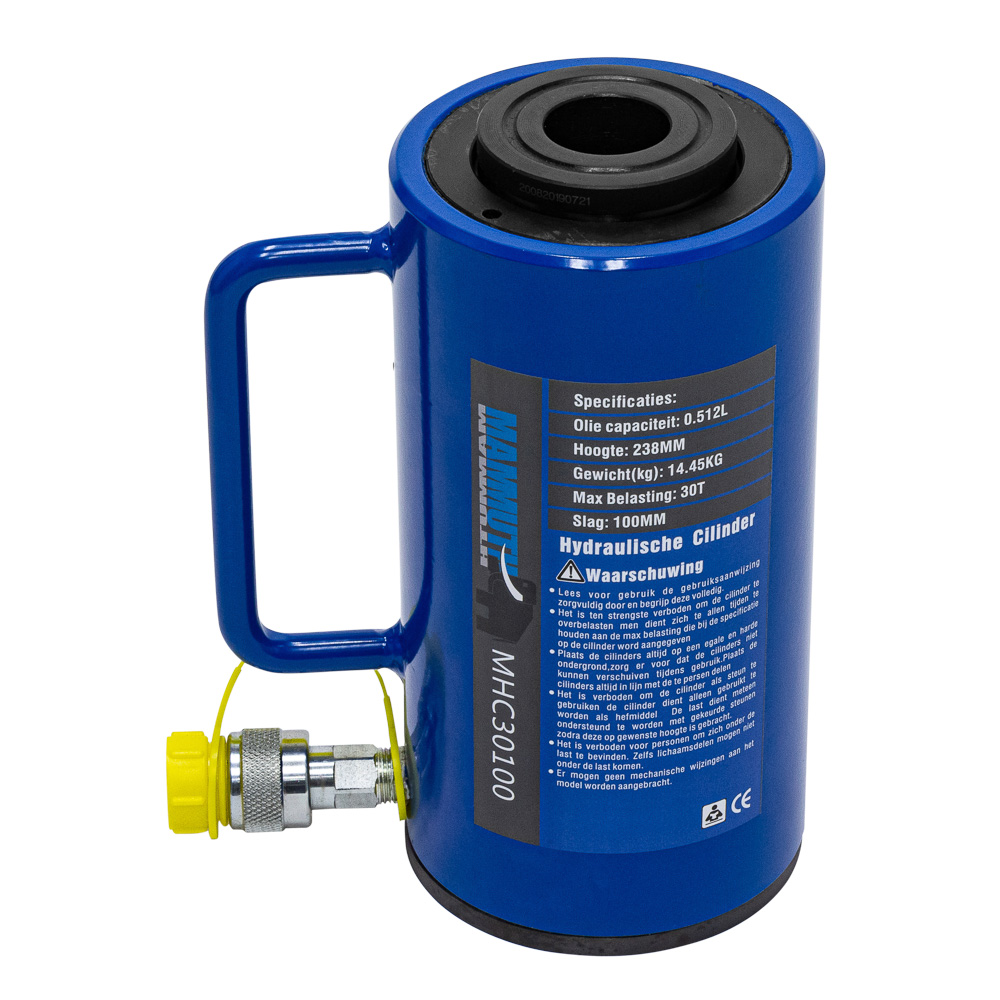

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

• output = 30 ton

• stroke = 100mm

• effective area = 51,1cm^2

• oil capacity = 0,512 L

• height of product = 238mm

• extended height = 288mm

• outside diameter = 118mm

• bore diameter = 95mm

• principal axis diameter = 70mm

• plunger diameter = 34mm

• oil supply hole thread (Rc) = 3/8"

• extended height = 9mm

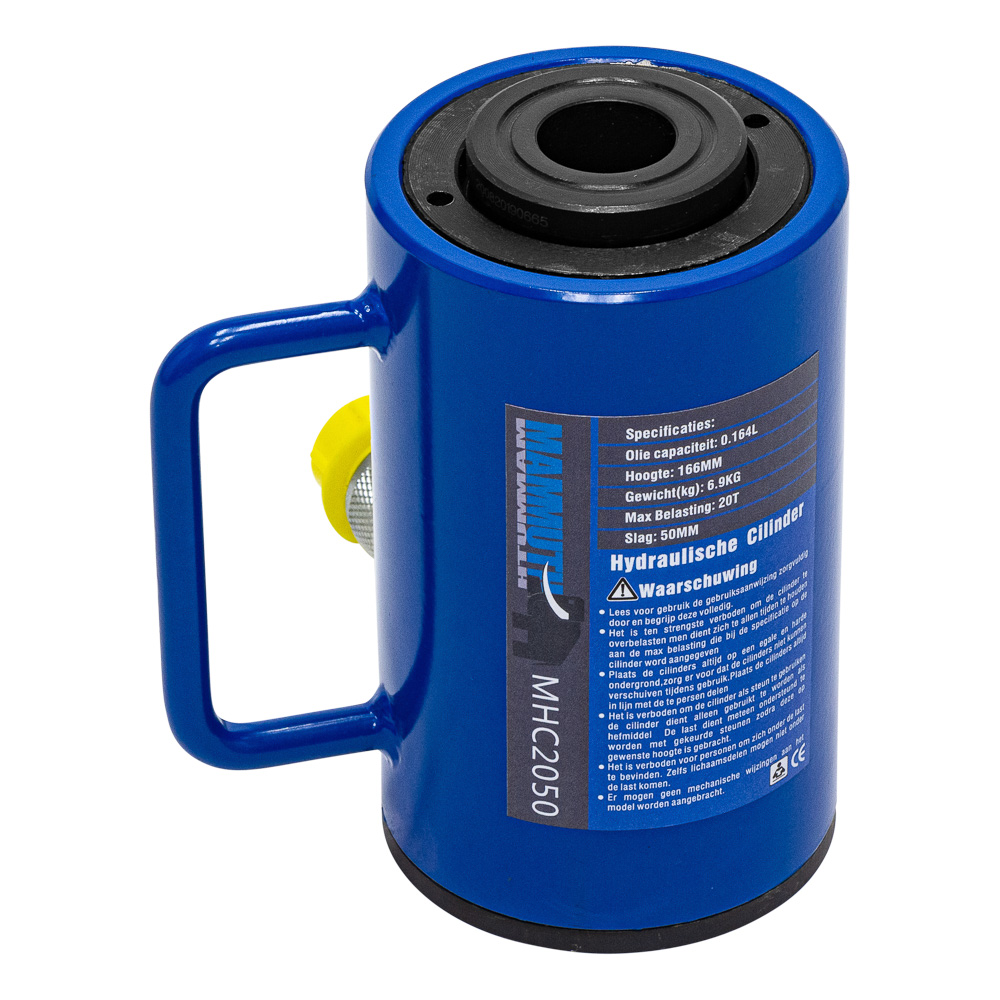

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

• output = 20 ton

• stroke = 50mm

• effective area = 32,8cm^2

• oil capacity = 0,164 L

• height of product = 166mm

• extended height = 216mm

• outside diameter = 95mm

• bore diameter = 75mm

• principal axis diameter = 55mm

• plunger diameter = 27mm

• oil supply hole thread (Rc) = 3/8" - 17

• extended height = 7mm

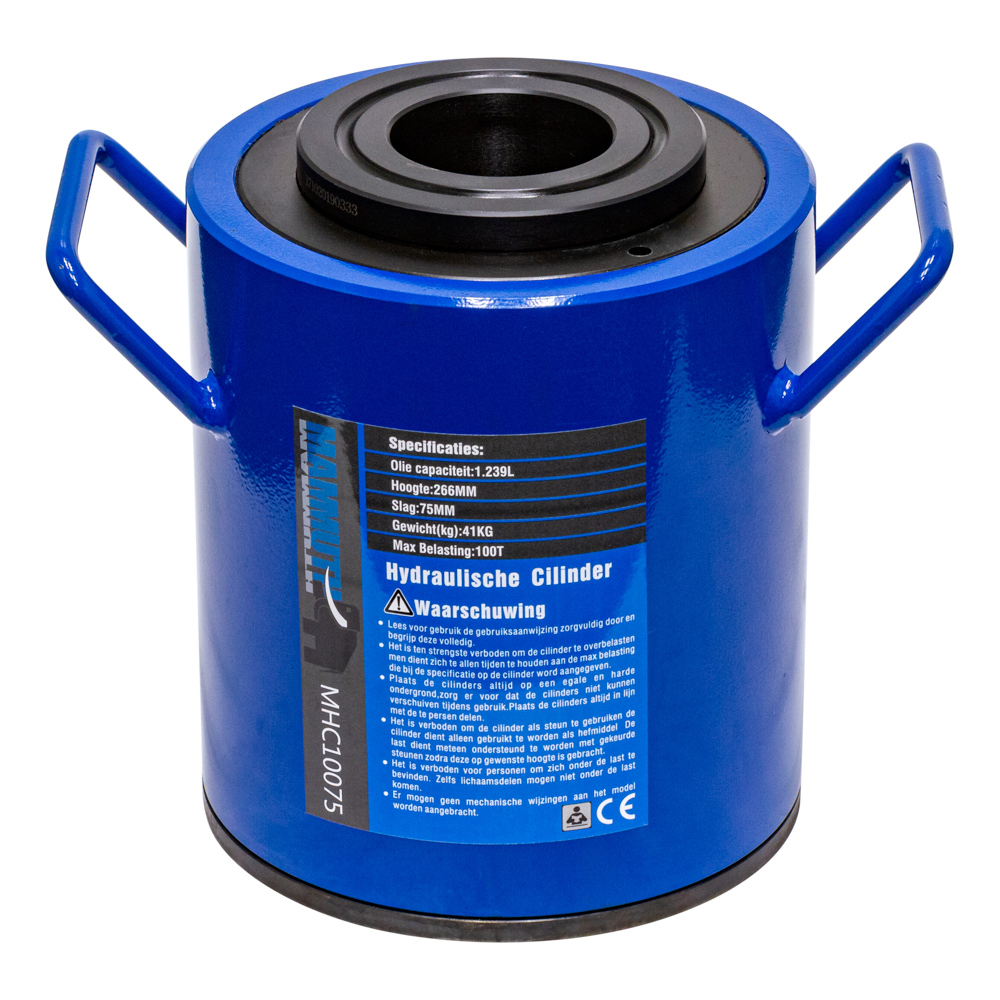

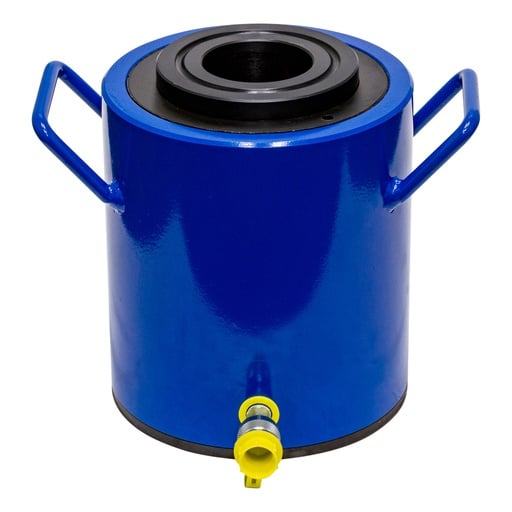

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

• output = 100 ton

• stroke = 75mm

• effective area = 167,8cm^2

• oil capacity = 1,259 L

• height of product = 266mm

• extended height = 330mm

• outside diameter = 224mm

• bore diameter = 180mm

• principal axis diameter = 145mm

• plunger diameter = 79mm

• oil supply hole thread (Rc) = 3/8"

• extended height = 15mm
