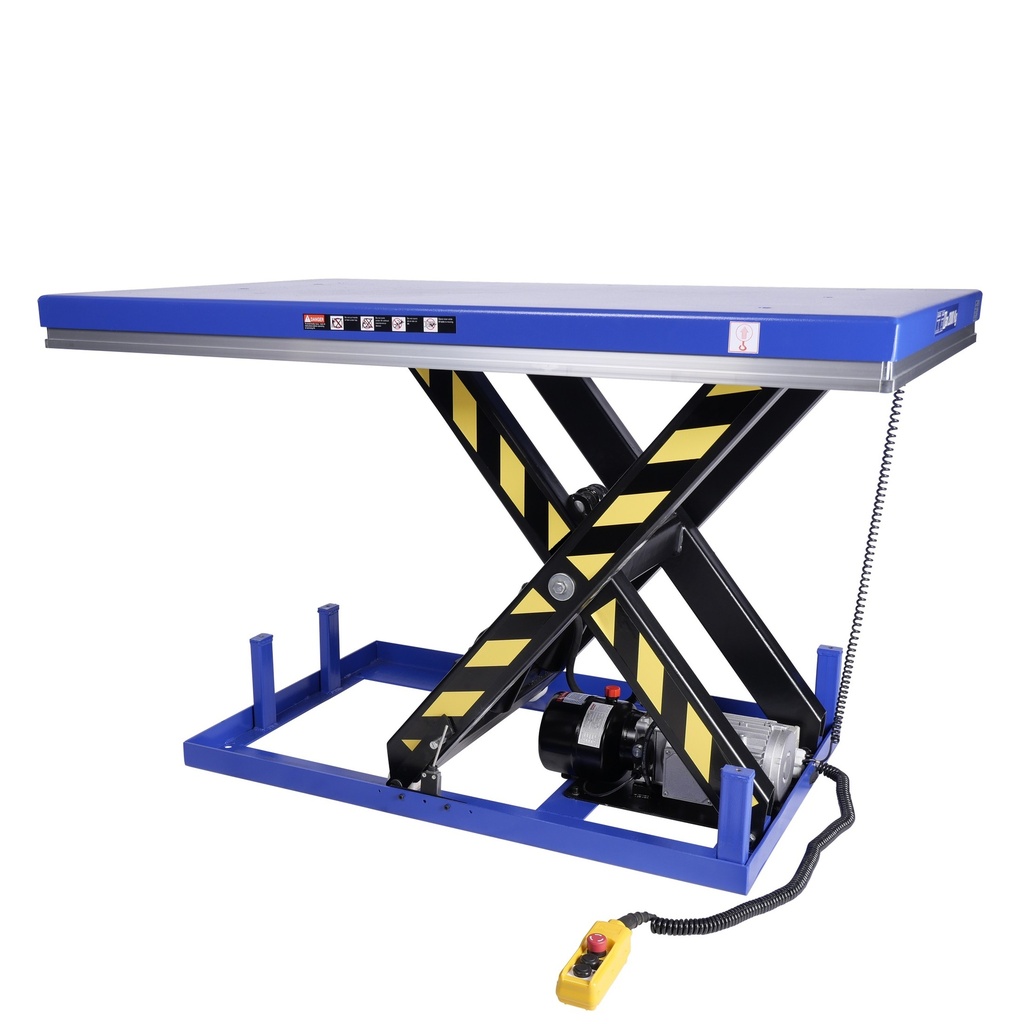

Electric lift table 2000kg 400V [LT22HE] Electric lift table 2000kg 400V
mm mm mm Kg

Scissor lift table / scissor table / platform lift / lift table / fixed lift table

This Mammuth fixed, electric lift table is ideal for moving machines and goods up to 1000kg in height. The table can be used both as built-in and surface-mounted. The lift is equipped with a switch box that is mounted under the table and a safety edge. This edge ensures that the lift stops lowering when something gets underneath.

Due to the electrical operation, ergonomic work is guaranteed.

Technical specifications:

  • capacity = 2000kg

  • minimum height = 230mm

  • maximum height = 1000mm

  • platform size = 1600 x 1000mm

  • platform height = 60mm

  • lifting time unloaded = 17 sec.

  • cable control length = 3,7m

  • voltage = 400V

  • power = 2,2kW

  • oil capacity = 3L

Note: The lifting table is supplied without a plug!

Lifting and hoisting tools / Electric lift tables Mammuth LT22HE 8720028087396
€ 1,936.00 Incl. VAT https://schema.org/InStock
€ 1,936.00 1936.0 EUR

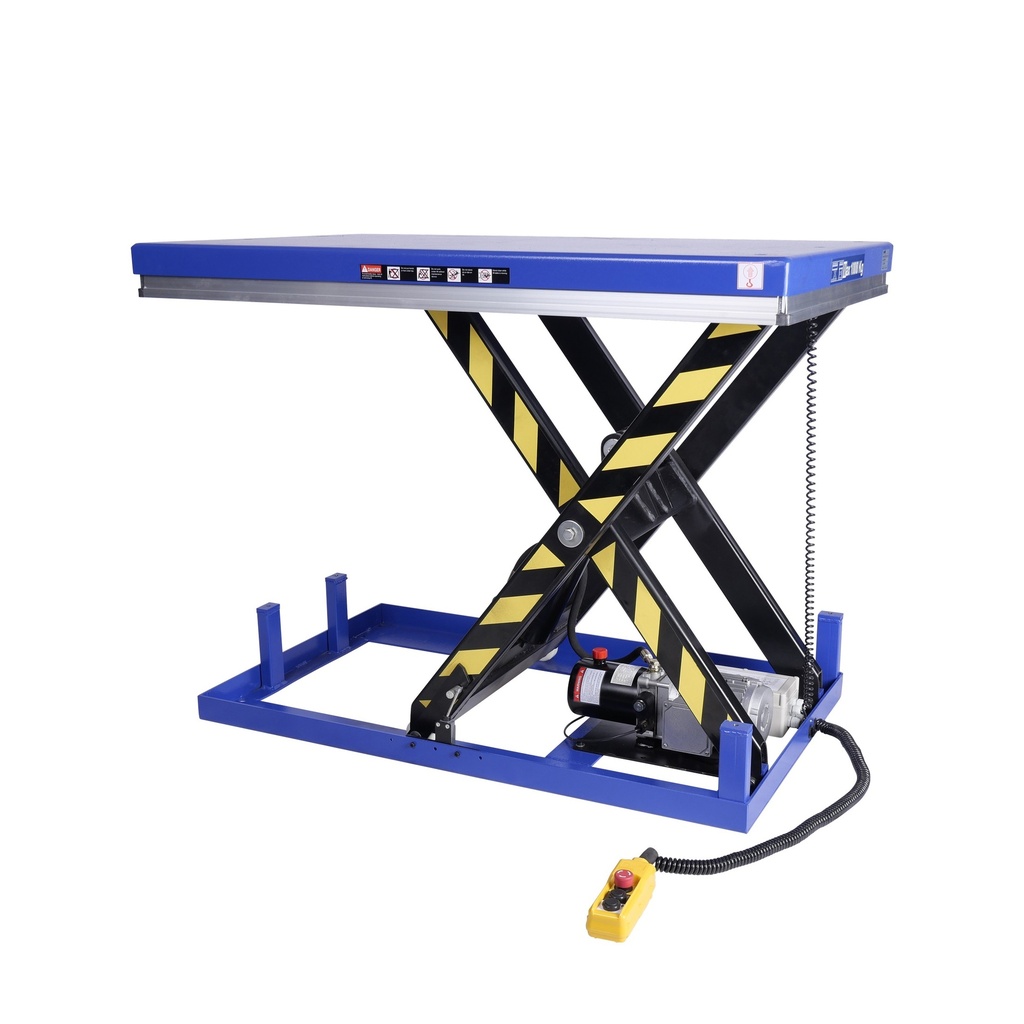

Electric lift table 1000kg 230V [LT11HE] Electric lift table 1000kg 230V
mm mm mm Kg

Scissor lift table / scissor table / platform lift / lift table / fixed lift table

This Mammuth fixed, electric lift table is ideal for moving machines and goods up to 1000kg in height. The table can be used both as built-in and surface-mounted. The lift is equipped with a switch box that is mounted under the table and a safety edge. This edge ensures that the lift stops lowering when something gets underneath.

Due to the electrical operation, ergonomic work is guaranteed.

Technical specifications:

  • capacity = 1000kg

  • minimum height = 210mm

  • maximum height = 1000mm

  • platform size = 1300 x 820mm

  • platform height = 60mm

  • lifting time unloaded = 21 sec.

  • cable control length = 3,7m

  • voltage = 230V

  • power = 1,1kW

  • oil capacity = 1,5L

Note: The lifting table is supplied without a plug!

Lifting and hoisting tools / Electric lift tables Mammuth LT11HE 8720028087402
€ 1,542.75 Incl. VAT https://schema.org/InStock
€ 1,542.75 1542.75 EUR

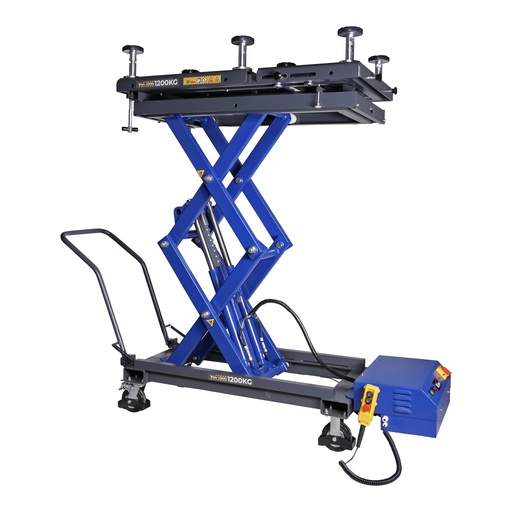

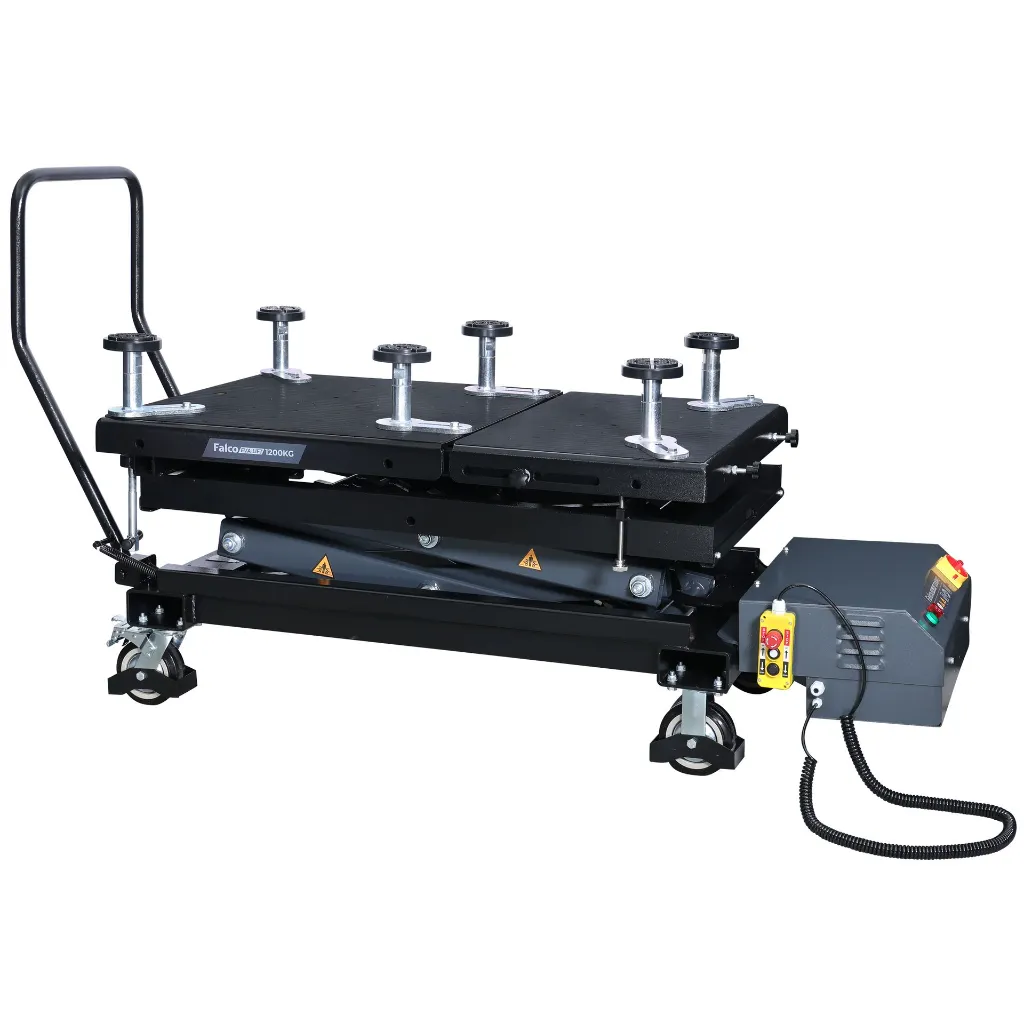

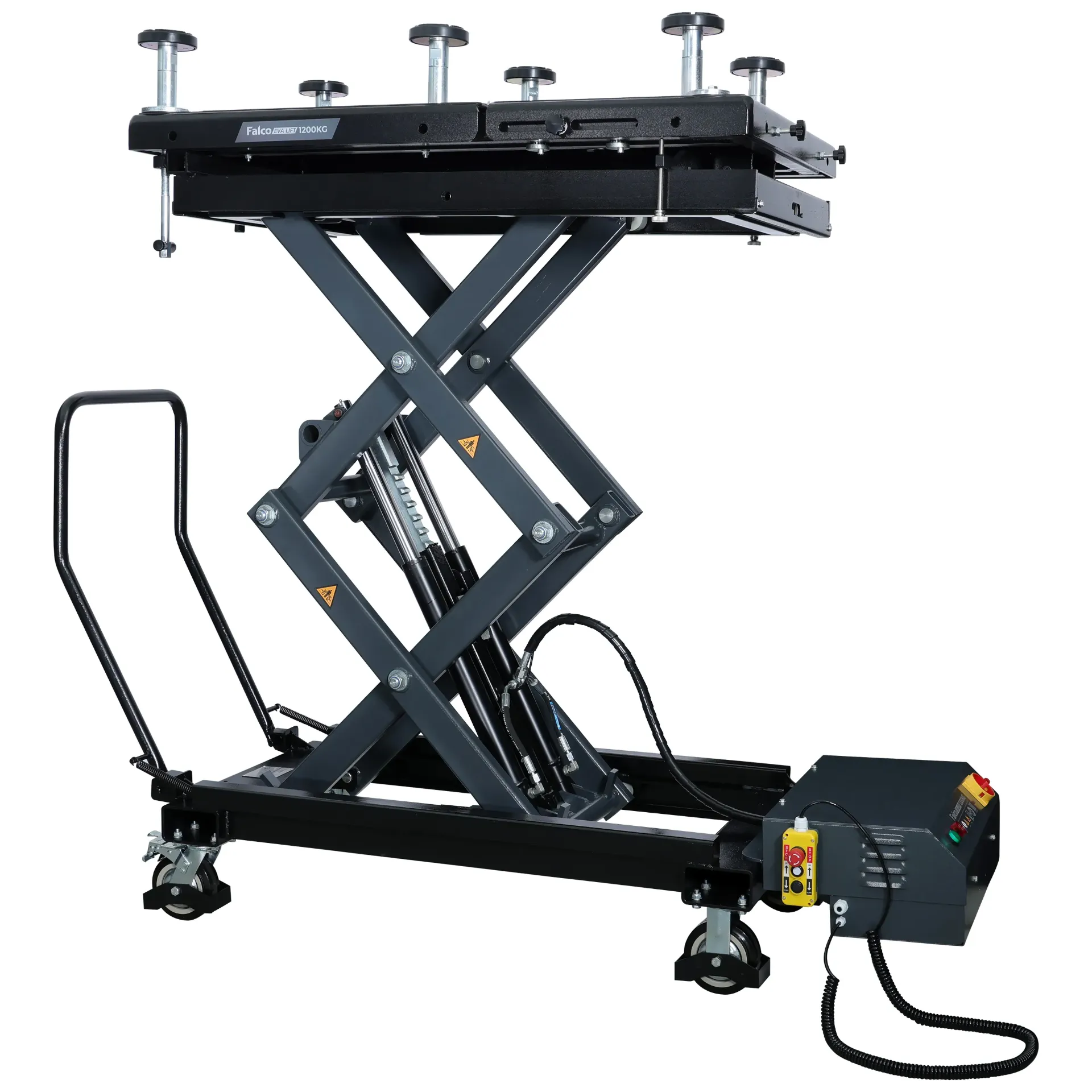

Mobile electric battery lift table 1200kg [LT1200E] Mobile electric battery lift table 1200kg
mm mm mm Kg

Mobile scissor lift table / scissor lift / lift table / electro hydraulic scissor table lift table

The Falco LT1200E electro hydraulic battery has been specially developed for electric vehicles and is ideal for (dis)assembling engines, gearboxes, lithium-ion car battery packs and other chassis components. The lifting table is infinitely adjustable in height and length, so it has a flexible field of application.

Features:

  • The table top has 104 M10 threaded holes with a hole pattern of 100 x 100 mm for easy mounting of tools and lifting adapters

  • Lifting table is easily adjustable in length and transverse direction and can be tilted 5 degrees

  • Swivel wheels including brake for free movement and safe operation

  • Collapsible rod for optimal workspace

  • Integrated, electro-hydraulic unit 230V

Lifting and hoisting tools / Electric lift tables Falco Sollevatori LT1200E 8720028100569
€ 2,420.00 Incl. VAT https://schema.org/SoldOut
€ 2,420.00 2420.0 EUR
