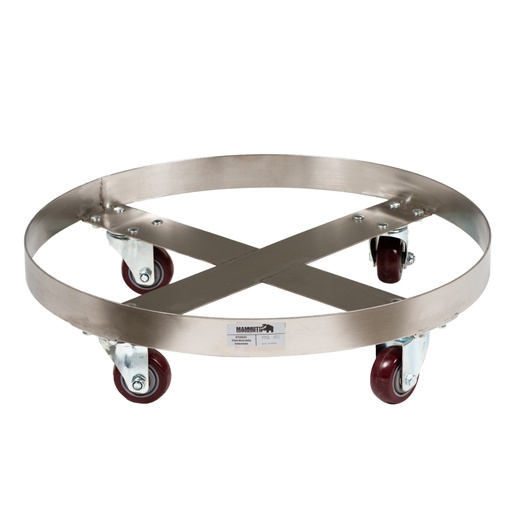

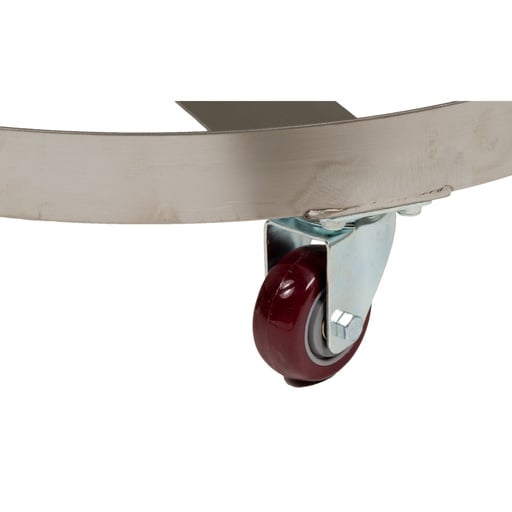

Drum trolley
With a capacity of 300kg, robust welded stainless steel construction and 4 swivel castors, this drum trolley is very suitable for the easy transport of upright 200L drums.
capacity = 300kg
oil drum size = 200L
diameter = 610mm
castor size = 75 x 35mm
material = stainless steel

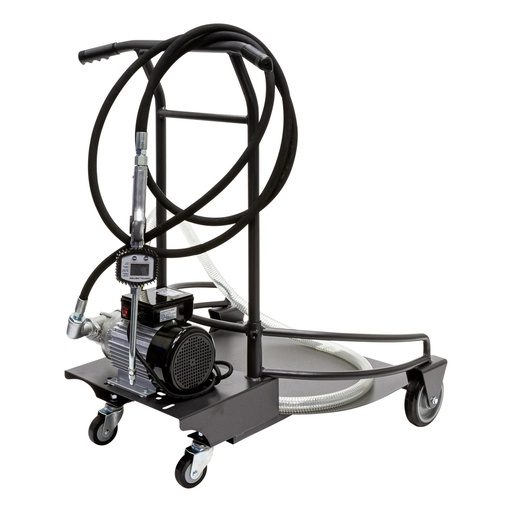

Mobile oil pump unit Ideal for delivering oil from a drum anywhere in the workshop. Including trolly, oil pump, oil control valve, 1/2'' delivery oil hose, 2m suction hose with filter.
viscosity up to 2000Cst
flow rate = 14LPM
voltage = 230V
model of pump = OP14V220
max. pressure = 12bar
suitable for barrels up to 200L
package dimension trolley = 950 x 800 x 240mm
package dimension pump kit = 420 x 220 x 290mm

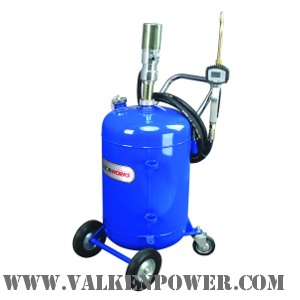

Oil pump dispensing unit specifications: - tank capacity = 65L - length delivery hose = 1/2'' x 4m - compression ration = 1:3 - max. working pressure = 8bar - capacity = 12L/min

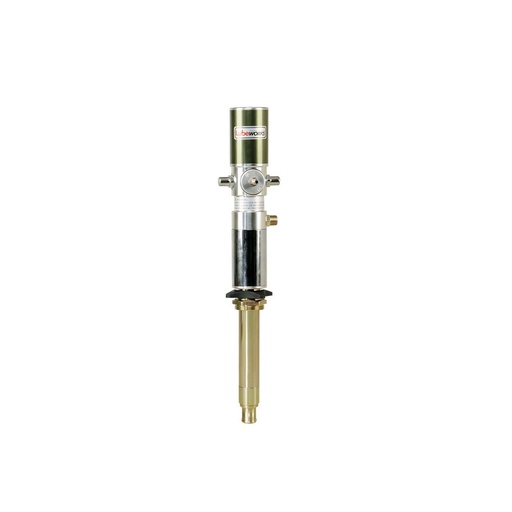

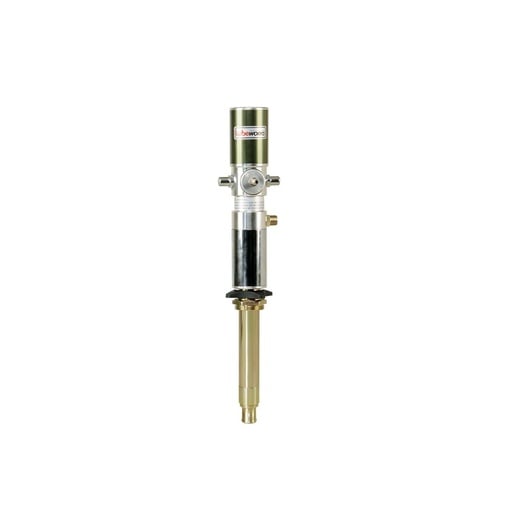

Air operated oil pump The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor. - drum application = 50 - 60kgs - pressure ratio = 1:1 - air inlet pressure = 5 - 8 bar - max fluid pressure = 8 bar - air motor effective diameter = 63mm - air consumption = 8 bar 100 L/min - max. free flow rate = 18 L/min - air inlet connection = 1/4'' quick plug 1/4'' NPT female - oil outlet connection = 1/2''

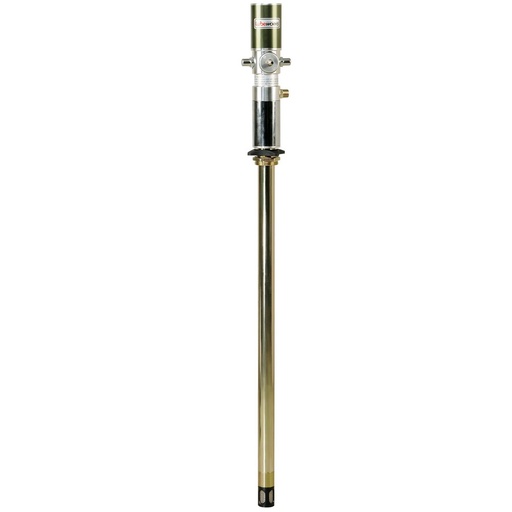

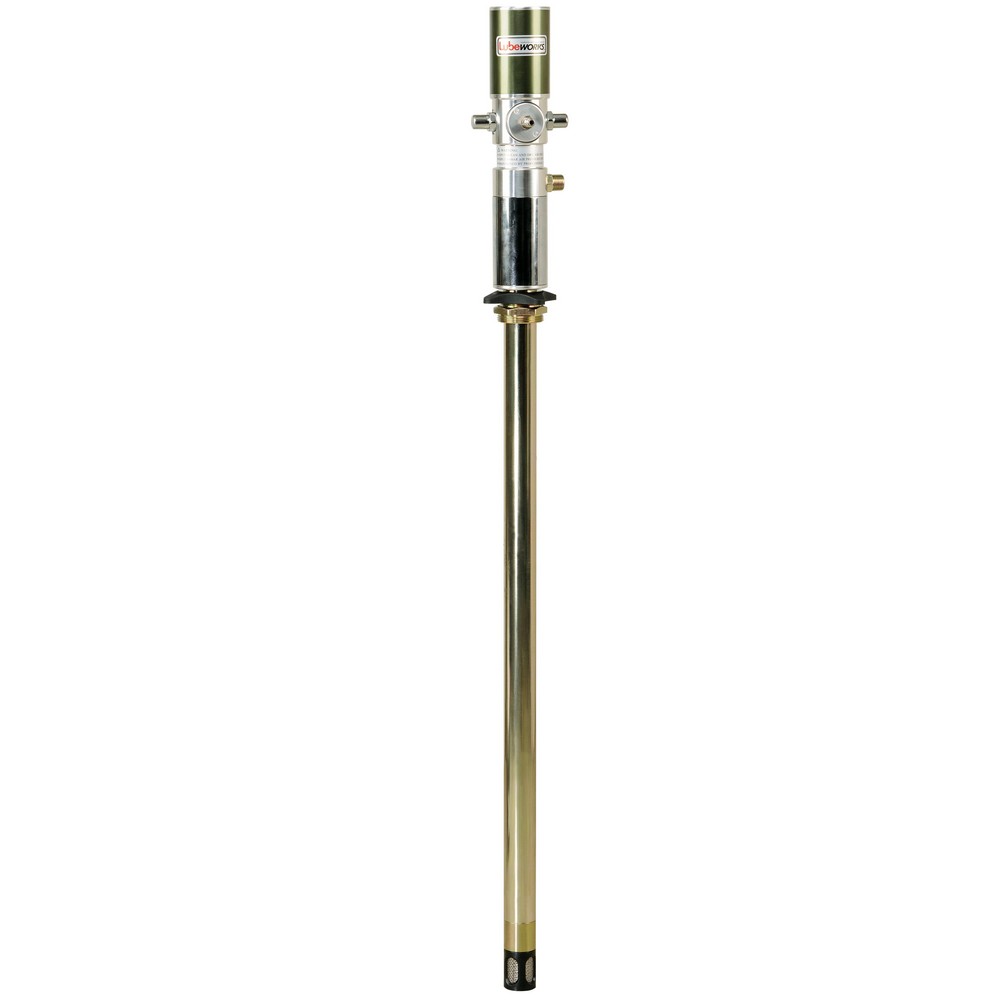

Air operated oil pump The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor. - drum application = 180 - 220kgs - pressure ratio = 1:1 - air inlet pressure = 5 - 8 bar - max fluid pressure = 8 bar - air motor effective diameter = 63mm - air consumption = 8 bar 100 L/min - max. free flow rate = 18 L/min - suction tube diameter = 42mm - suction tube length = 940mm - air inlet connection = 1/4'' quick plug 1/4'' NPT female - oil outlet connection = 1/2''

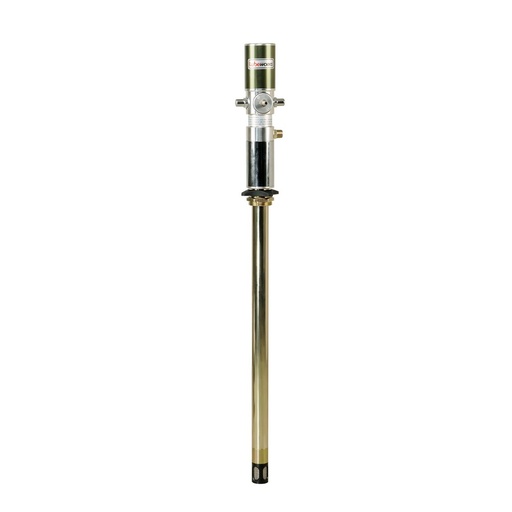

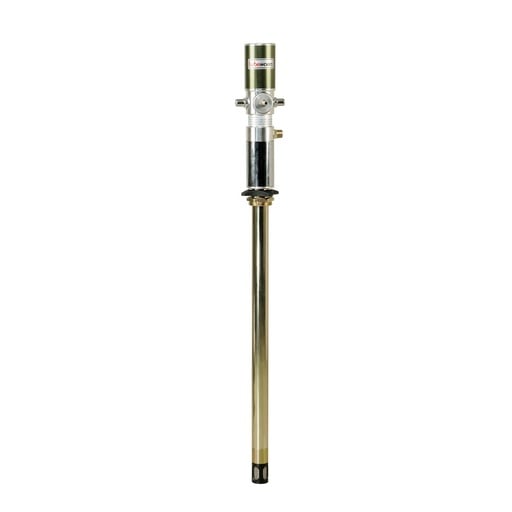

Air operated oil pump The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor. - drum application = 50 - 60kgs - pressure ratio = 1:1 - air inlet pressure = 5 - 8 bar - max fluid pressure = 8 bar - air motor effective diameter = 63mm - air consumption = 8 bar 100 L/min - max. free flow rate = 18 L/min - suction tube diameter = 42mm - suction tube length = 730mm - air inlet connection = 1/4'' quick plug 1/4'' NPT female - oil outlet connection = 1/2''

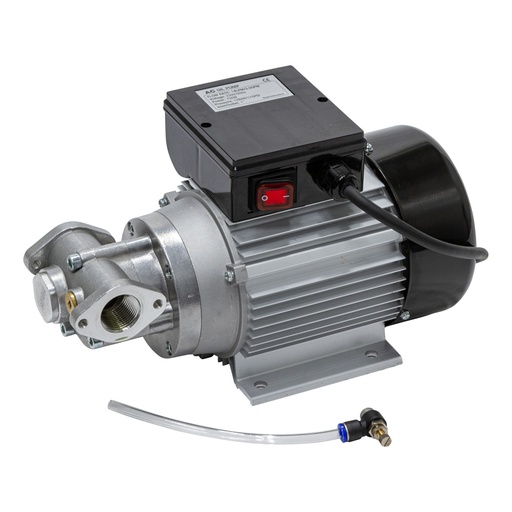

Electric oil pump / gear pump / crankcase pump
Self-priming electric gear pump with a working pressure of 12 bar. Suitable for engine oil, gear oil, lubricating oil and hydraulic oil.
Specifications:
viscosity = 9269SUS / 2000cSt
protection grade = IP55
suction hight = 2m
capacity = 14L/min
power = 750W
working pressure = 12bar
inlet / outlet = 1"

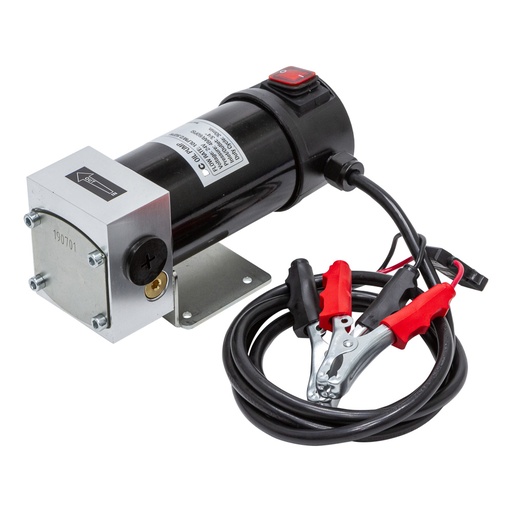

Self-priming electric gear pump with a working pressure of 4 bar. Suitable for engine oil, gear oil, lubricating oil and hydraulic oil.
viscosity = 3000SUS / 500cSt
capacity = 10L/min
voltage = 24V
working pressure = 4bar
inlet / outlet = 3/4''
max temperature = 90 degrees Celcius
voltage = 12V

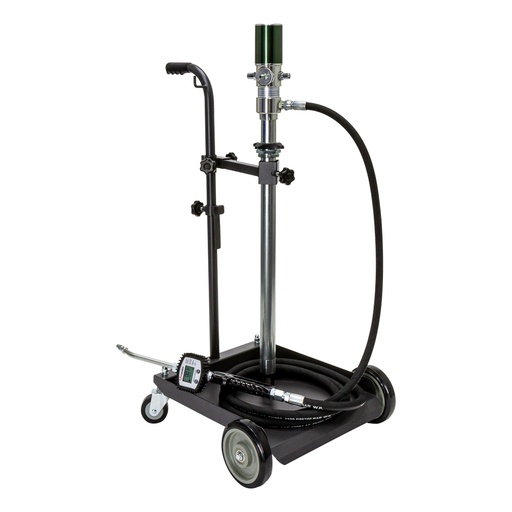

Mobile oil dispensing kit Suitable for dispensing oil at medium / high viscosity for mobile installations and fixed system at medium distance. Mainly composed of pump, trolley, digital meter, connection hose and 2'' bung adapter.
drum application = 50 - 60ltr

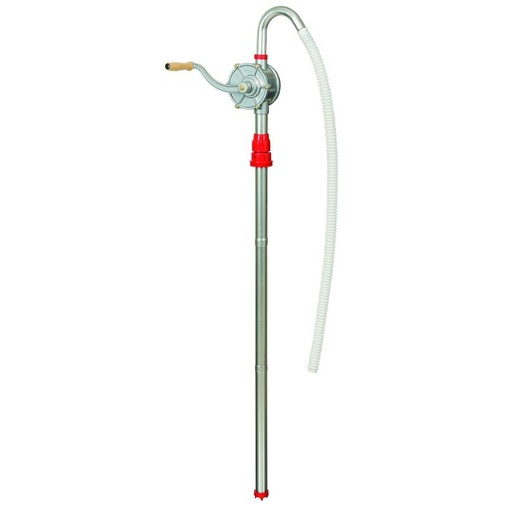

Handpump aluminum Compatible fluids: kerosene, light oil, diesel, bio diesel . For easy pumping, because the pump provides smooth and continuous transfer of diesel fuel. - 60ltr a minute at 90 rotations a minute - dip tube diameter = 36mm - dip tube = 1m - hose length = 0,8m - material = aluminum
