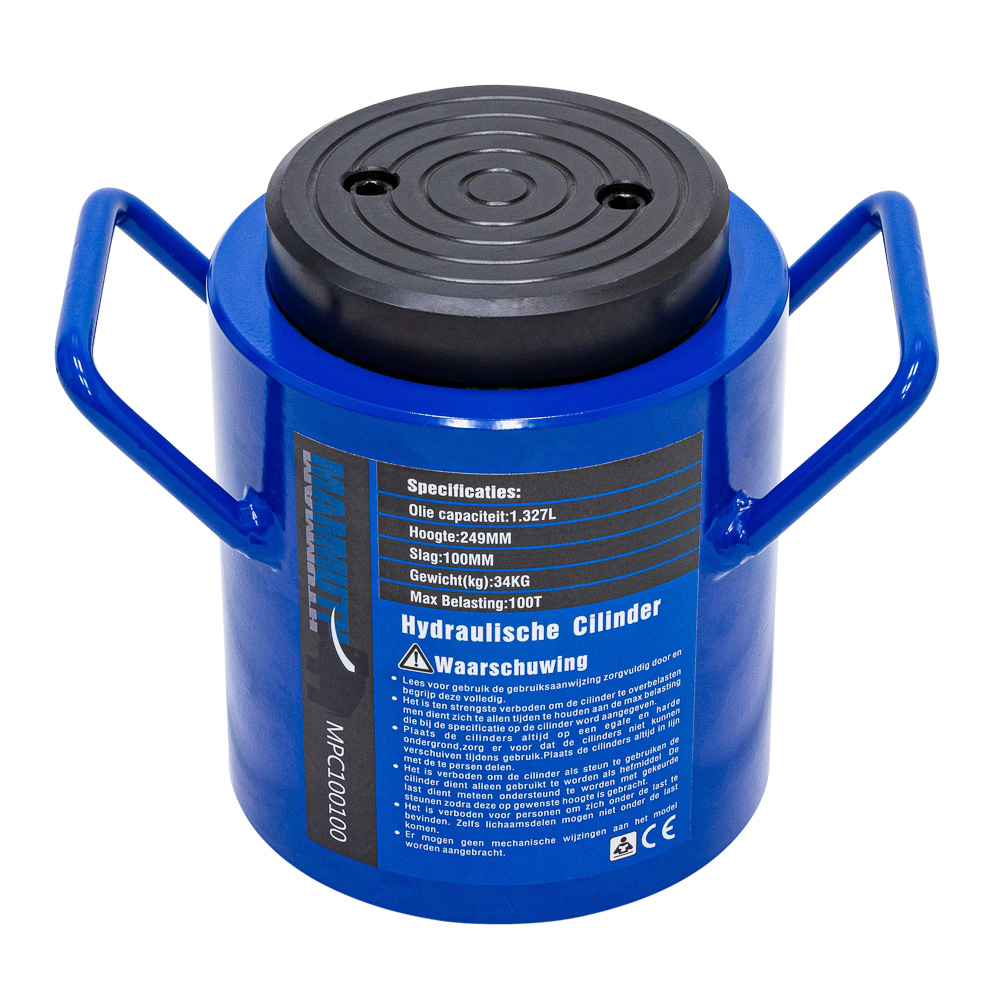

Cylinder 100 ton stroke 100mm [MPC100100] Cylinder 100 ton stroke 100mm
mm mm mm Kg

Hydraulic cylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

  • output = 100 ton

  • stroke = 100mm

  • effective area = 132,7cm^2

  • oil capacity = 1,327 L

  • height of product = 212mm

  • extended height = 349mm

  • outside diameter = 175mm

  • bore diameter = 130mm

  • plunger diameter = 110mm

  • thread for input oil port (ZG) = 3/8" - 22,5

  • saddle protrusion form plgr = 27mm

  • saddle is removable

  • max. pressure = 700bar

Shop equipment / Hydraulic tools / Cylinders Mammuth MPC100100 8720028077014
€ 441.65 Incl. VAT https://schema.org/InStock
€ 441.65 441.65000000000003 EUR

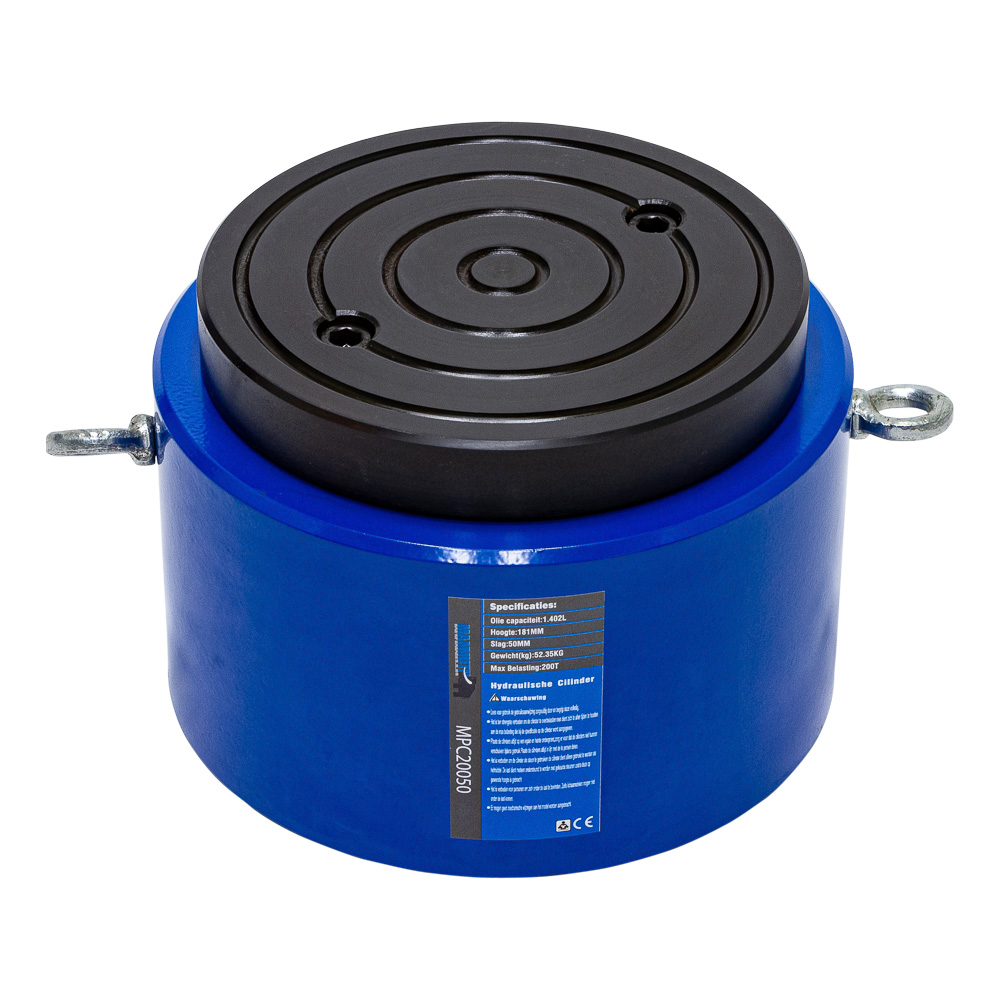

Cylinder 200 ton stroke 50mm [MPC20050] Cylinder 200 ton stroke 50mm
mm mm mm Kg

Hydraulic cylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

- output = 200 ton
- stroke = 50mm
- effective area = 280,4cm^2
- oil capacity = 1,402 L
- height of product = 171mm
- extended height = 231mm
- outside diameter = 237mm
- bore diameter = 189mm
- plunger diameter = 169mm
- thread for input oil port (ZG) = 3/8" - 25
- saddle protrusion form plgr = 31mm
- saddle is removable
- max. pressure = 700bar

Shop equipment / Hydraulic tools / Cylinders Mammuth MPC20050 8720028046799
€ 605.00 Incl. VAT https://schema.org/InStock
€ 605.00 605.0 EUR

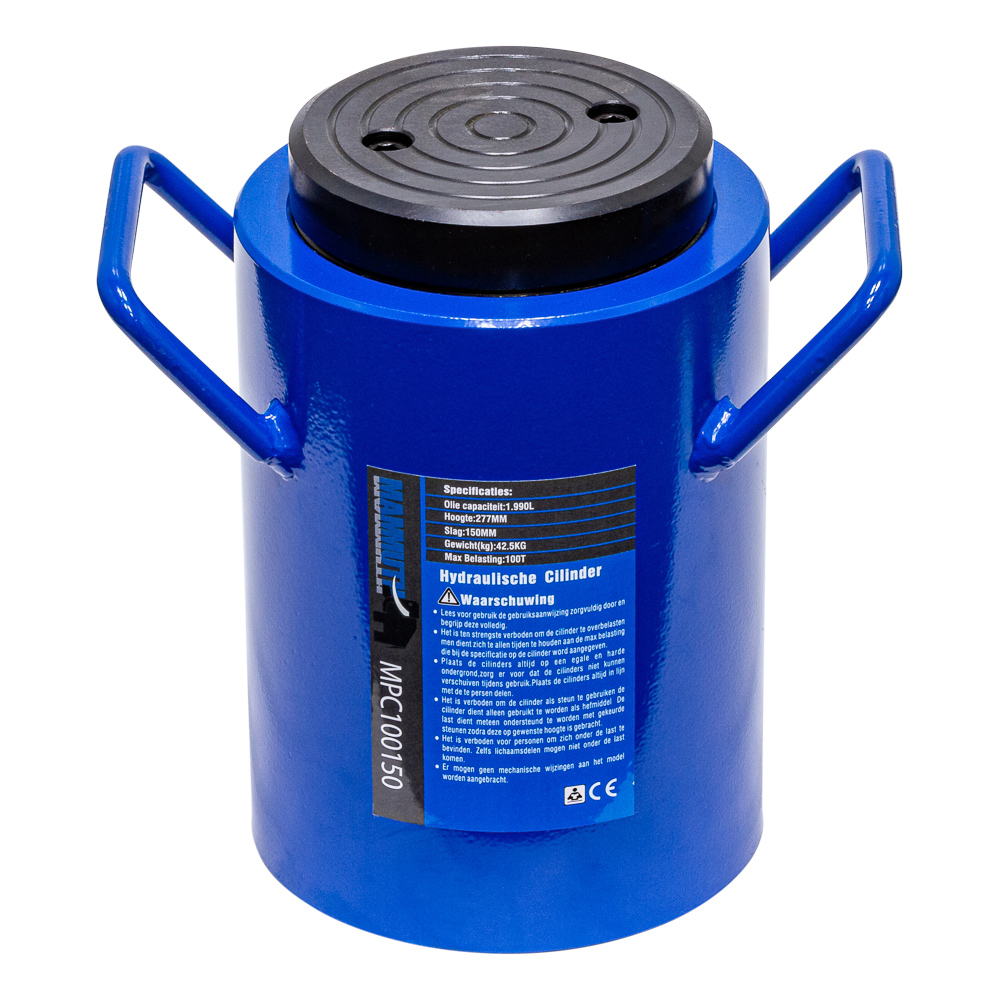

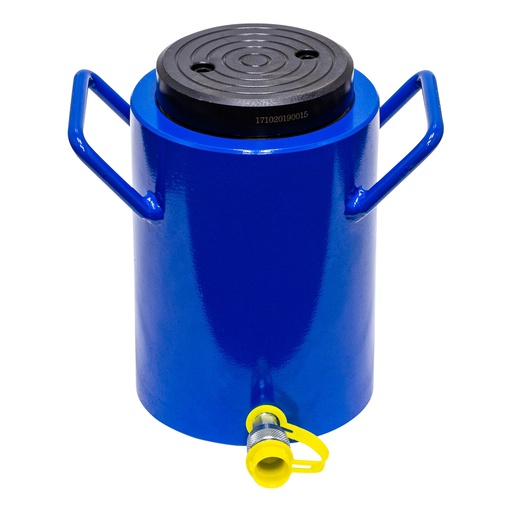

Cylinder 100 ton stroke 150mm [MPC100150] Cylinder 100 ton stroke 150mm
mm mm mm Kg

Hydraulic cylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

  • output = 100 ton

  • stroke = 150mm

  • effective area = 132,7cm^2

  • oil capacity = 1,990 L

  • height of product = 262mm

  • extended height = 427mm

  • outside diameter = 175mm

  • bore diameter = 130mm

  • plunger diameter = 110mm

  • thread for input oil port (ZG) = 3/8" - 22,5

  • saddle protrusion form plgr = 27mm

  • saddle is removable

  • max. pressure = 700bar

Shop equipment / Hydraulic tools / Cylinders Mammuth MPC100150 8720028046836
€ 514.25 Incl. VAT https://schema.org/SoldOut
€ 514.25 514.25 EUR
