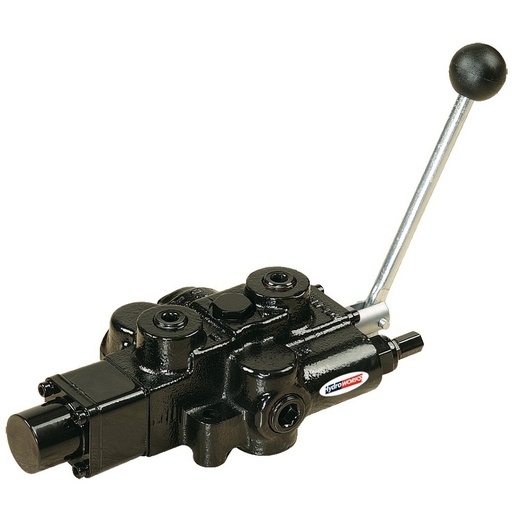

Mono-block directional control valve

- 1 spool
- inlet / outlet port = 3/4'' NPT
- flow rate = 100l/min

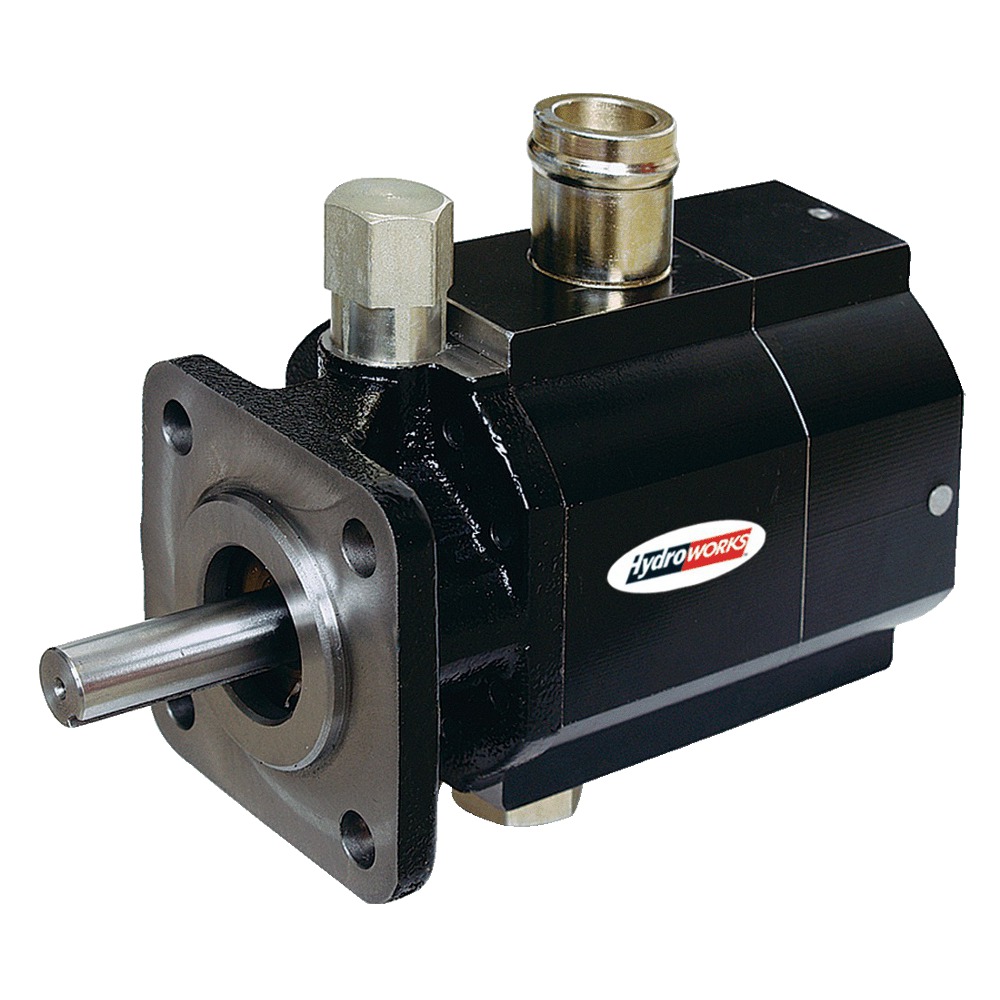

Gear pump 2 stage

aluminum contstruction
large displacement at low pressure, small displacement at high pressure
max. pressure is 200bar
range is 500 - 3600RPM
excellent for log splitters, pressers and trash compactors

- gear displacement:
low pressure = 60LPM
high pressure = 15LPM
- required power = 11PK
- shaft = 12,5mm
- inlet = 1'' NPT
- outlet = 1/2'' NPT

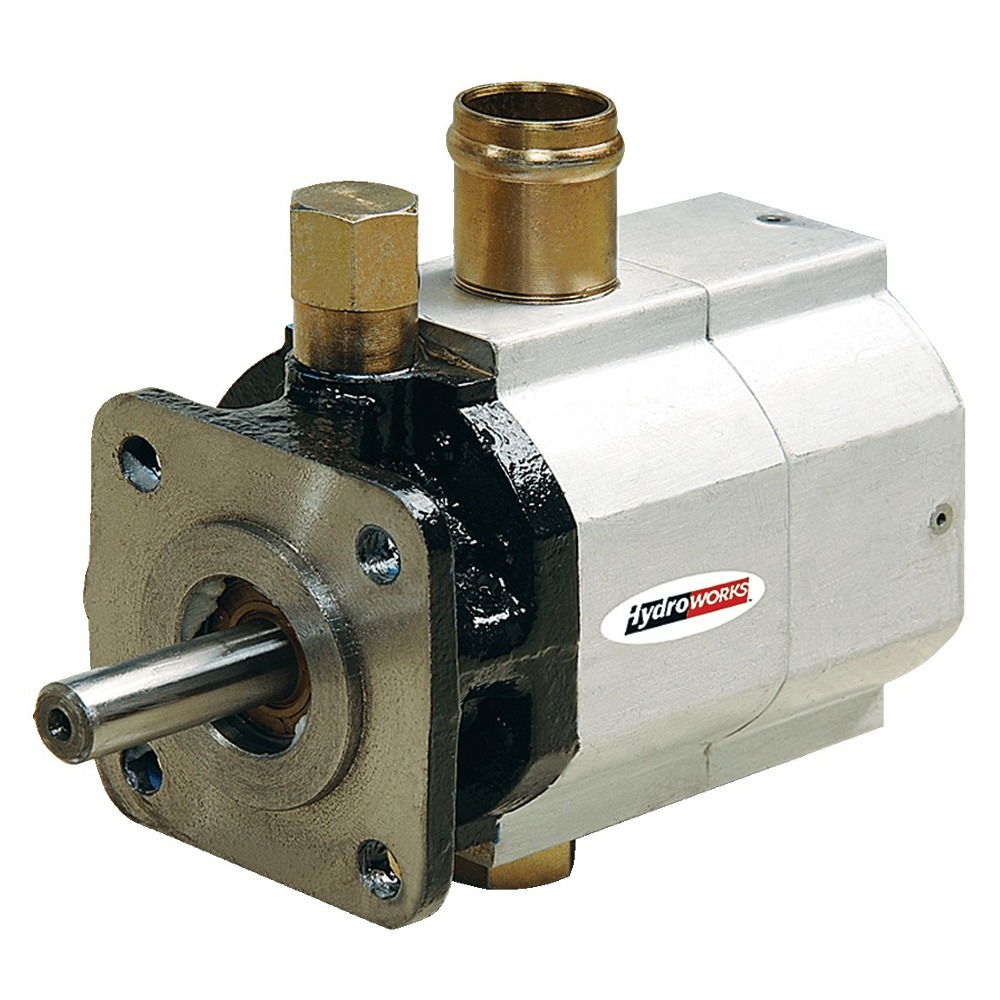

Gear pump 2 stage

aluminum contstruction
large displacement at low pressure, small displacement at high pressure
max. pressure is 200bar
excellent for log splitters, pressers and trash compactors

- gear displacement:
low pressure = 39,2LPM
high pressure = 10LPM
- required power = 5PK
- shaft = 12,5mm
- inlet = 3/4'' NPT
- outlet = 1/2'' NPT

CBNA-8.8/2.1
