Plasma cutter

This Soldatech Original plasma cutter cuts with high-quality results through almost all ferrous and non-ferrous materials. The cutter ignites very easily thanks to the HF ignition and cuts smoothly through rusted, coated or textured material up to 12mm.
The PL40E has a user-friendly control panel and can even be adjusted during cutting work, so that the best cutting result is achieved.
The modern IGBT inverter technology not only ensures that the PL40E delivers long-lasting performance with more power, but it also makes the cutter lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality cutting performance is guaranteed for a long time.
Ideal for cutting low alloy steel, stainless steel and aluminum alloys.

Each PL40E comes standard including:

• Torch with 2.5m cable

• Welding ground clamp with 1.8m cable

• air/shielding gas hose 2m

• gas line 2m


• 3x cutting tip

• 3x cutting electrode

• 3x ceramic cap

Optimal cutting thickness (when using compressed air):

• copper = 1 - 4mm

• stainless steel = 1 - 8mm

• aluminum = 1 - 8mm

• steel = 1 - 10mm

Technical specifications:

• voltage = 230V

• frequency = 50 / 60Hz

• input power = 5.8kW

• duty cycle (at 20°C ambient temperature) = 45% - 40A

• duty cycle (at 40°C ambient temperature) = 20% - 40A

• cutting current range = 15 - 40A

• protection class = IP21S

• insulation class = H

• dimensions = 410 x 140 x 287mm
• weight = 6.4kg

Plasma cutter / plasma cutting machine

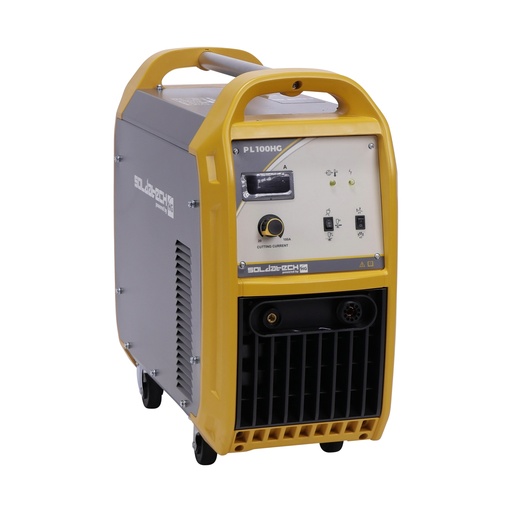

This Soldatech powered by HG plasma cutter cuts steel and aluminum with high-quality results. The PL100HG is among the heavier plasma cutters, it ignites very easily thanks to the HF ignition and cuts easily through rusted, coated or structured material up to 35mm. The plasma cutter has four swivel castors, making it mobile during use.

The PL100HG has a user-friendly control panel and can even be adjusted during cutting work to achieve the best cutting result.

The modern IGBT inverter technology ensures that the PL100HG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality cutting performance is guaranteed over a long period of time.

Ideal for cutting carbon steel, low alloy steel, stainless steel and aluminum alloys.

Each PL100HG comes standard with:

• Soldatech PL141M3 plasma torch with 5m cable

• Welding ground clamp with 3m 16mm² cable

• Gas line of 4m with hose clamps

• 5-pin 32A plug with 3m 4x2.5mm² cable

• European dinse couplers 9mm

Technical specifications:

• voltage = 400V - 3 phase

• frequency = 50/60Hz

• circuit breaker = 3x 20A B-char

• duty cycle (at 20°C ambient temperature) = 60% - 100A

• duty cycle (at 40°C ambient temperature) = 60% - 100A


• welding current range = 20 - 100A

• max. unloaded voltage = 325V

• max. cutting thickness = 35mm

• average air / gas consumption = 220L/min

• protection class = IP21S

• dimensions = 719 x 308 x 633mm

• weight = 43kg

Plasma cutter / plasma cutting machine

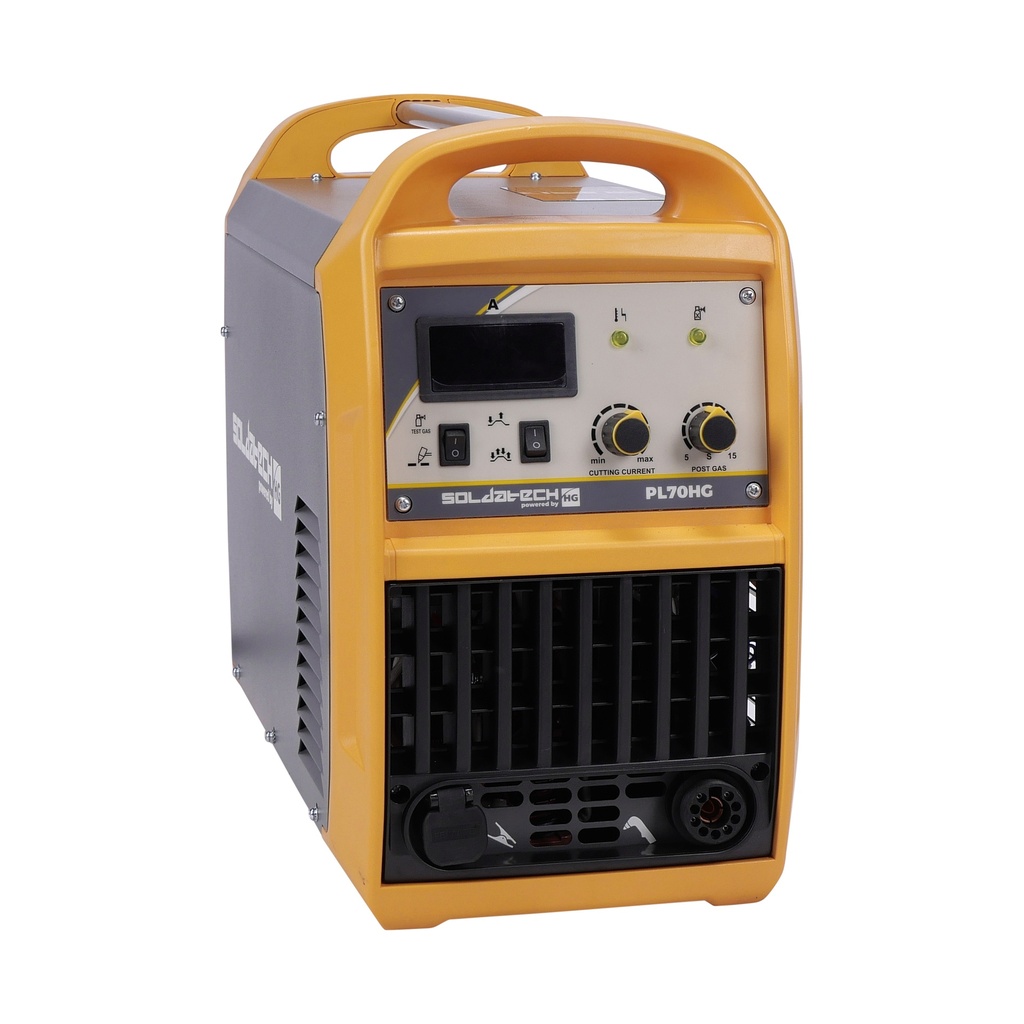

This Soldatech powered by HG plasma cutter cuts various materials with high-quality results. The PL70HG is a compact, powerful and easy to use plasma cutter that is equipped with Pilot ARC ignition. This in combination with the HF ignition makes this cutter very easy to ignite and it is capable of cutting smoothly through rusted, coated or structured material up to 25mm.
The PL70HG has a user-friendly control panel and can even be adjusted during cutting work to achieve the best cutting result.
The modern IGBT inverter technology not only ensures that the PL70HG delivers long-lasting performance with more power, but it also makes the welder lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
Ideal for cutting low alloy steel, stainless steel and aluminum alloys.

Each PL70HG comes standard with:

• Soldatech PL80M5 plasma torch with 5m cable
• work clamp with 2m 16mm² cable
• Gas line of 4m with hose clamps
• 5-pin 32A plug with 2.5m 4x2.5mm² cable
• Standard 9mm Dinse cable couplings

Technical specifications:

• voltage = 400V - 3 phase
• frequency = 50/60Hz
• fuse protection = 20A B-char
• input power = 9.4kVA
• duty cycle (at 20°C ambient temperature) = 100% - 70A
• duty cycle (at 40°C ambient temperature) = 60% - 70A
• welding current range = 25 - 70A
• max. unloaded voltage = 330V
• recommended cutting thickness = 17mm
• max. cutting thickness = 25mm
• average air / gas consumption = 220L/min
• protection class = IP21S
• dimensions = 550 x 245 x 405mm
• weight = 23.5kg


Plasma cutter / plasma cutting machine

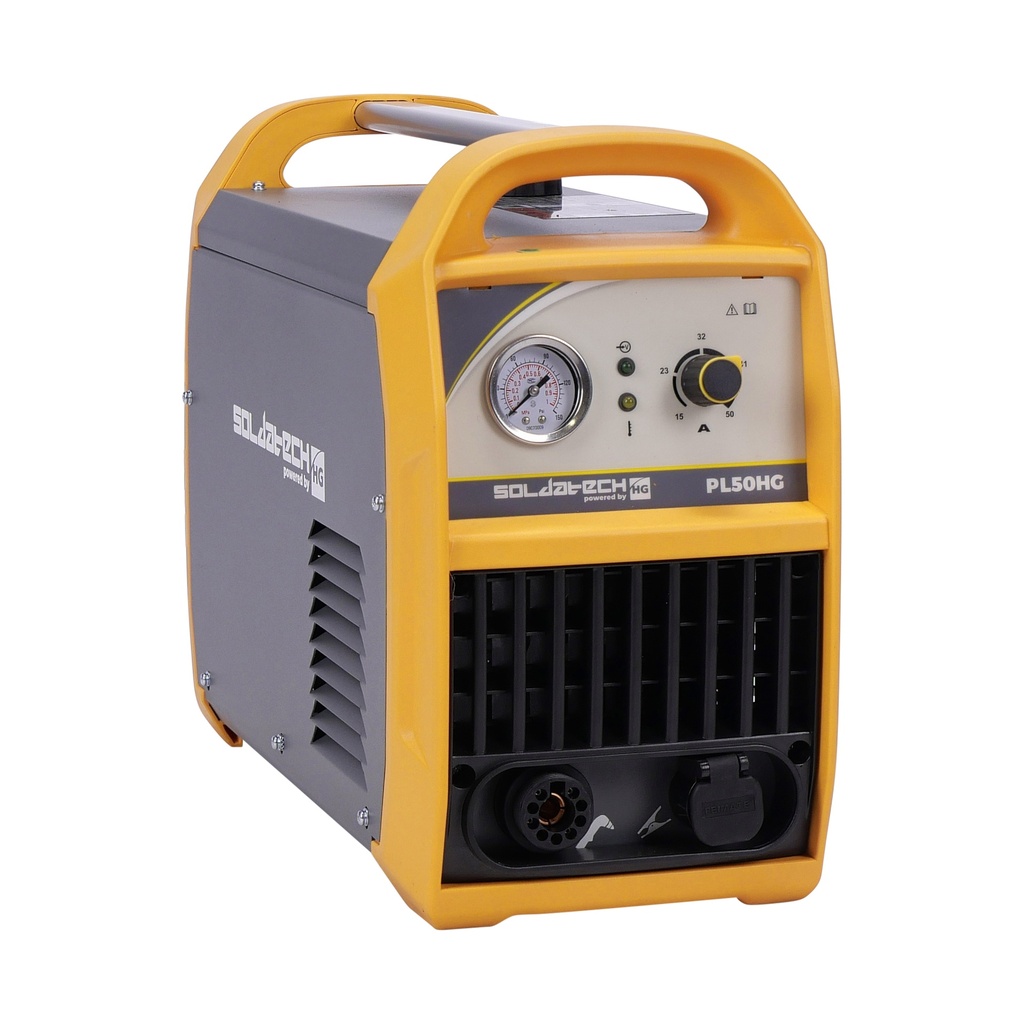

This Soldatech powered by HG plasma cutter cuts various materials with high-quality results. The PL50HG is a compact, powerful and easy to operate plasma cutter equipped with Pilot ARC pre-ignition. This in combination with the HF ignition makes this cutter very easy to ignite and it is capable of cutting through rusted, coated or structured material up to 20mm without any difficulty.

The PL50HG has a user-friendly control panel and can even be adjusted during cutting work to achieve the best cutting result.

The modern IGBT inverter technology not only ensures that the PL50HG delivers long-lasting performance with more power, but it also makes the welder lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Ideal for cutting low alloy steel, stainless steel and aluminum alloys.

Each PL50HG comes standard with:

• Soldatech PL80M5 plasma torch with 5m cable

• Welding ground clamp with 2m 16mm² cable

• Gas line of 4m with hose clamps

• Neoprene power cable 2m 3x2.5mm²

• European dinse couplers 9mm

Technical specifications:

• voltage = 230V - 1 phase

• frequency = 50/60Hz

• circuit breaker = 16A C-kar

• input power = 7.6kVA

• duty cycle (at 20°C ambient temperature) = 60% - 50A

• duty cycle (at 40°C ambient temperature) = 20% - 50A


• welding current range = 15 - 50A

• max. unloaded voltage = 293V

• max. cutting thickness = 20mm

• air consumption = 220L/min

• protection class = IP21S

• dimensions = 459 x 200 x 338mm

• weight = 11kg
