Sawblade

- suited for circular saw CS250
- size = 250mm
- number of teeth = 180

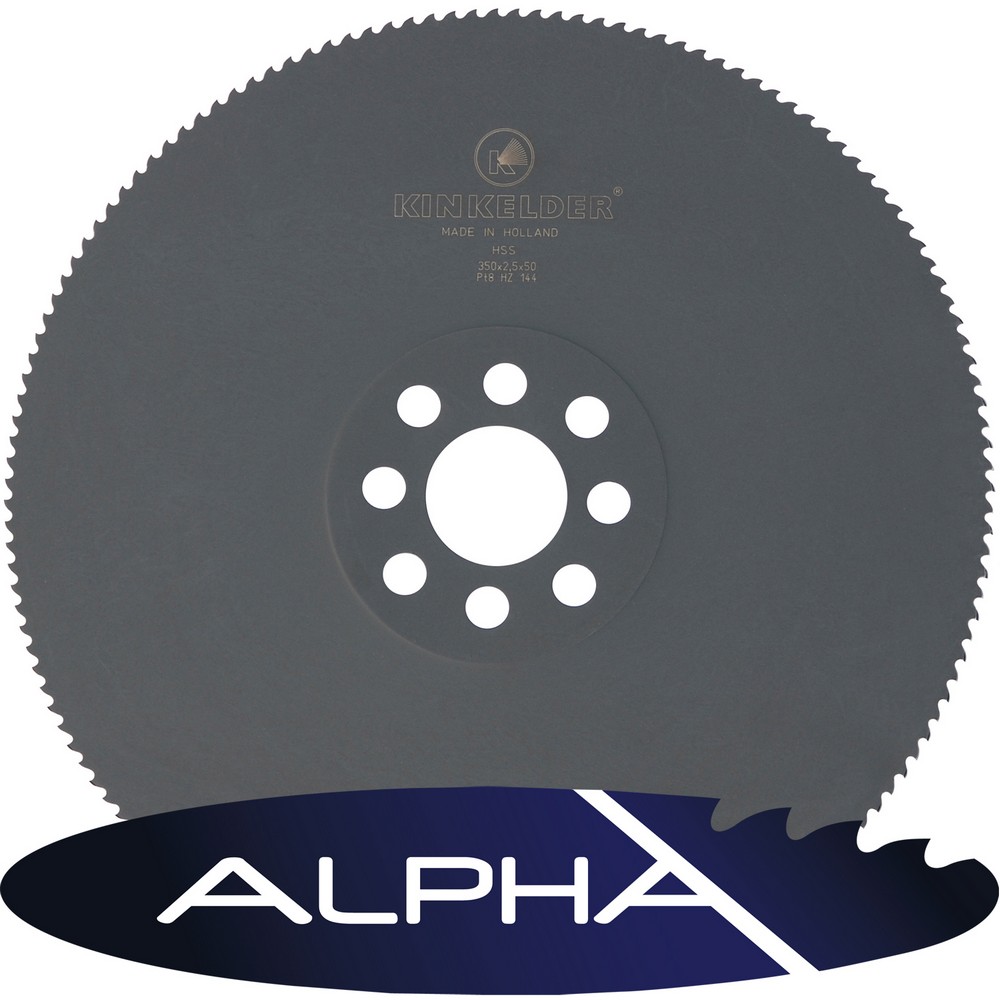

Saw blade

The steam treated Alpha saw blade has a blue-black oxide surface layer for a longer blade life compared to the uncoated saw blade. It is mainly being used for cutting steel on manual and semi-automatic sawing machines.

Materials: All materials like tubes, profiles and solids. All structural steels and non-alloy tool steel with a tensile strength up to 700 N / mm².

Parameters: suggested cutting speed: 30 - 60 m/min

The HZ-tooth form is most suitable for cutting solids and thick walled tubes. The roughening tooth is bevelled on both sides and is between 0,2 and 0,3mm higher than the square finishing tooth. Tooth pitch higher than 4mm.

- diameter = 350mm

- kerf = 3mm

- borehole = 32mm

- tooth pitch = T5

- amount of teeth = 220

Saw blade

The steam treated Alpha saw blade has a blue-black oxide surface layer for a longer blade life compared to the uncoated saw blade. It is mainly being used for cutting steel on manual and semi-automatic sawing machines.

Materials: All materials like tubes, profiles and solids. All structural steels and non-alloy tool steel with a tensile strength up to 700 N / mm².

Parameters: suggested cutting speed: 30 - 60 m/min

The HZ-tooth form is most suitable for cutting solids and thick walled tubes. The roughening tooth is bevelled on both sides and is between 0,2 and 0,3mm higher than the square finishing tooth. Tooth pitch higher than 4mm.

- diameter = 250mm

- kerf = 2mm

- borehole = 32mm

- tooth pitch = T5

- amount of teeth = 160

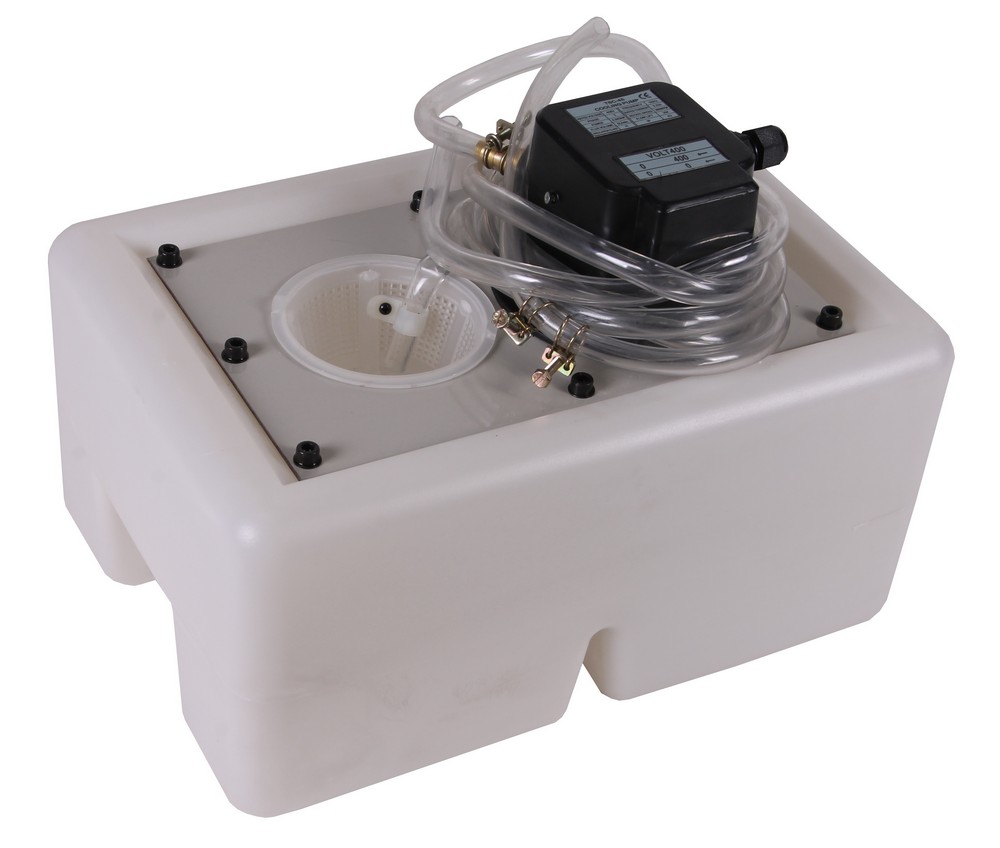

Cooling pump for reservoir 230V

- voltage = 230V
- phase = 1
- power = 0,045kW
- flux volume = 5L/min
- frequency = 50Hz
- rated current = 0,21A
- rotate speed = 2800rpm
- IP 43

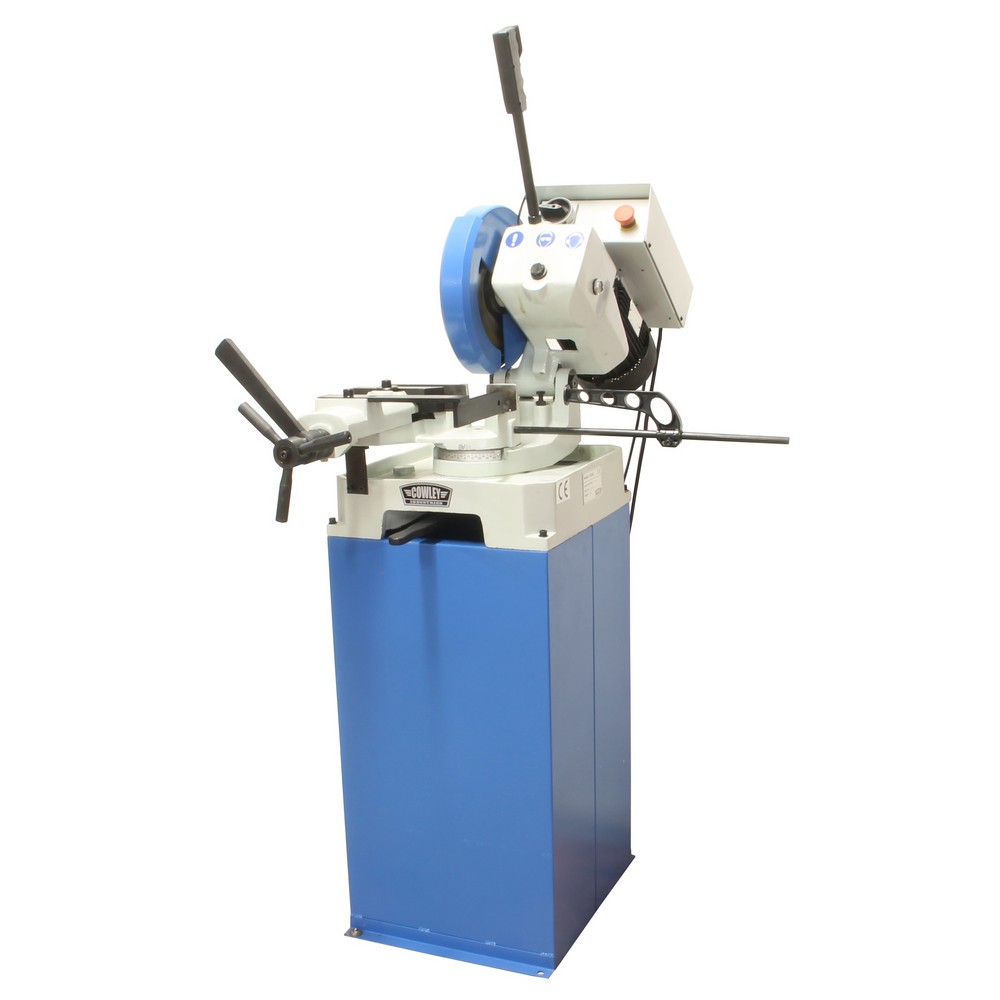

Metal circular saw / sawing machine

This Cowley circular saw is ideal for cutting and shortening round or rectangular metal materials. This robust model features the following useful features

• Double clamp

• Angle of the clamp can be adjusted

• Rotatable vise design

• Roll to support the material

• Rotatable head 45 degrees

• Material stop

The machines comes with a saw blade of 250mm, a base of 330 x 460 x 770mm and a cooling unit.

Specifications:

• saw blade diameter = 250mm

• axle diameter = 32mm

• cutting capacity circular 90 degrees = 60mm

• cutting capacity rectangular 90 degrees = 75 x 45mm

• cutting capacity circular 45 degrees = 55mm

• cutting capacity rectangular 45 degrees = 45 x 45mm

• blade speed = 42rpm

• max. opening clamp = 100mm

• motor power = 1,1kW

• voltage = 400V

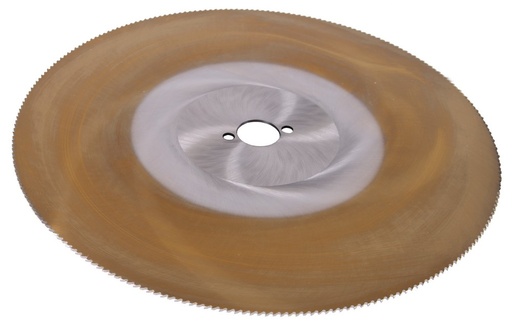

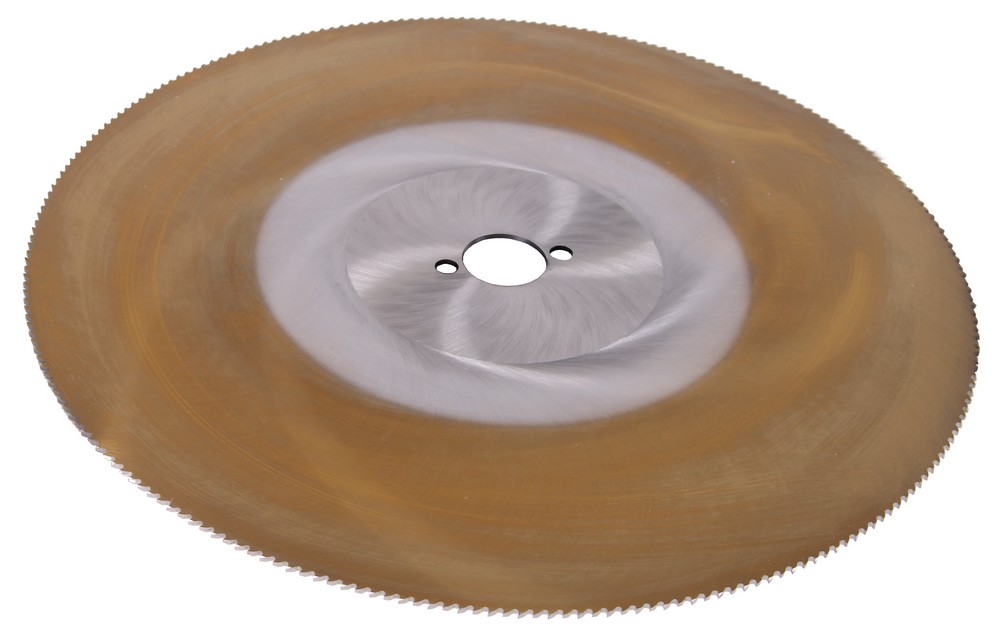

Sawblade

- suited for circular saw CS350
- size = 350mm
- axle diameter = 32mm
- number of teeth = 240

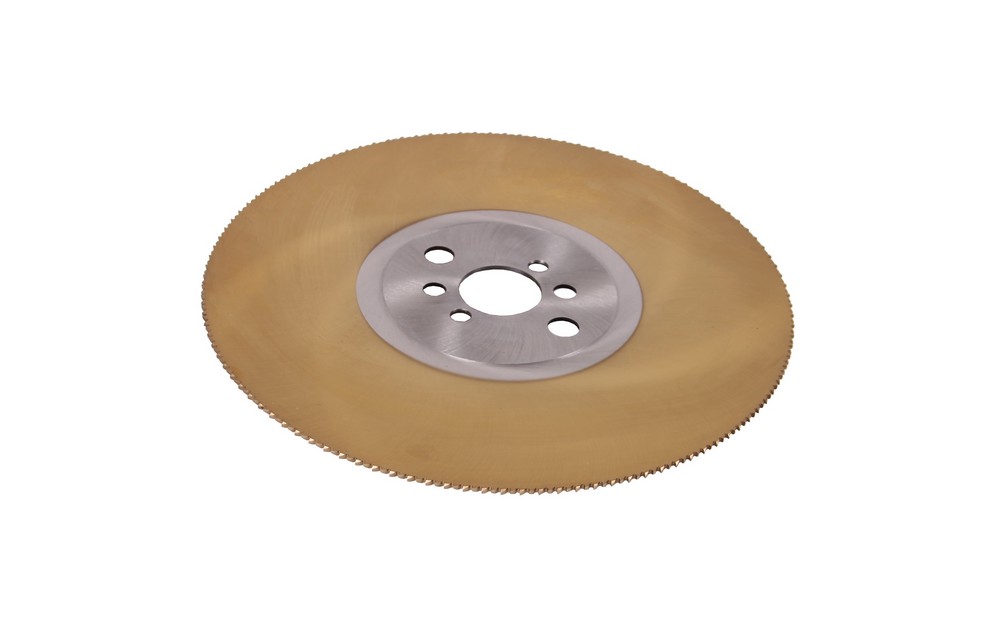

Sawblade

- suited for circular saw CS225
- size = 225mm
- number of teeth = 220

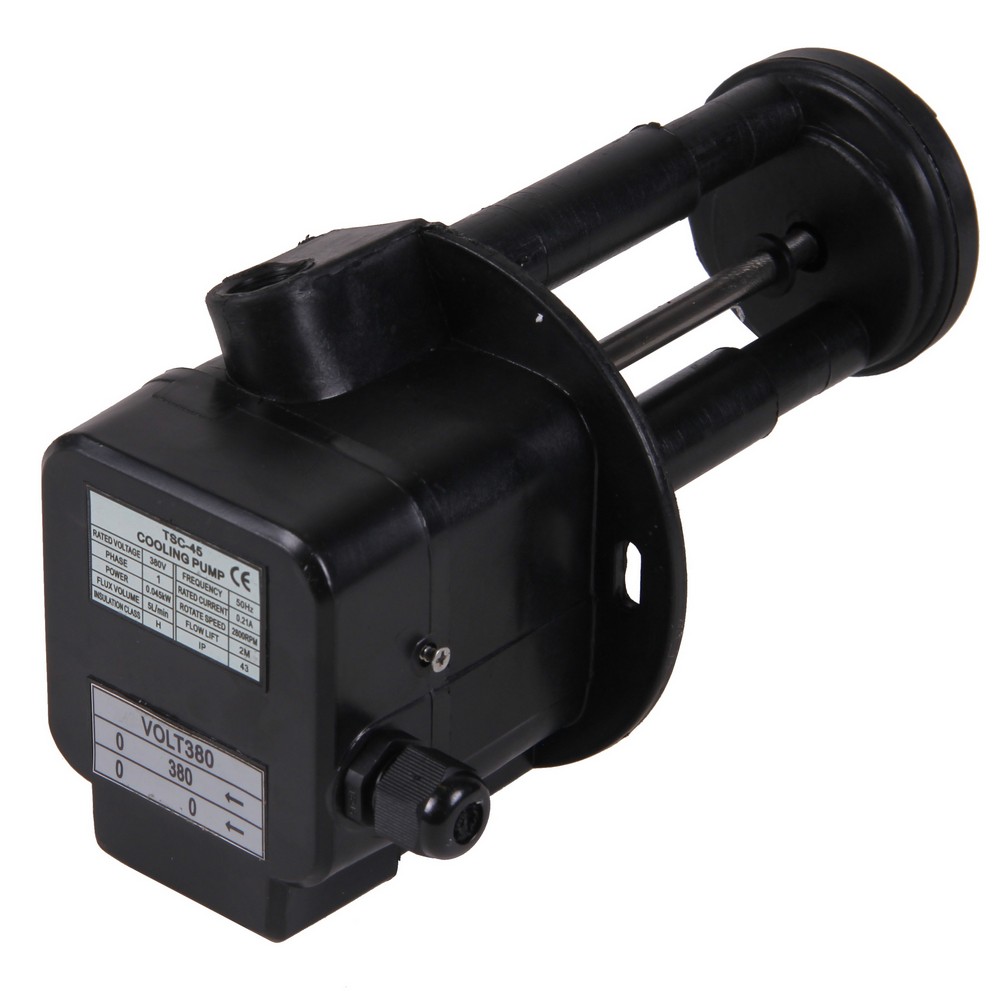

Cooling pump

Cooling pump for circular saw.

- voltage = 230V
- phase = 1
- power = 0,045kW
- flux volume = 5L/min
- frequency = 50Hz
- rated current = 0,21A
- rotate speed = 2800rpm
- IP 43

Metal circular saw / sawing machine

This Cowley circular saw is ideal for cutting and shortening round or rectangular metal materials. This robust model features the following useful features

• Double clamp

• Angle of the clamp can be adjusted

• Rotatable head 45 degrees

• Material stop

The machines comes with a saw blade of 225mm and a cooling unit.

Specifications:

• saw blade diameter = 225mm

• axle diameter = 32mm

• cutting capacity circular 90 degrees = 60mm

• cutting capacity rectangular 90 degrees = 50 x 50mm

• cutting capacity circular 45 degrees = 52mm

• cutting capacity rectangular 45 degrees = 50 x 50mm

• blade speed = 46rpm

• max. opening clamp = 70mm

• motor power = 750W

• voltage = 230V

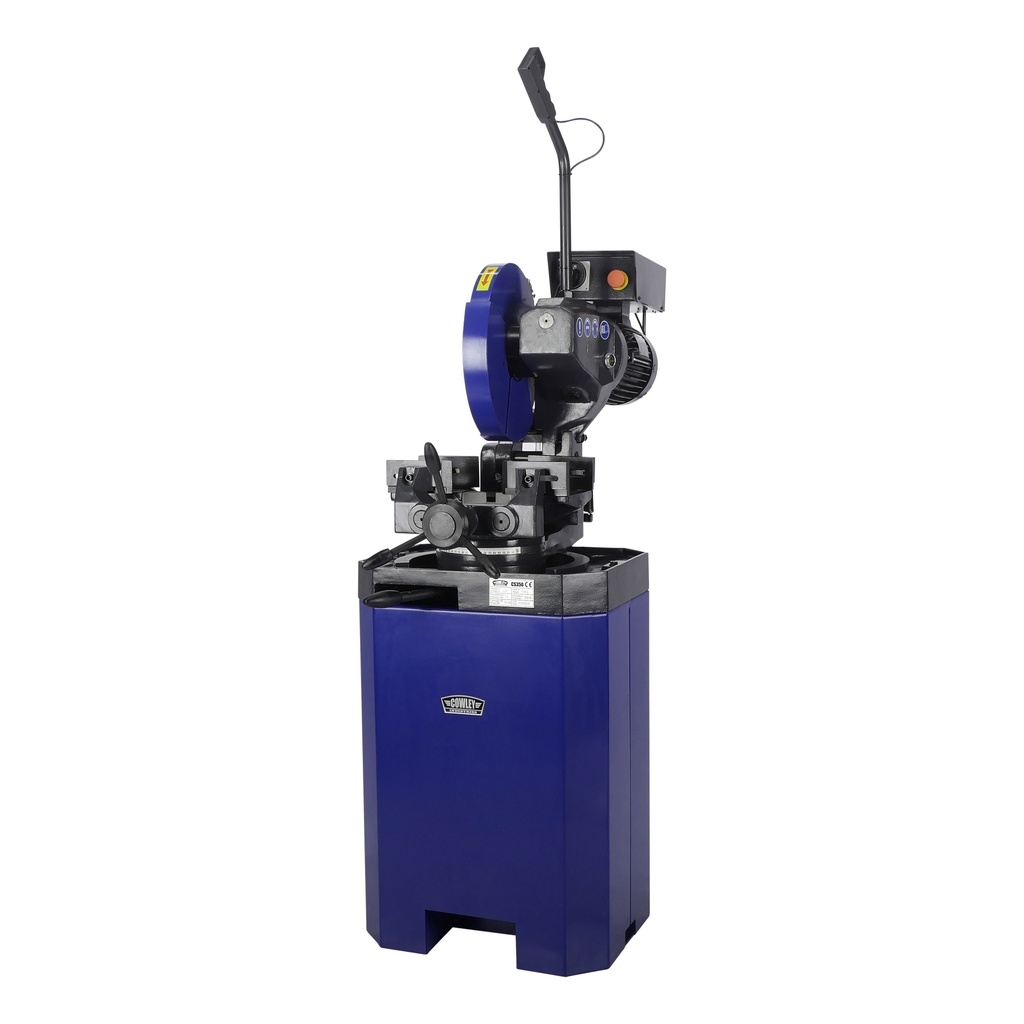

Metal circular saw / sawing machine

This Cowley circular saw is ideal for cutting and shortening round or rectangular metal materials. This robust model features the following useful features

• Double clamp

• Angle of the clamp can be adjusted

• Rotatable head 45 degrees

• Material stop

• 2 speeds

The machines comes with a saw blade of 350mm, a base of 470 x 580 x 770mm and a cooling unit.

Specifications:

• saw blade diameter = 350mm

• axle diameter = 32mm

• cutting capacity circular 90 degrees = 120mm

• cutting capacity rectangular 90 degrees = 140 x 100mm

• cutting capacity circular 45 degrees = 105mm

• cutting capacity rectangular 45 degrees = 100 x 100mm

• blade speed 1 = 18rpm

• blade speed 2 = 36rpm

• max. opening clamp = 145mm

• motor power = 1,3kW

• voltage = 400V
