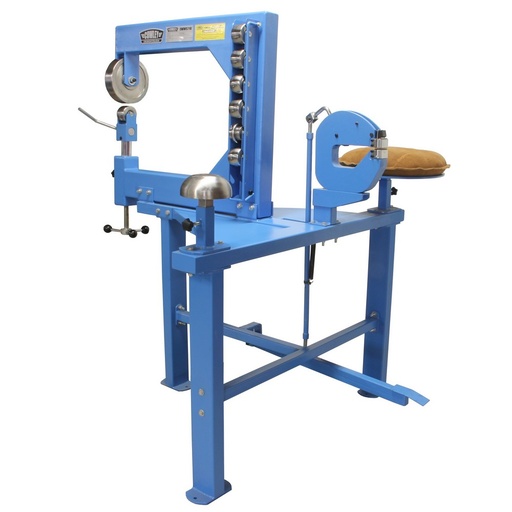

This multifunctional sheet metal work station has 4 different parts. First of all, the station is equipped with an english wheel with a throat depth of 710mm and 7 different shaping rolls.
Furthermore, the station has a professional stretch and shrink machine with foot pedal. The throat depth of this machine is 205mm.
Finally, the station is equipped with two parts to knock sheet metal into different shapes with a hammer. A round dolly and a leather bag, which is delivered empty. This bag can be filled with silver sand or dune sand for example.
This sheet metal work station is suitable for steel sheets up to 1,5mm thick and aluminum sheets up to 1,9mm thick and is used for working on metal sheets (of for example oldtimers, cars and tanks).
Specifications english wheel:
- throat depth = 710mm / 28"
- diameter upper wheel = 203,2mm / 8"
- profile diameter 6,35mm / 1/4"
- radius 50,8mm / 2"
- radius 76,2mm / 3"
- radius 101,6mm / 4"
- radius 152,4mm / 6"
- radius 203,2mm / 8"
- radius 304,8mm / 12"

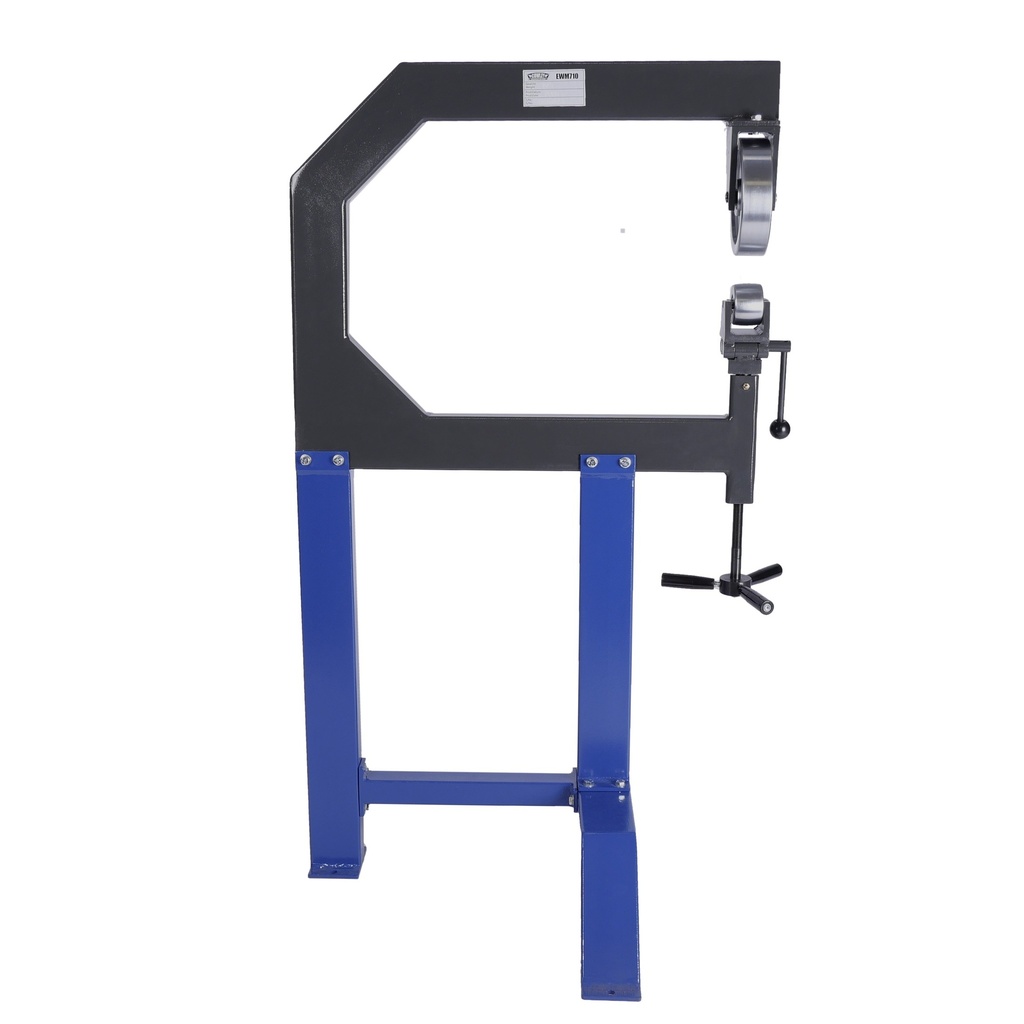

This English wheel from Cowley is used for the professional working, construction or restoration of sheet material such as fenders, tanks and all kinds of car sheet metal work. Ideal for hollowing and spinning thin sheet, removing dents and flattening hammer strokes. Due to the large insertion depth of the machine you can easily process soft steel, aluminum or copper sheets.
With the help of the large upper roll, small lower roll and the spindle, the desired pressure can be exerted on the piece of sheet metal.
Comes with 6 shaping rollers made of hardened polished steel. The English wheel has a handy built-in storage rack for these different forming rolls.
maximum plate thickness = 1.2mm
insertion depth = 710mm
diameter x width main roll = 200 x 50mm
width lower rolls = 51mm
working height = 1190mm
Radius forming rollers:
50.8mm / 2"
76.2mm / 3"
101.6mm / 4"
152.4mm / 6"
203.2mm / 8"
304.8mm / 12"
This English wheel is suitable for working plates (of for example oldtimers, cars and tanks).

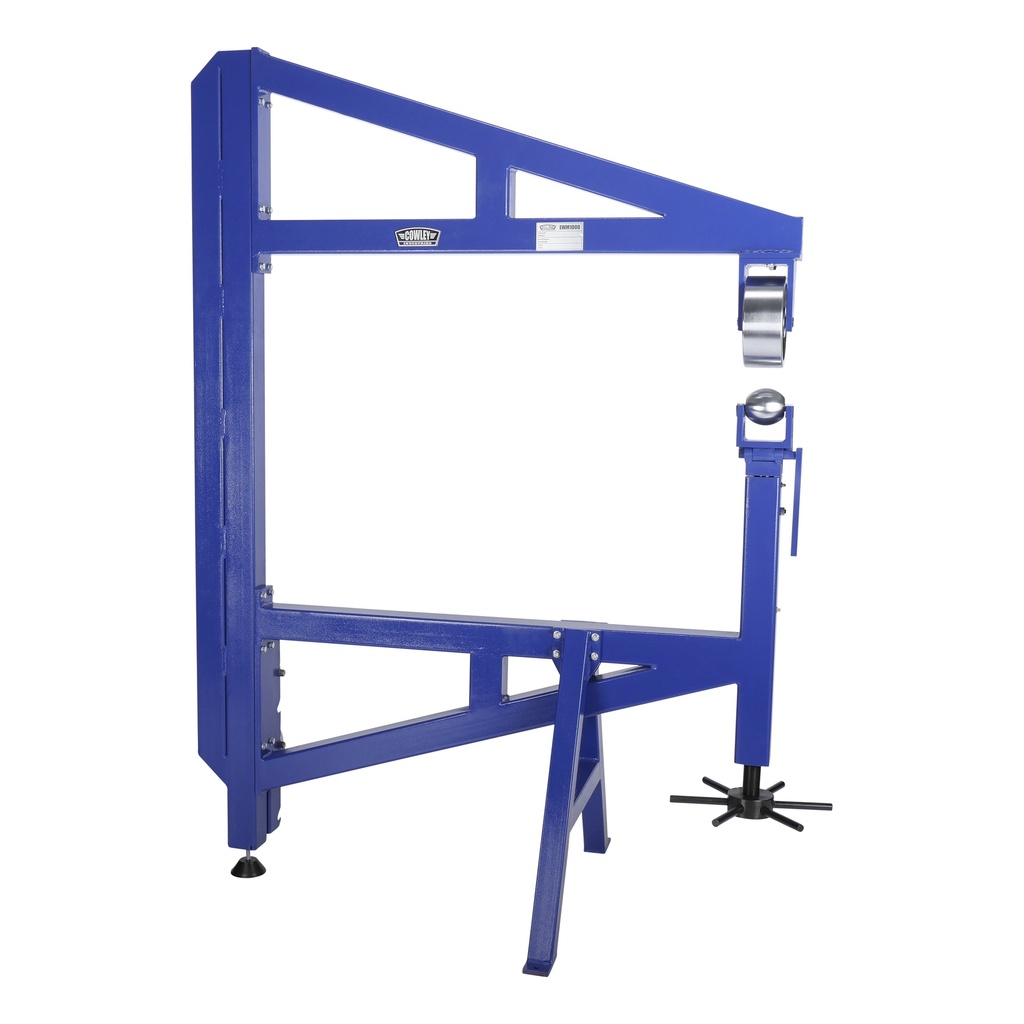

This professional model has pressure control by foot, quick lever mechanism and sideways adjustment of the lower forming wheels.
Including 5 forming wheels and the upper rolling wheel
capacity = 1,2mm
throath depth = 1040mm (40'')
