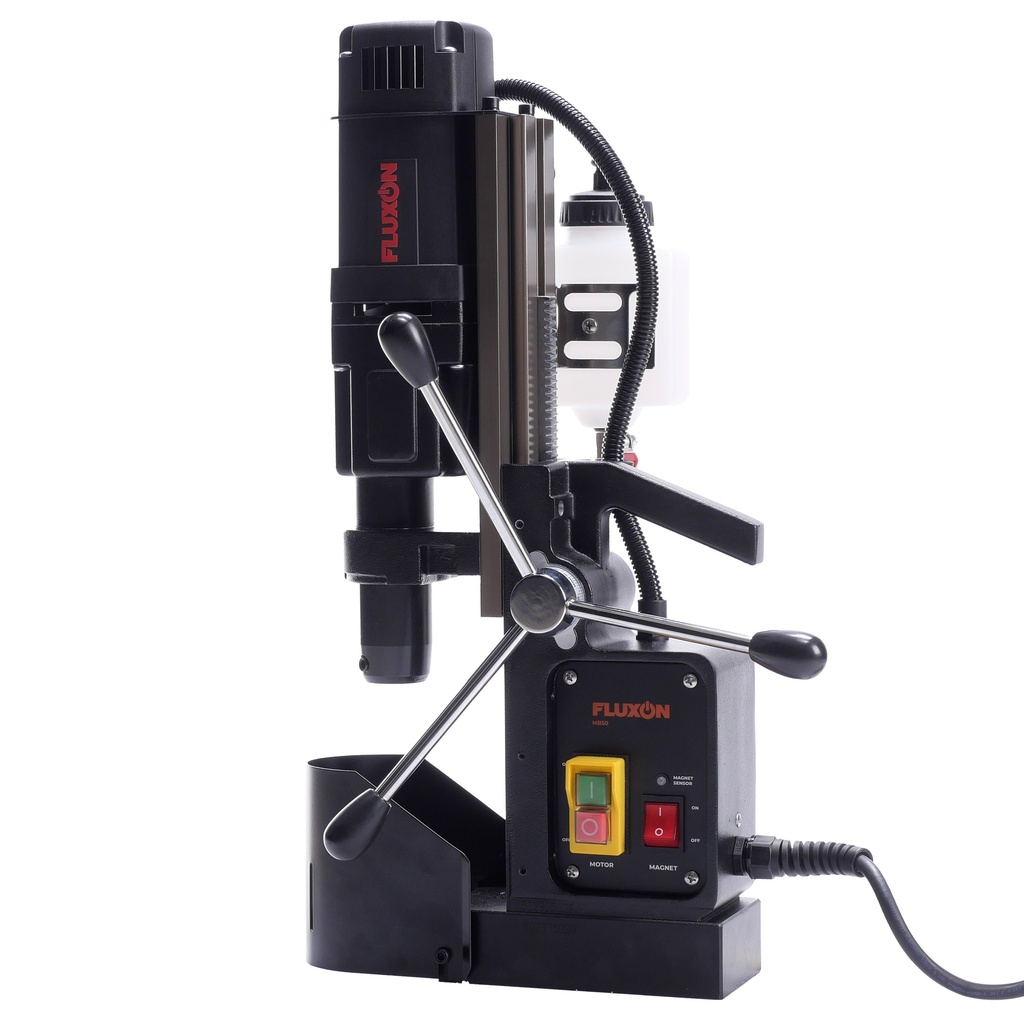

Core drill machine / magnetic core drill This magnetic drilling machine is very suitable for fast and accurate drilling of holes with a maximum diameter of 50mm. The thoughtful design has the following unique features: - shielded air inlet protects the engine against liquid and dirt - adjustable speed: 2 gears - very compact lightweight machine: only 12kg - reliable motor protection: both when the machine is switched on and when its in use - fixing slot including safety strap: with this strap the machine can be attached to the surface and therefore provides extra safety - oil-filled gearbox: prevents wear of the internal gears - automatic cooling system - easily adjustable stroke up to 230mm Technical specifications: - voltage = 230v - max. diameter core drills = 50mm - max. diameter twist drills = 13mm - rated power = 1700W - no-load speed = 325 / 435rpm - clamping force magnet = 16500N / 1650kg - max. drilling depth = 40mm - stroke = 230mm - drive = 19,05 Weldon

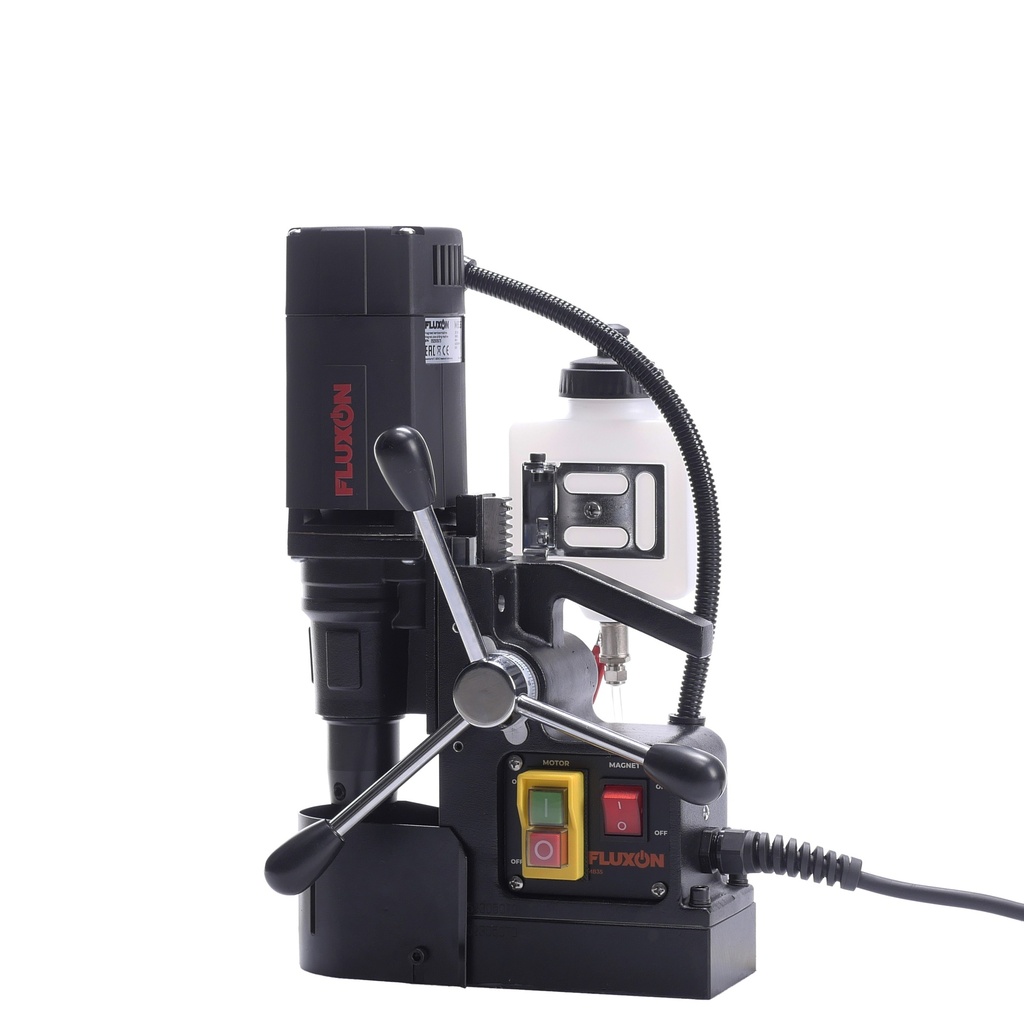

Core drill machine / magnetic core drill This magnetic drilling machine is very suitable for fast and accurate drilling of holes with a maximum diameter of 35mm. The thoughtful design has the following unique features: - shielded air inlet protects the engine against liquid and dirt - very compact lightweight machine: only 11kg - reliable motor protection: both when the machine is switched on and when its in use - fixing slot including safety strap: with this strap the machine can be attached to the surface and therefore provides extra safety - oil-filled gearbox: prevents wear of the internal gears - automatic cooling system - easily adjustable stroke up to 210mm Technical specifications: - voltage = 230v - max. diameter core drills = 35mm - max. diameter twist drills = 13mm - rated power = 1600W - no-load speed = 700rpm - clamping force magnet = 16000N / 1600kg - max. drilling depth = 35mm - stroke = 210mm - drive = 19,05 Weldon
Crafted for power and efficiency, the Fluxon Magnetic Drilling Machine stands out for your heavy-duty drilling needs.The Magnetic Drilling Machine is designed with a powerful motor, integrated cooling system and a compact, lightweight structure. Perfect for a variety of heavy-duty applications that require precision and power.
