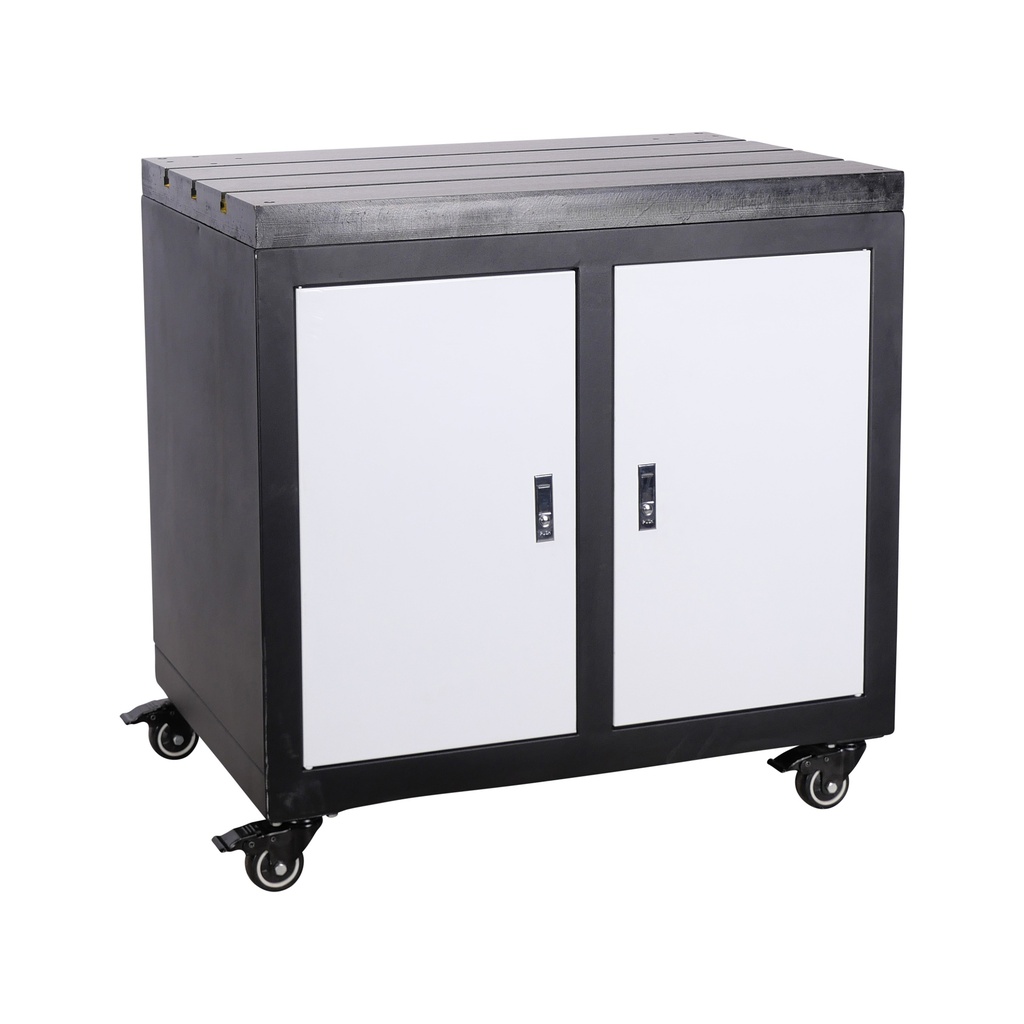

Mobile base cabinet / workbench
This Cowley mobile base cabinet with cast iron top and T-slots is suitable as a workbench for both the electric and pneumatic tap arms. Due to the height of 895mm, it is ergonomic.
The cabinet has 3 T-slots, 4 swivel castors with brakes and 2 doors with storage space behind them. The cabinet is also provided with mounting holes for the tap arms in 2 corners.
Technical specifications:
dimensions = 900 x 600 x 895mm
width T-slots = 15mm
heavy cast iron worktop
4 swivel castors with brakes

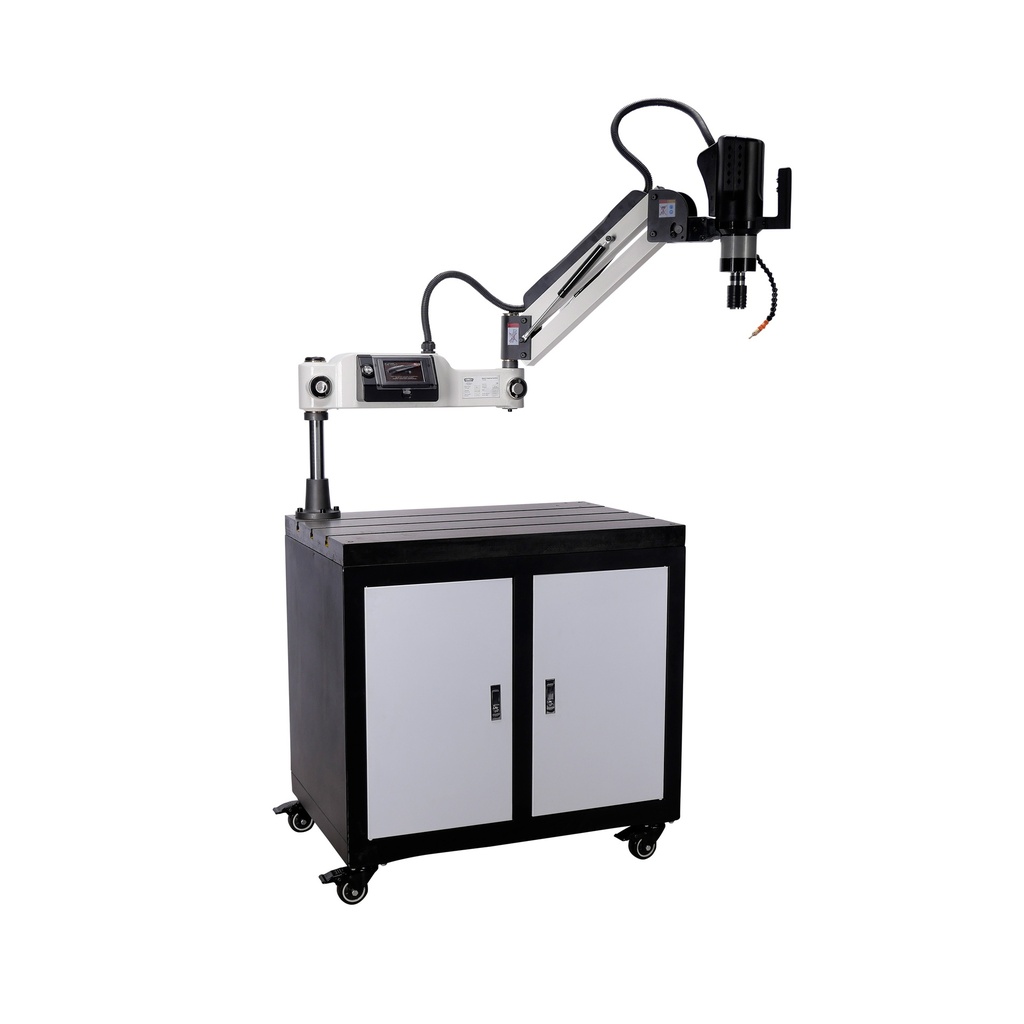

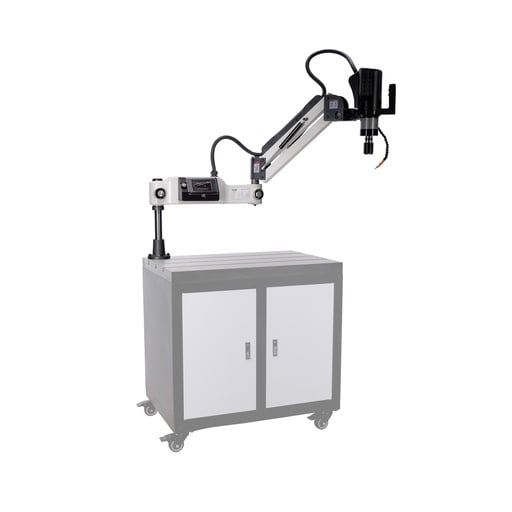

Electric tapping machine / tapping armThis Cowley electric tapping machine is used for fast and accurate tapping of different types of materials. The machine can be used both horizontally and vertically. The speed is variable and adjustable, the cooling is nicely integrated in the housing and the machine has an internal memory for storing multiple programs.Tapping machine is equipped with a mist spray function, which ensures both cooling and lubrication of the tapping process. The system is fully integrated into the tap arm interface and can be automatically turned on and off via the HD touchscreen. When the liquid exits the spray surface of the nozzle, it breaks up into a fine mist of uniform micron-sized droplets. This allows the process to be cooled and lubricated for fast and accurate tapping. With the included flexible mist spray hose you can spray the oil/air mixture on the tap at all common angles. In addition, the mist spray also saves costs, extends the life of equipment, saves the environment and ultimately saves costs.
The tapping machine also has the following features:
The machine comes standard with: 9x GT24 DIN tap holder with slip coupling (adjustable torque):
4x GT24 DIN tal holder:
PLEASE NOTE: The tap arm is supplied without a mobile base cabinet with a cast iron top. This is optionally available, see related products.

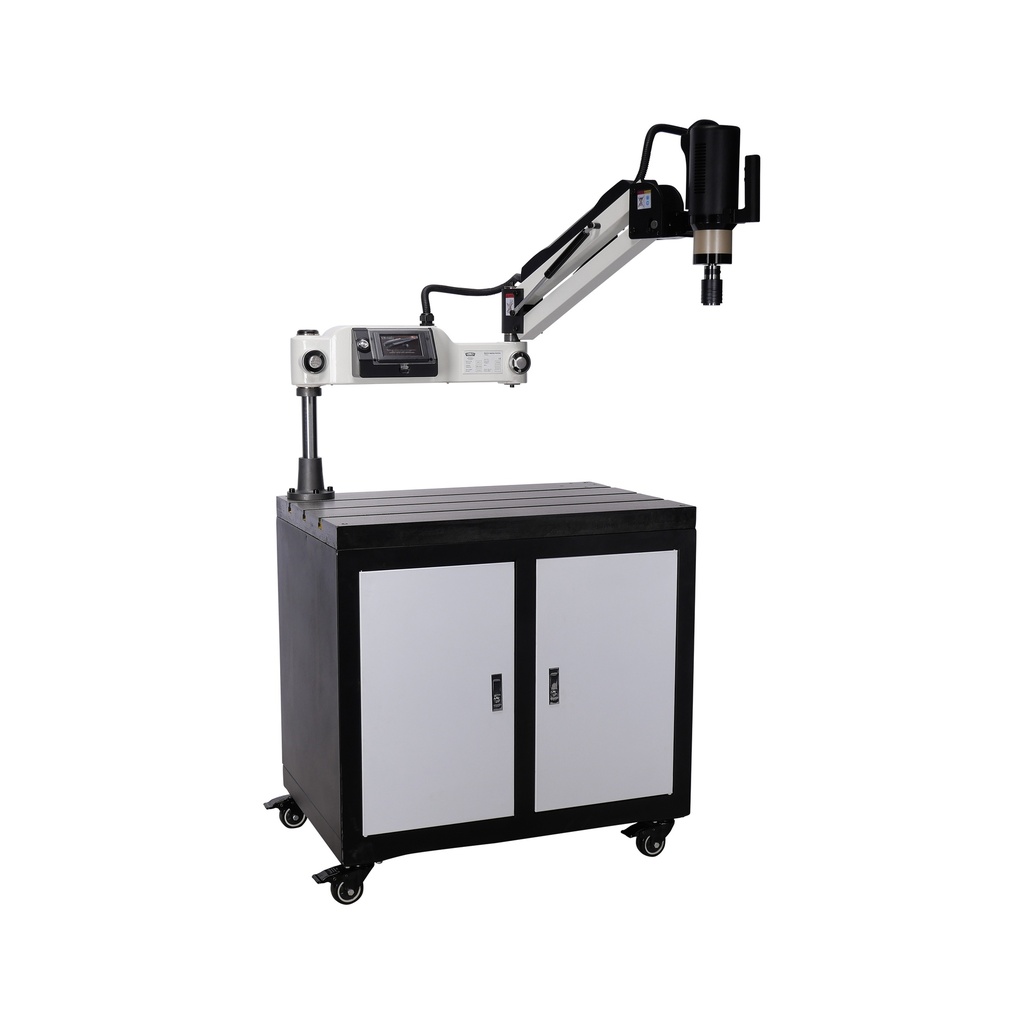

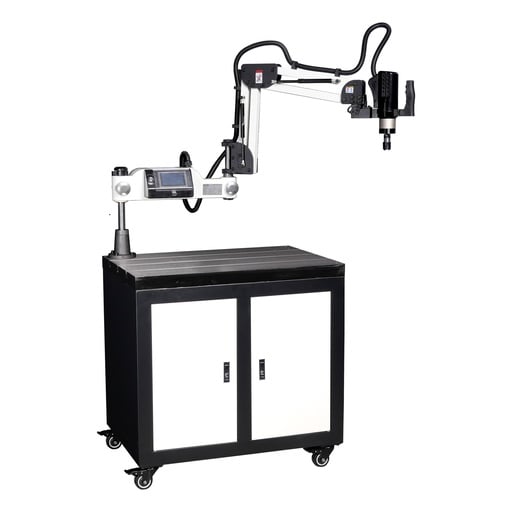

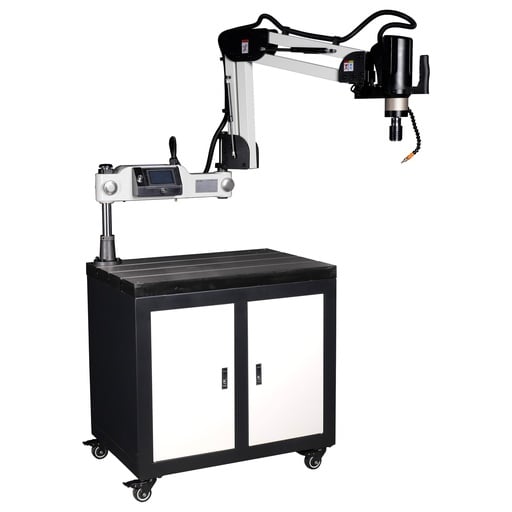

Electric tapping machine / tapping arm
This Cowley electric tapping machine is used for fast and accurate tapping of different types of materials. The machine can be used both horizontally and vertically. The speed is variable and adjustable, the cooling is nicely integrated in the housing and the machine has an internal memory for storing multiple programs.
HD Touchscreen for easy control in Dutch, English and French
PLC control
Self-lubricating bronze bushings for optimum flexibility
Wide tap range from M6 to M24
Dynamically adjustable tap depths
Integrated on/off button
Weightless operation thanks to gas springs
Powerful servo motor
Electrically adjustable torque
Adjustable input and output speed
Touchscreen with protective cover
Interchangeable tap heads with quick-release system
power = 1,2kW
voltage = 230V
duty cycle = 100%
tap range = M6 to M24
max. speed = 200rpm
max. working radius = 1200mm
The machine comes standard with:
9x GT24 DIN tap holder with slip coupling (adjustable torque):
M5-6 (ø6.0mm / shank = 4.9mm)
M8 (ø8.0mm / shank = 6.2mm)
M10 (ø10.0mm / shank = 8.0mm)
M12 (ø9.0mm / shank = 7.0mm)
M14 (ø11.0mm / shank = 9.0mm)
M16 (ø12.0mm / shank = 9.0mm)
M18 (ø14.0mm / shank = 11.0mm)
M20 (ø16.0mm / shank = 12.0mm)
M22-24 (ø18.0mm / shank = 14.5mm)

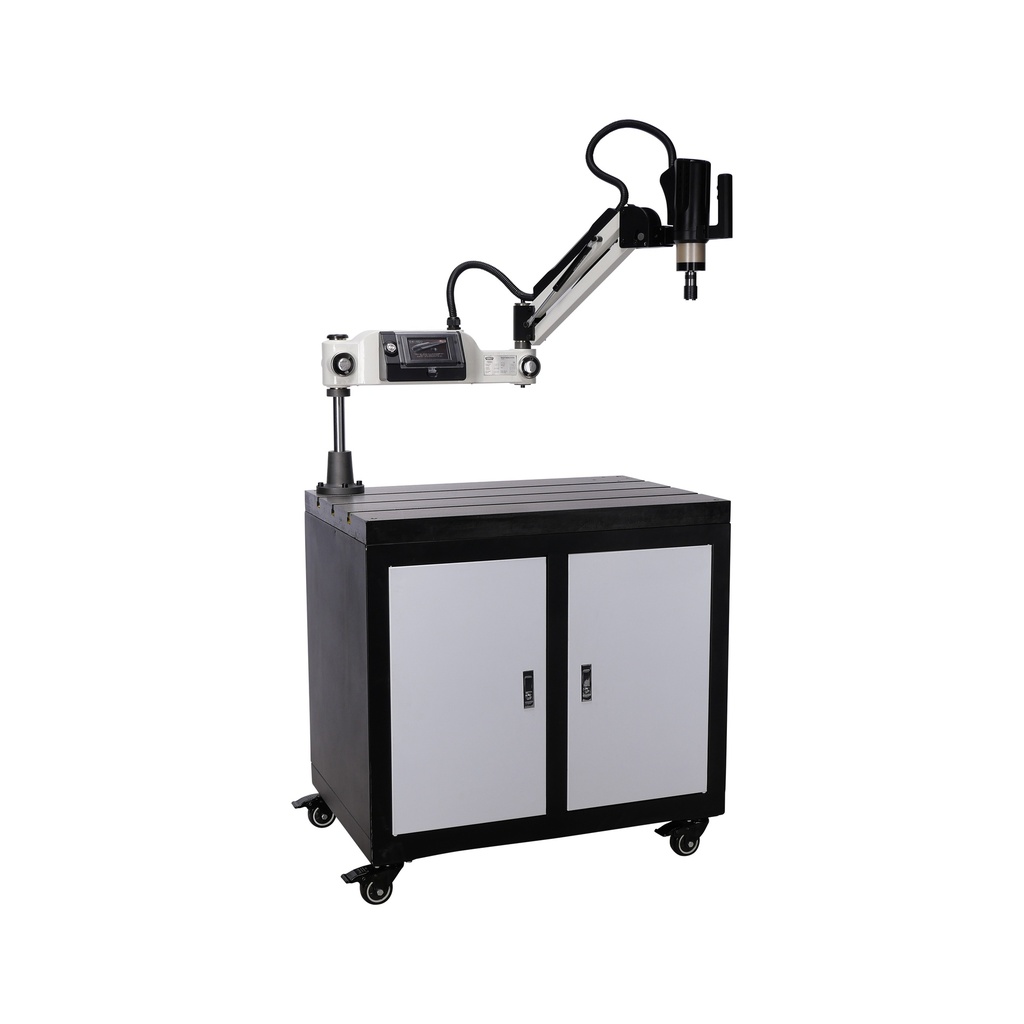

Wide tap range from M3 to M16
power = 0.6kW
tap range = M3 to M16
max. speed = 312rpm
max. working radius = 1100mm
6x GT12 DIN tap holder with slip coupling (adjustable torque):
M3 (ø3.5mm / shank = 2.7mm)
M4 (ø4.5mm / shank = 3.4mm)
2x GT12 DIN tap holder:

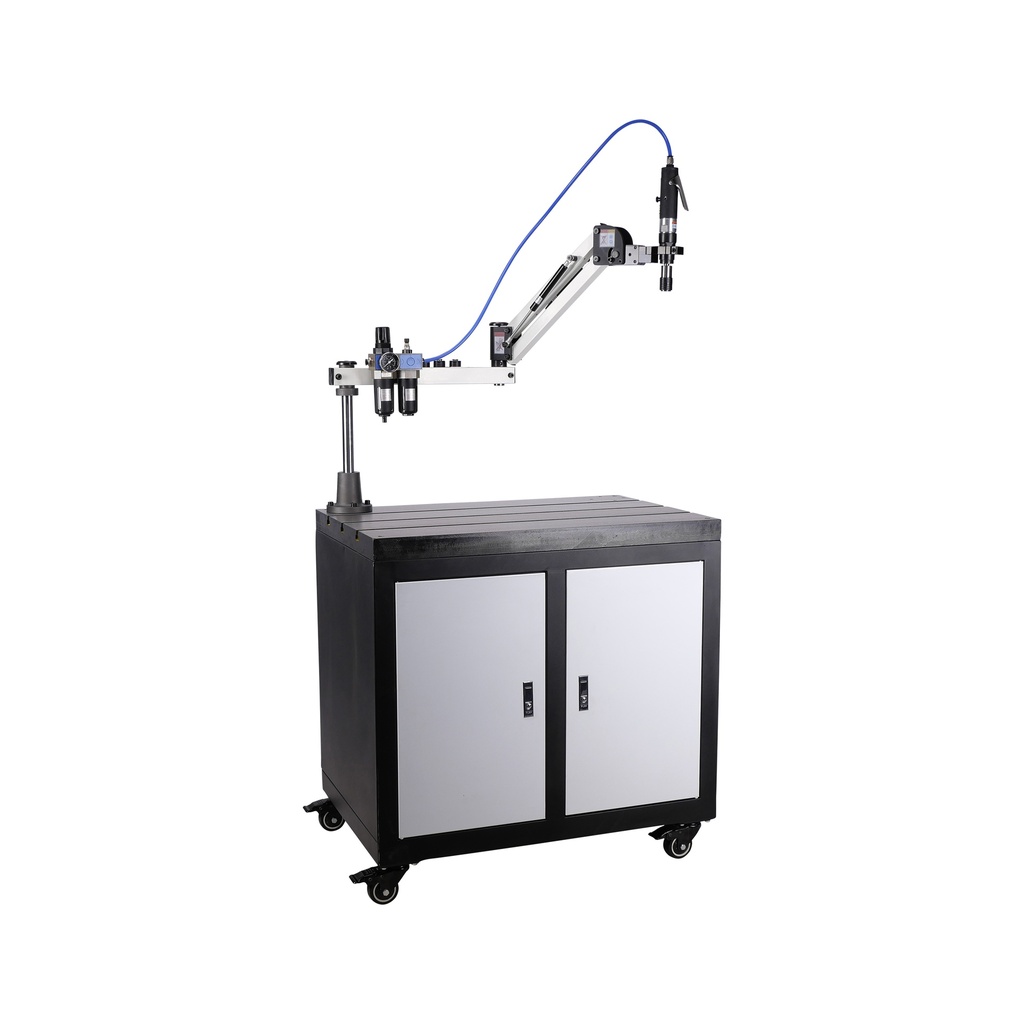

Pneumatic tapping machine / tapping arm on air
This Cowley pneumatic tapping machine is used for fast and accurate tapping of different types of materials. The machine can be used both horizontally and vertically.
Wide tap range from M3 to M12
Variable and adjustable speed
Pressure regulator with gauge
working pressure = 6 to 8 bar
tap range = M3 to M12
max. speed = 400rpm
max. working radius = 1000mm
M3 (ø3,5mm / shank = 2,7mm)
M4 (ø4,5mm / shank = 3,4mm)
