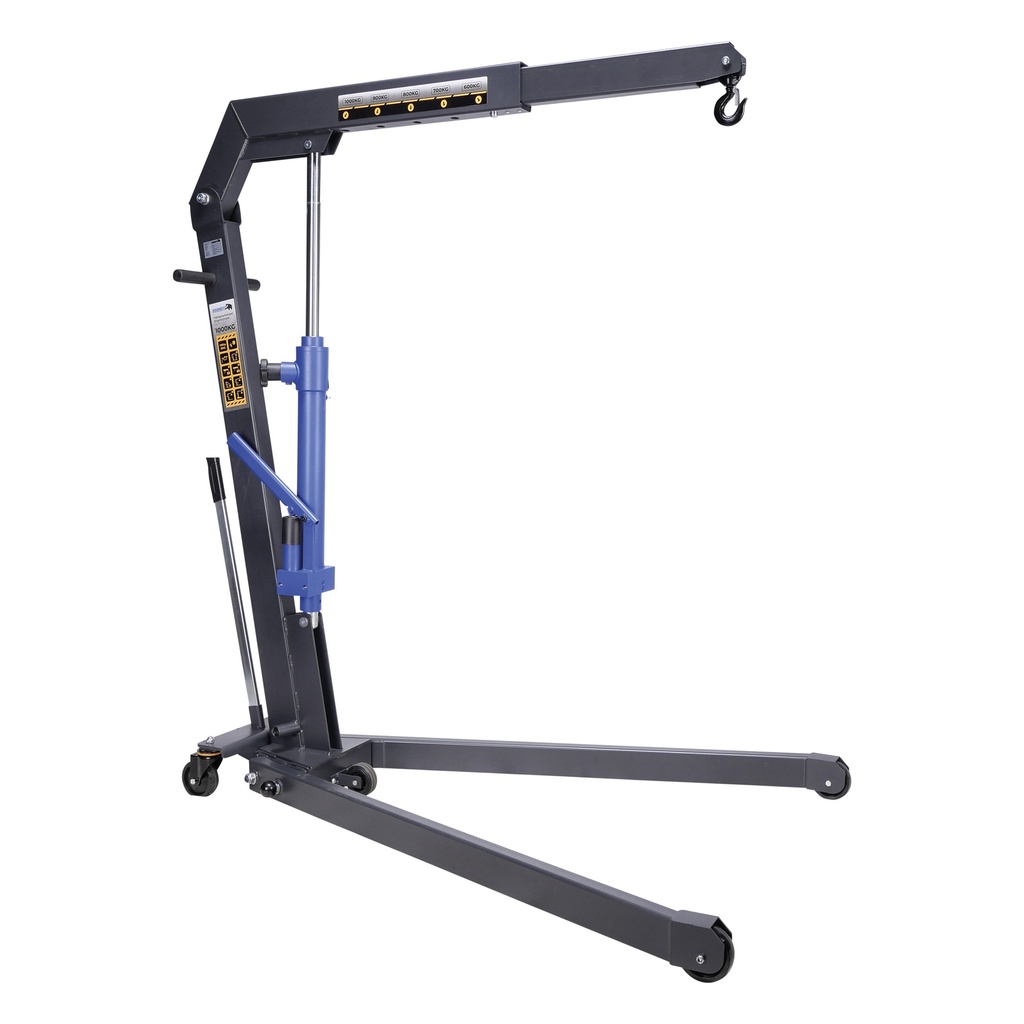

Engine Crane 1000kg
This Mammuth folding engine crane is perfect for lifting engines and general purpose lifting applications in workshops, garages, and more.
The crane has the ability to lift loads up to 1000kg.
The extension boom of the crane and can easily be locked in 5 different positions:
600kg, 700kg, 800kg, 900kg and 1000kg.
The engine crane uses the unique technology of quick lifting by dual action pump which gives the crane a higher lifting speed without load and a slower speed under load so that the load can be lifted safely.
With the automatic safety lowering valve, the engine crane guarantees a controlled lowering speed that ensures the safe load lowering.
The plunger is protected by a dust proof cover.
The crane boom has a swivel lifting hook designed to fully swivel while controlling the load.
Sturdy welded frame for increased mobility is equipped with glass fiber and hard wearing nylon wheels which prevents damage to garage floors and provides a quieter and smoother operation. The crane has a low base height thanks to the integrated wheels inside the welded frame. The engine crane can easily be folded to save space in your workshop and easy moving when folded due to the extra wheel base.
The workshop crane has the following useful features:
- Auto relief knob with built in two speed action
- hard chrome plated cylinder and piston rod for long life
- 200° rotatable cylinder assy
- fully rotatable lifting hook
- pump handle incl. locking pin
- handle holder
- V-shaped chassis base
|Product Length||1,485 mm|
|Product Width||1,075 mm|
|Product Height||1,545 mm|
|Product Weight||92.7 Kg|
|Package Length||380 mm|
|Package Width||1,590 mm|
|Package Height||245 mm|
|Package Weight||97.00 Kg|
