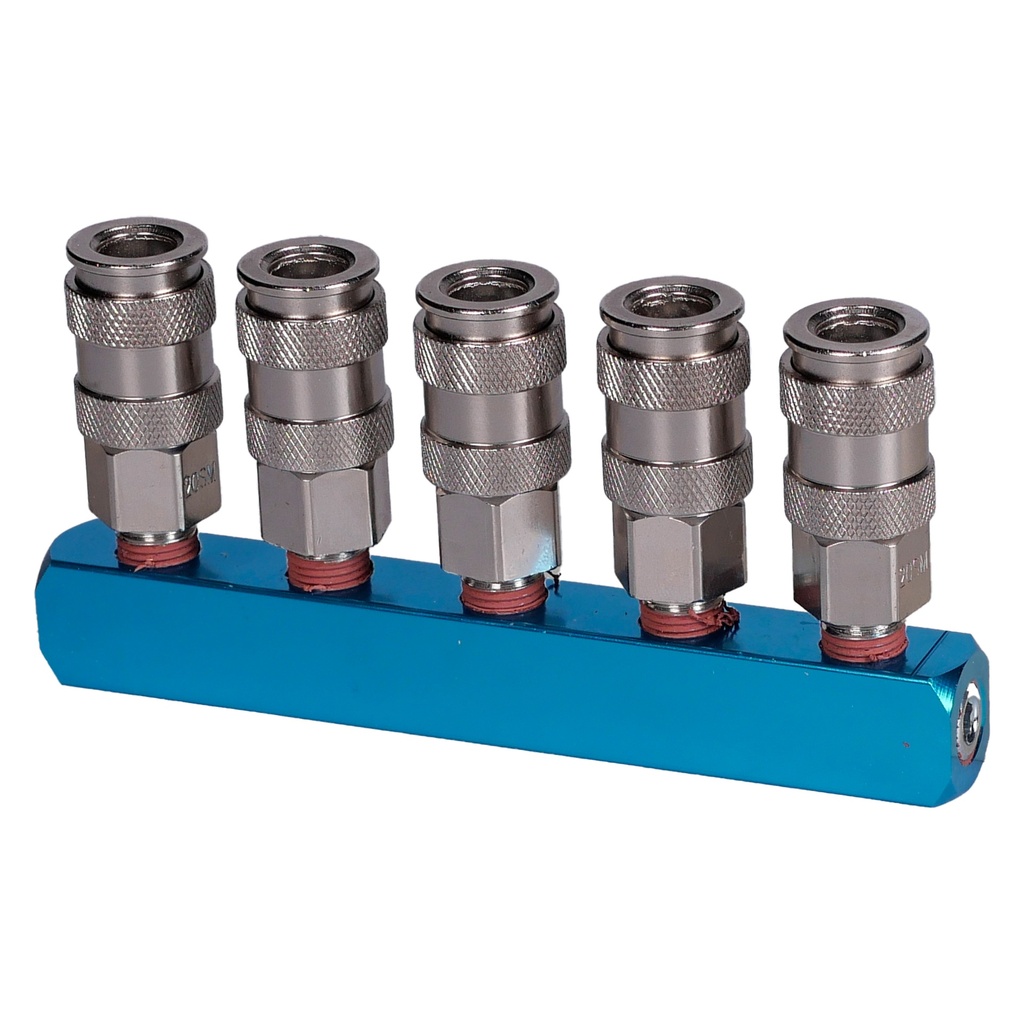

Featuring multiple side-by-side connection points, the AirPro compressed air distributor with 5 couplings. provides a streamlined and organized setup for connected devices, minimizing the risk of tripping over loose cables and hoses to create a safer and more efficient workspace. With its compact and innovative design, this manifold powers up to five devices simultaneously, optimizing space and functionality.
- Constructed with an aluminum body and steel couplers for durability and reliable performance.
- Provides secure and precise tool connections for uninterrupted operation.
- Features multiple connection points, allowing several tools to connect to a single air cable for an organized workspace.
- Lightweight, corrosion-resistant, and designed for intensive use in various environments.
- User-friendly design ensures quick and hassle-free setup, supporting a wide range of applications.
Specifications
| Material | Body: aluminum / Coupler: steel |
| Air connection | Inlet 1/2" / Outlet 1/4" |
| Fittings | euro connector |
| Thread type | BSP |
| Temperature range | -20°C to +80°C |
| Working air pressure | 15 Bar |
| Working pressure max. | 20 Bar |
Product Dimensions
| Length | 157 mm |
|---|---|
| Width | 22 mm |
| Height | 76 mm |
| Weight | 0.58 kg |
Package Dimensions
| Length | 160 mm |
|---|---|
| Width | 31 mm |
| Height | 85 mm |
| Weight | 0.62 kg |
