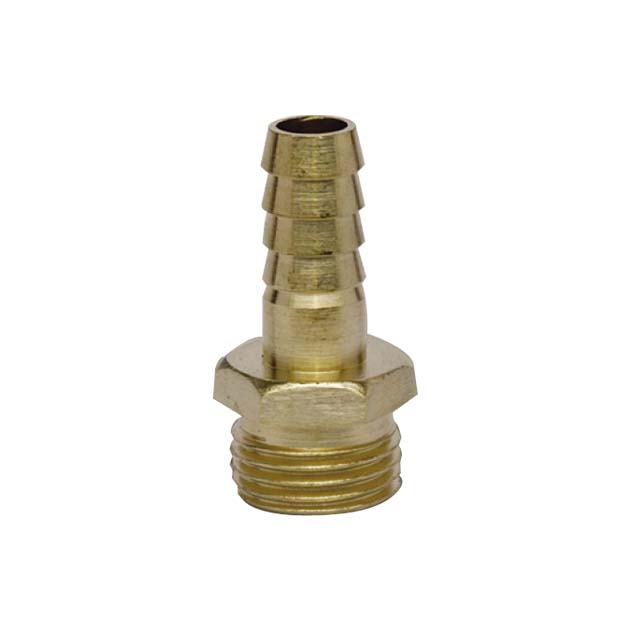

Collar and gas connector nozzle male / brass gas nozzle / hose barb / hose barb fittings / brass male hose nipple / hose barb fittings
Hose barb fittings are suitable for use with various hose and tubing. The fitting is made of brass, which guarantees excellent strength and ductility, corrosion resistance, good bearing properties, and low magnetic permeability.
Technical specifications:
- Hose connection size: 13mm
- Thread type external: BSP 1/4
- Material = brass
- Temperature range = -20ºC to +70ºC
- Working pressure = 15 bar
Product Dimensions
| Length | 27 mm |
|---|---|
| Width | 12 mm |
| Height | 12 mm |
| Weight | 0.015 kg |
Package Dimensions
| Length | 27 mm |
|---|---|
| Width | 12 mm |
| Height | 12 mm |
| Weight | 0.02 kg |
