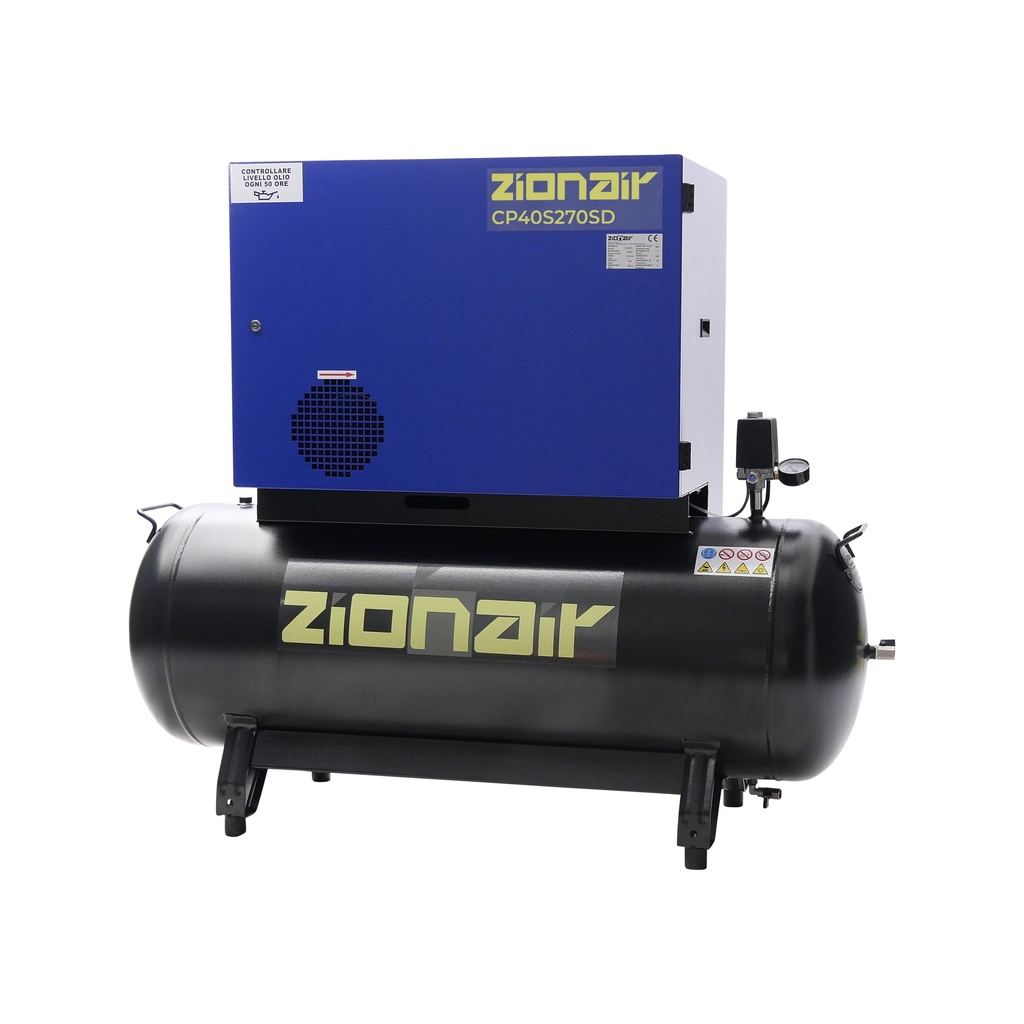

Compressor silent 4kW 400V 11 bar 270L tank star-delta

Brand: ZionAir

Product Code: CP40S270SD

EAN: 8720028094868

Availability: Available

https://www.valkenpower.com/web/image/product.template/61237/image_1920?unique=9163beb

€ 2,692.25 Incl. VAT 2692.25 EUR € 2,692.25

€ 2,225.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Air compressor / silenced compressor / silent compressor

    This ZionAir silenced compressor is produced in Italy under European quality standards and is equipped with a K25 Chinook-Shamal pump. This makes the compressor energy efficient, inexpensive to maintain, easy to use and guarantees maximum performance with minimum noise level.

    Star-delta switch to start the heavy engine step by step. The separate star-delta switch box must be mounted on the wall. There is a 1.7m cable between the compressor and switch box.

    The compressor is equipped with a "fan on demand". These built-in fans turn on automatically when the compressor temperature rises.

    Technical specifications:

    • power = 4kW

    • voltage = 400V

    • max. pump pressure = 11 bar

    • max. tank pressure = 11 bar

    • preset cut-off pressure = 10 bar

    • start-up pressure = 8 bar

    • suction volume = 600L/min

    • air output = 450L/min

    • tank volume = 270L

    • type pump = K25 Chinook - Shamal

    • speed = 1450rpm

    • duty cycle = 50%

    • noise level = 77dB (@ 1m)

    • no plug, 1.7m 5x2.5mm² cable

    • connection = 3/4" NPT internal thread (side tank)

    Product Dimensions:
    Product Length 1,550 mm
    Product Width 580 mm
    Product Height 1,270 mm
    Product Weight 170.0 Kg
    Package Dimensions:
    Package Length 1,550 mm
    Package Width 800 mm
    Package Height 1,400 mm
    Package Weight 193.00 Kg

    • Made in Italy

    • Star-delta

    • Fan on demand

    • Very low noise level

    • Low speed
