Plasmacutter torch CUT40

Welding and cutting equipment / Welding torches / Plasma torches Brand: Soldatech Soldatech

Product Code: CUT40WT

EAN: 8720028081875

Availability: Available

€ 42.35 Incl. VAT 42.35 EUR € 42.35

€ 35.00

  • Length
  • Connection
  • Air pressure
  • Duty cycle
  • Air consumption
  • Current

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

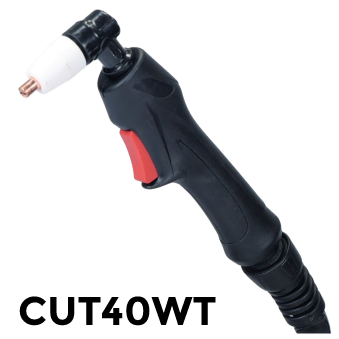

Plasma torch CUT40 / plasma cutting torch / cutting torch

This Soldatech plasma cutting torch has an ergonomic handle and a ball joint at the bottom of the torch. This, in combination with the optimal position of the switch, ensures great ease of use in all cutting positions.
The connection is made via a union nut with a connection thread (M16x1.5 mm screw connection). The switching contact for the ignition is established via a 2-pin connector plug.
All consumables for this torch are also available.
Suitable for several plasma cutters being sold in Europe incl.: Parkside PPS40B2, AVALON40, Stamos s-cutter 50.1 & S-cutter 40.
Plasmacutter torch CUT40 comes standard with:

  • 3x CUT40WTT TIP,
  • 3x CUT40WTC Ceramic cap,
  • 3x CUT40WTTH Electrode,
  • 1x CUT40WTCR Ceramic Ring.


  • Length = 3 meters
  • Connection =  euro connector threaded joint M16 x 1.5mm
  • Duty cycle = 50%
  • Current = 40A
  • Air pressure = 3.5 - 6.5 bar
  • Air consumption = 80L/min

Product Dimensions:
Product Length 3,000 mm
Product Width 38 mm
Product Height 70 mm
Product Weight 1.0 Kg
Package Dimensions:
Package Length 250 mm
Package Width 200 mm
Package Height 60 mm
Package Weight 1.16 Kg

  • Ergonomic handle
  • Ball joint at the bottom of the torch
  • Ideal switch position


Length 3 meters
Connection euro connector
Air pressure 3.5 - 6.5 bar
Duty cycle 50%
Air consumption 80L/min
Current 40A
